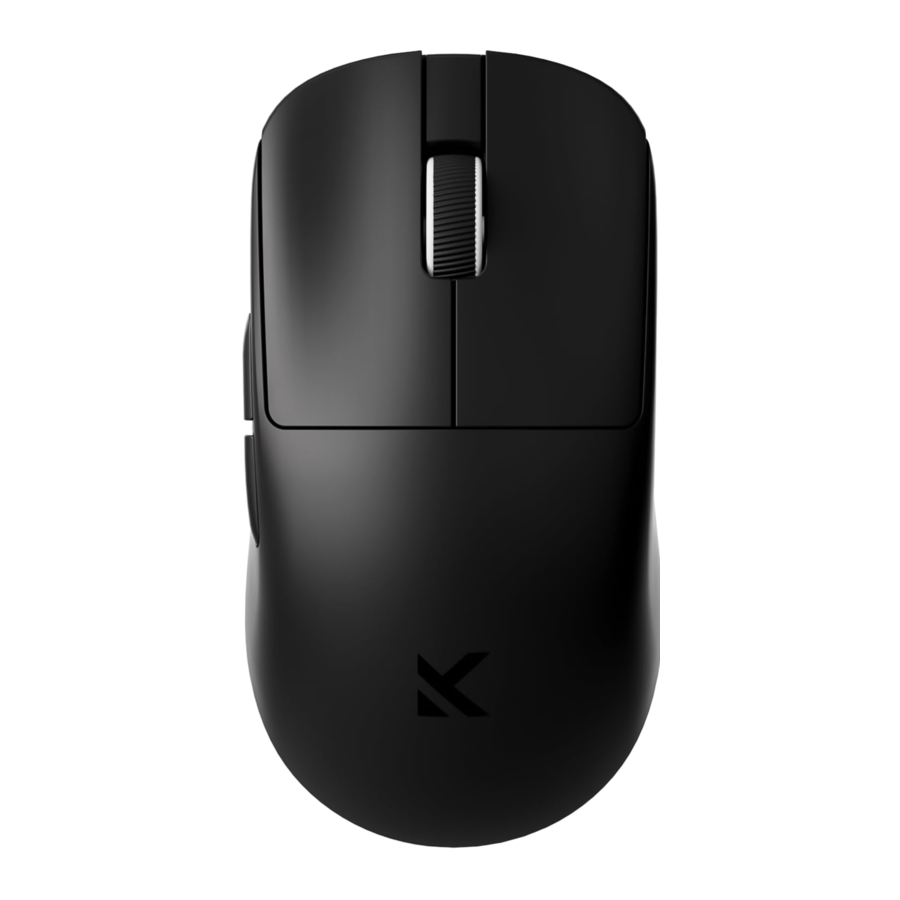

MCHOSE L7 Series Manual

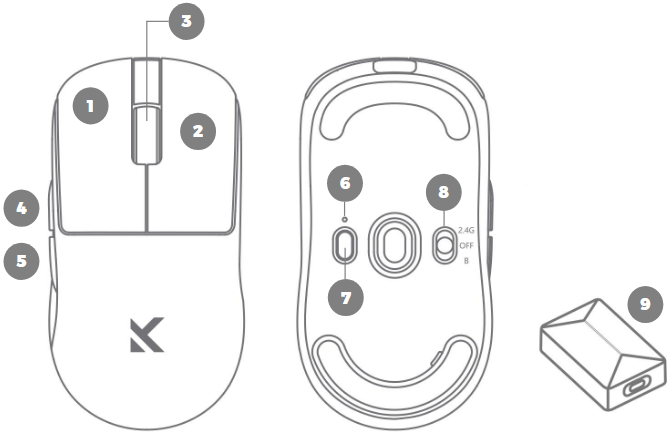

Overview

1. Left click button
2. Right click button
3. Mouse wheel/Middle button
4. Forward button
5. Back button
6. Indicator light
7. DPI switch button
8. Mode switch toggle
9. 2.4g RF wireless receiver

What's in the box

• MCHOSE L7 wireless gaming mouse
• Wireless receiver
• USB A-C cable
• Grip tape

Installation

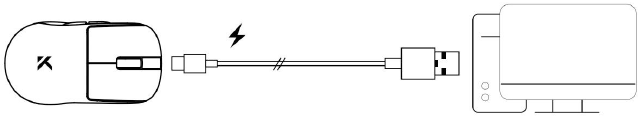

Charge/wired connection

• Connect the cable to Type-C port of the mouse, and connect the cable to a USB 2.0(high-speed) or higher port of the computer.
• In 2.4G/BT mode, plugging in the USB cable automatically switches the mouse to wired mode and simultaneously charges the mouse.

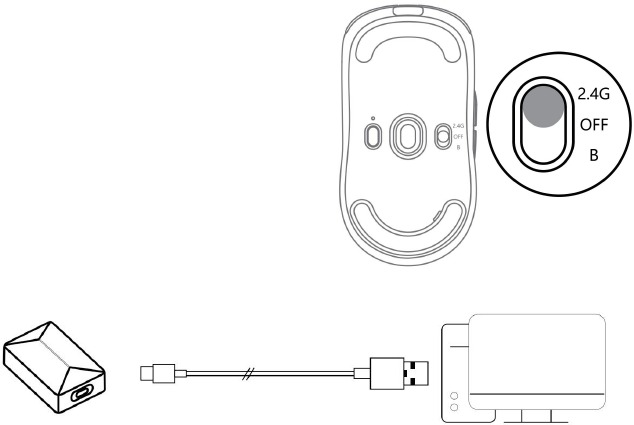

2.4G RF connection

• Switch the toggle to [2.4G]. Connect the USB receiver to the computer with the USB cable.


Manual pairing dongle (The dongle is default paired)
Press the [Left], [Middle] and [Right] buttons of the mouse simultaneously for about 5 seconds. The Mouse will enter the re-pairing mode and the indicator light flashes. Re-plug the receiver and bring the mouse close to the receiver (within 20cm), and the Indicator light will be off after a successful connection.

BT connection

• Switch the toggle to [B].

• Press the [Left], [Middle] and [Right] buttons of the mouse simultaneously for about 3 seconds. The Mouse will enter the pairing mode and the indicator light flashes. Search for the device with the pairing name [MCHOSE L7 Pro]/[MCHOSE L7 Ultra] and pair, the indicator light will be off after the pairing is successful.

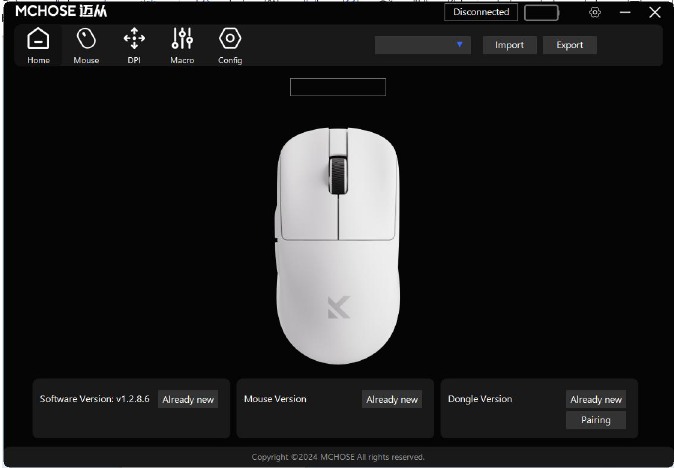

Software

To customize DPl, macro settings, update the newest firmware, and more, please download software at https://www.mchose.store/pages/firmware-2

DPI

There are 6 default DPl presets.

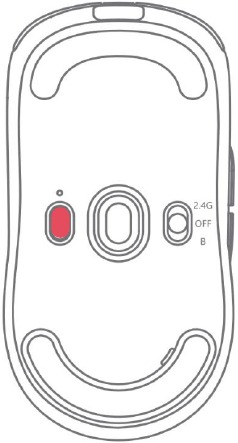

Click the [DPI switch] button at the bottom of the mouse to cycle through DPl levels. Customizing and saving DPl levels can be done within MCHOSE L7 driver software.

1. L7 Ultra is equipped a PAW3950 sensor with 42000 DPl in purple light.

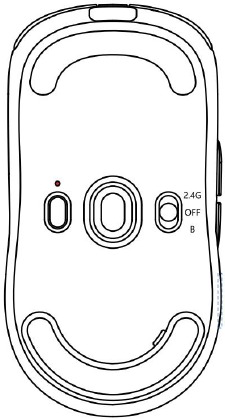

Power indicator

When the [Indicator Light] is flashing red, please charge the mouse promptly.

	The red indicator light is flashing: Please charge immediately.
	The red indicator light is on: Charging in progress.
	The green indicator light is on: Charging complete
