Canon PIXMA TR4500 Series, TR4570S, TR4570 Manual

• Safety and Important Information
• Getting Started (this manual)

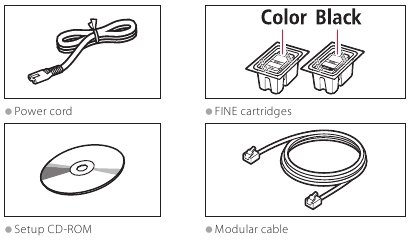

1. Remove and dispose of the packing materials from the device.

• Be sure to remove any orange tape.

2. Open the front cover and paper output cover.

3. Remove and dispose of the protective materials.

• Pull the orange tape to remove the protective material.


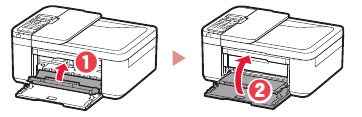

4. Close the paper output cover and front cover.

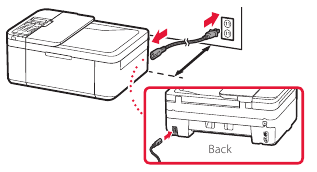

1. Connect the power cord.



• Place the printer so it is at least 5 cm away from the wall.
• At this time, do not connect any other cables.

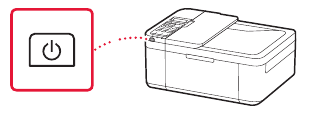

2. Press the ON button.


   If the following screen appears, press the ON button to turn off the power, and redo the procedure from step 2 in "Removing Packing Materials".

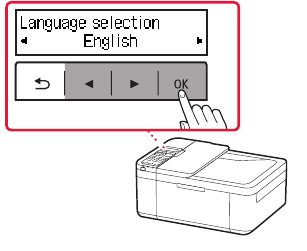

3. When the following screen appears, use the and buttons to select a language, and then press the OK button.


4. If the following screen appears, select your country or region, and then press the OK button.

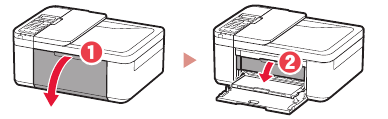

1. Open the front cover and paper output cover.

2. Remove the color FINE cartridge from the container and remove the protective tape.



• Do not touch the ink on the protective tape. It could stain your hands or surrounding objects.
• Do not touch the areas shown in the figure. Otherwise, the printer may not print correctly.


3. Install the color FINE cartridge.

• The color FINE cartridge goes on the left.

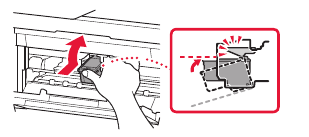

• Tilt the FINE cartridge upward at an angle and insert it into the FINE cartridge holder.

• Insert it all the way and press it upward until it clicks.


  Do not bump the FINE cartridge. Doing so may cause a malfunction.


4. Confirm that the FINE cartridge is straight and level.

5. Repeat steps 2 to 4 to install the black FINE cartridge.

• The black FINE cartridge goes on the right.


6. Close the paper output cover.


   If the following screen appears, return to step 3 in "Installing the FINE Cartridges" and confirm that the color and black FINE cartridges are positioned correctly.

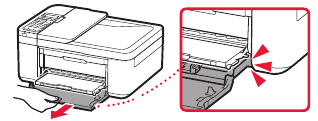

1. Pull out the cassette until it stops.

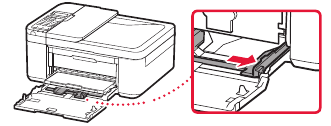

2. Slide apart the paper guides.

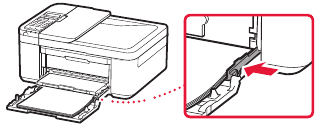

• Grip the right paper guide and move it to the right edge.


3. Load paper.

• Load plain LTR or A4 size paper with the print side facing down.


• Push the paper all the way into the cassette, and then slide the right paper guide against the edge of the paper stack.


4. Push in the cassette.

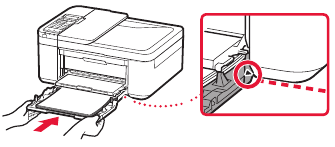

• The arrow ( ) on the front cover should align with the front edge of the printer.


5. Pull out the paper output support of the paper output tray.

6. Open the output tray extension.

7. Check that the following screen appears, and then press the OK button.


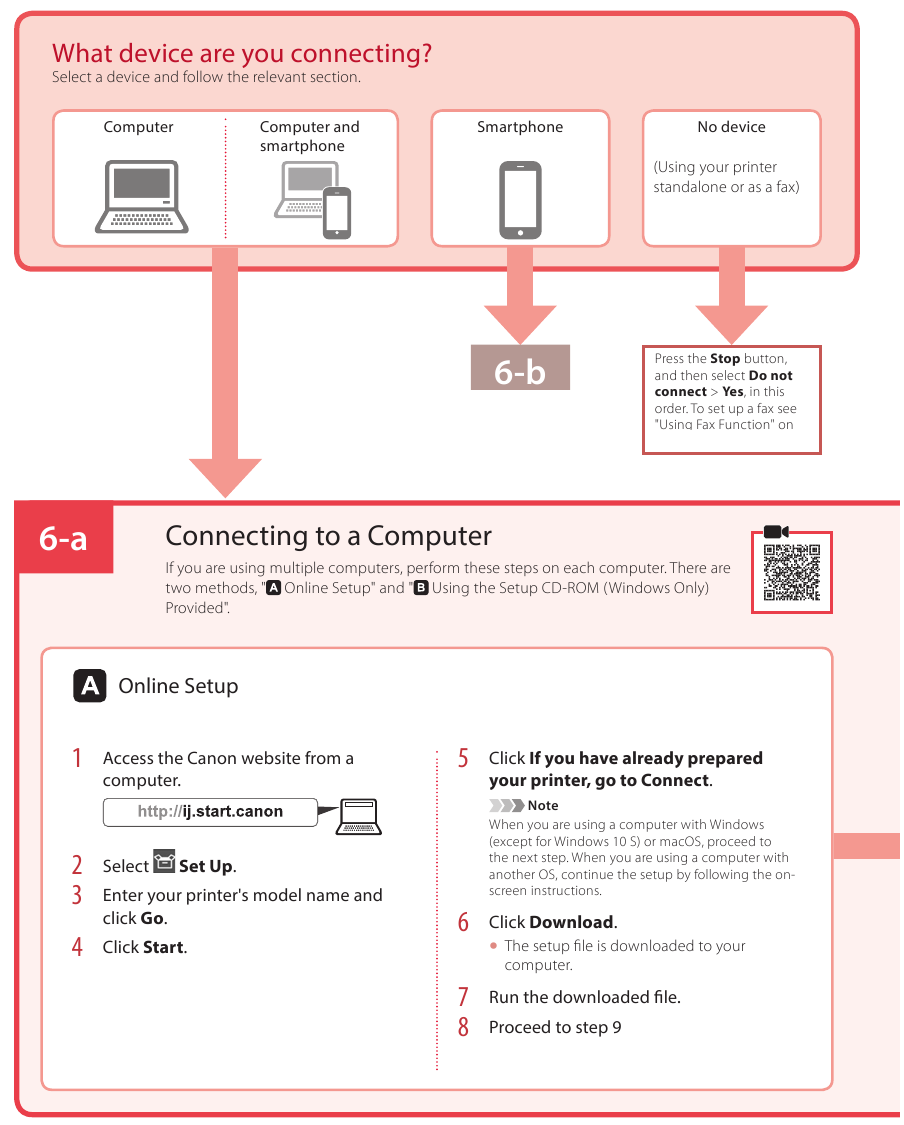

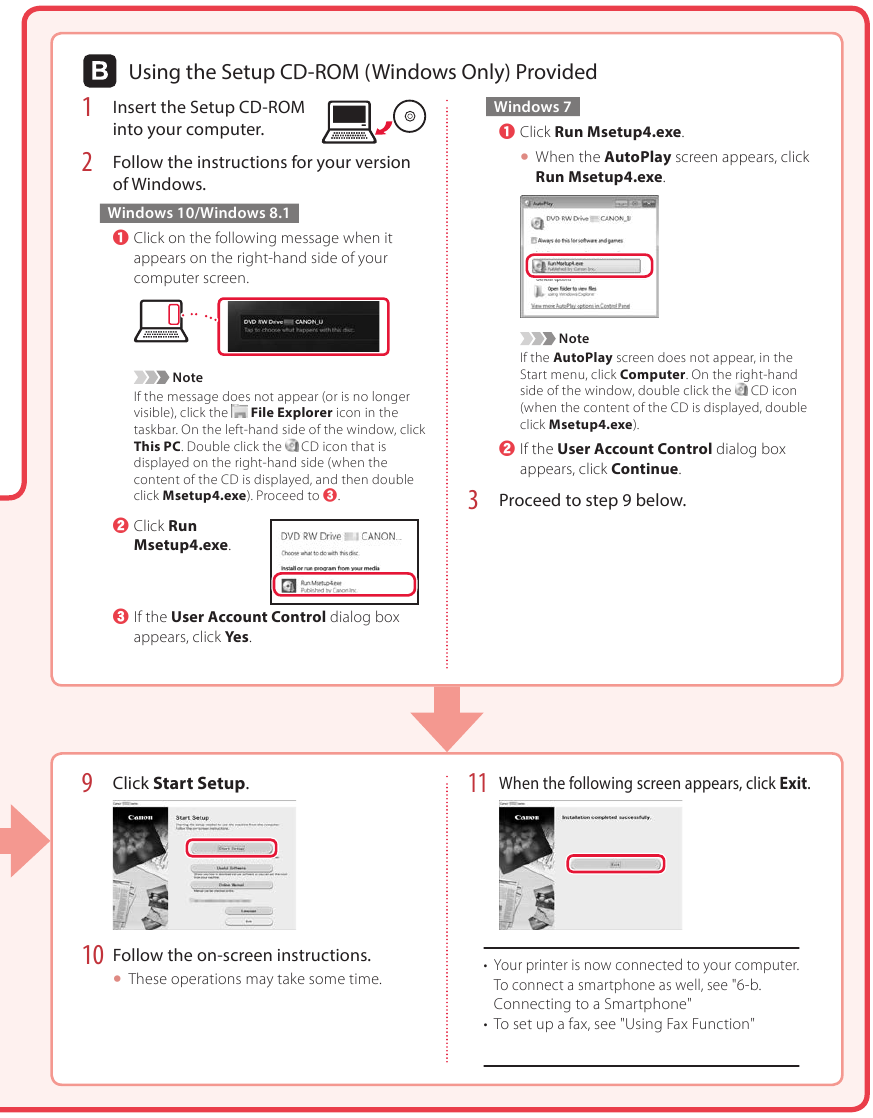

Connecting to a Smartphone
If you are using multiple smartphones, perform these steps on each smartphone.

Prepare the following before starting.

1. Enable the Wi-Fi setting on your smartphone*.
2. Connect your smartphone to the wireless router* (if you have a wireless router).
   * See your smartphone and wireless router manuals regarding these procedures for more details.

1. Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.


	Search for "Canon PRINT" in the App Store.
	Search for "Canon PRINT" in Google Play.

Note
You can also access the Canon website by scanning the QR code shown on the right to download the app.

2. Check the printer's screen as you proceed through the steps.
   If the following screen appears

   Press the Setup button and check the screen that appears.


• If appears,
• If does not appear,
  If the following screen appears

  Note

• The printer's screen turns off when the printer is idle for 10 minutes. Press a button (except the ON button) on the operation panel to turn on the screen.
• If appears, the printer cannot communicate by Wi-Fi connection. For details, see "Frequently Asked Questions" at "http://ij.start.canon".

3. Open the installed app.

4. Follow the on-screen instructions to add your printer.

5. Check that the following screen appears.


• Your printer is now connected to your smartphone. To print photos, see "Loading Photo Paper".
• To set up a fax, see "Using Fax Function" .

Procedures vary for iOS and Android. Follow the instructions for your operating system.

3. Tap Settings on your smartphone's home screen, and tap Canon_ij_XXXX in the Wi-Fi settings.

   Note
   If Canon_ij_XXXX does not appear, follow the procedure in , and then search for Canon_ij_ XXXX again.

4. Open the installed app.
   • The printer is registered with the most appropriate connection method for the environment you are using.

5. Check that the following screen appears.


3. Open the installed app.
   • The printer is registered with the most appropriate connection method for the environment you are using.

     Note
     If a message saying "No printer has been added. Perform printer setup?" does not readily appear after starting the application, follow the procedure in , and then return to smartphone operations.

4. Check that the following screen appears.


• Your printer is now connected to your smartphone. To print photos, see "Loading Photo Paper".
• To set up a fax, see "Using Fax Function".

3. Press and hold the Menu/Wireless connect button for about 3 seconds.

4. When "Follow the instructions on the PC or smartphone, etc." appears on the printer's screen, proceed to .

Loading Photo Paper

1. Pull out the cassette until it stops.
2. Slide apart the paper guides.

• Grip the right paper guide and move it to the right edge.

3. Load photo paper.

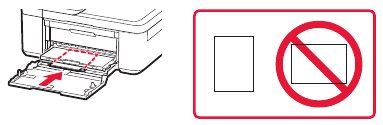

• Load photo paper in portrait orientation with the print side facing down, and place it in the center of the cassette.
• Push the paper all the way into the cassette, and then slide the right paper guide against the edge of the paper stack.


4. Push in the cassette.

• The arrow ( ) on the front cover should align with the front edge of the printer.

5. Pull out the paper output support of the paper output tray.
6. Open the output tray extension.
7. When the following screen appears, press the OK button.

8. Select the paper size and type, and press the OK button.


Using Fax Function

The fax function of your printer requires setup. Refer to either of the following manuals.

• Online Manual

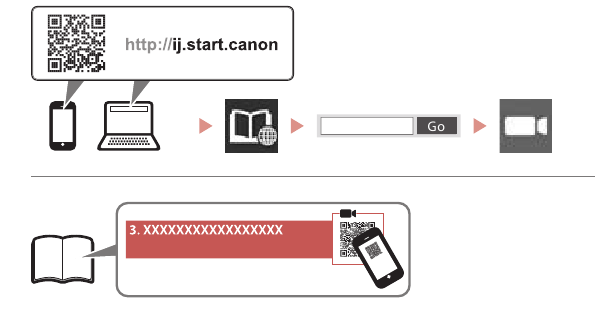

1. Access the Canon website.

   http://ij.start.canon
2. Click .
3. Enter your printer's model name and click Go.
4. Click FAX Setup Guide.

• On-screen Manual (installed on your computer)
  The following is an example using Windows 10.

1. Click the Start button.
2. Click All apps > Canon TR4500 series On-screen Manual in this order, and then open the User's Manual.
3. Click FAX Setup Guide.

If Print Results Are Unsatisfactory

Perform Print Head Alignment if straight lines are crooked or colors are inconsistent, or print results are otherwise not what you expected.
For details, click the Maintenance on the Online Manual and refer to If Printing Is Faint or Uneven > Aligning the Print Head.
Refer to the back cover for how to open the Online Manual.

• Lines Are Misaligned
