SMC FDC 37C665 parallel port super I/O diskette
U32, U34
U33, U13, U25
PCI chipset
U39
Cirrus Logic GD5430 VGA controller
Video DRAM expansion sockets
U40, U44
SIMM Installation
The computer comes with 8MB of memory using SIMMs. By
installing additional SIMMs, you can increase the amount of
memory up to 128MB.
There are four SIMM sockets on the main system board, and
each can contain one memory module. You can install 1MB,
2MB, 4MB, 8MB, 16MB, and 32MB SIMMs. The sockets are
labeled on the main system board.

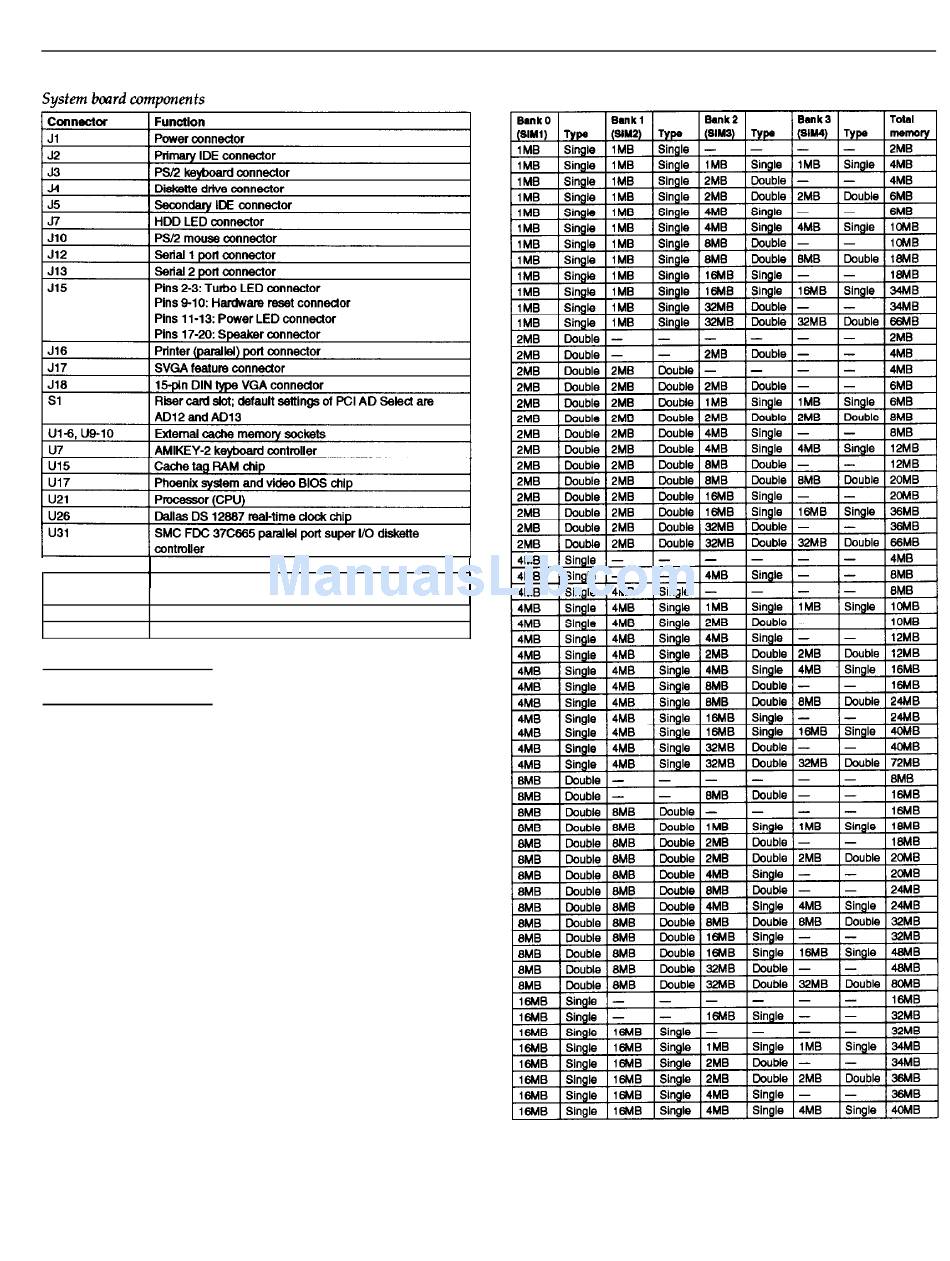

The following table shows the recommended SIMM
configurations. Do not install SIMMs in any other
configuration.
EPSON ActionPC/ActionTower 7000 series (including ActionTower 8400)
10/30/95
ActionPC/ActionTower 7000 series
SIMM configurations
(including ActionTower 8400) - 5
