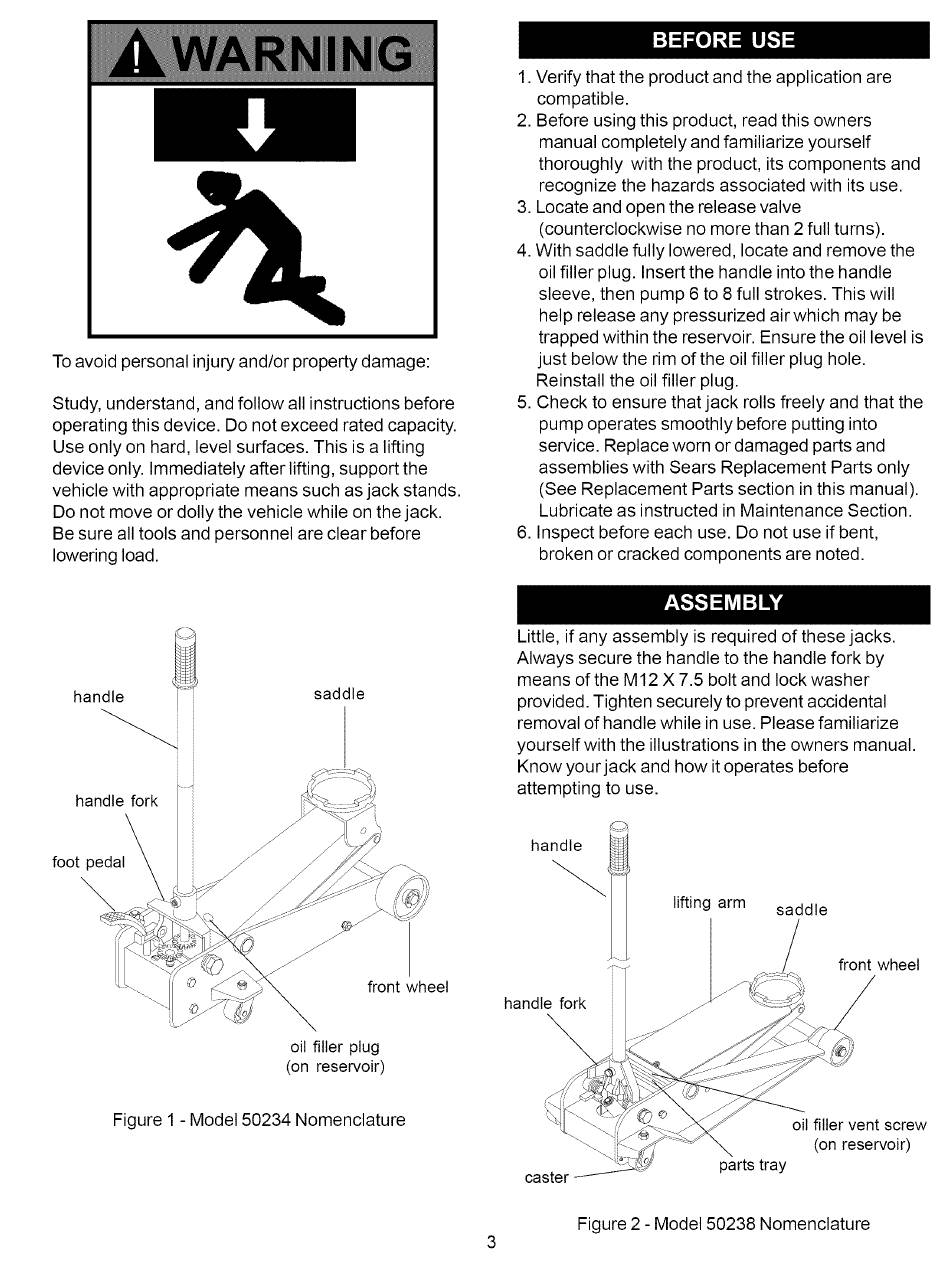

Craftsman PROFESSIONAL 50234 Operator's Manual page 3

To avoid personal injury and/or property damage:
Study, understand, and follow all instructions before
operating this device. Do not exceed rated capacity.
Use only on hard, level surfaces. This is a lifting
device only. Immediately
vehicle with appropriate means such as jack stands.
Do not move or dolly the vehicle while on the jack.
Be sure all tools and personnel are clear before
lowering load
handle
handle fork
foot pedal
Figure 1 - Model 50234 Nomenclature
after lifting, support the
saddle
front wheel
oil filler plug
(on reservoir)
BEFORE
1. Verify that the product and the application are
compatible.
2. Before using this product,
manual completely and familiarize yourself
thoroughly with the product, its components
recognize the hazards associated with its use.
3. Locate and open the release valve
(counterclockwise
4. With saddle fully lowered, locate and remove the
oil filler plug. Insert the handle into the handle
sleeve, then pump 6 to 8 full strokes. This will
help release any pressurized air which may be
trapped within the reservoir.
just below the rim of the oil filler plug hole.
Reinstall the oil filler plug.
5. Check to ensure that jack rolls freely and that the
pump operates smoothly before putting into
service. Replace worn or damaged parts and
assemblies with Sears Replacement Parts only
(See Replacement Parts section in this manual).
Lubricate as instructed
6. Inspect before each use. Do not use if bent,
broken or cracked
ASSEMBLY
Little, if any assembly is required of these jacks.
Always secure the handle to the handle fork by
means of the M12 X 7.5 bolt
provided. Tighten securely to prevent accidental
removal of handle while
yourself with the illustrations in the owners manual.
Know your jack and how it operates before
attempting to use.
handle
handle fork
caster
Figure 2 - Model 50238 Nomenclature
3
USE
read this owners
no more than 2 full turns).
Ensure the oil level is
in Maintenance Section.
components are noted.
and lock washer
in use. Please familiarize
lifting arm
saddle
front
oil filler vent
(on reservoir)
parts tray
and
wheel
screw
