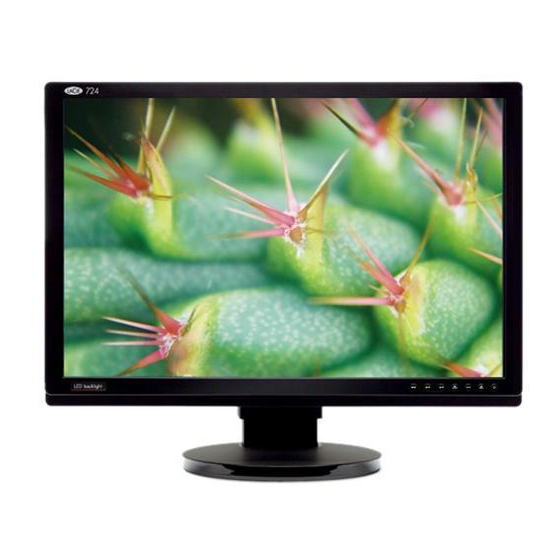

LaCie 700 Series LCD Monitors
User Manual
Table of Contents
1. Introduction .............................................................................................................. 6
1.1. LaCie 700 Series LCD Monitor Features ......................................................................................... 7
1.2. Monitor Specifications .................................................................................................................. 8
1.3. Box Contents ............................................................................................................................. 11
1.4. About the LCD Stand Pin ............................................................................................................ 12
1.5. Monitor Views and Components .................................................................................................. 13
2. Getting Connected .................................................................................................. 15
2.1. Connecting the Monitor to Your Computer ................................................................................... 16
2.2. Connecting USB Devices ............................................................................................................ 17
2.3. Installing an Alternative Stand or Attachment ................................................................................ 18
2.4. Ergonomic Adjustments ............................................................................................................. 19
2.4.1. Raise and Lower Monitor Screen ....................................................................................... 19
2.4.2. Screen Tilt ....................................................................................................................... 19
2.4.3. Swivel ............................................................................................................................. 19
2.4.4. Portrait Mode (720 only) .................................................................................................. 20
3. Monitor Operation .................................................................................................. 21
3.1. Button Functions ........................................................................................................................ 21
3.2. Settings and Adjustments (720 and 724) ...................................................................................... 22
3.2.1. Auto adjustment of the monitor settings ............................................................................. 22
3.2.2. Locking the OSD ............................................................................................................. 22
3.2.3. Choosing the Active Video Input ....................................................................................... 22
3.3. OSD Functions (720 and 724) .................................................................................................... 23
3.3.1. Picture ............................................................................................................................ 23
3.3.2. Color.............................................................................................................................. 24
3.3.3. Image ............................................................................................................................. 25
3.3.4. OSD ............................................................................................................................... 26
3.3.5. Setup .............................................................................................................................. 27
3.3.6. Information ..................................................................................................................... 27
4. Troubleshooting ..................................................................................................... 28
4.1. LaCie 720 and 724 ................................................................................................................... 28
4.2. LaCie 730 ................................................................................................................................. 31
5. Contacting Customer Support ................................................................................. 32
6. Warranty Information ............................................................................................. 34
Table of Contents
page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LaCie 730
Summary of Contents for LaCie 730
-
Page 1: Table Of Contents
User Manual page 1 Table of Contents 1. Introduction ......................6 1.1. LaCie 700 Series LCD Monitor Features ..................7 1.2. Monitor Specifications ........................8 1.3. Box Contents ..........................11 1.4. About the LCD Stand Pin ......................12 1.5. Monitor Views and Components ....................13 2. - Page 2 33 Bld du Général Martial Valin Use the attached specified cables with the assumes no liability resulting from errors 75015 Paris LaCie 700 Series color monitor so as not or omissions in this document, or from the France to interfere with radio and television re- use of the information contained herein.
-
Page 3: Safety Precautions And Maintenance
There are no user serviceable parts mally by following operating instruc- supplier. inside and opening or removing cov- tions. When operating the LaCie 700 Se- ✦ ers may expose you to dangerous If glass is broken, handle with care. ries LCD Monitor with a 220-240V ✦... -
Page 4: Health And Ergonomic Precautions
LaCie 700 Series LCD Monitors Forward User Manual page 4 Health and Ergonomic Precautions Correct placement and adjustment of the Rest your eyes periodically by fo- Adjust the monitor’s brightness and ✦ ✦ cusing on an object at least 20 feet... - Page 5 Within the European Union cords. When you need to dispose of your Outside the European Union LaCie display products, please follow the EU-wide legislation, as imple- If you wish to dispose of used electrical guidance of your local authority, or ask...
-
Page 6: Introduction
LED backlighting technology—the next step in color realism. With 14-bit gamma correction and the larg- est color gamuts available in the industry, the LaCie 700 Series monitors are ideal for all color-critical applications. The optional LaCie blue eye colorimeter and blue eye pro software are made specifically to tune your monitor for realistic image rendering. -
Page 7: Lacie 700 Series Lcd Monitor Features
The easyHood’s sturdy, one-piece hinged design ensures a stable and easy fit on the monitor. * equivalent CIE 1931 Gamuts : 111% NTSC and 116% AdobeRGB for LaCie 724/730 and 104% NTSC 109% Adobe RGB for LaCie 720... -
Page 8: Monitor Specifications
LaCie 700 Series LCD Monitors LaCie 700 Series LCD Monitors Introduction Introduction User Manual User Manual page 8 page 8 1.2. Monitor Specifications LaCie 720 Resolution UXGA (1600x1200) Panel Size 20.1-inch Panel Type Panel Backlight LED backlight (CIE 1976) 116% NTSC - 114% Adobe RGB / (CIE 1931) 104%... - Page 9 LaCie 700 Series LCD Monitors LaCie 700 Series LCD Monitors Introduction Introduction User Manual User Manual page 9 page 9 LaCie 724 Resolution WUXGA (1920x1200) Panel Size 24-inch Panel Type SPVA Panel Backlight LED backlight (CIE 1976) 125% NTSC - 123% Adobe RGB / (CIE 1931) 111%...
- Page 10 LaCie 700 Series LCD Monitors LaCie 700 Series LCD Monitors Introduction Introduction User Manual User Manual page 10 page 10 LaCie 730 Resolution WQXGA (2560x1600) Panel Size 30-inch Panel Type SPVA Panel Backlight LED backlight (CIE 1976) 125% NTSC - 123% Adobe RGB / (CIE 1931) 111% NTSC -...
-
Page 11: Box Contents
User Manual User Manual page 11 page 11 1.3. Box Contents Your box contains the LaCie 700 Series LCD Monitor and some or all of the items listed below, depending on model: LaCie 720 Monitor DVI-D cable DVI-I cable USB cable... -
Page 12: About The Lcd Stand Pin
LaCie 700 Series LCD Monitors LaCie 700 Series LCD Monitors Introduction Introduction User Manual User Manual page 12 page 12 1.4. About the LCD Stand Pin The monitor’s LCD stand is secured during transport using a pin near the base of the stand. Please follow the procedure below to remove it. -
Page 13: Monitor Views And Components
LaCie 700 Series LCD Monitors LaCie 700 Series LCD Monitors Introduction Introduction User Manual User Manual page 13 page 13 1.5. Monitor Views and Components Rear View DVI video input LCD stand pin Power connector Kensington lock slot USB peripheral ports... -
Page 14: Front View
LaCie 700 Series LCD Monitors LaCie 700 Series LCD Monitors Introduction Introduction User Manual User Manual page 14 page 14 Front View LaCie 720 and 724 Power button OSD (On Screen Display) controls Color mode select NOTe: See sections for instructions on using the power button and On Screen Display controls. -
Page 15: Getting Connected
LaCie 700 Series LCD Monitors Getting Connected User Manual page 15 Getting Connected Installing your LaCie 700 Series LCD Monitor is easy, requiring only a few simple connections: 2.1. Connecting the Monitor to Your Compute ✦ 2.2. Connecting USB Device ✦... -
Page 16: Connecting The Monitor To Your Computer
LaCie 700 Series LCD Monitors Getting Connected User Manual page 16 2.1. Connecting the Monitor to Your Computer To attach the LCD monitor to your computer, follow these in- structions: Power off your computer. Connect the signal cable (see Fig. 2.1): 2a. -
Page 17: Connecting Usb Devices
LaCie 700 Series LCD Monitors Getting Connected User Manual page 17 2.2. Connecting USB Devices USB devices can be connected to the USB connectors located on the side of the monitor. Connect the USB terminal on your computer to the USB host port on the monitor. -
Page 18: Installing An Alternative Stand Or Attachment
Do not use screws that do not comply with the VESA standard screw specifications. Do not fasten the screws too tightly, as this may damage the product or cause the prod- uct to fall, leading to personal injury. LaCie is not liable for these kinds of accidents. -
Page 19: Ergonomic Adjustments
LaCie 700 Series LCD Monitors Getting Connected User Manual page 19 2.4. Ergonomic Adjustments CAUTION: Use care when raising, lowering, titling or swivel- ing the monitor screen. 2.4.1. Raise and Lower Monitor Screen To raise or lower screen, place hands on each side of the moni- tor and raise or lower to the desired height (Fig. -
Page 20: Portrait Mode (720 Only)
LaCie 700 Series LCD Monitors Getting Connected User Manual page 20 2.4.4. Portrait Mode (720 only) Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Fig. 2.4.4). Figure 2.4.4... -
Page 21: Monitor Operation
This section describes how to use the buttons on the front of the monitor to control all of the monitor’s functions through the On Screen Display (OSD). Please note that the LaCie 730 of- fers no On-Screen Menu. The Color and Power buttons function the same way as on the LaCie 720/724. -
Page 22: Settings And Adjustments (720 And 724)
LaCie 700 Series LCD Monitors Monitor Operation User Manual page 22 3.2. Settings and Adjustments (720 and 724) 3.2.1. Auto adjustment of the monitor set- tings When the AUTO button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. -
Page 23: Osd Functions (720 And 724)
LaCie 700 Series LCD Monitors Monitor Operation User Manual page 23 3.3. OSD Functions (720 and 724) Function Available Settings Picture Brightness Contrast Color Color Tone Color Control Gamma Image Coarse Fine Sharpness H-Position V-Position Language H-Position V-Position Transparency Display Time... -
Page 24: Color
LaCie 700 Series LCD Monitors Monitor Operation User Manual page 24 3.3.2. Color Color Tone The Color Tone menu adjusts color tones to your preference. Use the up and down arrow buttons to adjust the color tone. When the color tone is balanced between “warm” and “cool”... -
Page 25: Image
LaCie 700 Series LCD Monitors Monitor Operation User Manual page 25 3.3.3. Image Coarse Use the Coarse control to remove noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the H-Position control menu. -
Page 26: Osd
LaCie 700 Series LCD Monitors Monitor Operation User Manual page 26 3.3.4. Language You can choose one of 9 languages. English, Deutsch, Espanol, Français, Italiano, Svenska, Russian, Portugues, Türkçe NOTe: The language chosen affects only the language of the OSD. It has no effect on any software running on the com- puter. -
Page 27: Setup
LaCie 700 Series LCD Monitors Monitor Operation User Manual page 27 3.3.5. Setup Auto Source Select Auto Source for the monitor to automatically select the signal source. Image Reset Image Reset returns all image parameters to factory default val- ues. -
Page 28: Troubleshooting
28 4. Troubleshooting Manual Updates In the event that your LaCie 700 series LCD Monitor is not work- ing correctly, please refer to the following checklist to find out LaCie is constantly striving to give you the most up-to-date, com- where the problem is coming from. - Page 29 LaCie 700 Series LCD Monitors Troubleshooting User Manual page 29 Problem Checklist Solutions If the power is on and neither …reboot the computer to see the initial screen login screen. If the of the the above messages initial login screen appears, boot the computer in Safe Mode and then appears…...
- Page 30 LaCie 700 Series LCD Monitors Troubleshooting User Manual page 30 Problem Checklist Solutions The screen displays im- Have the Windows display set- Windows ME/2000/XP: Set the colors properly in Control Panel/ ages in only 16 colors. tings been set properly? Display/Settings.
-
Page 31: Lacie 730
LaCie 700 Series LCD Monitors Troubleshooting User Manual page 31 4.2. LaCie 730 Problem Checklist Solutions The monitor will not turn Is the power cord connected Check the power cord connection and supply. properly? No images appear on the Is there a “Check Signal Ca- If a “Check Signal Cable”... -
Page 32: Contacting Customer Support
Read the User Manual and review the Troubleshooting section. If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can’t get your LaCie monitor to work properly, contact us via the contacts on page xx. Before contacting us, make... -
Page 33: Lacie Customer Support Contacts
LaCie 700 Series LCD Monitors Contacting Customer Support User Manual page 33 LaCie Customer Support Contacts LaCie Asia, Singapore, and Hong Kong LaCie Australia Contact us at: Contact us at: http://www.lacie.com/asia/contact/ http://www.lacie.com/au/contact/ LaCie Belgium LaCie Canada Contact us at: Contact us at: http://www.lacie.com/be/contact/... -
Page 34: Warranty Information
LaCie warrants your monitor against any defect in material and workmanship, under normal use, for the period designated on your war- ranty certificate. In the event this product is found to be defective within the warranty period, LaCie will, at its option, repair or replace the defective product.
