Summary of Contents for Plextor PX-PA15AW

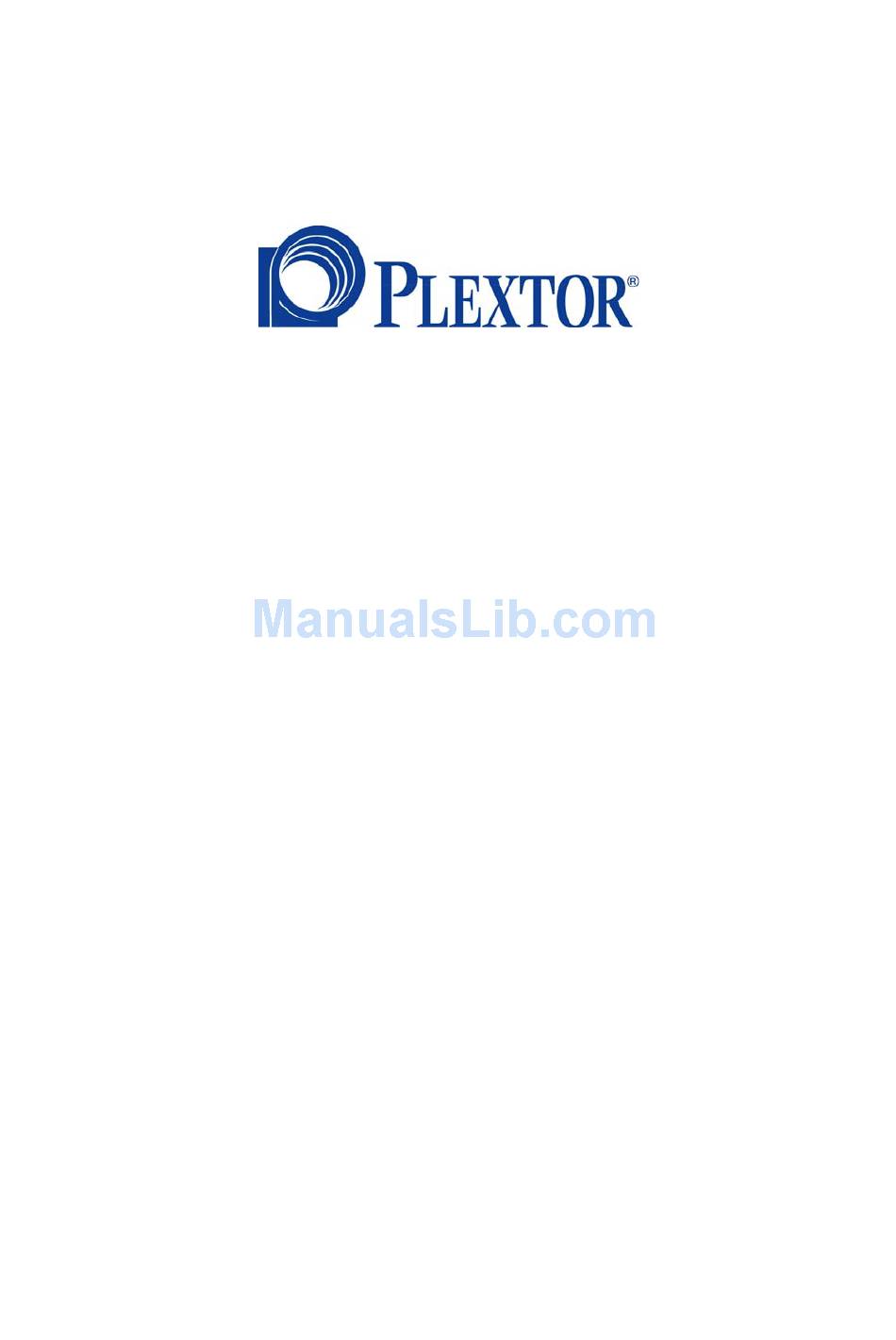

- Page 1 For Hardware Settings March 2006...
- Page 2 Copyright © 2006 Plextor Corp. All Rights Reserved. No portion of this document may be copied or reproduced in any manner without prior written permission from Plextor Corp. Plextor has no warranties to this documentation and disclaims any implied warranty of merchantability or fitness for a particular purpose.
-
Page 3: Table Of Contents
Content Chapter 1 Starting up the PX-PA15AW ........1 Chapter 2 Setting up the PX-PA15AW..........4 Status ......................4 Setup ......................5 Maintenance ....................7 Change Username/Password ..............7 Download WMS ..................8 Site Survey ....................8... -
Page 4: Starting Up The Px-Pa15Aw
Starting up the PX-PA15AW Starting up the PX-PA15AW Chapter 1 Here is a description of how to configure and log in to the PX-PA15AW. 1. After the Receiver Box has been connected, turn it on and wait for 10 seconds. We recommend using the Ethernet LAN port to connect to the Receiver Box. - Page 5 Starting up the PX-PA15AW b. Click Internet Protocol (TCP/IP) and change the IP address to a number between 192.168.168.2 and 192.168.168.254. (Don't use 192.168.168.30). Type 255.255.255.0 for the Subnet mask. Example of an IP Address...
- Page 6 Starting up the PX-PA15AW 3. Use your Internet browser to open http://192.168.168.30/ to see the configuration page for the Receiver Box. Type "admin" as User name, and "1234" for Password. You must disable your firewall and proxy settings. If the configuration page doesn't open, turn the device off and on to reset it.
-
Page 7: Setting Up The Px-Pa15Aw
Setting up the PX-PA15AW Setting up the PX-PA15AW Chapter 2 The main menu has all the controls for configuring your PX-PA15AW. Status Under Status, you can view the current settings of the Ethernet LAN or WLAN. Click General and LAN to see the Device Information and LAN Settings, including the MAC and IP address. -
Page 8: Setup
Setting up the PX-PA15AW Setup Under Setup, you can choose LAN or WLAN. LAN is used to choose DHCP or static for the IP address. • If you select DHCP, you have to find the IP address by using another tool or by asking your MIS department if you ever need to reconfigure. - Page 9 Setting up the PX-PA15AW Use WLAN to change these settings. • Country is used to identify the WLAN card set. • Region is used to identify the radio certification. For example, FCC, ETSI. • SSID is defaulted to use “WMS100-IMAGE” •...
-
Page 10: Maintenance
Setting up the PX-PA15AW Maintenance Click to upgrade firmware or reset factory default and bridge functions. Change Username/Password Click for security control to restrict access to the PX-PA15AW Receiver Box. You can press the Reset button for more than 5 seconds to get the default user name and password if you forget it. -
Page 11: Download Wms
Setting up the PX-PA15AW Download WMS Click to download the WMS software. It takes about 2 minute and 20 seconds. The program will be installed immediately. Site Survey This function is used to connect to any other SSID groups, especially Access Point...
