Panasonic DIMENSION 4 Premier Operating Instructions Manual
Microwave/combination oven
Panasonic
DIMENSION
Microwave/Combination
Panasonic
OPERATING
INSTRUCTIONS
4 Premier/PIus
Oven
Premier:NN-D801/NN-D851
IMPORTANT:
Do not discard these operating instructions — they should be
kept for further reference along with your cookbook.
Before operating this oven, please read these instructions carefully.
.NN1-nxnf
This appliance was produced to BS 800.
Table of Contents
Related Manuals for Panasonic DIMENSION 4 Premier
Summary of Contents for Panasonic DIMENSION 4 Premier

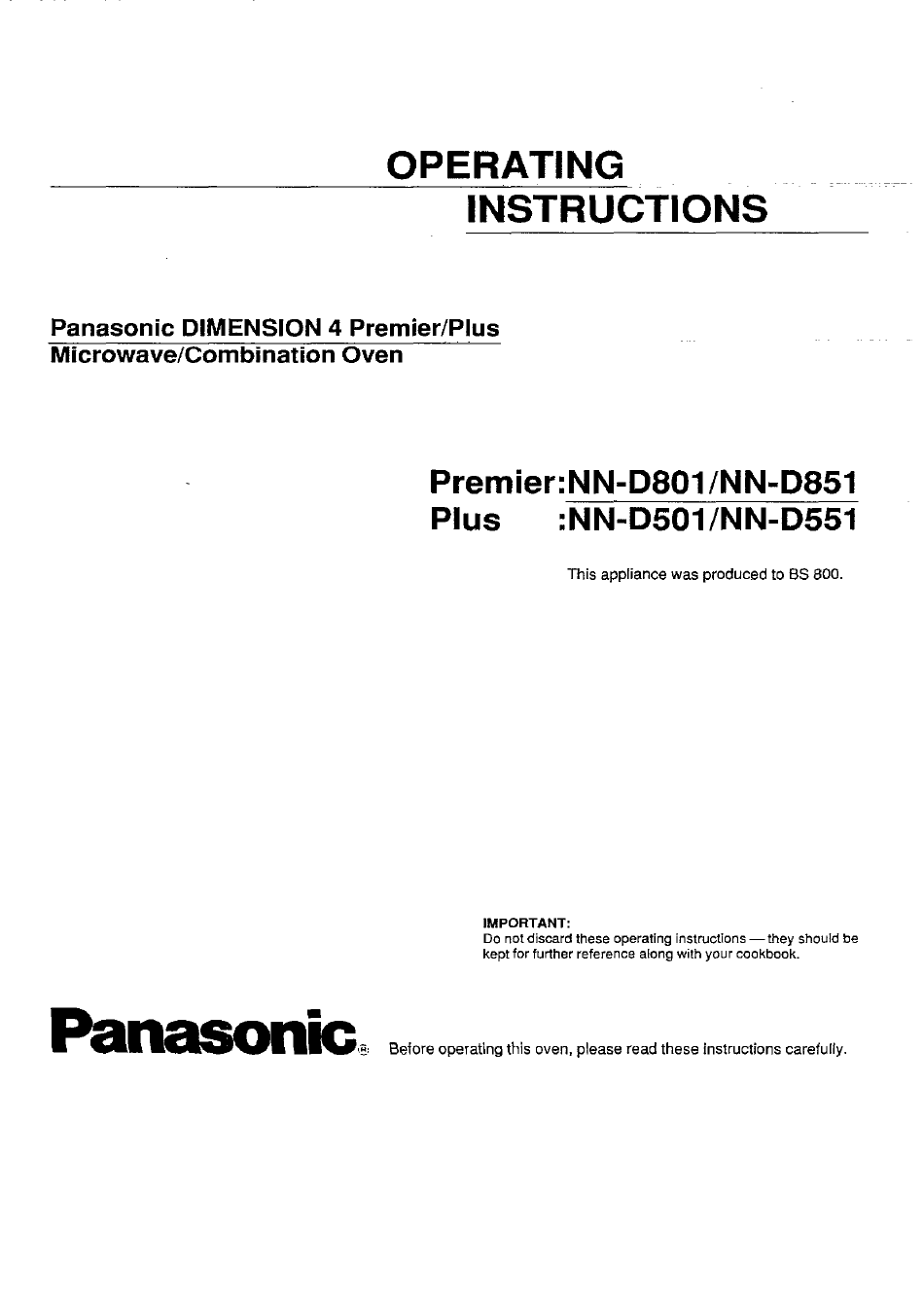

- Page 1 OPERATING INSTRUCTIONS Panasonic DIMENSION 4 Premier/PIus Microwave/Combination Oven Premier:NN-D801/NN-D851 .NN1-nxnf This appliance was produced to BS 800. IMPORTANT: Do not discard these operating instructions — they should be kept for further reference along with your cookbook. Panasonic Before operating this oven, please read these instructions carefully.
-
Page 2: Installation
Card Fill out and post the pre-addressed guarantee card. Built Earthing Instructions I , In case of fitting into an oven housing. please use Panasonic•s Trim Kit NN-TKDOI (for NN-D801,0501 i, IMPORTANT FOR PERSONAL SAFETY. THIS APPLIANCE NN-TKD51 (for NN-D851/D551) - Page 3 Turntable may vibrate. This will not affect cooking performance. may build up and the eggs wili exptode. Accessories: 6) Piercing Skin Follow specific instructions in the Panasonic cookbook 'Potatoes. appies, egg yolks, whoie vegetabies and proper use of oven accessories and cookware.
-
Page 4: Feature Diagram
Feature Diagram Door Release Button A-.z.z.x.•— Oven Window Door Safety Lock System Oven Air Vents Control Panel External Oven Vents Slide In Shelf Guides Metal Tumtable Support Door Seal Area Display Window (10) Control Panel Plus Premler NN-DS01fNN-DS51 NN-D801 INN-D851 äg:gæ... - Page 5 Oven Accessories The following is a chart in which you will find the correct use of the accessories in the oven. Glass Turntable Plastic Defrost Rack Metal Turntable Solid Shelf (NN-D801/D851) YES (DEFROST only) Microwave Grill Bake Convection YES (Lower Level) 2 Level Conv.
-
Page 6: Controls And Operation
Controls and Operation Procedure Step by Step Display (Plus model): Kg/lb Conversion (Plus model): To assist you in programming the oven easily. the next When using the Auto Weight Defrost feature and most Auto operation for you to press is indicated in the display window. Programs. - Page 7 Microwave Cooking and Defrost Selecting Micro Power Level: HIGH power 800 W 1 press The Micro Power Pad automatically counts 270 w 2 presses DEFROST power down from HIGH to WARM when finger is held on Micro Power Pad. The chart shows MEDIUM power 560 w...
- Page 8 Convection Cooking (with fan) The Convection Pad offers a choice of convection temperaturesfrom TOO- 250'C in 10'C increments. For quick SereetiofiOf the most commonly used cooking temperatures, the temperatures start at 150•C and count up to 250•C then 1OO•C, I IO'C etc. Changing Oven Temperature durlng Convection/2...
- Page 9 Baking (without fan) The Bake Pad offers a choice of baking temperatures from 40, 100 - 25TC in 10'C increments. For quick selection of the most commonly used cooking temperatures, the temperatures start at 150•C and count up to 250T then 40•C, IOO•C, 1IO'C etc. Changing Oven Temperature during Bake:...
- Page 10 Grilling The Grill Pad provide 3 Grill settings. Press Grill Pad once for Grill I — High setting. Press Grill Pad twice for Grill 2 — Medium setting. Press Grill Pad 3 times for Gritl 3 — Low setting. Use of Accessory: Square Splash Guard * Please place rack shelf and solid shelf into oven ensuring arrow points to back •solid...
-
Page 11: Combination Cooking
Combination Cooking There are 3 combination settings — Grill Combination (Grill + Microwave), Bake Combination (Bake + Microwave) and Convection Combination (Convection + Microwave). Use of Accessory: Grill Combination Bake Combination Convection Combination mela. urnwøie n0u1•u Metal Turntable Combination Cooking: Bako •Press Combination... - Page 12 4. Auto Programs must only be used for foods as listed on panel and as described in Cookbook _All foods should be taken from their normal place of storage ie meat from fridge etc. For more detailed information, refer to your Panasonic Cookbook.
- Page 13 Use of Accessory: For Premier mode! Plus model Accessory Accessory Plastic Defrost Rack Sensor Defrost Glass Turntable Re,'æat Frj&e Rehear Fridge Reheat ROOT %9etab/es F,oz. vegetables Glass Turntable Fish Glass Turntable Froz Round Wire Rack Crisc Jackets Round Wire Rack Metal Turntable Cosp Jackets...
-
Page 14: Delay Start Cooking
Delay Start Cooking (All cooking modes except Auto Program Cooking) Using the Delay/Stand Pad, you are able to program Delayed Start cooking. inoperable e.g. Delay,' Stand 1 — -min seconds •Press Delay/Stand Pad. •set the Delay Time by •Select desired cooking •Press Start... - Page 15 Q: CanIeasilycookmyfavourite recipes Yes. You can cook your favourite recipe just as you would in a conventional using CONVECTION!BAKE/GRILL? oveh. Check instructions in the Panasonic Cookbook for suggested oven temperatures and cooking. times, Q: How do I check for doneness?
-
Page 16: Specifications
Technical Specifications Power Source: 240 V, 50 Hz Oven Cavity Dimensions: 254 mm (H) x 367 mm (W) x 387 mm (D) Power Consumption: Microwave: 1480 Maximum: 2760 Oscillation Frequency: 2.450 MHz 01 ltnut. Microwave: RI lilt in Trim Kit• INN-nsr,n NN-TKD51 b4N-D851/NN-D551) Heater:... -
Page 17: Read Carefully
Read Carefully (It is essential that all information contained in the Operating Instructions be read before using this appliance.) Liquids that have been heated by microwave can suddenly erupt. This is due to layers heated to higher temperatures being trapped under surface.
