Emerson DELTAV FB3000 Installation Manual
Rtu 4-port serial communications module
Hide thumbs
Also See for DELTAV FB3000:
- Instruction manual (132 pages) ,
- Safe use instructions (51 pages) ,
- User manual (44 pages)
Related Manuals for Emerson DELTAV FB3000
Summary of Contents for Emerson DELTAV FB3000

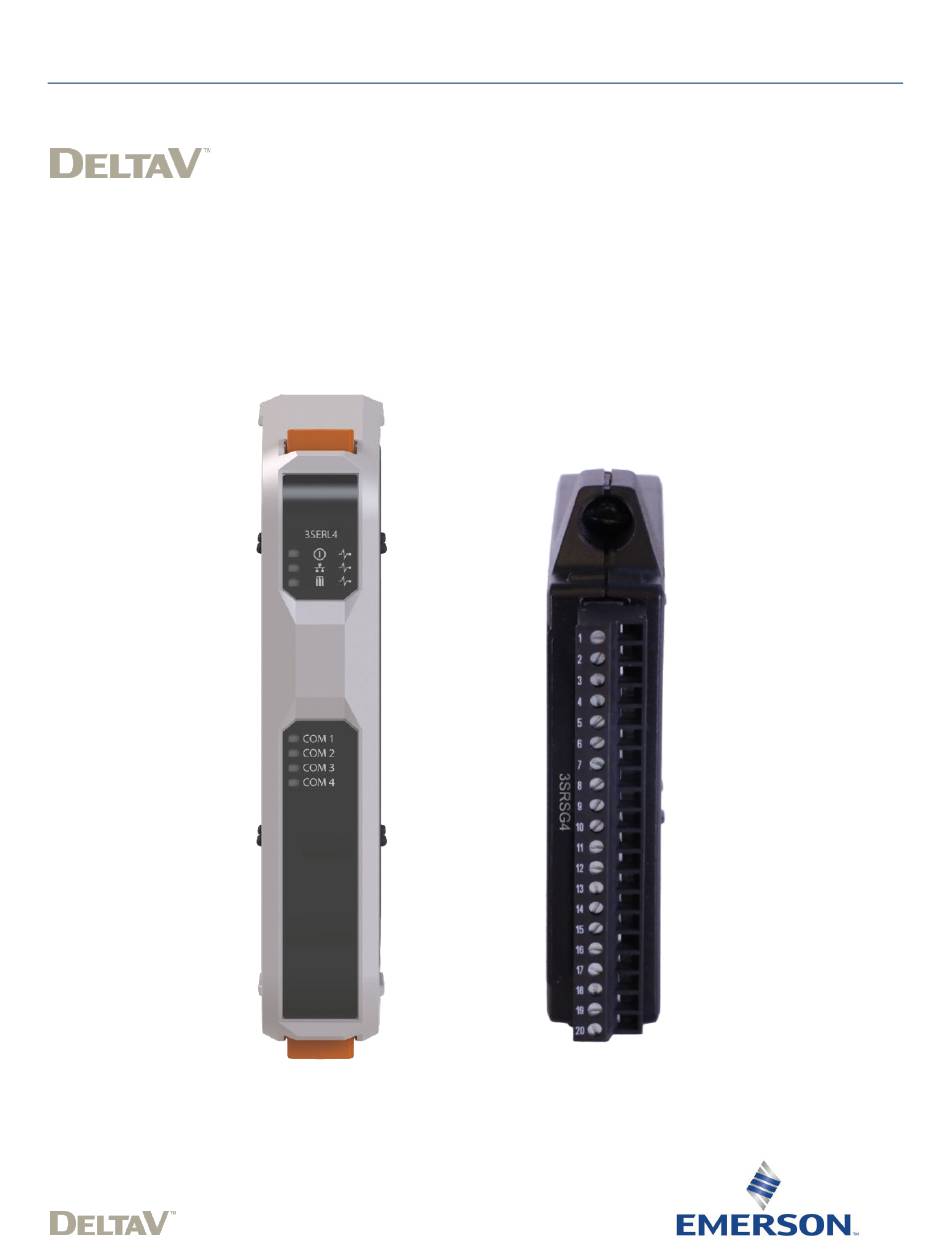

- Page 1 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 FB3000 RTU 4-Port Serial Communications Module Field Installation Guide 3SERL4 Logic Module 3SRSG4 Personality Module...
- Page 2 Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs.
- Page 3 April 2025 4-Port Serial Communications Module The DeltaV FB3000 RTU supports a 4-port serial communications module that to provides additional MVS communication channels beyond those available on the CPU module. The module provides no loop power for connected devices; all devices must have external power.
- Page 4 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 DANGER During removal/replacement, (“hot swapping”), switch communications to whatever manual/backup system you have in place. DANGER Lors d'un « remplacement à chaud », mettez en place un système manuel ou de secours pour assurer la continuité...
- Page 5 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Removing/Replacing the 3SERL4 Logic Module DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION: Ne jamais ouvrir le boîtier dans une zone dangereuse.
- Page 6 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 1. Depress the orange tabs at the top and bottom of the 3SERL4 logic module to release the module and slide it straight out of the slot.
- Page 7 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Removing/Replacing the 3SRSG4 Personality Module DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION: Ne jamais ouvrir le boîtier dans une zone dangereuse.
- Page 8 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Removing a Personality Module 3. Press the replacement personality module into the slot until it is properly seated, then tighten the captive fastening screw. Replacing the Personality Module 4.
- Page 9 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Wiring the 3SRSG4 Personality Module DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION: Ne jamais ouvrir le boîtier dans une zone dangereuse.
- Page 10 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Port RS-232 4-wire RS-485 2-wire RS-485 COM4 TxD4 TxD4+ TxRxD4+ RTS4 TxD4- TxRxD4- RxD4 RxD4+ CTS4 RxD4- GND4 GND4 GND4 X = N/C Use DeltaV FBxConnect software to choose the port usage for each of the four COM ports on the 4-port Communications module.
- Page 11 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Connecting a serial port to an RS-485 (4-wire) Device You can wire any of the four serial ports for communication with an RS-485 (4-wire) device. When connecting a COM port to another device using RS-485 (4-wire), follow this...
- Page 12 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Connecting a serial port to an RS-485 (2-wire) Device You can wire any of the four serial ports for communication with an RS-485 (2-wire) device. When connecting a COM port to another device using RS-485 (2-wire), follow this...
- Page 13 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Connecting a serial port to a Rosemount 4088B Transmitter You can wire any of the four serial ports for communication with a Rosemount 4088B transmitter using RS-485 (2-wire).
- Page 14 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Connecting a serial port to Multiple Rosemount 4088B Transmitter (Multi-Drop) You can wire any of the four serial ports for communication with multiple multi-dropped Rosemount 4088B transmitters using RS-485 (2-wire).
- Page 15 DeltaV FB3000 RTU 4-Port Serial Communications Module Field Installation Guide D301939X012 April 2025 Software Configuration Consult the DeltaV FBxConnect online help or the DeltaV FBxConnect Configuration Software (D301882X012) for details. The following example User Manual (for the DeltaV FB3000) presents an overview of the steps to configure a port to communicate with a Rosemount 4088B transmitter.
- Page 16 Emerson logo are trademarks and service marks of Emerson Electric Co. The Singapore 128461 DeltaV logo is a mark of one of the Emerson family of companies. All other marks T +65 6777 8211| F +65 6777 0947 are the property of their respective owners.
