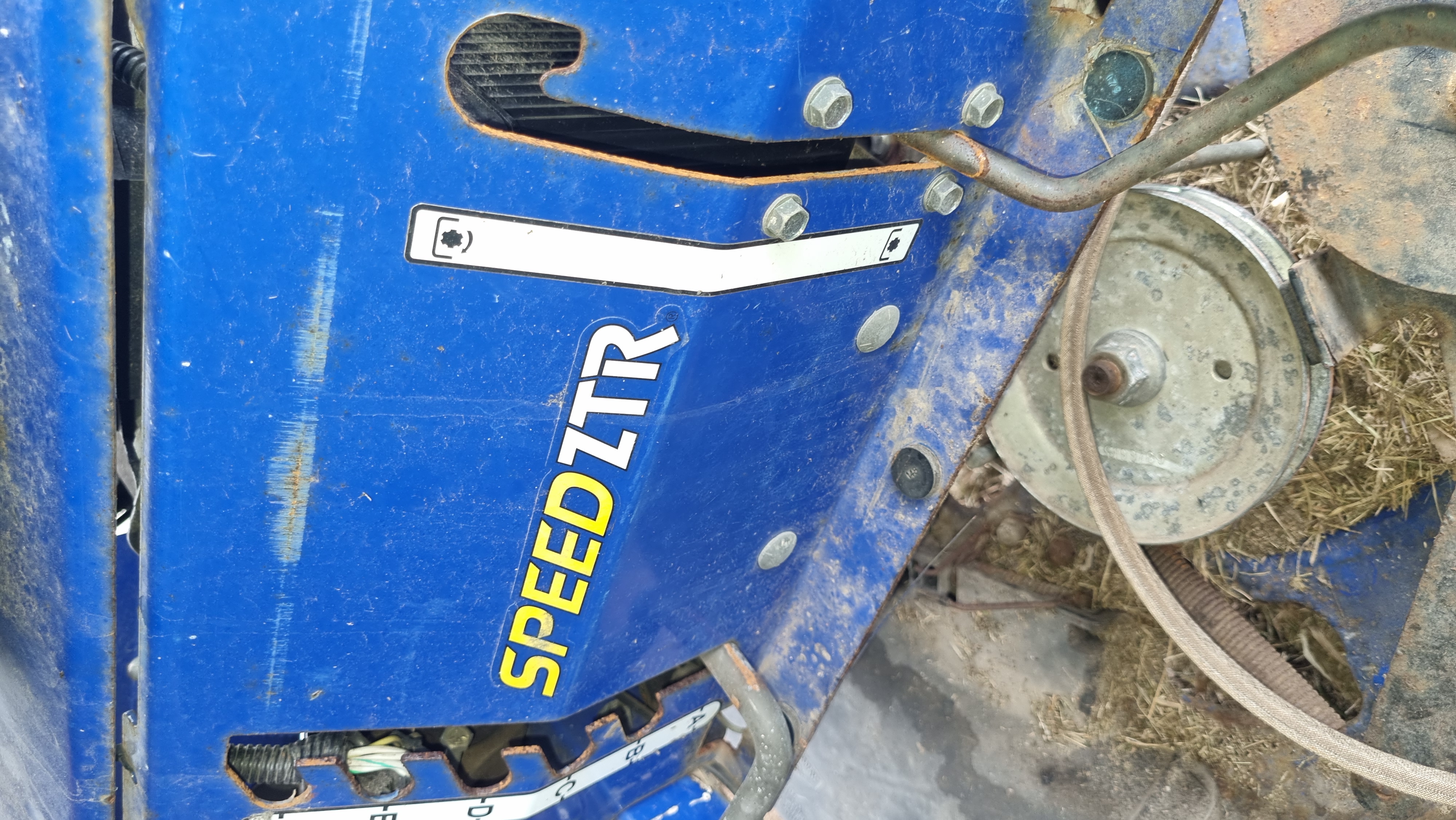

Where can I find the belt configuration for a Dixon zero turn,30 inch with catcher

User image 686c9ef71f87d
0

Subscribe to Our Youtube Channel

Related Manuals for Dixon Zeeter Zero-Turn Riding Mower

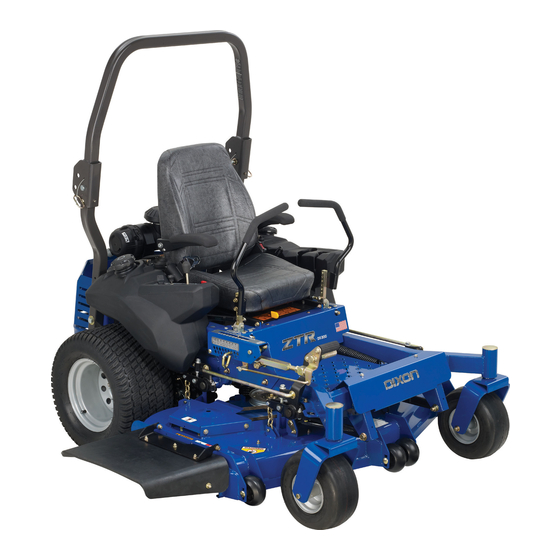

Summary of Contents for Dixon Zeeter Zero-Turn Riding Mower

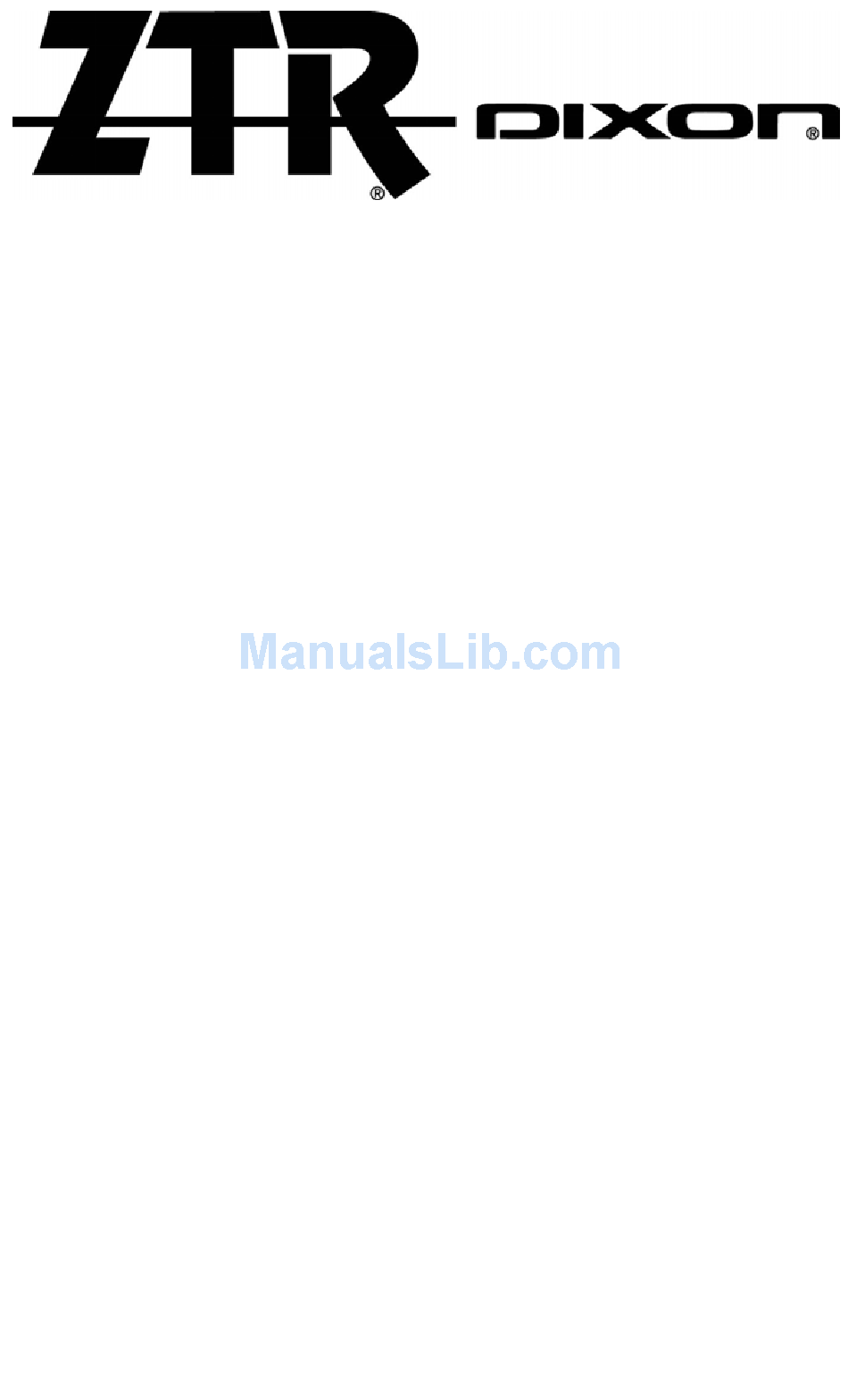

  • Page 1 ZEETER ™ ZEETER™ Safety Instructions & Operator’s Manual...

  • Page 2: Important - Read Carefully

    IMPORTANT - READ CAREFULLY The Dixon® ZTR® mower is both easy and fun to operate. However, any power mower must be operated properly to be safe. It is not a toy or a recreational vehicle. Before you start to use the mower, read this Operator’s Manual carefully.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY & WARNING...4-15 WARRANTY...16 SPECIFICATIONS...17 CONTROLS...18-22 OPERATION INSTRUCTIONS...23-31 CARE & MAINTENANCE...32-44 STANDARD SERVICE PARTS LIST...45 TROUBLESHOOTING...46-47 ZEETER™ Part Number 14295-1005 Page...

  • Page 4: Safety & Warning

    SAFETY RIDING LAWN MOWERS, IF IMPROPERLY OPERATED CAN CAUSE SERIOUS INJURY OR DEATH Pictured below are the most common causes of injury to the operator or bystander. Please read and understand this manual to prevent injuries. Blade Contact Tip Over Run Over Back Over...

  • Page 5: Safe Operating Practices

    SAFETY Safety Alert Symbol When you see this symbol, BE ALERT to the potential for injury. Follow the recommended safety precautions and safe operating practices. DANGER (highlighted in red) indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 6: General Operation

    WARNING Failure to observe the following safety instructions could result in serious injury or death. GENERAL OPERATION: Read, understand, and follow all instructions in this manual and on the mower before starting. Only allow responsible adults, who are familiar with the instructions, to operate the mower.
  • Page 7 WARNING Failure to observe the following safety instructions could result in serious injury or death. GENERAL OPERATION (continued): Never leave a running mower unattended. Always turn off blades, set parking brake, stop engine and remove key before dismounting. Turn off blades when not mowing. Injury could occur from contact with moving parts.
  • Page 8 WARNING Failure to observe the following safety instructions could result in serious injury or death. GENERAL OPERATION (continued): Never dismount mower without applying parking brake or stopping engine. Protect your eyes. Always wear safety goggles or safety glasses with side shields when operating mower. Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower- related injuries.

  • Page 9: Slope Operation

    Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in All slopes require extra caution. If you feel uneasy Mow across the slope with your Dixon® ZTR® -- never up or down. This will decrease the risk of tip-over.
  • Page 10 WARNING Failure to observe the following safety instructions could result in serious injury or death. SLOPE OPERATION (continued): DO (continued): Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction. Use extreme caution when operating the mower with attachments to prevent tip-over or roll-over.
  • Page 11 WARNING Failure to observe the following safety instructions could result in serious injury or death. SLOPE OPERATION (continued): DO NOT Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible. Rapid uphill turns may cause tip-over. Do not mow near drop-offs, ditches, or embank- ments.

  • Page 12: Fire Hazards

    WARNING Failure to observe the following safety instructions could result in serious injury or death. FIRE HAZARDS: Use extra care when handling gasoline and other fuels. They are flammable and vapors are explosive. Store all fuel in approved containers specifically designed for that purpose.
  • Page 13 Failure to observe the following safety instructions could result in serious injury or death. FIRE HAZARDS (continued): To prevent fire or explosion, keep sparks and open flames away from battery. Keep electrical connections clean and tight. Inspect them often. Loose connections and corrosion increase fire risk. Before disconnecting the negative ground cable, make sure all switches are off.
  • Page 14 WARNING Failure to observe the following safety instructions could result in serious injury or death. CHILDREN: Tragic accidents can occur if the operator is not alert to the presence of children. Children are attracted to lawn mowers and the mowing activity. NEVER assume children will stay where they were last seen.
  • Page 15 WARNING Failure to observe the following safety instructions could result in serious injury or death. SERVICE: Never run a mower inside a closed area or without proper ventilation. Keep nuts and bolts tight, especially blade attachment bolts, and keep equipment in good condition. Never tamper with safety devices.

  • Page 16: Warranty

    2. NOT APPROVED FOR COMMERCIAL USE. 3. All Dixon® warranty must be accomplished by authorized Dixon® dealers and in accordance with Dixon® warranty policy and allowances. All warranty claims must be submitted to Dixon Industries for approval.

  • Page 17: Specifications

    CHASSIS: BODY: MOWER DECK: BLADE DRIVE: TRANSMISSION: ENGINE: STARTING SYSTEM: Electric by key switch operation with safety interlocks on TIRES: RECOMMENDED TIRE PRESSURE: CAPACITIES: DIMENSIONS: Additional information may be provided elsewhere in this manual. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE SPECIFICATIONS 11 GA welded channel frame All body parts made of rotational molded polyethylene.

  • Page 18: Controls

    CONTROL LEVERS TO GO FORWARD •From neutral position, gently push control levers for- ward. •To increase speed, move levers further forward. TO GO BACKWARDS •From neutral position, gently pull control levers toward you. TURNING •Turning is controlled by moving one control lever slightly forward or rearward of the other.

  • Page 19: To Set Parking Brake

    PARKING BRAKE: The parking brake is designed to hold the mower from moving and is not intended for use in stopping the mower while it is in motion. The engine will stop if the parking brake is engaged while the control levers are in the drive position.

  • Page 20: Before Operating Mower

    BEFORE OPERATING MOWER: 1. Read engine manufacturer’s operating and maintenance instructions. 2. Read and observe all safety instructions on your mower and in the manual. 3. Check engine oil. 4. Check fuel cap to be sure it is in place. 5.

  • Page 21: Transmission Drive System

    The Dixon® ZEETER™ has a unique transaxle that requires only two drive levers to control braking, turning, speed and direction. On initial operation set throttle speed to slow. Operate with mower blade in “OFF” position. To avoid “over-controlling” the mower, use a light touch on the drive levers.

  • Page 22: Blade Drive

    BLADE DRIVE: •Located to the left of the operator. •To engage the mower blade, turn lever on floor slowly to the “ON” position. •To disengage mower blade, turn lever to the “OFF” position. THROTTLE CONTROL LEVER: •Located on control panel to operator’s right.

  • Page 23: Operation Instructions

    OPERATION INSTRUCTIONS The safe and successful operation of the ZEETER™ mower will depend upon the operator having the correct knowledge of all controls used on the mower and making good judgements about the terrain to be mowed. NEVER allow anyone to operate the mower without complete knowledge of all controls and their functions.

  • Page 24: Starting Instructions

    OPERATION INSTRUCTIONS CAUTION STARTING INSTRUCTIONS: 1. Parking brake must be on and blade drive disengaged. 2. Position throttle lever to 1/2 speed setting. If engine is cold, position lever to the choke position. NOTE: Engine may require choke setting to start even if the engine has been operated for a period of time.

  • Page 25: Testing Of Safety Interlock Systems

    Engage blade drive switch. c) Raise slightly off seat. NOTE: If any safety check fails, do not operate the mower until the system has been checked and repaired by an Authorized Dixon® Dealer! of each mowing day. Engine should STOP!
  • Page 26 OPERATION INSTRUCTIONS MOWING WITH A MULCHING ATTACHMENT: Mulching or recycling the grass clippings requires a totally different mowing approach than would be normal when side discharging or bagging the grass. There may be instances or conditions where it is not possible to hide all the recycled or mulched clippings.

  • Page 27: Mowing With A Mulching Attachment

    OPERATION INSTRUCTIONS MOWING WITH A MULCHING ATTACHMENT (continued): 7. Keep the underside of the mower deck clean. Remove all grass and dirt build-up from the underside of the pan, the baffles and deflectors after each use. Never, under any circumstances, should you place hands or feet under the mower deck or in the chute while blades or impeller are still turning.
  • Page 28 OPERATION INSTRUCTIONS MOWING WITH A GRASS CATCHER ATTACHMENT: In order to achieve optimum performance when mowing with a grass catching attachment, please read and follow the tips listed below. Read and follow the installation instructions that are included with your grass catcher. Set engine speed control to the wide open or full setting.
  • Page 29 OPERATION INSTRUCTIONS MOWING WITH A GRASS CATCHER ATTACHMENT (continued): Maintain sharp blades throughout the cutting season. Some grass catching attachments require a “high-lift” blade. See your dealer for advice on the type of blade(s) needed for your mower. Some mowing applications/use of grass catchers may require that an additional weight kit be fitted to the mower to counter the weight of grass in the bags.

  • Page 30: Side Discharge Of The Clippings

    OPERATION INSTRUCTIONS SIDE DISCHARGE OF THE CLIPPINGS: In order to achieve optimum performance when side discharging the grass clippings, please read and follow the tips listed below. Additional information can be found in the Troubleshooting guide. CAUTION 1. Set engine speed control to the wide open or full setting.

  • Page 31: Operation Instructions

    OPERATION INSTRUCTIONS GRASS HEIGHT & CUTTING SUGGESTIONS: Do not attempt to cut grass when it is wet. If the grass is tall, place the mower deck cut height lever in the top or second notch. “Initially” overlap cutting swaths instead of a full swath with each pass. Some applications may require a second cutting.

  • Page 32: Care & Maintenance

    CARE AND MAINTENANCE Failure to observe the following instructions may result in personal injury. Before performing any maintenance, turn off engine, Use extreme care when working on machinery. Do not wear watch or jewelry. Do not wear loose fitting clothes, and observe all common safety practices with tools.

  • Page 33: Cutter Blade Maintenance

    CARE AND MAINTENANCE CUTTER BLADE MAINTENANCE: CAUTION Stop engine and remove ignition key Check sharpness of mower blades after every 10 hours of operation. Observe proper blade position prior to removal. 1. Safely raise front of mower. 2. Hold or block blade from turning.

  • Page 34: Care And Maintenance

    •Charge battery. Note: Your Dixon® mower comes equipped with a quick disconnect harness for the optional Dixon® Battery Manager. The Dixon® Battery Manager maintains the proper charge levels during periods of inactivity and may prevent premature battery failures.

  • Page 35: Recommended Grease

    CARE AND MAINTENANCE LUBRICATION: CHASSIS: LOCATIONS: SERVICE INTERVALS: RECOMMENDED GREASE: (5) grease zerks (1) each front wheel caster (1) each front wheel hub (1) each mower deck hub Every 50 hours of operation or once per season. Name brand wheel bearing or multi-purpose grease (3 pumps each)

  • Page 36: Belt Tension

    CARE AND MAINTENANCE TIRES: Correct tire pressure is essential for efficient operation of the mower. Check tire pressure periodically. Inflate tires to the pressure listed below. Front tires Rear tires Lug nuts or lug bolts should be checked regularly for tightness. BELTS: Check belts every 50 hours.

  • Page 37: Cleaning The Mower

    SERIAL NUMBERS: The serial number is located on frame at rear of engine. WARRANTY: Refer to warranty information (page 16). PARTS/SERVICE: See your Dixon® dealer for replacement parts, warranty or service.

  • Page 38: Changing The Engine Oil

    CARE AND MAINTENANCE CAUTION CHANGING THE ENGINE OIL: 1. The oil drain valve is located on the lower left side of the engine crankcase. 2. Place a suitable container under the drain valve. 3. To drain, remove plug from 90 degree fitting. 4.
  • Page 39 NOTE: Engine oil changes on the ZEETER™ mower will require replacement of the oil filter. These filters may be available from your local Dixon® Dealer. Protect your environment. Please dispose of used oils at HOT oil may cause burns. Allow engine to cool before draining oil.

  • Page 40: Mower Deck Leveling Procedure

    CARE AND MAINTENANCE MOWER DECK LEVELING PROCEDURE: 1. Place mower on a smooth, level surface and check tire pressures to insure correct stance. Tires should be inflated as follows. 2. Turn blade so tips align with the deck in a side to side manner.
  • Page 41 CARE AND MAINTENANCE IllustrationB...

  • Page 42: Rear Chain Adjustment

    CARE AND MAINTENANCE REAR CHAIN ADJUSTMENT: CAUTION Proper tension for the rear chains is accomplished through the use of an adjuster located at mid-point of each rear chain. To adjust, tighten the nut on top of the rubber spring until the chain has approximately 1/4” movement up and down when measured at mid-point.

  • Page 43: Deck Removal

    CARE AND MAINTENANCE DECK REMOVAL: 1. Place cut height lever in lowest cut position. 2. Loosen belt keepers. 3. Remove deck drive belt from engine pulley. 4. Using a slight upward twisting motion, remove link from engagement handle. 5. Turn handle fully to the left until handle clears stop on mower deck pan.

  • Page 44: Care & Maintenance

    CARE AND MAINTENANCE DRIVE SYSTEM ADJUSTMENTS: Due to both the complex nature of the transmission and the number of special tools required for service, adjust- ments should be entrusted to your dealer. There are a number of simple owner service items which greatly influence the performance of the drive system.

  • Page 45: Standard Service Parts List

    STANDARD SERVICE PARTS LIST BLADES *Hi-Lift - P/N 13928 Standard Lift - P/N 13927 Gator - P/N 13929 *Factory installed BELTS Engine to Mower Deck - P/N 7725 Engine to Transmission - P/N 7650 ENGINE AIR AND OIL FILTERS Refer to Engine Operator’s Manual for correct service intervals for engine oil changes and air filter maintenance.

  • Page 46: Troubleshooting

    TROUBLESHOOTING 1. ENGINE WON’T TURN OVER Mower blades engaged- - - - - - - - - - - - - - - - - - - disengage blades Parking brake not on- - - - - - - - - - - - - - - - - - engage parking brake Circuit breaker trips- - - - - - - - - - - - - - - - - - - - - - - - -reset breaker Dead battery- - - - - - - - - - - - - - - - - - - - - - - - - - charge or replace Solenoid- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - consult dealer...

  • Page 47: Drive System

    TROUBLESHOOTING 6. ENGINE RUNS BUT MOWER WON’T MOVE FORWARD Drive belt broken or slipping- - - - - - - - - - - - - - - - replace drive belt Damaged transmission- - - - - - - - - - - - - - - - - - - - - -consult dealer MOWER LOSES POWER OR TRANSMISSION OVERHEATS Engine air filter-- - - - - - - - - - - - - - - - - - - - - - - - - - clean or replace Transmission damage- - - - - - - - - - - - - - - - - - - - - - -consult dealer...
  • Page 48 NOTES...
  • Page 49 NOTES...
  • Page 50 NOTES...

  • Page 51: Owner's Information

    OWNER’S INFORMATION Date of Purchase Mower Model Number Mower Serial Number Purchased From DATE OIL CHANGED Dixon Industries, Inc.~P.O. Box 1569~Coffeyville, Ks~620-251-2000~Fax 620-251-4117 Name Address DATE ENGINE TUNED...
  • Page 52 Dixon® and ZTR® are registered trademarks of WARNING: DIXON INDUSTRIES, INC. P.O. Box 1569 Coffeyville, Ks 67337-0945 620-251-2000 Dixon Industries, Inc. The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
