Let's get started

Before using your phone, please read the legal, safety and regulatory information provided with your product.

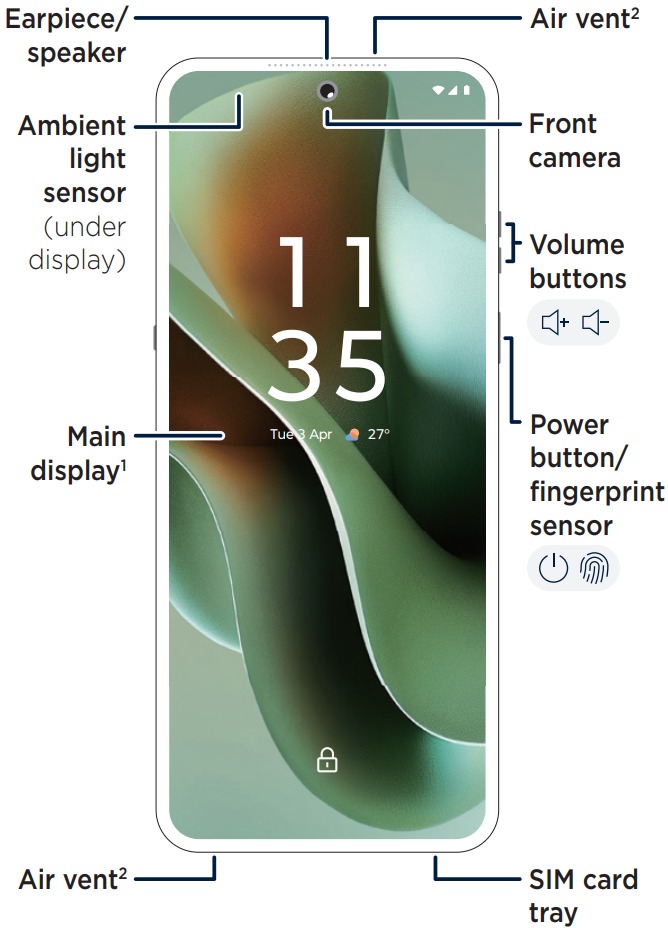

¹Protect your main display: please do not remove the attached screen protector or use third-party screen protectors. Doing so will void the device warranty.
²Air vent: to prevent noise during calls or media playback, ensure protective accessories like films, covers and their adhesives do not obstruct the air vent hole.

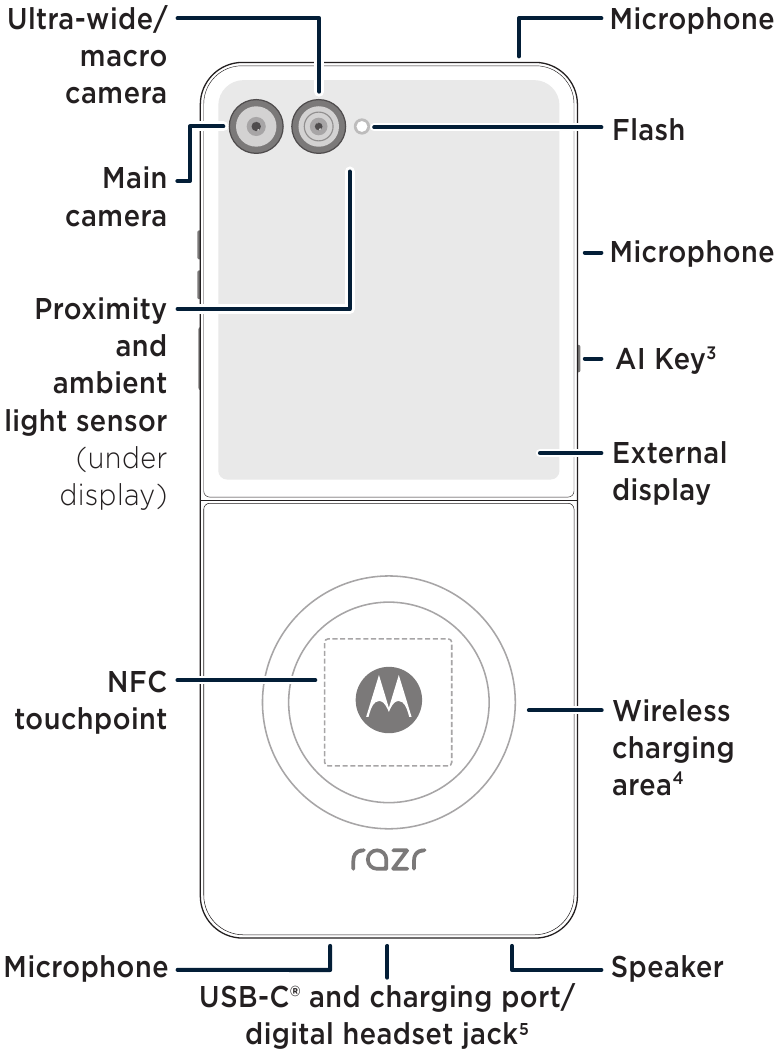

³AI Key: to customise your AI Key, from the Home screen, swipe up and tap Settings > Gestures > AI Key.
⁴Wireless charging: charge your phone using a Qi-certified wireless charger (may be sold separately).
⁵Use a digital headset: to use a digital headset, you'll need one with a USB-C connector. If you're using a 3.5mm headset, you'll need a 3.5mm to USB-C digital headset adapter to connect it. Headset and adapter may be sold separately.

Put in the card

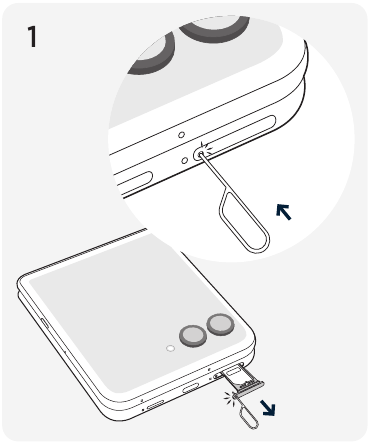

1. With the phone closed and the external display facing up, insert the SIM tool into the SIM card tray hole to pop out the tray. Make sure you use a standard nano SIM card and don't cut the SIM card.

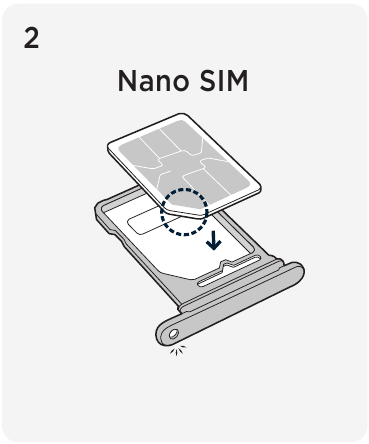

2. Insert the SIM card with the gold contacts up and the notch aligned with the card tray, then gently push the tray into the slot.


eSIM option: your phone may support an eSIM (embedded SIM card) in addition to the physical SIM card. Contact your service provider for details if you want to activate and use it.
Connect with 5G: 5G service plan and 5G network coverage required; available only in selected areas; device not compatible with all 5G networks. Contact your service provider for details.

Power on and off

• Press and hold the power button to turn on your phone, then follow the prompts to get started.
• To turn off your phone, press the power and volume up buttons at the same time.

Take care of your device

To guarantee your warranty service and ensure you have a satisfying phone experience, please care for your phone as follows:

• Don't use third-party screen protectors. Your phone comes with a Motorola-developed screen protector customised to Razr's unique foldable design. The Motorola screen protector is of superior quality and preserves the predicted service life of your phone. In contrast, using third-party screen protectors may reduce your phone's screen sensitivity, cause the main display to become unresponsive, damage the screen or cause other touchscreen problems. In such cases, Motorola reserves the right to evaluate the situation and decide whether to provide you with free-of-charge warranty service during the remaining warranty period.
• Contact an authorised Motorola service centre if your screen protector has air bubbles, warps or separates from the main display during use. We may replace the screen protector because a compromised screen protector can damage the main display and shorten the service life of the phone.
• If damaged, the screen protector on your phone can be replaced by suitably competent individuals following Motorola-approved repair and service manuals or by Motorola-approved service personnel. Motorola recommends that the screen protector is replaced by Motorola-approved service personnel in order to avoid screen damaging and warranty voidance.
• Take care not to physically damage your phone. Don't puncture or apply excessive force to the main display with a hard or sharp object while carrying your phone. Before closing the phone, always ensure there are no obstructions between the screens or hinges. Items such as cards, coins, keys and other objects can damage your screen or prevent your phone hinge from closing properly. Don't use excessive force to press the middle area of the screen. Avoid exposing your phone to water, coffee or other liquids. Also, don't expose your phone to tiny pieces of debris, such as grit.
•
  this product contains magnets. Always keep products with magnets more than 20cm from medical devices, such as pacemakers, internal cardio defibrillators or other devices that can be affected by a magnetic field. Also, keep away from credit cards, ID cards and other media that use magnetically encoded information.
• Reminder: the crease at the bend on the main display and the faint noise you may hear while flipping open the phone are part of the design and do not impact product durability.

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
• Get more: get software and more at www.motorola.com/myrazr.
• Energy label: The energy label and product information defined within Regulation (EU) 2023/1669 is available at https://eprel.ec.europa.eu/screen/home.

Dust and water resistance. For detailed information about your phone's dust and water resistance design and care tips, swipe up and tap Settings > Help or refer to the User Guide.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Class 1 Laser. This device is classified as a Class 1 Laser product, which is safe in normal use per IEC60825-1:2014. This device complies with 21 CFR 1040.10 and 1040.11, except for conformance with IEC60825-1:2014, as described in Laser Notice No.56, dated 8 May 2019. Do not attempt to modify or disassemble.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store or transport your phone in temperatures below -20°C or above 60°C.
Supported frequencies and power (Model XT2551-6). This phone is capable of operation on the following frequencies, subject to location and network availability.

Product ID: motorola razr 60 ultra (Model XT2551-6)

Scan with your Camera app for how-to videos.

motorola.com/razr60ultra/row
