Toshiba TOSVERT VF-S15 Manual

Contents of the product

Explanation of the type-form on the name plate label

Opening terminal cover and terminal block
Use the following procedure to open the terminal cover and pull the power terminal block.

Power circuit and control circuit terminal blocks

1. 1) Power circuit terminal

Screw size	Tightening torque
M6	4.5 Nm	40.0 lbin
M5 (grounding terminal)	2.8 Nm	24.8 lbin

Note1) Bend the clips on the wiring port of the terminal cover to connect the PB, PO, PA/+, and PC/- terminals.
Note2) Be careful to insert all wires into the cage of terminal block.

Specification of main circuit terminal

• Ring lug is required for main circuit terminal connection, please refer to Figure 1 for the specifications of the ring lug.

• Wire should be crimped into UL compliant ring lug before putting on the insulated heat shrink tube, which is UL and CSA compliant, 600Vac voltage withstand, YUPU2, please refer to Figure 2 for the specifications of the heat shrink tube.


Unit: mm

2. Grounding capacitor switch / screw

Prohibition	When using this 400V class inverter with a power supply system that is grounded in other than the neutral point (e.g. when the power supply has delta connection with single phase grounding), the grounding capacitor should not be grounded (or the capacity of the grounding capacitor should not be increased). Otherwise, it will result in failure or fire. Do not switch the grounding capacitor to small, if you set aul (overload characteristic selection) to 2. Otherwise, it will result in failure or fire.
Mandatory action	When using this inverter with a power supply of IT system (power supply isolated from ground or grounded through high impedance), disconnect the grounding capacitor. If a grounding capacitor with power supply of IT system is connected, it will result in failure or fire. Be sure to switch grounding capacitors with the power off. If you switch with the power on, it can result in electric shock or injury.

These inverters have a built-in EMC noise filter and the inverter input power supply is grounded via the capacitor. By switching this grounding capacitor, the leakage current from the inverter can be reduced. It is switched by changing the position of the exclusive switching screw that the grounding capacitor is completely disconnected. For the details of the influence of the leakage current and measures.
Switch the grounding capacitor in the following procedure given. Be sure to switch with the power off. At the time of shipping, the grounding capacitor is grounded.
Install the screw at grounding capacitor switch position A (), the grounding capacitor's capacity is switched from small to large.
(Default setting)
Tightening torque: 0.5 Nžm (4.4 lbžin)

Move the screw from the grounding capacitor switch position A (), the grounding capacitor's capacity is switched from large to small. This reduces the leakage current. Insert the screw into the grounding capacitor switching position B () without turning it, then, hold and store it.
When this inverter is connected to the IT system (system that power supply grounding is insulated or has impedance from the ground), the screw has to be moved as the figure shows.

Note 1) Don't switch the grounding capacitor to small, if you set aul (overload characteristic selection) to 2.

What to do about the leakage current
These inverters have a built-in EMC noise filter, so the leakage current value in the delta connection (single-phase grounding) power supply may become greater. For detail of the moving the grounding capacitor screw.

Installation
Calorific values of the inverter and the required ventilation

About 5% of the rated power of the inverter will be lost as a result of conversion from AC to DC or from DC to AC. In order to suppress the rise in temperature inside the cabinet when this loss becomes heat loss, the interior of the cabinet must be ventilated and cooled.
The amount of forcible air-cooling ventilation required and the necessary heat discharge surface quantity when operating in a sealed cabinet according to motor capacity are as follows.

Note 1) Case of 100% Load Continuation operation. The heat loss for the optional external devices
(input AC reactor, radio noise reduction filters, etc.) is not included in the calorific values in the table
Note 2) It is power consumption when power is on but is not output (0Hz), and cooling fan is activated (model with cooling fan).

Standard connections

In case of =2 setting, be sure to install the input AC reactor (ACL)

Power circuit terminals
In case of =2 setting, be sure to install the input AC reactor (ACL)

Setting acceleration/deceleration time
[Parameter setting]

Title	Function	Adjustment range	Default setting
	Acceleration time 1	0.0-3600 (360.0) (s) *1	30.0
	Deceleration time 1	0.0-3600 (360.0) (s) *1	30.0

*1: These parameters can be changed to 0.01s unit by setting .

Low voltage operation
Not use this function.
Do not change the value of (Low voltage operation upper limit frequency)

PWM carrier frequency
[Parameter setting]

• Load reduction (current reduction) by carrier frequency, ambient temperature.
  In case of =1 (constant torque characteristic (150%-60s) setting) (Input voltage 480V or less)

(Input voltage above 480V)

In case of =2 (Variable torque characteristic (120%-60s) setting)

Note 1) In case of =2 setting, be sure to install the input AC reactor (ACL) between power supply and inverter, to remove the protective label on the top of the inverter (Use a tool to remove the protective label.), and to connect the grounding capacitors by moving a screw.
Then, to use the inverter at 40°C or less of the ambient temperature with setting to 4.0 kHz or less. Input AC reactor: Inductance: 0.3mH, Current: 100A

Dynamic (regenerative) braking - For abrupt motor stop

2. Optional dynamic braking resistors
   Optional dynamic braking resistors are listed below. All these resistors are 3%ED in operation rate.
   In case of =1 (constant torque characteristic (150%-60s) setting)

In case of =2 (Variable torque characteristic (120%-60s) setting)

3. Minimum resistances of connectable braking resistors

The minimum allowable resistance values of the externally connectable braking resistors are listed in the table below.
Do not connect braking resistors with smaller resultant resistances than the listed minimum allowable resistance values.

Switching of an acceleration/deceleration time 1, 2, 3
[Parameter setting]

Title	Function	Adjustment range	Default setting
	Acceleration time 2	0.0-3600 (0.00-360.0) (s) *1	30.0
	Deceleration time 2	0.0-3600 (0.00-360.0) (s) *1	30.0
	Acceleration time 3	0.0-3600 (0.00-360.0) (s) *1	30.0
	Deceleration time 3	0.0-3600 (0.00-360.0) (s) *1	30.0

*1: These parameters can be changed to 0.01s unit by setting .

Measures to satisfy the EMC Directive

Prohibition	Never use the Outer magnetic core with any other condition. This will result in damage of cable or fire

Combination of inverter and filter
Inverter type	Conducted noise IEC61800-3, category C2 Motor wiring length of 5m or less PWM carrier frequency (): 4kHz or less	Conducted noise IEC61800-3, category C3 Motor wiring length of 25m or less PWM carrier frequency (): 4kHz or less, 8kHz to 12kHz.	Conducted noise IEC61800-3, category C1 Motor wiring length of 20m or less PWM carrier frequency (): 4kHz or less	Conducted noise IEC61800-3, category C2 (Motor wiring length of 50m or less) PWM carrier frequency (): 4kHz or less
VFS15-4185PL-W1	Built-in filter + Outer magnetic core <Use the 90°C wire (*1)>	Built-in filter	EMF6-4070F	EMF6-4070F
VFS15-4220PL-W1

	Combination of inverter and filter
Inverter type	Radiated noise IEC61800-3, category C2 Motor wiring length of 5m or less PWM carrier frequency (): 4kHz or less	Radiated noise IEC61800-3, category C3 Motor wiring length of 25m or less PWM carrier frequency (): 4kHz or less
VFS15-4185PL-W1	Built-in filter + Outer magnetic core <Use the 90°C wire(*1)>	Built-in filter
VFS15-4220PL-W1

(*1) Use the copper wires shielded with an insulator with a maximum allowable temperature of 90°C.

[Example of wiring]

Measures to satisfy the Low Voltage Directive

Mandatory action

Install proper short-circuit protective device between the power supply and the inverter (primary side). If proper short-circuit protective device is not installed, short circuit current cannot be shut down by inverter alone and it will result in fire. Integral solid state short circuit protection in the inverter does not provide branch circuit protection. Branch circuit protection must be provided in accordance with any local codes Take into account the minimum required prospective short-circuit current of short-circuit protective device. If short circuit protective device does not work properly due to lower level short-circuit current, it will result in electric shock or fire. Install the inverter into enclosure based on this manual, and install short-circuit protective device or power distribution devices based on the manufacturer manual. When they are installed with improper coordination, this will result in electric shock or fire. The grounding wire must be connected securely. If the grounding wire is not securely connected, when the inverter has failure or earth leakage, this will result in electric shock or fire.

Mandatory action	This product can cause a DC current in the PE conductor. Where a residual current operated protective device (RCD) is used for protection against electric shock, only an RCD of Type B is allowed on the supply side of this product. All upstream RCD, up to the supply transformer, shall be of Type B. If proper device above is not used, it can result in electric shock.

Comply with Low Voltage Directive 2014/35/EU under the condition below.

• Applicable standard: EN 61800-5-1:2007 / A1:2017 / A11:2021 (IEC61800-5-1 Ed2.11)
• Pollution degree: 2
• Overvoltage category: 3
• The electronic power output short-circuit protection circuitry meets the requirements of IEC 60364-4-41:2005/AMD1 — Clause 411

Electrical Equipment (Safety) Regulations S.I.2016/1101 are also covered.
When incorporating the inverter into a power drive system, it is necessary to take the following measures.

1. Installation and upstream protection devices
   • Install the inverter into the enclosure with proper short circuit protective device (SCPD) in accordance with the table of prospective short-circuit current (Isc) rating shown in following pages.
2. Grounding
   • Connect a dedicated wire to the grounding terminal on inverter.
   • Ground each inverter directly when grounding multiple inverters.
   • Refer to the table in [10.1] of this manual to select a grounding wire size.
3. Overload protection
   • For overload protection of inverter, refer to [5.6] of E6582175.
4. Motor overload protection and overtemperature protection
   • For electronic motor thermal protection, refer to [5.6] of E6582175.
   • For motor integrated PTC thermal protection, refer to [6. 29. 16] of E6582175

Prospective short-circuit current (Isc) rating table
The rating of the short circuit protection devices (SCPD) in the table below are maximum values with Enclosure. Smaller sizes can be used.

The Ampare rating of the short circuit protection devices in the table are maximum values. Smaller amp sizes may be used. Branch circuit protection must be provided in accordance with any additional local codes.
*1:Mersen is recommended supplier
*2:PowerPact and Tesys GV series from Schneider Electric are recommended.

Prospective short-circuit current (Isc) rating table (semiconductor fuse IEC60269-4)
The rating of the short circuit protection devices (SCPD) in the table below are maximum values with Enclosure. Smaller sizes can be used.

*1:Mersen is recommended supplier
*2: Use aR type fuse with a proper overload protection.

<About Ecodesign>
For technical data of ecodesign requirement, access the following website " https://www.toshiba-tips.co.jp/en/".

Selection of wiring materials and devices

Selection of wire size
In case of =1 (Constant torque characteristic (150%-60s) setting)

In case of =2 (Variable torque characteristic (120%-60s) setting)

Note 1: Sizes of the wires connected to the input terminals R/L1, S/L2 and T/L3 and the output terminals U/T1, V/T2 and W/T3 when the length of each wire does not exceed 30m. If there is a need to bring the inverter into UL/CSA compliance, use wires specified in manual "E6582383".
Note 4: The wire size specified to HIV wires (copper wires shielded with an insulator with a maximum allowable temperature of 75°C) used at an ambient temperature of 50°C or less.
When operating the inverter with DC input (use PA/+ and PC/-), the wire size specified to HIV wires (copper wires shielded with an insulator with a maximum allowable temperature of 90°C) used at an ambient temperature of 50°C or less.
Note 5: The wire sizes specified in the above table apply to HIV wires (copper wires shielded with an insulator with a maximum allowable temperature of 75°C) used at an ambient temperature of 40°C or less.
When operating the inverter with DC input (use PA/+ and PC/-), the wire size specified to HIV wires (copper wires shielded with an insulator with a maximum allowable temperature of 90°C) used at an ambient temperature of 40°C or less.

Selection of wiring devices
In case of =1 (constant torque characteristic (150%-60s) setting)

The recommended molded case circuit breaker (MCCB/ELCB) must be connected to primary side of each inverter to protect the wiring system.
In case of =2 (Variable torque characteristic (120%-60s) setting)

The recommended molded case circuit breaker (MCCB/ELCB) must be connected to primary side of each inverter to protect the wiring system.
Note 2: Be sure to attach a surge absorber to the exciting coil of the relay and the magnetic contactor.
Note 3: When using the auxiliary contacts 2a of the magnetic contactor MC for the control circuit, connect the contacts 2a in parallel to increase reliability.
Note 9: In case of =2 setting, be sure to install the input AC reactor (ACL) between power supply and inverter.

Basic parameters

Title	Communication No.	Function	Unit	Minimum setting unit Panel/Communication	Adjustment range	Default setting	User setting
	0009	Acceleration time 1	s	0.1/0.1	0.0-3600 (360.0) *1	30.0
	0010	Deceleration time 1	s	0.1/0.1	0.0-3600 (360.0) *1	30.0

*1: These parameters can be changed to 0.01s unit by setting .

Extended parameters

Title	Communication No.	Function	Unit	Minimum setting unit Panel/Communication	Adjustment range	Default setting	User setting
	0300	PWM carrier frequency	kHz	0.1/0.1	2.0-16.0	4.0
	0500	Acceleration time 2	s	0.1/0.1	0.0-3600 (360.0) *1	30.0
	0501	Deceleration time 2	s	0.1/0.1	0.0-3600 (360.0) *1	30.0
	0510	Acceleration time 3	s	0.1/0.1	0.0-3600 (360.0) *1	30.0
	0511	Deceleration time 3	s	0.1/0.1	0.0-3600 (360.0) *1	30.0

*1: These parameters can be changed to 0.01s unit by setting .

Default settings by inverter rating

Default settings
The default setting of motor parameters are adapted to Toshiba motor.

Inverter type	Torque boost value	Dynamic braking resistance	Dynamic braking resistor capacity	Automatic torque boost value	Motor rated capacity Note 1)	Motor rated current
	/ (%)	(Ω)	(kW)	(%)	(kW)	(A)
VFS15-
4185PL	1.5	30.0	0.88	1.4	18.50	34.50
4220PL	1.7	15.0	1.76	1.6	22.00	40.00

Inverter type	Motor no-load current	Motor rated speed		Over-voltage stall protection level	Integrating wattmeter display unit selection
	(%)	(USA) (min-1)	(ASIA,EU) (min-1)	(%)	-
VFS15-
4185PL	37	1770	1475	141	1
4220PL	32	1760	1470	141	1

If the parameters and the adjustment range, which are not shown in the manuals (E6582175 and additional sheet) are displayed in the inverter, those parameters and adjustment range are "the factory specific coefficient parameters". Do not change or set the value of these parameters and adjustment range.

Models and their standard specifications

Standard specifications

Note 1) Capacity is calculated at 440V for the 500V models.
Note 2) Indicates rated output current setting when the PWM carrier frequency (parameter ) is 4kHz or less.
When exceeding 4kHz, the rated output current setting is indicated in the parentheses.
It needs to be further reduced for PWM carrier frequencies above 12 kHz.
Note 3) Maximum output voltage is the same as the input voltage.
Note 4) If the input voltage is below the rated voltage, the inverter output current may be increased or limited depending on the load equipment.
Note 5) Required power supply capacity varies with the value of the power supply side inverter impedance (including those of the input reactor and cables).

Outside dimensions and mass

Outside dimensions and mass

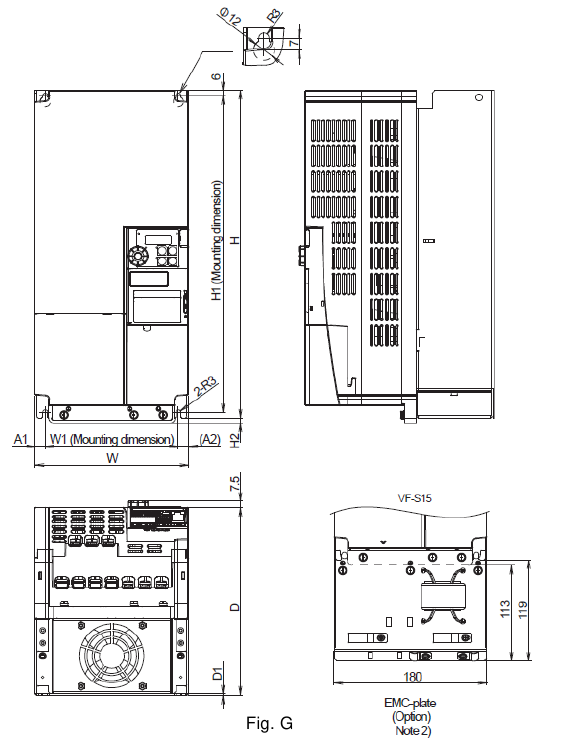

Outline drawing

Note 1 To make it easier to grasp the dimensions of each inverter, dimensions common to all inverters in these figures are shown with numeric values but not with symbols.
Here are the meanings of the symbols used.
W: Width, H: Height, D: Depth
W1: Mounting dimension (horizontal)
H1: Mounting dimension (vertical)
H2: Height of EMC plate mounting area
D1: Mounting thickness
A1: Mounting dimension (horizontal) from left side
A2: Mounting dimension (horizontal) from right side Note 2. Here are the available EMC plates. EMP012Z
