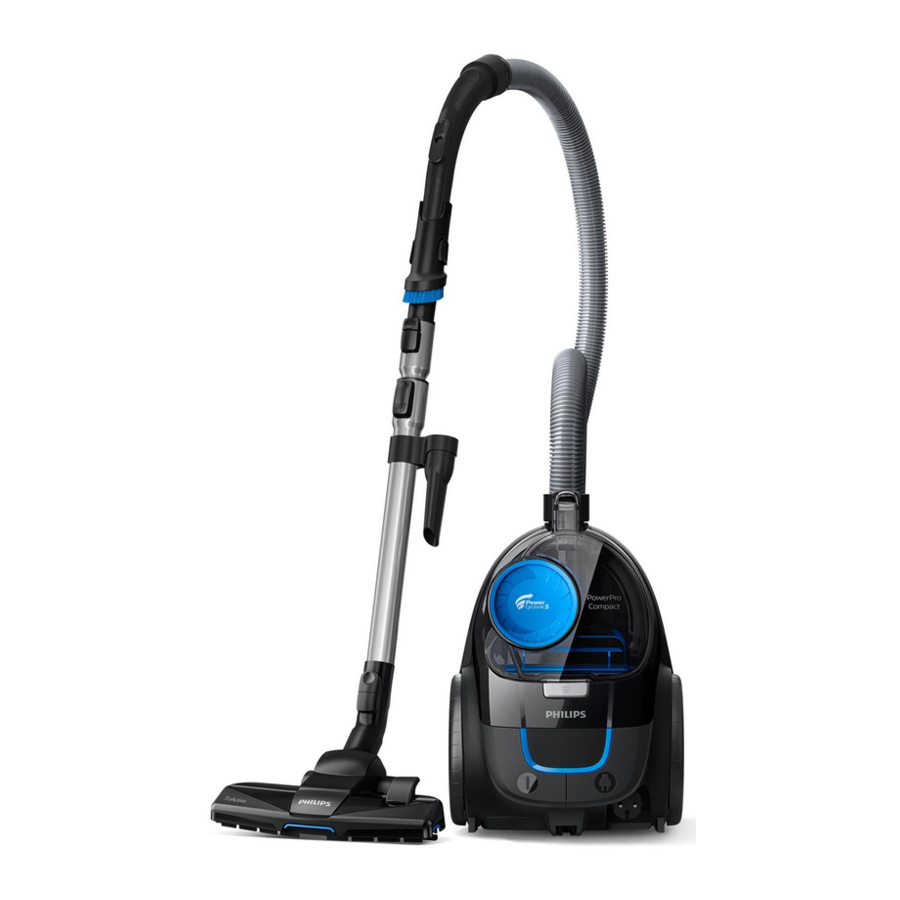

Philips FC9331/09, FC9331/19 Service Manual

Product information

Service scenario:

• Repair

Design

• Colour: Deep Black

Usability

• Action radius: 9 m
• Carrying handle: Front
• Cord length: 6 m
• Tube type: Metal 2-piece telescopic tube
• Wheel type: Rubber

Filtration

• Dust capacity: 1.5 L
• Exhaust filter: Allergy filter
• Motor filter: Washable filter

Nozzles and accessories

• Standard nozzle: TriActive nozzle
• Additional nozzle: Hard floor nozzle
• Accessories included: Crevice tool, Integrated brush
• Accessory storage: On tubeclip

Sustainability

• Packaging: > 90% recycled materials
• User manual: 100% recycled paper

Weight and dimensions

• Dimensions of product: 406 x 285 x 238 mm (L x W x H)
• Weight of product: 4,2 kg

Safety information

• This product meets the requirements regarding interference suppression on radio and TV.
• After the product has been repaired, it should function properly and has to meet the safety standards as officially laid down at this moment.

Optional (accessories)

• FC8010/01
  Allergy Filter Replacement Kit

Technical information

Performance

• Energy efficiency rating: A
• Dust re-emission class: A
• Carpet cleaning class: C
• Hard floor cleaning class: A
• Airflow (max): 27.8 l/s
• Annual energy consumption: 24.3 kW•h
• Input power (IEC): 650 W
• Sound power level: 76 dB
• Vacuum (max): 16.8 kPa

Production date

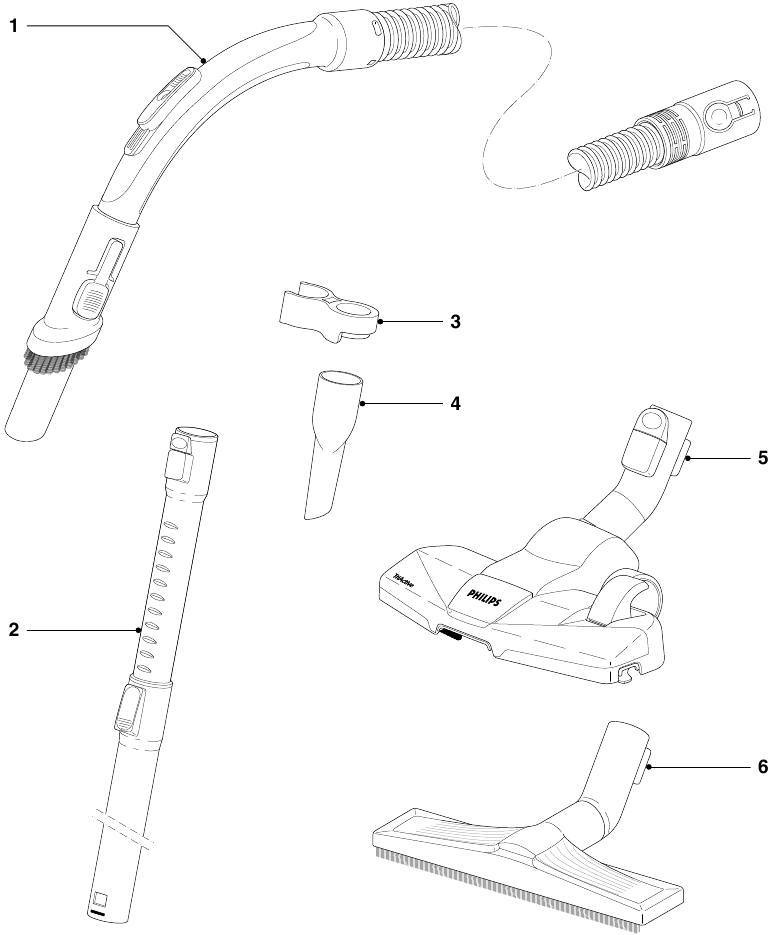

Consumer Replaceable Parts

FC9331/09 /19

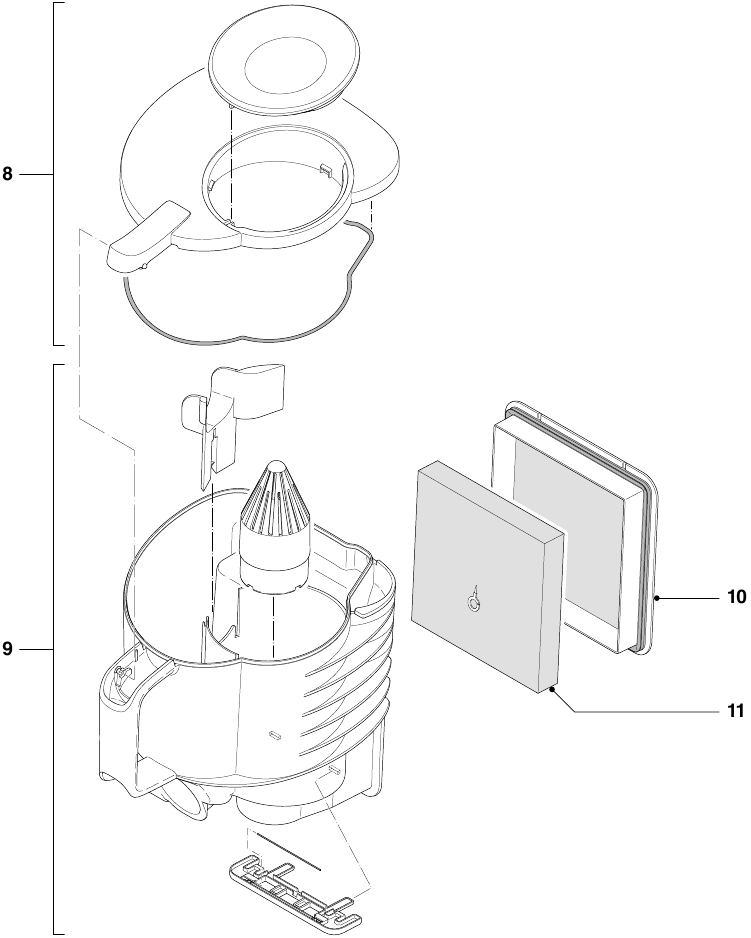

Service Parts

FC9331/09 /19

Disassembly and Reassembly advice

FC9331/09 /19

• To open the appliance, first remove the bucket assy by pushing the dislock-button and lifting the bucket straight upwards, and remove the Exhaust grille (16) and Filter (17).

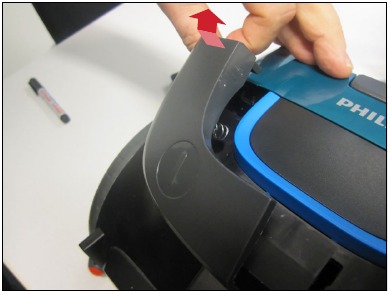

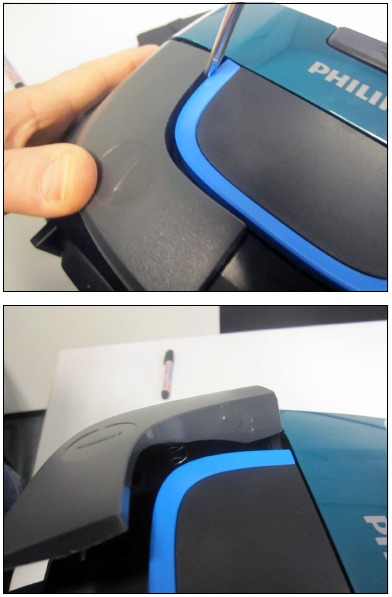

• Remove the buttons L and R (15):
  Place a screwdriver on the inside and move upwards.

• Then lift the button and move it towards the front side of the appliance.

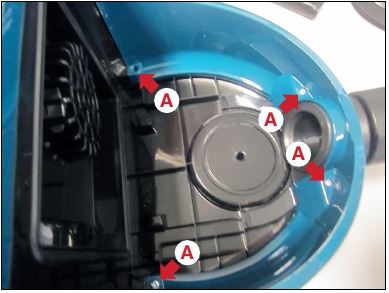

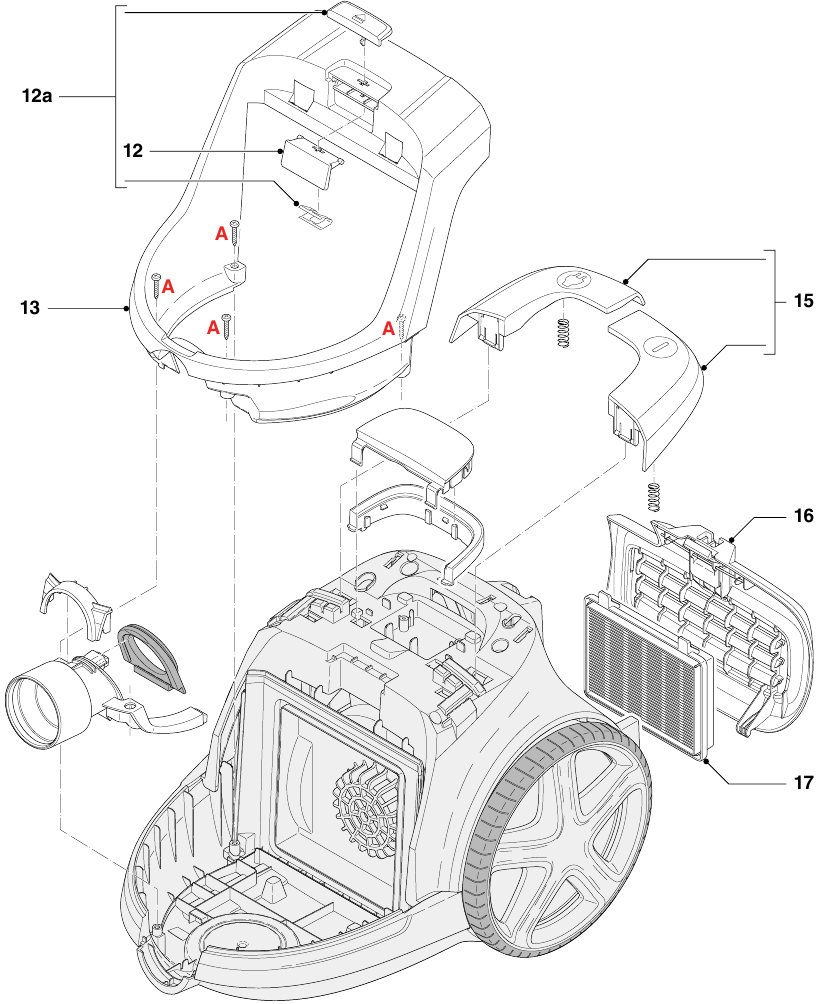

• To disassemble the Upper housing:
  Remove the 4 Screws (A) in the dustchamber/housing.

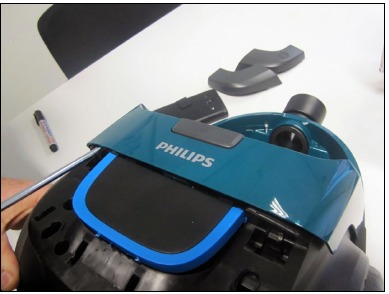

• Now the Midframe (13) housing can be removed.
  Lift with a screw driver to unlock the 2 click knocks and remove the housing upwards.

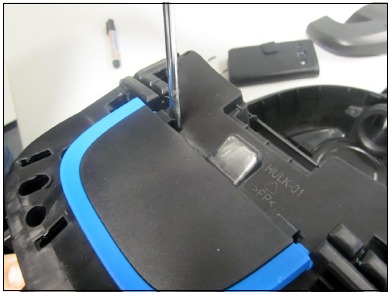

• Before disassembling the Midframe:
  The unlock button (2 parts) and Spring (12+12a) need to be removed (with a small screw driver).
• Then remove the Light Guide Cover, using a screwdriver to unclick.

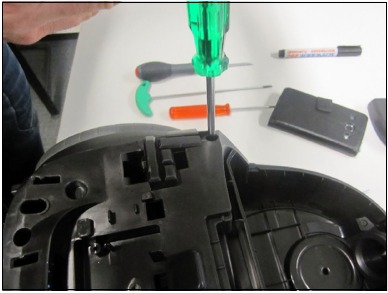

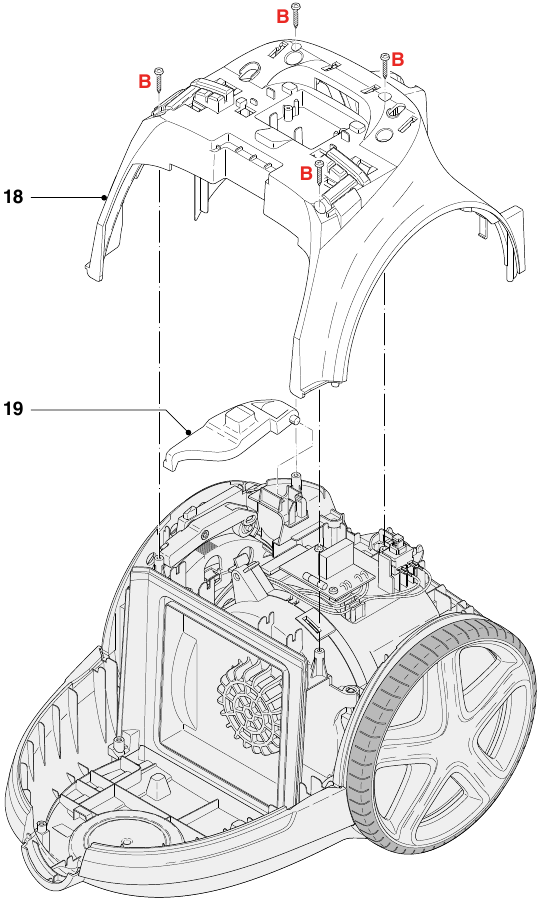

• To remove the Top cover (18):
  Remove the 4 screws (B) (two are placed under the Buttons and the other two are placed under the Midframe)

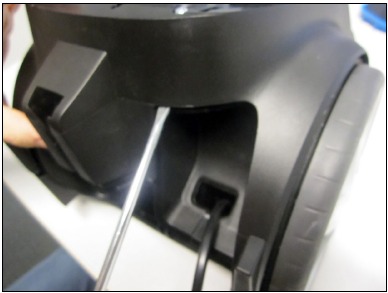

• Lift up the Top cover on 2 places at the back side.

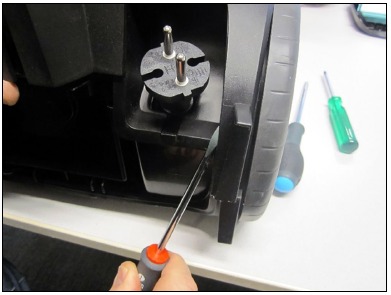

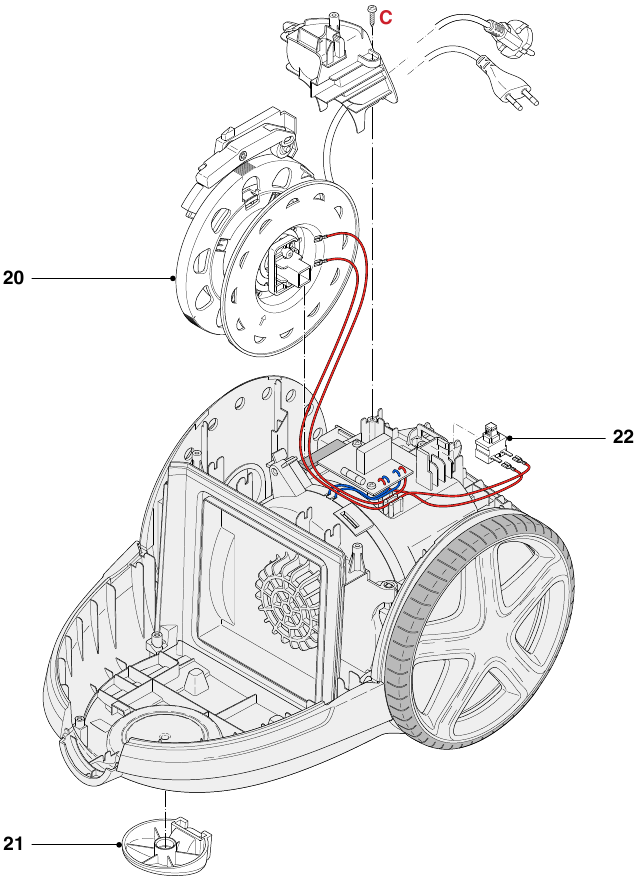

• To reach all screws of the motor housing, the Cordwinder assy (20) has to be removed first.
  Remove screw (C) and the cord outlet, now the Cordwinder assy can be removed upwards (see exploded view).

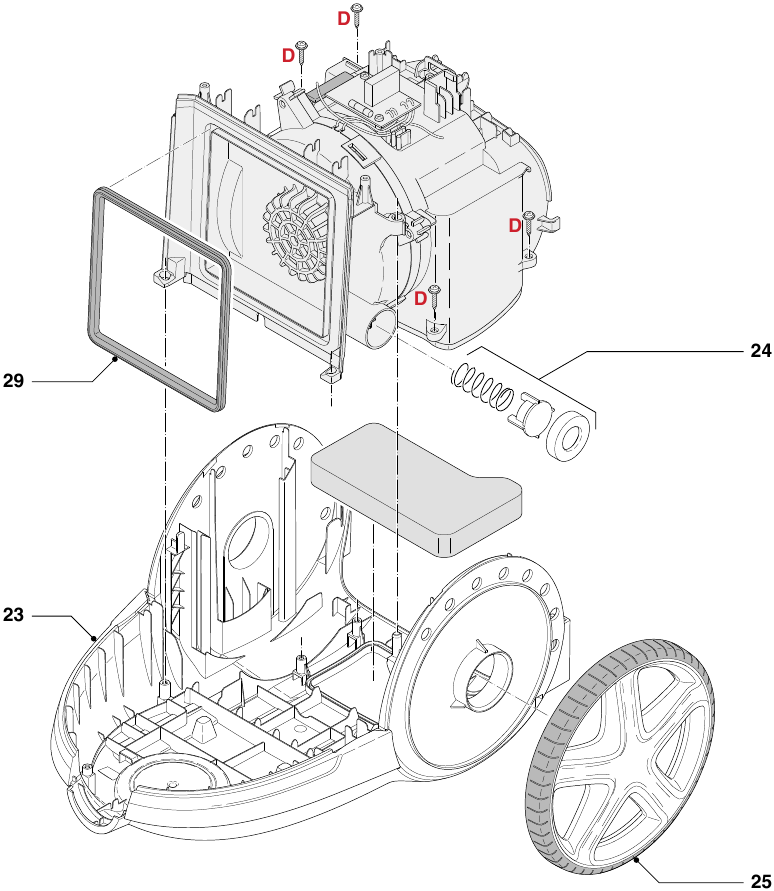

• To remove the motor housing:
  Remove the 4 screws (D) (see exploded view).

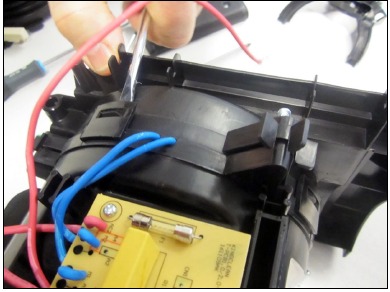

• When disassembling the motor housing, first remove the Valve assy (24).
  The Valve assy is positioned on the left front side of the motor housing (seen from the rear).

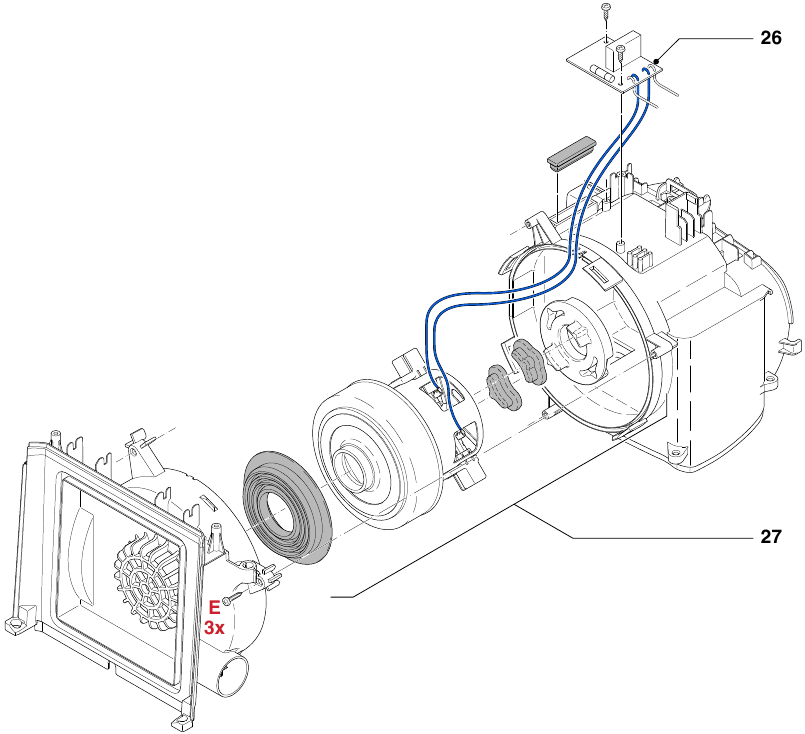

• To disassemble the motor housing
  Remove the 3 screws (E) and unclick the 4 click knocks.

• The PCB (26) can be removed (2 screws) and then be replaced.
• For re-assembling the motor assy:
  First place the plastic + 2 rubber parts into the motor housing.

• Then place the Motor back in the housing and lead the wires through the recess.
• To replace the Top cover:
  Make sure that the small nock is placed correctly in the space near the Rear wheel.


Tools necessary for Dis- and reassembly:
Long screwdriver
Pozidriv screwdriver
Screwdriver for lifting the plastic parts.

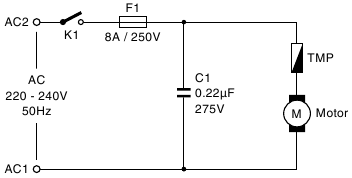

Electrical diagram

Whole range without partlist

Model Number	FC9330/07	FC9330/09 /19	FC9331/07
Colour	Monza Red	Monza Red	Twist Red
Energy effi ciency rating	A	A	A
Dust re-emission class	A	A	A
Carpet cleaning class	C	C	C
Hard floor cleaning class	E	E	A
Airfl ow (max)	27.8 l/s	27.8 l/s	27.8 l/s
Annual energy consumption	26.4 kW•h	26.4 kW•h	24.3 kW•h
Input power (IEC)	650 W	650 W	650 W
Sound power level	76 dB	76 dB	76 dB
Vacuum (max)	16.8 kPa	16.8 kPa	16.8 kPa
Exhaust filter	Allergy filter	Allergy filter	Allergy filter
Motor filter	Washable filter	Washable filter	Washable filter
Standard nozzle	TriActive nozzle	TriActive nozzle	TriActive nozzle
Additional nozzle	No	No	Hard floor nozzle
Accessories included	Crevice tool, Integrated brush	Crevice tool, Integrated brush	Crevice tool, Integrated brush
Power control	No	No	No
Model Number	FC9331/09 /19	FC9332/07	FC9332/09
Colour	Deep Black	Titanium	Star White
Energy effi ciency rating	A	A	A
Dust re-emission class	A	A	A
Carpet cleaning class	C	C	C
Hard floor cleaning class	A	A	A
Airfl ow (max)	27.8 l/s	27.8 l/s	27.8 l/s
Annual energy consumption	24.3 kW•h	24.3 kW•h	24.3 kW•h
Input power (IEC)	650 W	650 W	650 W
Sound power level	76 dB	76 dB	76 dB
Vacuum (max)	16.8 kPa	16.8 kPa	16.8 kPa
Exhaust filter	Allergy filter	Allergy filter	Allergy filter
Motor filter	Washable filter	Washable filter	Washable filter
Standard nozzle	TriActive nozzle	TriActive nozzle	TriActive nozzle
Additional nozzle	Hard floor nozzle	Hard floor nozzle, Turbo brush	Hard floor nozzle
Accessories included	Crevice tool, Integrated brush	Crevice tool, Integrated brush	Crevice tool, Integrated brush
Power control	No	No	No
Model Number	FC9333/09	FC9334/09
Colour	Magic Purple	Opal Green
Energy effi ciency rating	A	A
Dust re-emission class	A	A
Carpet cleaning class	C	C
Hard floor cleaning class	A	A
Airfl ow (max)	27.8 l/s	27.8 l/s
Annual energy consumption	24.3 kW•h	24.3 kW•h
Input power (IEC)	650 W	650 W
Sound power level	76 dB	76 dB
Vacuum (max)	16.8 kPa	16.8 kPa
Exhaust filter	Allergy filter	Allergy filter
Motor filter	Washable filter	Washable filter
Standard nozzle	TriActive nozzle	TriActive nozzle
Additional nozzle	Hard floor nozzle	Hard floor nozzle, Turbo brush
Accessories included	Crevice tool, Integrated brush	Crevice tool, Integrated brush
Power control	No	No
