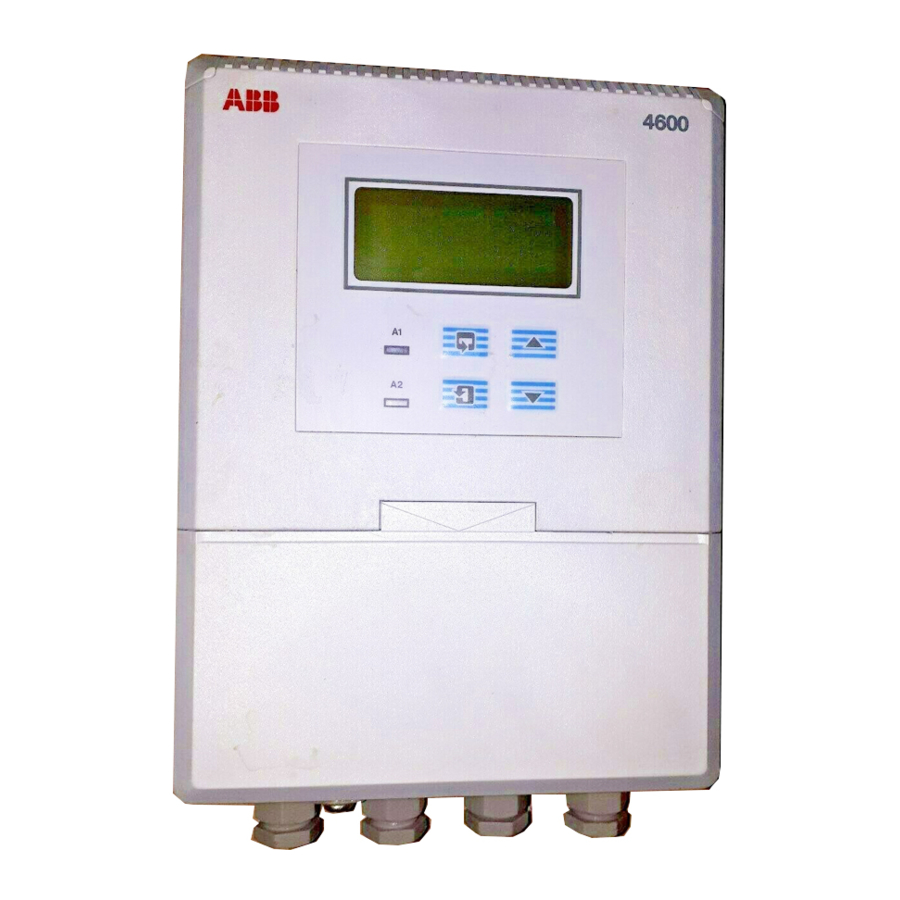

ABB 4600 Series Manual

ABB

The Company
We are an established world force in the design and manufacture of instrumentation for industrial process control, flow measurement, gas and liquid analysis and environmental applications.
As a part of ABB, a world leader in process automation technology, we offer customers application expertise, service and support worldwide.
We are committed to teamwork, high quality manufacturing, advanced technology and unrivalled service and support.
The quality, accuracy and performance of the Company's products result from over 100 years experience, combined with a continuous program of innovative design and development to incorporate the latest technology.
The UKAS Calibration Laboratory No. 0255 is just one of the ten flow calibration plants operated by the Company and is indicative of our dedication to quality and accuracy.

Electrical Safety
This instrument complies with the requirements of BS EN 61010-1:1993 "Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use". If the instrument is used in a manner NOT specified by the Company, the protection provided by the instrument may be impaired.

Symbols
One or more of the following symbols may appear on the instrument labelling:

	Refer to the manual for instructions
	Risk of electric shock
	Protective earth (ground) terminal
	Earth (ground) terminal
	Direct current supply only
	Alternating current supply only
	Both direct and alternating current supply
	The equipment is protected through double insulation

Information in this manual is intended only to assist our customers in the efficient operation of our equipment. Use of this manual for any other purpose is specifically prohibited and its contents are not to be reproduced in full or part without prior approval of the Technical Publications Department.

Health and Safety
To ensure that our products are safe and without risk to health, the following points must be noted:

1. The relevant sections of these instructions must be read carefully before proceeding.
2. Warning labels on containers and packages must be observed.
3. Installation, operation, maintenance and servicing must only be carried out by suitably trained personnel and in accordance with theinformation given.
4. Normal safety precautions must be taken to avoid the possibility of an accident occurring when operating in conditions of high pressureand/or temperature.
5. Chemicals must be stored away from heat, protected from temperature extremes and powders kept dry. Normal safe handling proceduresmust be used.
6. When disposing of chemicals ensure that no two chemicals are mixed.

Safety advice concerning the use of the equipment described in this manual or any relevant hazard data sheets (where applicable) may be obtained from the Company address on the back cover, together with servicing and spares information.

Electrical Connection
A standard method of electrical connection is used between the master and the slaves, with defined voltage levels and characteristics. The transmitter and receiver integrated circuits within the 4600 meet the requirements of the EIA (Electronic Industries Association, American) RS485 and RS422 Serial Interface Standards.
The RS422/485 communication standard is used with the following logic levels:

1. for logic '1' (MARK condition or IDLE state) the 'A'terminal of the transmitter is negative (0V) with respect to the 'B' terminal (+5V)
2. for logic '0' (SPACE condition or ACTIVE state) the 'A'terminal of the transmitter is positive (+5V) with respect to the 'B' terminal (0V).

Note. The 'A' terminal is Tx + or Rx + and the 'B' terminal is Tx – or Rx –.

Protocol
A standard language or protocol must be used in both the master and the slaves for messages (commands and data) to be interpreted and acted upon. To achieve this second condition, Modbus Protocol is utilized on the 4600 Series Monitor using the Remote Terminal Unit (RTU) mode only.
Two methods of message error checking are used. Parity checking is used, if selected, to detect transmission errors in individual characters.
Parity is used for simple error checking. The parity bit is a onebit code which is transmitted in addition to the ASCII character. It can detect only one error per character, since two errors may cancel out. Parity is calculated by finding the sum of logic '1's in the character and either:

1. setting the parity bit to logic '1' if the sum is odd, or logic'0' if the sum is even, when using even parity. or
2. setting the parity bit to logic '0' if the sum is odd, or logic'1' if the sum is even, when using odd parity.

Cyclic Redundancy Checking (CRC-16) is used to detect errors in the Master messages and Slave responses. This therefore detects errors in the complete message sent and also the replies.

PREPARATION

Preparation is as given in the Operating Instructions, with additions as detailed in this section.

Company Standard Settings
Only those parameters detailed on the customer order are programmed at the factory. If any parameters are unsuitable for the application they can be reprogrammed – see Section 7 of the Operating Instructions. Serial data programming details are given in this manual.

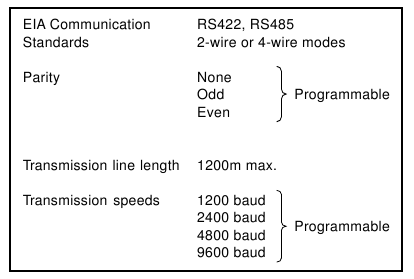

Standard parameter settings for the serial data programme are as follows:

INSTALLATION

Observe the limitations outlined in the Operating Instructions. The maximum serial data transmission line length for both RS422 and RS485 systems is 1200m.

Serial Communication Adaptors for Personal Computers
An RS422/485 communications adaptor board is required for serial links. It is strongly recommended that the card used has galvanic isolation to protect the computer from lightning damage and increase immunity from noise pick-up from cables.

Five-wire Configuration
The following OPTO22 boards are recommended for use with the 4600 serial instruments:

The following 'jumper' selections are required on OPTO22 boards (usually supplied as the default configuration):
RX & TX install line termination jumper
Install pull-up and pull-down jumpers
CTS & RTS disable jumper installed.
Select board address and interrupts as described in the OPTO22 manual.

Three-wire Configuration
The adaptor card must have the provision for disabling the transmitter after each message is transmitted, so that bus contention does not occur. This is often implemented by the use of the RTS signal to control the transmitter enable. Consult the adaptor card manufacturer to determine suitability.

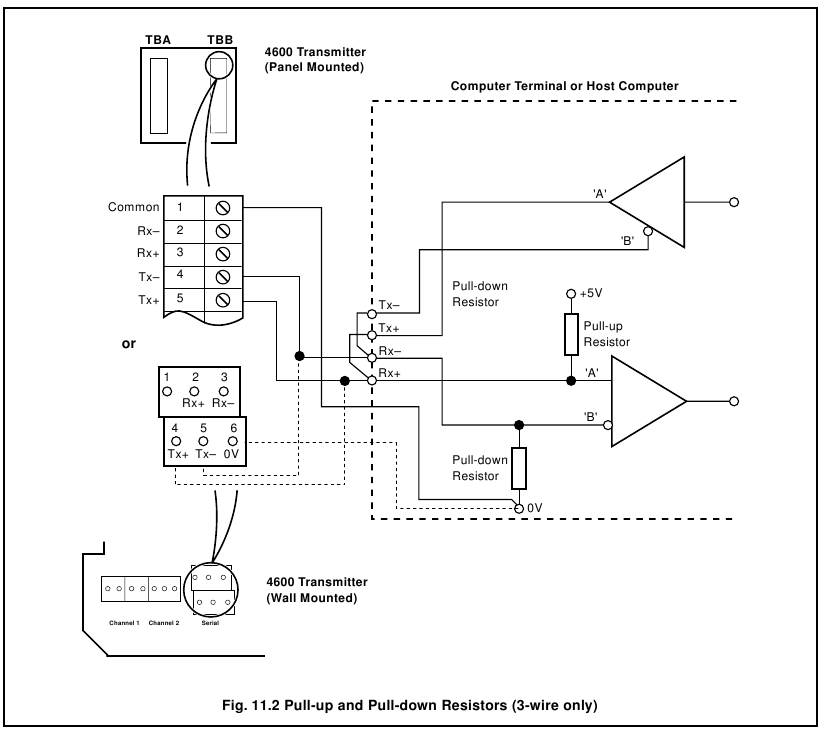

Install the pull-up/pull-down resistors on either the RX or TX lines. The resistors must not be connected on both pairs of lines.

ELECTRICAL CONNECTIONS

All connections, apart from those for serial data communication, are made as shown in Figs. 4.3 and 4.4 of the Operating Instructions

Serial Connections – Figs. 4.1 and 4.2

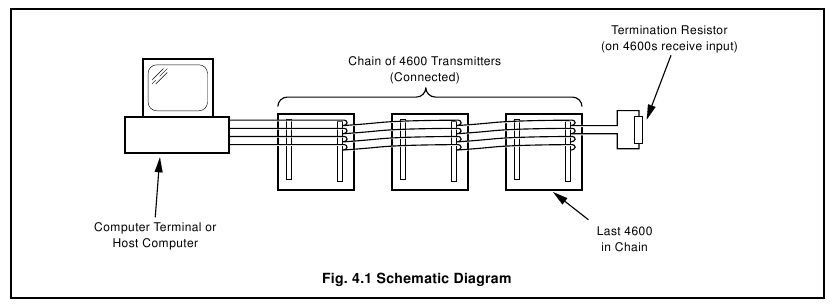

The transmitters must be connected in parallel as shown in the schematic diagram – Fig. 4.1. The RS485 standard quotes connection of maximum thirty two slaves (4600 Transmitters) to any single driver (computer terminal or host computer); the RS422 standard quotes connection of up to ten slaves. However, these numbers can be increased if the driver's serial port permits.
Make serial data connections and check the processor board links as shown in Fig. 4.2. The type of cable used is dependent on the transmission speed and cable length:

Five-wire Cable (refer also to Fig. 11.1)
Up to 6m (all speeds) – standard screened or twisted pair cable.
Up to 300m – twin twisted pair with overall foil screen and an integral drain wire, e.g. Belden 9502 or equivalent
Up to 1200m – twin twisted pair with separate foil screens and integral drain wires for each pair, e.g. Belden 9729 or equivalent

Three-wire Cable (refer also to Fig. 11.2)
Up to 6m (all speeds) – standard screened or twisted pair cable.
Up to 1200m – single twisted pair with overall foil screen and integral drain wire, e.g. Belden 9501 or equivalent.

Serial Connections

SETTING UP

For all aspects other than serial data transmission the transmitter is set up as shown in the Operating Instructions. Unless otherwise requested, the instrument is despatched with a transmission rate of 9600 baud and transmission line termination resistors linked-out. If the resistors are to be linked-in (see Fig. 5.1) carry out the following section.

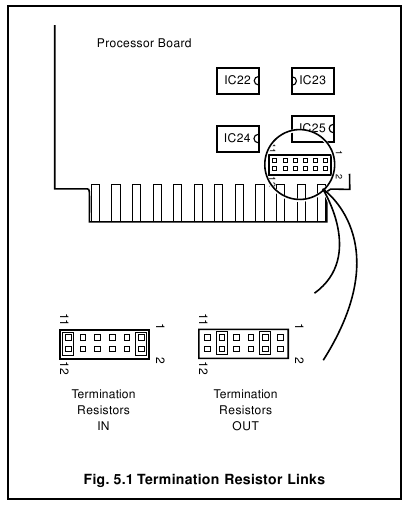

Termination Resistors – Fig. 5.1
For long transmission lines, termination resistors are required on the last 4600 Transmitter in the chain and at the host computer/computer terminal. Under normal operating conditions the resistors are required at the last 4600 receive inputs only – see Fig. 4.1. The transmitter's resistors are selected using plug-in links – see Fig. 5.1.
Switch off the supply and gain access to the processor board ( in the Operating Instructions). Set the termination resistor links as shown in Fig. 5.1.

PROGRAMMING

The general programming procedure is as detailed in the Operating Instructions but with an additional Serial Interface page between the Set Up Outputs and Electrical Cal pages.

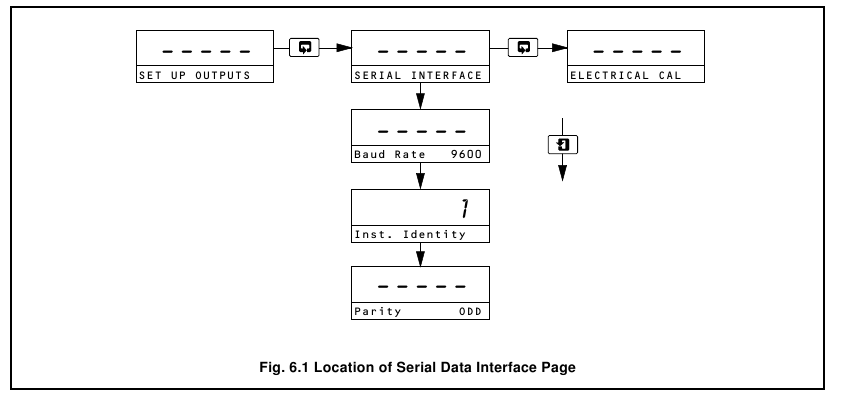

Serial Interface Page

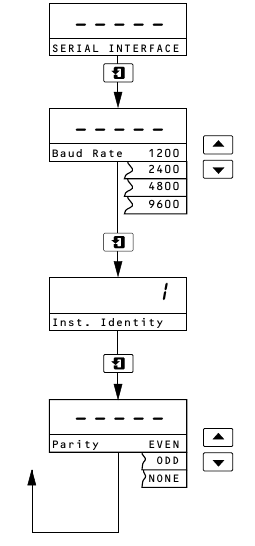

Page Header – Serial Interface

Transmission Rate
Select the retransmission rate required (1200 slowest, 9600 fastest).

Transmitter Identification
Assign the transmitter an identification number (1 to 99). The identification number allows more than one transmitter to be accessed via the communication channel.

Parity
Select the appropriate parity to match the computer terminal or host computer.
Return to the top of the Serial Interface Page or advance to the next page.

MODBUS PROTOCOL

Introduction to Modbus Protocol (RTU only)

Modbus communication is based on a master and a slave arrangement. The master sends a message to one slave at a time and waits for a reply.
The slave cannot accept a new message until the existing message is processed and a reply sent to the master (maximum response time 250 milliseconds). The slave monitors the elapsed time between receipt of characters. If the elapsed time without a new character is 3¹/2 character times, the slave assumes the next character received is the start of a new message.
To allow the master to differentiate between more than one slave in a system, each slave is given a unique identity address (between 1 and 99).
A broadcast address (address zero) can be used to access all slave devices with one command. This is limited to write messages only and there is no slave acknowledgment.
Note. Modbus RTU requires 1 start bit, 8 data bits, 1 parity bit (optional) and 1 or 2 stop bits. The 4600 uses only 1 stop bit.

Modbus Function Codes – Table 7.1
The function code field instructs the addressed slaves which function to perform.

* NAK = Negative Acknowledgement
Table 7.1 Modbus Function Codes

MODBUS FUNCTIONS

This section shows typical examples of Modbus function codes 01, 03, 05, 06, 08 and 16.

Read Coil Status – Function Code 01
Read Coil Status Query
This function allows the user to obtain the ON/OFF status of logic coils used to control discrete outputs from the addressed slave only. Broadcast mode is not supported with this function code. In addition to the slave address and function fields, the message requires that the information field contain the initial coil offset address to be read (starting address) and the number of locations to be interrogated must obtain status data.
Note. The coil offset address is the coil number minus one, e.g. to start at coil 31 the data start value must be set to 30 (1EH). Example – a read coil status request to read 7 coils from slave (01) starting at coil 11 (Alarm 1 Relay State) is shown below.

Read Coil Status Response
The data is packed one bit for each coil (1 = ON, 0 = OFF). The response includes the slave address, function code, quantity of data characters, the data characters and error checking. The low order bit of the first character contains the first addressed coil and the remainder follow. For coil quantities that are not even multiples of eight, the last characters are filled in with zeros at high order end.
Example – the response to the read coil status query shows the following:
Relay alarm state 1 OFF
Relay alarm state 2 OFF
No coil at this address
Channel 1 input error
Channel 2 input error
No coil at this address
NV check sum error

Read Holding Register – Function Code 03
Read Holding Register Query
The Read holding registers allow the user to obtain the binary contents of holding registers in the addressed slave.
Note. The data start register must contain the offset address of the first register to be accessed, e.g. to start at register 11 the data start register must contain 10 (0AH).
Broadcast mode is not allowed.
Example – a read holding register request to read 6 holding registers from slave (01) starting at holding address 121 (alarm trip A1) is shown below.

Read Holding Register Response
The addressed slave responds with its address and function code, followed by the information field. The information field contains 1 byte describing the quantity of data bytes to be returned. The contents of each register requested (DATA) is two bytes, the first byte includes the high order bits and the second the low order bits.

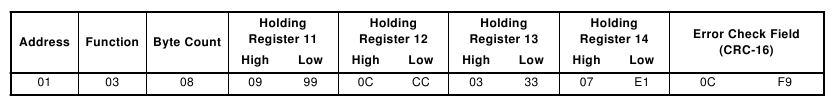

Example – the response to the read holding register query shows the following:
Measured conductivity – 60.0µS/cm (Range: 0 to 100µS/cm)
Conductivity set point 1 – 80.0µS/cm
Conductivity set point 2 – 20.0µS/cm
Measured temperature – 49°C (Range: –10 to 110°C)

Force Single Coil – Function Code 05
Force Single Coil Query
This message forces a single coil either ON or OFF. The data value 65,280 (FF00 HEX) sets the coil ON and the value zero turns it OFF. All other values are illegal and do not affect the coil.
Note. To write to a coil the coil offset address must be used, e.g. to write to coil 50, the coil address 49(31H) is transmitted.
The use of slave address zero (broadcast mode) forces all attached slaves to modify the desired coil.
Example – a force single coil request to switch ON coil address 50 (NV Memory Save) in slave 01 is shown below.

Force Single Coil Response
The response is confirmation of the query after the coil state has been altered.
Example:

Preset Single Register – Function Code 06
Preset Single Register Query
The preset single register allows the user to modify the contents of a holding register.
Note. Function codes 5, 6 and 16 are the only messages that are recognized as valid for broadcast.
Example – a preset single register request to write the value 60.0 to holding register address 12 (alarm trip A1) in slave 01 is shown below.

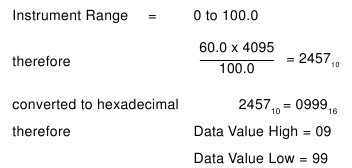

Since all register values for measured variables and alarm set points (scaled parameters) are ranged to 12 bits (for RTU), then to calculate the Data Value High and Data Value Low for a setpoint of 60.0 the following method is used:

Note. To write to a register, the register's offset address must be used, e.g. to write to register 12, the offset address 11(0B) is transmitted.

Preset Single Register Response
The normal response to a preset single register request is to retransmit the query message after the register has been altered.
Example:

Loopback Test – Function Code 08
Loopback Test Query
The purpose of the loopback test is to test the Modbus system, it does not affect the content of the controller. Variations in the response may indicate faults in the Modbus system. The information field contains 2 bytes for the designation of the diagnostic code followed by 2 bytes to designate the action to be taken.
Example:

Loopback Test Response
The response always echoes the query, only diagnostic code 0 (bytes 3 and 4) can be used.
Example:

* These are considered to be the information fields for diagnostic mode.

Preset Multiple Registers – Function Code 16
Preset Multiple Registers Query
Holding registers existing within the controller can have their contents changed by this message. When used with slave address zero (Broadcast mode) all slave controllers load the selected registers with the contents specified.
Note. To write to multiple registers, the initial register offset address must be used, e.g. to write to register 02 onwards, the offset address 01 is transmitted.
Example – a preset multiple registers request to write the value 90.0 to the register address (Alarm Set Point 1) and the value 30.0 to the register address (Alarm Set Point 2) in slave 01 is shown below.

Preset Multiple Registers Response
The response confirms slave identification, function code, starting register address and quantity only.
Example:

EXCEPTION RESPONSES

The exception response codes sent by the slave are shown in Table 9.1. When a slave detects one of these errors, it sends a response message to the master consisting of slave address, function code, error code and error check fields.

Table 9.1 Exception Response Data

Examples
A read register request to read holding register address 251 of slave 01 (undefined address for slave, beyond address limit) is shown below.

The response is an exception response sighting 'illegal data address'. To indicate that the response is a notification of an error, the most significant bit of the function code is set to 1.

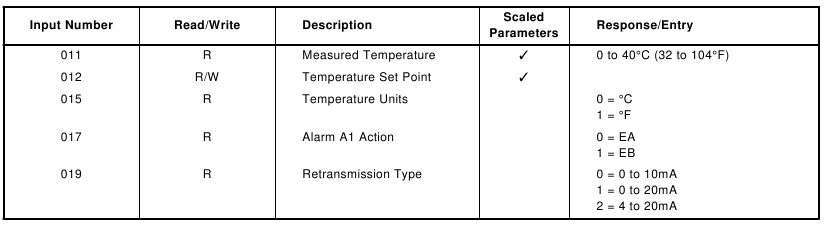

10 MODBUS COILS AND REGISTERS

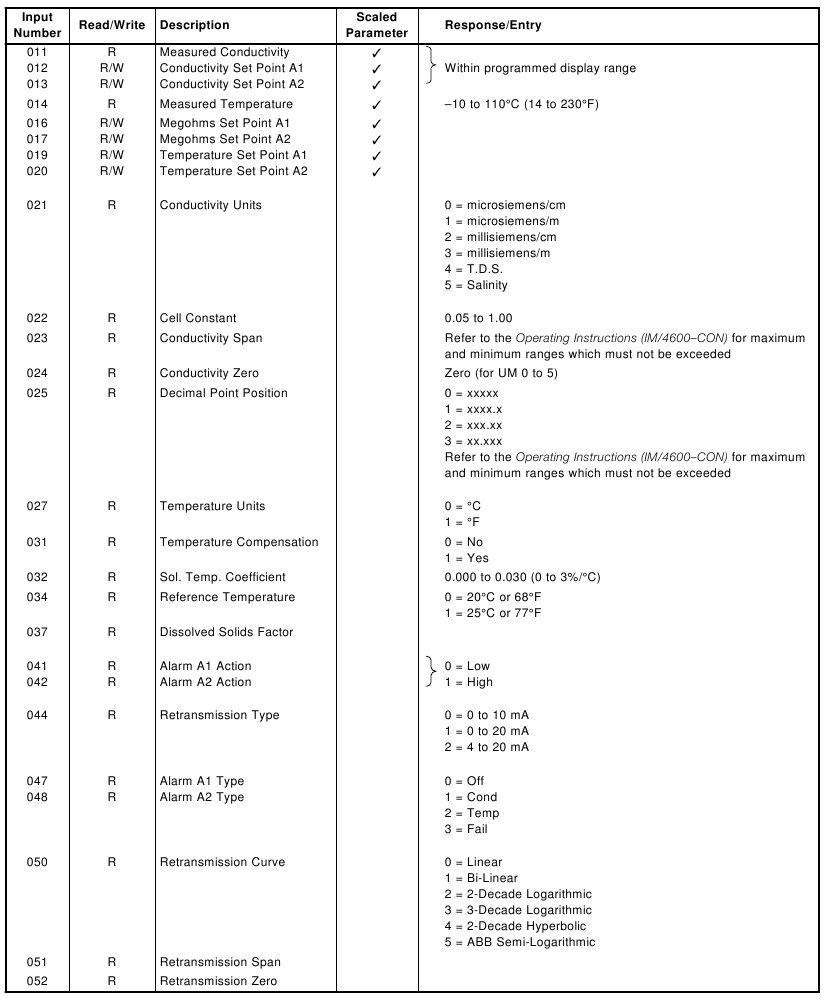

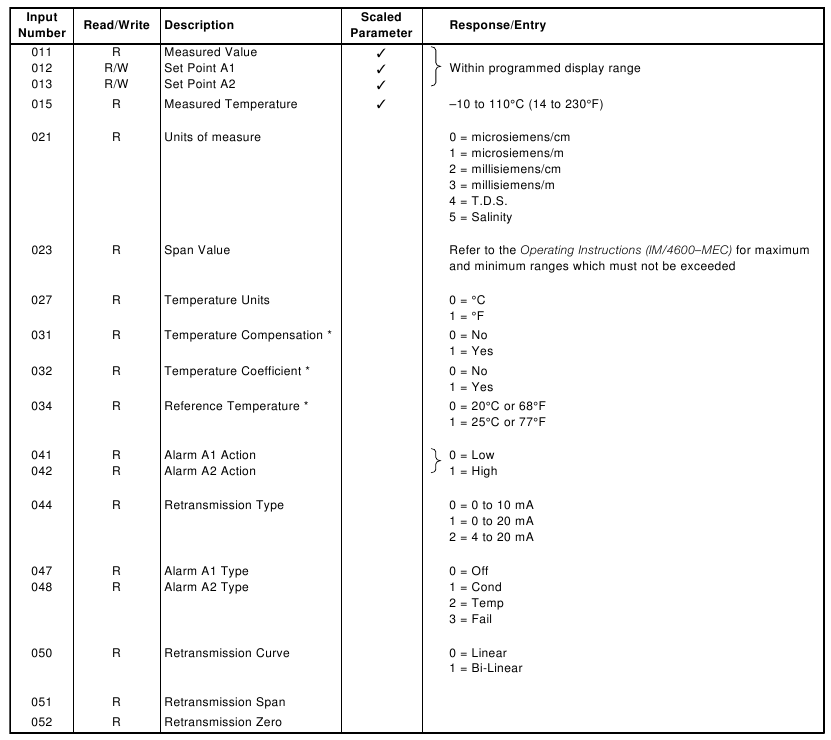

Conductivity Transmitters Models 4620/25
Coils

Holding Registers

Coils

Holding Registers

* Ignore if the units of measure are not mS/cm. Temperature compensation is automatically carried out on all other units.

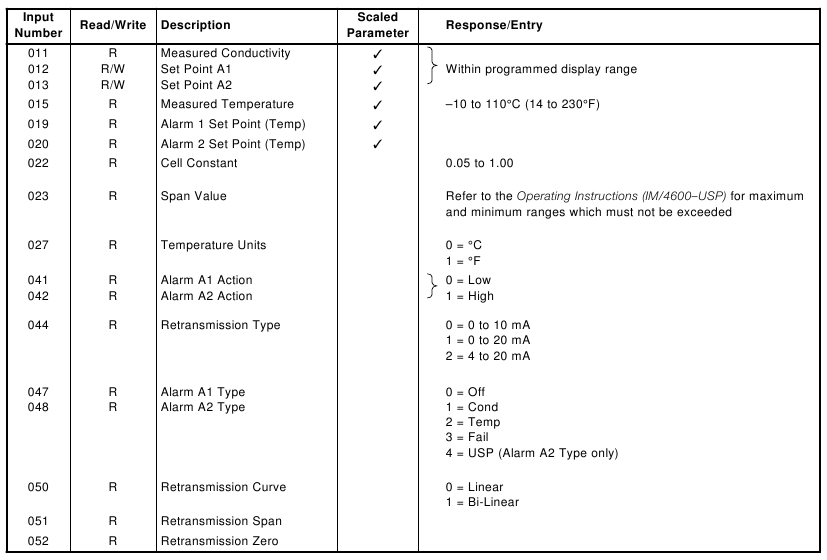

Conductivity Transmitters to meet USP Regulations Models 4623/28
Coils

Holding Registers

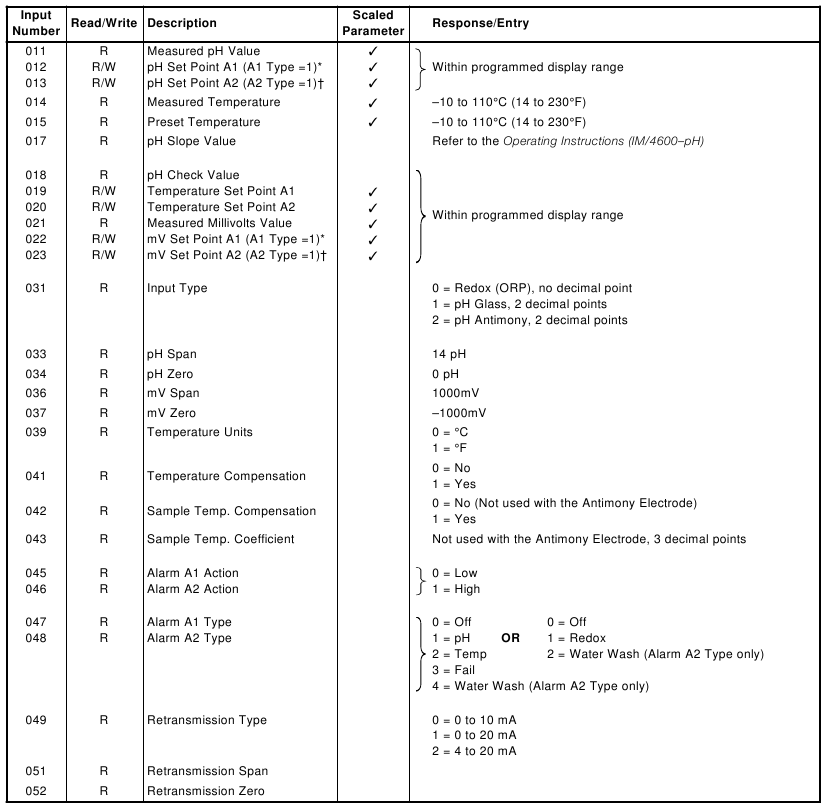

pH Transmitters Models 4630/35 and 4631/36
Coils

* Models 4631 and 4636 only.

Holding Registers

* If Alarm A1 Type is set to Off or Fail, Then Alarm A1 Set Point = 0.
† If Alarm A2 Type is set to Off, Fail or Water Wash, Then Alarm A2 Set Point = 0.

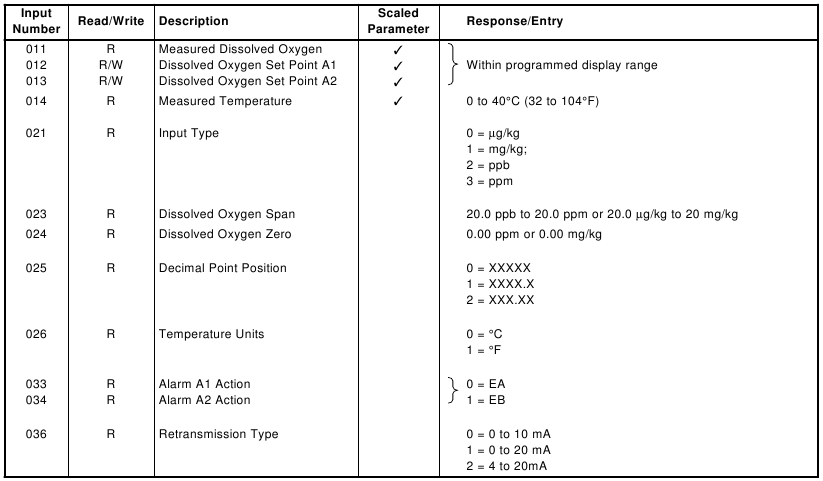

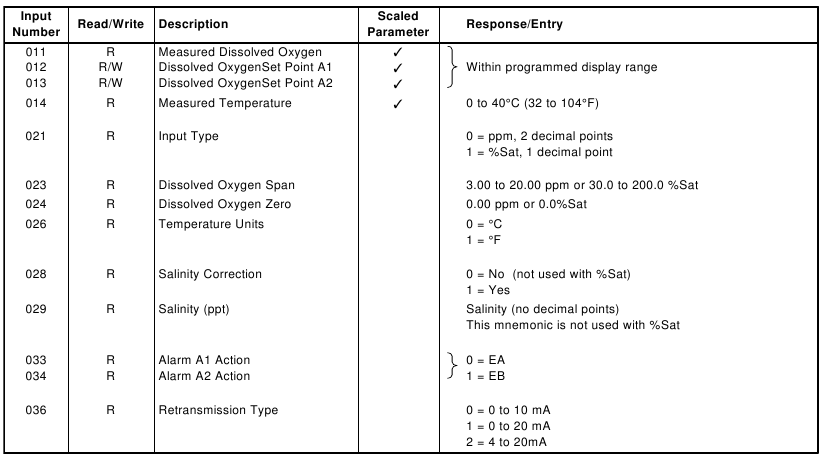

Dissolved Oxygen Analyzers Models 4640/45 and 4642/47
Coils

* Models 4642 and 4647 only.

Holding Registers

Low Level Dissolved Oxygen Analyzers Models 4641/46
Coils

Holding Registers

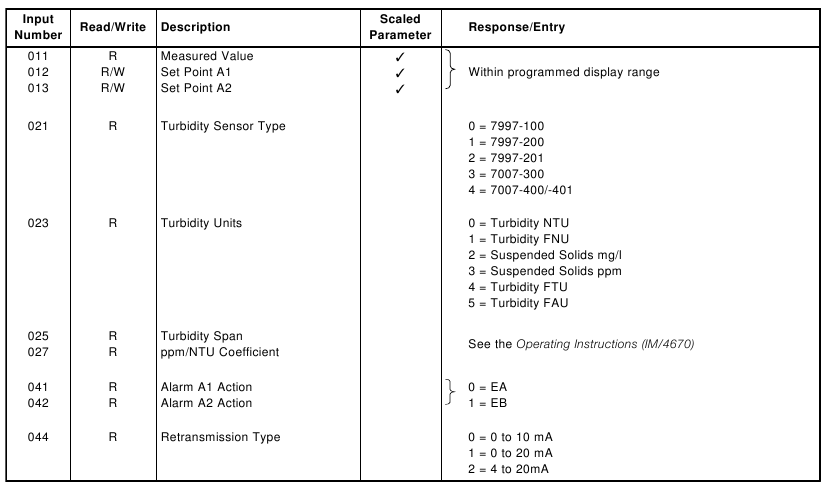

Turbidity Analyzers Models 4670 and 4675
Coils

Holding Registers

MODBUS COILS AND REGISTERS

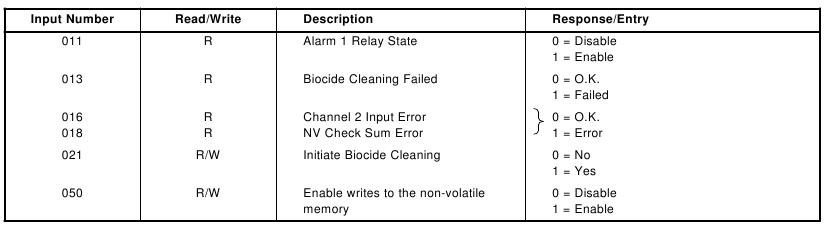

Biocide Cleaning Control (4691)
Coils

Holding Registers

OPERATION

Before attempting any serial communication, first ensure that the 4600 Transmitters connected to the computer terminal or host computer by serial link are functioning correctly as individual instruments. This is achieved by connecting all analog inputs, applying the input signals and checking that the digital display reads appropriately.
Ensure that the serial data connections to 4600 Transmitter have been made correctly with respect to the computer terminal, or host computer, interface. If the above check appears satisfactory, test the serial communication by sending an appropriate message from the computer terminal or host computer to a transmitter and observe if it replies; thus establishing communication. If communication is not established, check that the computer terminal, or host computer, interface is set up correctly and that the plug-in links within each transmitter are correctly positioned.

Check that the parameters programmed in the instrument's Serial Data Communication Page are compatible with those of the computer terminal or host computer.
If communication is still not possible or is erratic, check that the computer terminal or host computer interface has pull-up and pull-down resistors connected as shown in Figs. 11.1 and 11.2.
Note. If no reply is received from the instrument within 160ms, retransmit the command. If after five command re-entries a satisfactory reply has not been received, the communication link has been broken and must be re-checked.

SPECIFICATION

The specification for each instrument is as detailed in the
Operating Instructions for the instrument, with the following additions:

Non-volatile Memory Limitations

Note. If the number of write cycles to any particular nonvolatile memory register exceeds 10⁴ write cycles, the register's contents may not be retained.
Any changes made to a parameter, e.g. Alarm trip value, via the serial link are stored in a non-volatile memory register assigned to that parameter.
The number of write cycles to a particular register can be reduced by disabling the non-volatile memory access when making changes to parameters which do not need to be saved on power-down. This is done by using the non-volatile save state (coil number 50).
When the non-volatile save state is set to 'Enable', any parameter changes made via the serial link are written to the non-volatile memory register and retained on power-down. If the non-volatile save state is set to'Disable', parameter changes made via the serial link are not retained on powerdown.
The non-volatile save state is not retained on power-down and must be reset to the required state each time the instrument is powered down, replaced with another instrument or the host computer is powered down.

PRODUCTS & CUSTOMER SUPPORT

Products
Automation Systems

• for the following industries:
  • Chemical & Pharmaceutical
  • Food & Beverage
  • Manufacturing
  • Metals and Minerals
  • Oil, Gas & Petrochemical
  • Pulp and Paper

Drives and Motors

• AC and DC Drives, AC and DC Machines, AC motors to 1kV
• Drive systems
• Force Measurement
• Servo Drives

Controllers & Recorders

• Single and Multi-loop Controllers
• Circular Chart, Strip Chart and Paperless Recorders
• Paperless Recorders
• Process Indicators

Flexible Automation

• Industrial Robots and Robot Systems

Flow Measurement

• Electromagnetic Flowmeters
• Mass Flow Meters
• Turbine Flowmeters
• Flow Elements

Marine Systems & Turbochargers

• Electrical Systems
• Marine Equipment
• Offshore Retrofit and Refurbishment

Process Analytics

• Process Gas Analysis
• Systems Integration

Transmitters

• Pressure
• Temperature
• Level
• Interface Modules

Valves, Actuators and Positioners

• Control Valves
• Actuators
• Positioners

Water, Gas & Industrial Analytics Instrumentation

• pH, conductivity, and dissolved oxygen transmitters andsensors
• ammonia, nitrate, phosphate, silica, sodium, chloride, fluoride, dissolved oxygen and hydrazine analyzers.
• Zirconia oxygen analyzers, katharometers, hydrogen purityand purge-gas monitors, thermal conductivity.

Customer Support
We provide a comprehensive after sales service via a Worldwide Service Organization. Contact one of the following offices for details on your nearest Service and Repair Centre.

United Kingdom
ABB Limited
Tel: +44 (0)1453 826661
Fax: +44 (0)1453 829671

United States of America
ABB Inc.
Tel: +1 775 850 4800
Fax: +1 775 850 4808
