HP M24fwa, HSD-0103-K Disassembly Manual

Items Requiring Selective Treatment

Items listed below are classified as requiring selective treatment.
Enter the quantity of items contained within the product which require selective treatment in the right column, as applicable.

Item Description	Notes	Quantity of items included in product
Printed Circuit Boards (PCB) or Printed Circuit Assemblies (PCA)	With a surface greater than 10 sq cm Display Board1, Main Board1	2
Batteries, excluding Li-Ion batteries.	All types including standard alkaline, coin or button style batteries	0
Li-Ion batteries. Include all Li-Ion batteries if more than one is provided with the product (such as a detachable notebook keyboard battery, RTC coin cell, etc.)	Battery(ies) are attached to the product by (check all that apply with an "x" inside the "[ ]"): [ ] screws [ ] snaps [ ] adhesive [ ] other. Explain NOTE: Add detailed removal procedures including required tools in the sections 3.1 and 3.2.	0
Mercury-containing components	For example, mercury in lamps, display backlights, scanner lamps, switches, batteries	0
Liquid Crystal Displays (LCD) with a surface greater than 100 sq cm	Includes background illuminated displays with gas discharge lamps panel*1	1
Cathode Ray Tubes (CRT)		0
Capacitors / condensers (Containing PCB/PCT)		0
Electrolytic Capacitors / Condensers measuring greater than 2.5 cm in diameter or height	C605 in SPS board	1
External electrical cables and cords	HDMI cable1, VGA cable1, Power cord1, Audio cable1	4
Gas Discharge Lamps		0
Plastics containing Brominated Flame Retardants weighing > 25 grams (not including PCBs or PCAs already listed as a separate item above)		0
Components and parts containing toner and ink, including liquids, semi-liquids (gel/paste) and toner	Include the cartridges, print heads, tubes, vent chambers, and service stations.	0
Components and waste containing asbestos		0
Components, parts and materials containing refractory ceramic fibers		0
Components, parts and materials containing radioactive substances		0

Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed.

Tool Description	Tool Size (if applicable)
Screwdriver	2
Slothead screwdriver	1

Product Disassembly Process

List the basic steps that should typically be followed to remove components and materials requiring selective treatment including the required steps to remove the external enclosure:

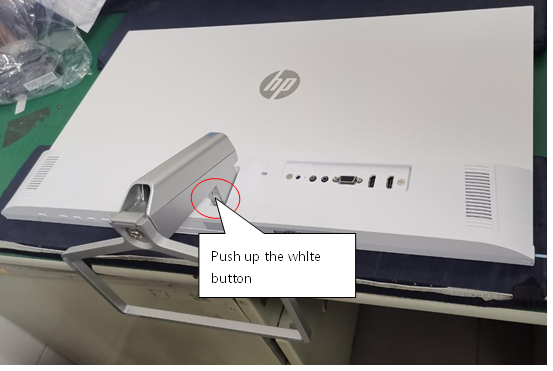

Lay the display on soft desk and push the button of stand to unlock the stand, then pull out the stand form the monitor head.

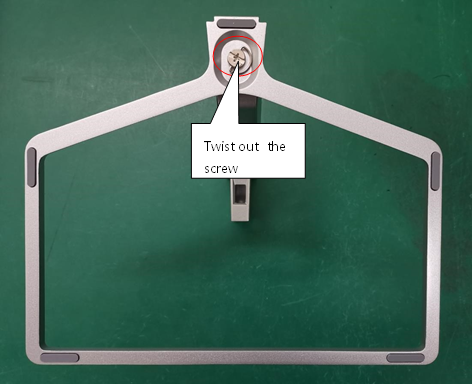

Twist out the screw and separate base and stand.

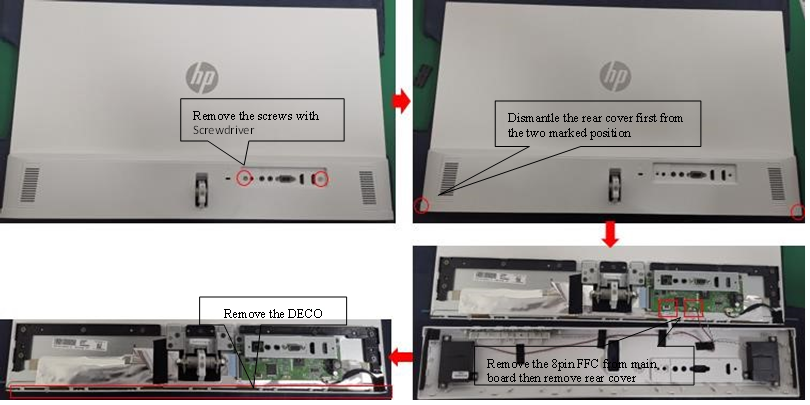

Strip two screws from the rear cover, then move rear cover follow the below way

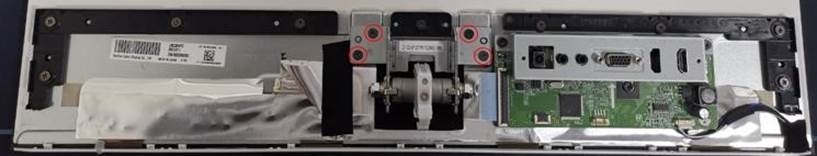

Strip four screws from the hinge.

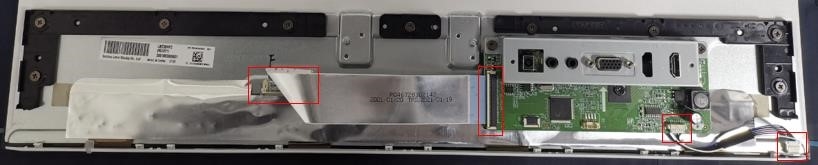

Remove the acetate tapes from the LVDS/ LED cable.
Pull out the LVDS/ LED cable to panel.

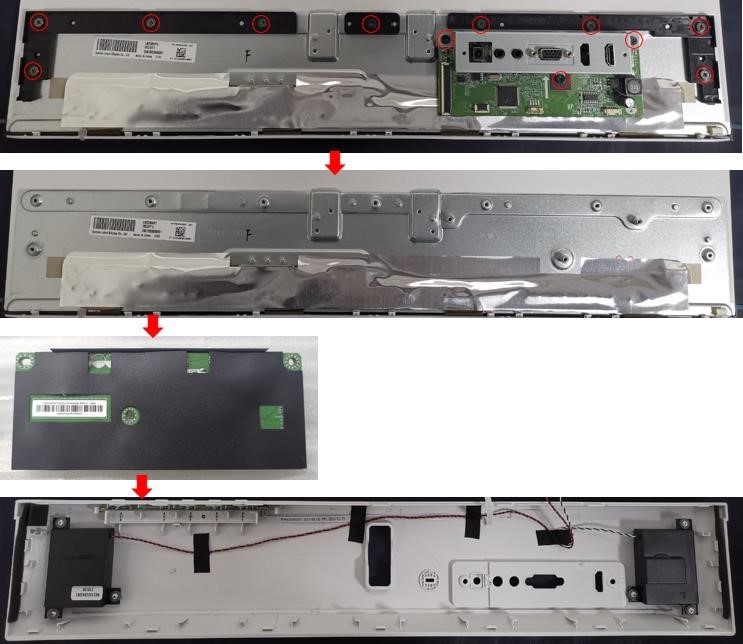

Strip twelve screws from the rear cover supporter and M/B.

Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained in the product that require selective treatment (with descriptions and arrows identifying locations).

Lay the display on soft desk and push the button of stand to unlock the stand, then pull out the stand form the monitor head.
Twist out the screw and separate base and stand.
Strip two screws from the rear cover, then move rear cover follow the below way
Strip four screws from the hinge.
Remove the acetate tapes from the LVDS/ LED cable.
Pull out the LVDS/ LED cable to panel.
Strip twelve screws from the rear cover supporter and M/B.
