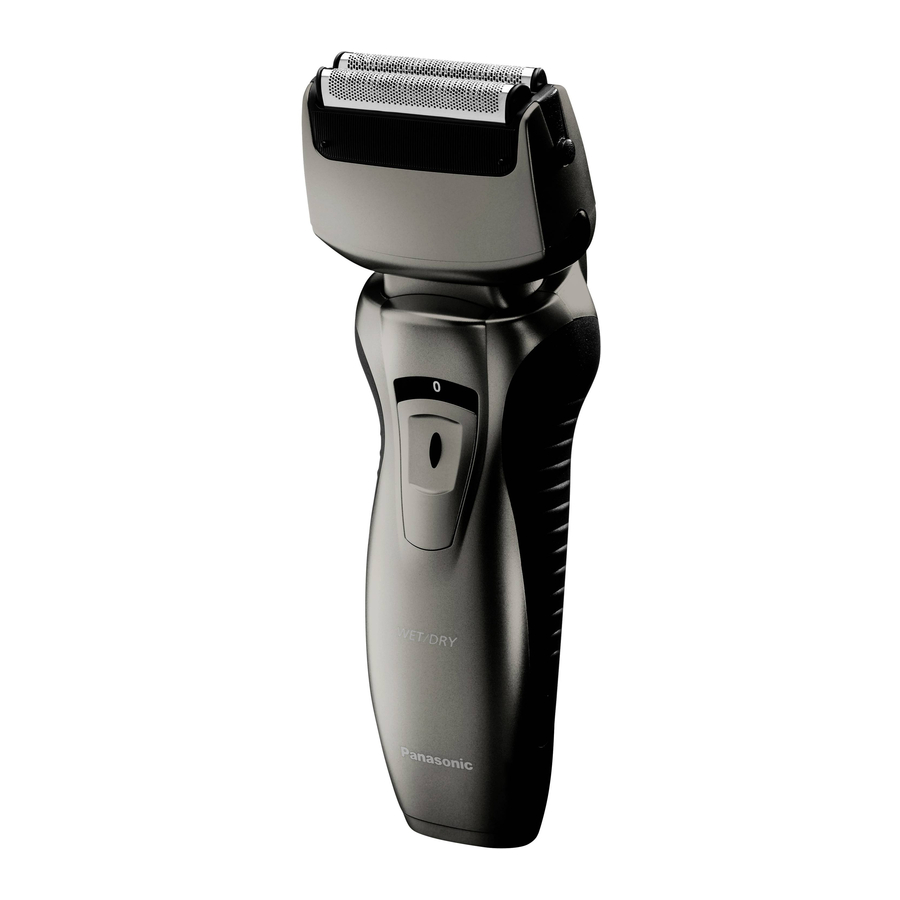

Panasonic ES-RW33, ES-RW31 Manual

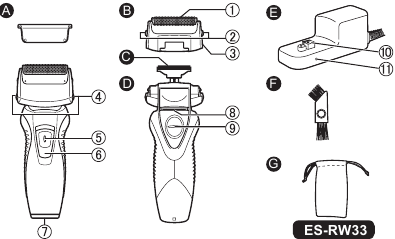

Parts identification

1. Protective cap Protective cap
2. Outer foil section
   1. System outer foil
   2. System outer foil release buttons
   3. Foil frame
3. Inner blades
4. Main body
   4. Foil frame release buttons
   5. Switch lock button
   6. Power switch (0/1)
   7. Appliance socket
   8. Trimmer
   9. Trimmer handle
5. AC adaptor (RE7-67)
   10. Charging plug
   11. Charge indicator lamp Accessories
6. Cleaning brush
7. Travel pouch


Charging

Perform the following steps to charge the shaver if it seems to lose the speed.
The charging time differs depending on the rated voltage.

• A full charge supplies enough power for approximately 30 minutes of use. (ES-RW33)
  A full charge supplies enough power for approximately 21 minutes of use. (ES-RW31)
  (Based on dry using at 20°C-30°C.)
  The operating time may differ depending on the frequency of use and the operating method.

1. Turn off the shaver and insert it in the AC adaptor as illustrated.
2. Plug in the adaptor into a household outlet.


• The charge indicator lamp glows and stays on until the shaver is removed from the AC adaptor.

Using the shaver

1. Depress the switch lock button and slide the power switch (0/1) upwards.

2. Hold the shaver as illustrated above and shave.


• Start out shaving by applying gentle pressure to your face. Stretch your skin with your free hand and move the shaver back and forth in the direction of your beard. You may gently increase the amount of pressure as your skin becomes accustomed to this shaver. Applying excessive pressure does not provide a closer shave.

Using the trimmer

Slide the trimmer handle up. Place at a right angle to your skin and move downwards to trim your sideburns.

Cleaning

1. Remove the shaver from the AC adaptor.
2. Apply some hand soap and some water to the outer foil.
3. Turn the shaver on.

4. Turn the shaver off after 10-20 seconds.
5. Remove the outer foil section and turn the shaver on.

6. Clean the shaver and the outer foil section with running water.

7. Wipe off any drops of water with a dry cloth.
8. Dry the outer foil section and the shaver completely.

9. Attach the outer foil section to the shaver.

Replacing the outer foil and the inner blades

Replacing the outer foil

1. Press the system outer foil release buttons and lift the system outer foil upwards as illustrated.

2. Insert the system outer foil by pushing it downwards until it clicks.

Replacing the inner blades

1. Press the foil frame release buttons and lift the outer foil section upwards as illustrated.

2. Remove the inner blades one at a time as illustrated.
   • Do not touch the edges (metal parts) of the inner blades to prevent injury to your hand.

3. Insert the inner blades one at a time until they click as illustrated.

Cleaning with the brush

1. Clean the inner blades using the short brush by moving it in direction (A). Clean the outer foil, the shaver body and the trimmer using the long brush.

   • Do not move the short brush in direction (B) as it will damage the inner blades and affect their sharpness.
   • Do not use the short brush to clean the outer foil.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the shaver. The battery is to be disposed of safely. Please make sure that the battery is disposed of at an officially designated location if there is one. Do not dismantle or replace the battery so that you can use the shaver again. This could cause fire or an electric shock.
Replace it at an authorized service centre.

• Remove the shaver from the AC adaptor when removing the battery.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps 1 to 8 and lift the battery, and then remove it.
• Take care not to short-circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.


Specifications

Power source	See the name plate on the product.
Motor voltage	1.2 V
Charging time	ES-RW33	230 V~	Approx. 11 hours
		220 V~	Approx. 12 hours
	ES-RW31	230 V~	Approx. 7 hours
		220 V~	Approx. 8 hours
Airborne Acoustical Noise	In shaving mode: 59 (dB (A) re 1 pW) In trimmer mode: 63 (dB (A) re 1 pW)

This product is intended for household use only.

Safety Warnings

Before operating this unit, please read these instructions completely and save them for future use.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.
• Do not immerse the AC adaptor in water or wash with water.
• Do not use any AC adaptor other than one specifically designed for this model (RE7-67).
• This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.


Before use

Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method

Using the shaver

The outer foil is very thin and can be damaged if not used correctly. Check that the foil is not damaged before using the shaver. Do not use the shaver if the foil etc. is damaged as you will cut your skin.

The appliance may not operate in an ambient temperature lower than approximately 0°C

Charging the shaver

Charge the appliance correctly according to these Operating Instructions. (See "Charging").

This appliance contains battery that is only replaceable by skilled persons. Please contact an authorized service centre for the details of repair.

Plug in the adaptor into a household outlet where there is no moisture and handle it with dry hands. The shaver may become warm during use and charging. However, this is not a malfunction. Do not charge the shaver where it will be exposed to direct sunlight or other heat sources.

Cleaning the shaver

Remove the shaver from the AC adaptor before cleaning it to prevent electric shock. If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time. Wipe it with a cloth dampened with soapy water. Do not use thinner, benzine or alcohol.

Storing the shaver

Remove the shaver from the AC adaptor when storing it. Keep these operating instructions in a safe place.
