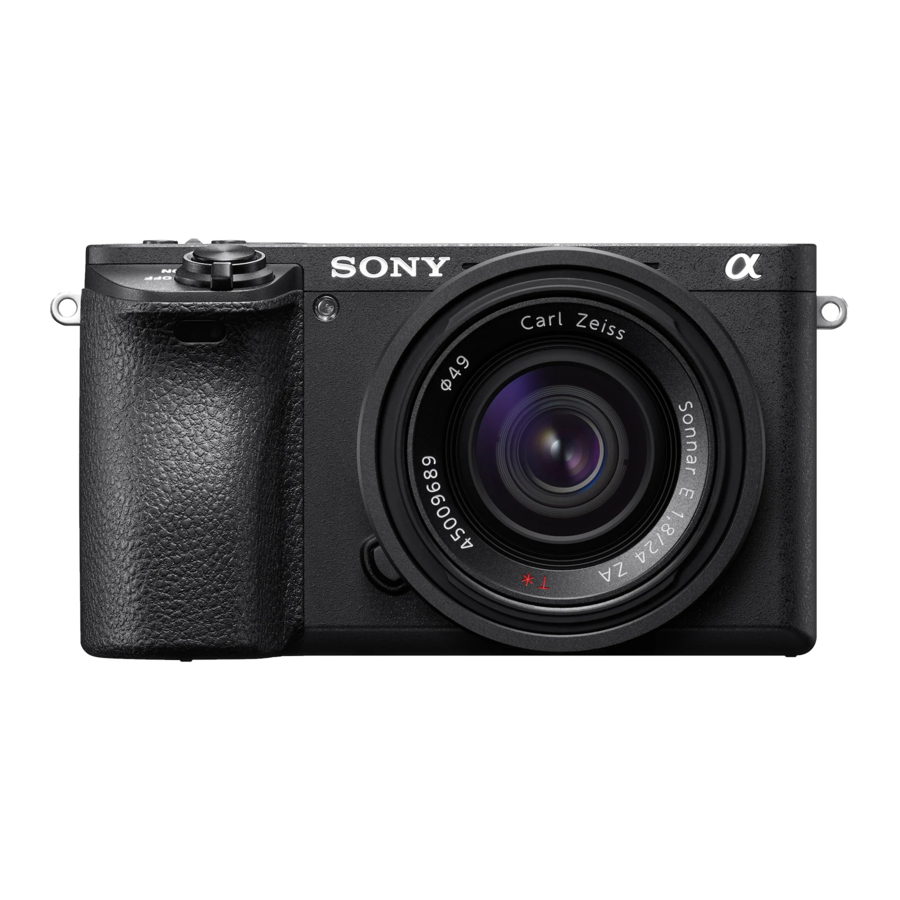

Sony alpha 6500, A6500 Corpo, ILCE-6500 Manual

Owner's Record
Record the model and serial number (which are located on the product) in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

Battery pack
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking lithium ion batteries.
• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.
• Do not expose to extremely low temperatures of -20°C (-4°F) or lower or extremely low pressures of 11.6 kPa or lower.

Use a nearby wall outlet (wall socket) when using the AC Adaptor/battery charger. If any malfunction occurs, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source. If you use the product with a charge lamp, note that the product is not disconnected from the power source even when the lamp turns off.

The power cord (mains lead), if supplied, is designed specifically for use with this equipment only, and should not be used with other electrical equipment.

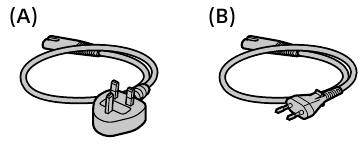

Power Cord
For the customers in the UK, Ireland, Malta, Cyprus and Saudi Arabia Use the power cord (A). For safety reasons, the power cord (B) is not intended for above countries/regions and shall therefore not be used there. For the customers in other EU countries/regions Use the power cord (B).

Notice
If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

This product has been tested and found compliant with the limits set out in the EMC regulation for using connection cables shorter than 3 meters (9.8 feet).

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

Notes on using your camera

Along with this section, also see "Precautions" in the Help Guide.

Screen language

You can select the language displayed on the screen using the menu.

Notes on recording/playback

• Once you format the memory card, all the data recorded on the memory card will be deleted and cannot be restored. Before formatting, copy the data to a computer or other device.
• Before you start recording, make a trial recording to make sure that the camera is working correctly.

Notes on handling the product

• This camera is designed to be dust and moisture-resistant, but is not waterproof or splash-proof.
• Do not leave the camera, the supplied accessories, or memory cards within the reach of infants. They may be accidentally swallowed. If this occurs, consult a doctor immediately.

No compensation for damaged content or recording failure

Sony can provide no guarantees in the event of failure to record or loss or damage of recorded images or audio data due to a malfunction of the camera or recording media, etc. We recommend backing up important data.

Notes on the monitor, electronic viewfinder, lens, and image sensor

• The monitor and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, there may be some small black dots and/or bright dots (white, red, blue or green in color) that constantly appear on the monitor and electronic viewfinder. These dots are normal due to the manufacturing process and do not affect the images in any way.
• Do not hold the camera by the monitor.
• When using the power zoom lens, be careful not to get your fingers or any other objects caught in the lens.
• Do not leave the lens or the viewfinder exposed to a strong light source such as sunlight. Because of the lens's condensing function, doing so may cause smoke, fire, or a malfunction inside the camera body or the lens. If you have to leave the camera exposed to a light source such as sunlight, attach the lens cap to the lens.
• When you shoot with backlighting, keep the sun sufficiently far away from the angle of view. Otherwise, the sunlight may enter the focus inside the camera and cause smoke or fire. Even if the sun is slightly away from the angle of view, it may still cause smoke or fire.
• Do not directly expose the lens to beams such as laser beams. That may damage the image sensor and cause the camera to malfunction.
• Do not look at sunlight or a strong light source through the lens when it is detached. This may result in unrecoverable damage to the eyes or cause a malfunction.
• Do not use the camera in areas where strong radio waves or radiation are being emitted. Recording and playback may not function correctly.
• Images may trail across on the screen in a cold location. This is not a malfunction.
• The recorded image may be different from the image you monitored before recording.

Notes on using lenses and accessories

It is recommended that you use Sony lenses/accessories designed to suit the characteristics of this camera. Using this camera with products from other manufacturers may affect its performance, leading to accidents or malfunction. Sony bears no responsibility for such accidents or malfunction.

Notes on the Multi Interface Shoe

• When attaching or detaching accessories such as an external flash to the Multi Interface Shoe, first turn the power to OFF. When attaching the accessory, confirm that it is firmly fastened to the camera.
• Do not use the Multi Interface Shoe with a commercially available flash that applies voltages of 250 V or more or has the opposite polarity of the camera. It may cause a malfunction.

Notes on shooting with the viewfinder

• The image may be slightly distorted near the corners of the viewfinder. This is not a malfunction. When you want to see the full composition with all its details, you can also use the monitor.
• If you pan the camera while looking into the viewfinder or move your eyes around, the image in the viewfinder may be distorted or the color of the image may change. This is a characteristic of the lens or display device and is not a malfunction. When you shoot an image, we recommend that you look at the center area of the viewfinder.
• When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, travel sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder. In case you may feel uncomfortable, refrain from using the viewfinder until your condition recovers, and consult your doctor as necessary.

Notes on continuous shooting

During continuous shooting, the monitor or viewfinder may flash between the shooting screen and a black screen. If you keep watching the screen in this situation, you may experience uncomfortable symptoms such as feeling of unwellness. If you experience uncomfortable symptoms, stop using the camera, and consult your doctor as necessary.

Notes on recording for long periods of time or recording 4K movies

• Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.
• Under high ambient temperatures, the temperature of the camera rises quickly.
• When the temperature of the camera rises, the image quality may deteriorate. It is recommended that you wait until the temperature of the camera drops before continuing to shoot.
• The surface of the camera may get warm. This is not a malfunction.
• If the same part of your skin touches the camera for a long period of time while using the camera, even if the camera does not feel hot to you, it may cause symptoms of a low-temperature burn such as redness or blistering.

Pay special attention in the following situations and use a tripod, etc.

• When using the camera in a high- temperature environment
• When someone with poor circulation or impaired skin sensation uses the camera
• When using the camera with the [Auto Pwr OFF Temp.] set to [High]

Notes on playing back movies on other devices

Movies recorded with this camera may not be played back correctly on other devices. Also, movies recorded with other devices may not be played back correctly on this camera.

Warning on copyright
Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

On the data specifications described in this manual

The data on performance and specifications are defined under the following conditions, except as described in this manual: at an ordinary ambient temperature of 25ºC (77°F), and using a battery pack that has been fully charged until the charge lamp has turned off.

How to turn off wireless network functions (Wi-Fi, NFC and Bluetooth function, etc.) temporarily

When you board an airplane, etc., you can turn off all wireless network functions temporarily. Select MENU button → (Wireless) → [Airplane Mode] → [On].

If you set [Airplane Mode] to [On], an (airplane) mark will be displayed on the screen.

Notes on wireless LAN

If your camera is lost or stolen, Sony bears no responsibility for the loss or damage caused by illegal access or use of the registered access point on the camera.

Notes on security when using wireless LAN products

• Always make sure that you are using a secure wireless LAN to avoid hacking, access by malicious third parties, or other vulnerabilities.
• It is important that you set the security settings when using a wireless LAN.
• If a security problem arises because no security precautions are in place or due to any inevitable circumstances when using a wireless LAN, Sony bears no responsibility for the loss or damage.

Checking the camera and the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)
• Power cord (mains lead) (1)* (supplied in some countries/ regions)

  * Multiple power cords may be supplied with your camera. Use the appropriate one that matches your country/region.
• Rechargeable battery pack NP-FW50 (1)

• Micro USB cable (1)

• AC Adaptor (1)
• Shoulder strap (1)

• Eyepiece cup (1)

• Body cap (1) (attached to the camera)
• Shoe cap (1) (attached to the camera)
• Instruction Manual (this manual) (1)
• Wi-Fi Connection/One-touch (NFC) Guide (1)

Identifying parts

When the lens is removed

1. Shutter button
2. Remote sensor
3. Wi-Fi antenna (built-in)

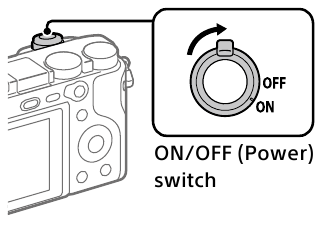

4. ON/OFF (Power) switch
5. Self-timer lamp/AF illuminator
6. Lens release button
7. Microphone*
8. Mount
9. Image sensor**
10. Lens contacts**

* Do not cover this part during movie recording. Doing so may cause noise or lower the volume.

** Do not touch this part directly.

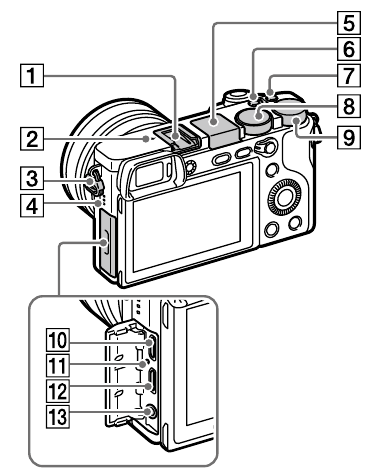

1. Multi Interface Shoe*
   Some accessories may not go in all the way and protrude backward from the Multi interface shoe. However, when the accessory reaches the front end of the shoe, the connection is completed.
2. Image sensor position mark
   The image sensor is the sensor that converts light into an electric signal. The mark shows the location of the image sensor. When you measure the exact distance between the camera and the subject, refer to the position of the horizontal line. The distance from the lens contact surface to the image sensor is about 18 mm (23/32 in.).

   If the subject is closer than the minimum shooting distance of the lens, the focus cannot be confirmed. Make sure you put enough distance between the subject and the camera.

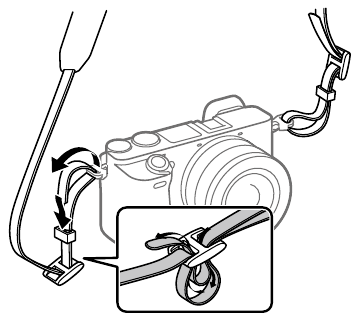

3. Hook for shoulder strap
   Attach both ends of the strap onto the camera.

4. Speaker
5. Flash

• Press the (Flash pop-up) button to use the flash. The flash does not pop up automatically.
• When not using the flash, press it back into the camera body.

6. C2 button (Custom button 2)
7. C1 button (Custom button 1)

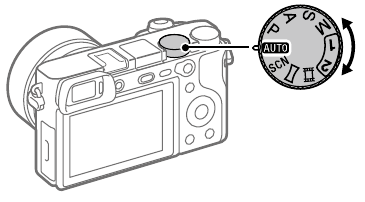

8. Mode dial
   (Auto Mode)/
   (Program Auto)/
   (Aperture Priority)/
   (Shutter Priority)/
   (Manual Exposure)/
   (Memory recall)/
   (Movie/S&Q Motion)/
   (Sweep Panorama)/
   (Scene Selection)
9. Control dial
   You can quickly adjust the settings for each shooting mode.
10. Multi/Micro USB Terminal*
    This terminal supports Micro USB-compatible devices.
11. Charge lamp
12. HDMI micro jack
13. (Microphone) jack
    When an external microphone is connected, the internal microphone turns off automatically. When the external microphone is a plugin-power type, the power of the microphone is supplied by the camera.

* For details on compatible accessories for the multi interface shoe and the Multi/Micro USB Terminal, visit the Sony web site, or consult your Sony dealer or local authorized Sony service facility.

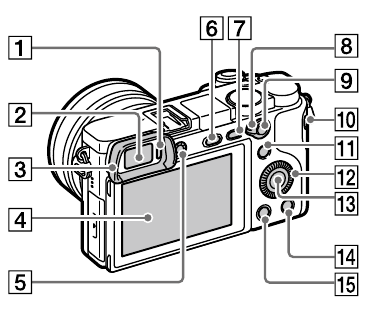

1. Eye sensor
2. Viewfinder
3. Eyepiece cup
   Not attached to the camera at the factory. It is recommended that you attach the eyepiece cup when you intend to use the viewfinder.

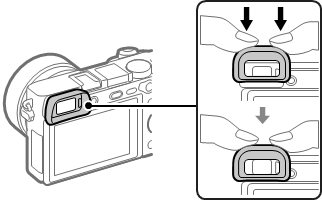

Attaching/removing the eyepiece cup

Match the eyepiece cup to the groove on the viewfinder and slide it into place.

To remove the eyepiece cup, grasp it on the left and right sides and lift it up.

• Remove the eyepiece cup when you attach an accessory (sold separately) to the Multi Interface Shoe.

4. Monitor (For touch operation: Touch panel/Touch pad)
   You can adjust the monitor to an easily viewable angle and shoot from any position.

   You may not be able to adjust the monitor angle depending on the type of a tripod you use. In such a case, release the tripod screw once to adjust the monitor angle.
5. Diopter-adjustment dial Adjust the diopter-adjustment dial according to your eyesight until the display appears clearly in the viewfinder. If it is hard to operate the diopteradjustment dial, remove the eyepiece cup before operating the dial.

6. (Flash pop-up) button
7. MENU button
8. AF/MF/AEL switch lever
9. For shooting: AF/MF button/AEL button For viewing: (Enlarge) button
10. MOVIE (Movie) button
11. For shooting: Fn (Function) button
    For viewing:
    (Send to Smartphone) button
    You can display the screen for [Send to Smartphone] by pressing this button.
12. Control wheel
13. Center button
14. For shooting: C3 button (Custom button 3)
    For viewing: (Delete) button
15. (Playback) button

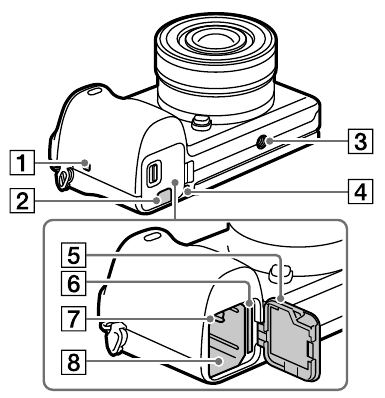

1. (N mark)
   This mark indicates the touch point for connecting the camera and an NFC-enabled Smartphone.


• NFC (Near Field Communication) is an international standard of the short-range wireless communication technology.

2. Connection plate cover
   Use this when using an AC-PW20 AC Adaptor (sold separately). Insert the connection plate into the battery compartment, and then pass the cord through the connection plate cover as shown below.

   Make sure that the cord is not pinched when you close the cover.
3. Tripod socket hole
   Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.
4. Access lamp
5. Battery/memory card cover
6. Memory card slot
7. Battery lock lever
8. Battery insertion slot

Basic operations

Using the control wheel

• You can select setting items by turning or pressing the top/bottom/ left/right side of the control wheel. Your selection is determined when you press the center of the control wheel.
• The default settings for the top/bottom/left/right side and the center of the control wheel are as follows.
  Top side: DISP (Display Setting)
  Bottom side: Exposure Comp./Image Index ( / )
  Left side: Drive Mode ()
  Right side: ISO
  Center: Eye AF
  You can also assign the desired functions to the bottom/left/right side or the center of the control wheel.
• During playback, you can display the next/previous image by pressing the right/left side of the control wheel or by turning the control wheel.

Using the Fn (Function) button

You can register frequently used functions to the Fn (Function) button and recall them while shooting. Up to 12 frequently used functions can be registered to the Fn (Function) button.

1. Press the DISP button repeatedly to display a screen mode other than [For viewfinder], and then press the Fn (Function) button.

2. Select the desired function by pressing the top/bottom/left/ right side of the control wheel.
3. Select the desired setting by turning the control wheel, and press the center of the control wheel.


• Some functions can be fine- tuned using the control dial.

To adjust settings from the dedicated setting screens
Select the desired function in step 2, then press the center of the control wheel. The dedicated setting screen for the function will appear. Follow the operating guide to adjust settings.

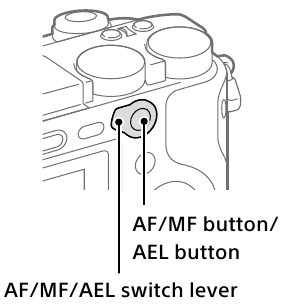

Using the AF/MF/AEL switch lever

You can switch the function of the AF/MF/AEL button to AF/MF or AEL by changing the position of the AF/MF/AEL switch lever.

When you move the AF/MF/AEL switch lever to the AF/MF position and press the button, the focusing mode temporarily switches between auto and manual (AF/MF control). When you move the AF/MF/AEL switch lever to the AEL position and press the button, the exposure is locked (AE lock).

Startup guide

Step 1: Inserting the battery pack/memory card into the camera

1. Open the battery/memory card cover.

2. Insert the battery pack while pressing the lock lever with the tip of the battery until the battery locks into place.

3. Insert the memory card.


• With the notched corner facing in the direction illustrated, insert the memory card until it clicks into place. Otherwise, it may cause a malfunction.

4. Close the cover.

Hint

• When you use a memory card with the camera for the first time, it is recommended that you format the card on the camera for more stable performance of the memory card.

To remove the battery pack

Make sure that the access lamp is not lit, and turn off the camera. Then, slide the lock lever and remove the battery pack. Be careful not to drop the battery pack.

To remove the memory card

Make sure that the access lamp is not lit, and then push in the memory card once to remove it.

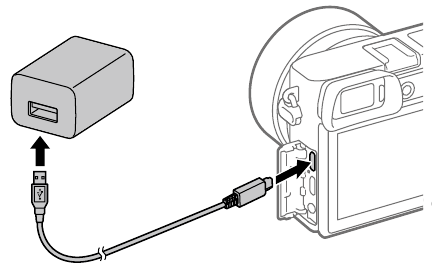

Step 2: Charging the battery pack while it is inserted in the camera

1. Turn the power off.
2. Connect the camera with the battery pack inserted to the AC Adaptor (supplied) using the micro USB cable (supplied), and connect the AC Adaptor to the wall outlet (wall socket).


Charge lamp on the camera (orange)
Lit: Charging
Off: Charging finished
Flashing: Charging error or charging paused temporarily because the camera is not within the proper temperature range

• Charging time (full charge): approximately 150 min (when charging a fully depleted battery pack at a temperature of 25°C (77°F))
• When you use a completely new battery pack or a battery pack that has not been used for a long time, the charge lamp may flash quickly when the battery is charged. If this happens, remove the battery pack or disconnect the USB cable from the camera and then re-insert it to recharge.
• Be sure to use only genuine Sony brand battery packs, micro USB cables (supplied) and AC Adaptors (supplied).

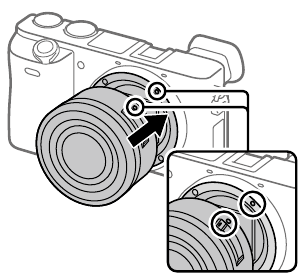

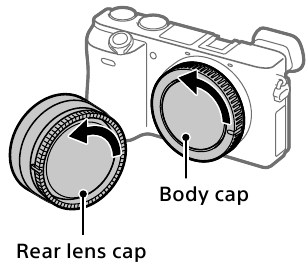

Step 3: Attaching a lens

1. Remove the body cap from the camera and the rear lens cap from the rear of the lens.


• When changing the lens, work quickly in a dust-free environment to keep dust or debris from getting inside the camera.

2. Mount the lens by aligning the two white index marks (mounting indexes) on the lens and camera.


• Hold the camera with the lens facing down to prevent dust or debris from entering the camera.

3. While pushing the lens lightly toward the camera, turn the lens slowly in the direction of the arrow until it clicks into the locked position.


Note

• Be sure to hold the lens straight and do not use force when attaching a lens.
• Do not press the lens release button when attaching a lens.
• The Mount Adaptor (sold separately) is required to use an A-mount lens (sold separately). For details, refer to the operating manual supplied with the Mount Adaptor.
• When carrying the camera with a lens attached, hold both the camera and the lens firmly.
• Do not hold the part of the lens that is extended for zoom or focus adjustment.

To remove the lens

Keep pressing the lens release button and turn the lens in the GB direction of the arrow until it stops.

Step 4: Setting the language and the clock

1. Set the ON/OFF (Power) switch to "ON" to turn on the camera.

2. Select the desired language and then press the center of the control wheel.


3. Make sure that [Enter] is selected on the screen and then press the center.
4. Select the desired geographic location and then press the center.
5. Select a setting item using the top/bottom of the control wheel or by turning the control wheel, and then press the center.
6. Select the desired item by pressing the top/bottom/left/right side of the control wheel, and then press the center.
7. Repeat steps 5 and 6 to set other items, then select [Enter] and press the center.

Hint

• If you want to set the date and time later, you can cancel the date and time setting procedure by pressing the MENU button. In this case, the setting screen for the date and time will reappear the next time you turn on the camera.
• To reset the date and time setting, use MENU.

Note

• This camera does not have a function for inserting the date into images. You can insert the date into images and then save and print them using PlayMemories Home (for Windows only).

Step 5: Shooting images in auto mode

1. Turn the mode dial to set to

2. Look through the viewfinder and hold the camera.
3. Set the size of the subject by rotating the zoom ring of the lens when a zoom lens is attached.
4. Press the shutter button halfway down to focus.

• When the image is in focus, an indicator (such as ) will light up.

5. Press the shutter button all the way down.

To shoot movies
Press the MOVIE button to start/stop recording.

To play back images
Press the (Playback) button to play back images. You can select the desired image using the control wheel.

To delete displayed image
Press the (Delete) button while an image is displayed to delete it. Select [Delete] using the control wheel on the confirmation screen, and then press the center of the control wheel to delete the image.

To shoot images in various shooting modes
Set the mode dial to the desired mode depending on the subject or the functions you want to use.

Using the Wi-Fi / One-touch (NFC) / Bluetooth functions

You can perform the following operations using the camera's Wi-Fi, NFC One-touch, and Bluetooth functions.

• Saving images to a computer
• Transferring images from the camera to a smartphone
• Using a smartphone as a remote control for the camera
• Viewing still images on a TV
• Recording location information from a smartphone to images

For details, refer to the "Help Guide" or to the attached document "Wi-Fi Connection/One-touch (NFC) Guide."

PlayMemories Mobile

PlayMemories Mobile is required to connect the camera and a smartphone. If PlayMemories Mobile is already installed on your smartphone, be sure to update it to the latest version. For details on PlayMemories Mobile, refer to the support page (http://www.sony.net/pmm/).

Recording location information to captured images

By using PlayMemories Mobile, you can obtain location information from a connected smartphone (via Bluetooth communication) and record it to captured images.

Introduction to computer software / PlayMemories Camera Apps

We offer the following computer software and

PlayMemories Camera Apps to enhance your enjoyment of photos/ movies.

To take advantage of the computer software, access one of the following URLs using your Internet browser and then download the software by following the onscreen instructions. If one of these programs is already installed on your computer, update it to the latest version before use.

Windows: http://www.sony.co.jp/imsoft/Win/

Mac: http://www.sony.co.jp/imsoft/Mac/

You can check the recommended operating environment for the software from the following URL: http://www.sony.net/pcenv/

PlayMemories Home

PlayMemories Home allows you to import still images and movies to your computer and view or use them.

You need to install PlayMemories Home to import XAVC S movies or AVCHD movies to your computer.

You can access the download website directly from the following URL: http://www.sony.net/pm/

• When you connect the camera to your computer, new functions may be added to PlayMemories Home. Connecting the camera to your computer is therefore recommended even if PlayMemories Home has already been installed on the computer.

Image Data Converter

You can develop and edit RAW images using various adjustment functions like tone curve and sharpness.

Remote Camera Control

With Remote Camera Control, you can change the camera settings or release the shutter from a computer connected via a USB cable. To use Remote Camera Control, first select MENU → (Setup) → [USB Connection] → [PC Remote], then connect the camera to a computer via a USB cable.

PlayMemories Camera Apps

You can add the functions of your choice to your camera by connecting to the application download website (PlayMemories Camera Apps) using your computer or the Wi-Fi function of the camera.

http://www.sony.net/pmca/

• After installing an application, you can call up the application by touching an NFC-enabled Android smartphone to the mark on the camera, using the [One-touch(NFC)] function.

List of MENU items

For details on each MENU items, refer to the Help Guide.

(Camera Settings1) Red tab

Quality/Image Size
Quality	Sets the image quality for still images. ([RAW] / [Fine], etc.)
Image Size	Selects the size of still images. (L / M / S)
Aspect Ratio	Selects the aspect ratio for still images.
Panorama: Size	Selects the size of panoramic images.
Panorama: Direction	Sets the shooting direction for panoramic images.
Long Exposure NR	Sets noise reduction processing for shots with a shutter speed of 1 second or longer.
High ISO NR	Sets noise reduction processing for high-sensitivity shooting.
Color Space	Changes the color space (range of reproducible colors).
Lens Comp.	Selects the type of lens compensation.
Shoot Mode/Drive
Auto Mode	You can shoot selecting either Intelligent Auto or Superior Auto.
Scene Selection	Selects pre-set settings to match various scene conditions. ([Portrait] / [Sports Action], etc.)
S. Auto Img. Extract.	When the shooting mode is set to [Superior Auto] and the camera recognizes the scene to be shot with multiple images, this sets whether to extract an image automatically and save it.
Drive Mode	Sets the drive mode, such as for continuous shooting. ([Self-timer] / [Cont. Bracket], etc.)
Bracket Settings	Sets self-timer shooting in bracket mode, shooting order for exposure bracketing, and white balance bracketing.
Recall	Calls up settings pre-registered to [ Memory].
Memory	Registers the desired modes and camera settings.
AF
Focus Mode	Selects the focus mode. ([Single-shot AF] / [Continuous AF], etc.)
Priority Set in AF-S	Sets the timing of the shutter release when [Focus Mode] is set to [Single-shot AF], [DMF] or [Automatic AF] with a still subject.
Priority Set in AF-C	Sets the timing of the shutter release when [Focus Mode] is set to [Continuous AF] or [Automatic AF] with a moving subject.
Focus Area	Selects the area of focus. ([Wide] / [Flexible Spot], etc.)
AF Illuminator	Sets the AF illuminator, which provides light to aid focusing in dark scenes.
Center Lock-on AF	Sets the function to track a subject and continue focusing when pressing the center of control wheel in the shooting screen.
AF System	Sets the auto focus method when an LA-EA1/LA-EA3 Mount Adaptor (sold separately) is attached.
AF w/ shutter	Sets whether to perform auto focusing when the shutter button is pressed halfway down. This is useful when you want to adjust the focus and exposure separately.
Pre-AF	Sets whether or not to perform auto focus before the shutter button is half pressed.
Eye-Start AF	Sets whether to use auto focus when you look through the viewfinder if an LA-EA2/LA-EA4 Mount Adaptor (sold separately) is attached.
AF Area Auto Clear	Sets whether the focus area is displayed all the time or disappears automatically shortly after focusing.
Disp. cont. AF area	Sets whether or not to display the focus area in [Continuous AF] mode.
AF Micro Adj.	Finely adjusts the autofocused position, when using the LA-EA2 or LA-EA4 Mount Adaptor (sold separately).
Exposure
Exposure Comp.	Compensates for the brightness of the entire image.
ISO	Sets the ISO sensitivity. ([ISO AUTO], etc.)
ISO AUTO Min. SS	Sets the slowest shutter speed at which ISO sensitivity will start to change in [ISO AUTO] mode.
Metering Mode	Selects the method for measuring brightness. ([Multi] / [Spot], etc.)
Spot Metering Point	Sets whether to coordinate the spot metering point with the focus area when [Focus Area] is set to [Flexible Spot] or [Expand Flexible Spot].
Exposure step	Selects the size of the increment step for shutter speed, aperture, and exposure compensation.
AEL w/ shutter	Sets whether to lock the exposure when the shutter button is pressed halfway down. This is useful when you want to adjust the focus and exposure separately.
Exposure Std. Adjust	Adjusts the standard for the correct exposure value for each metering modes.
Flash
Flash Mode	Sets the flash settings.
Flash Comp.	Adjusts the intensity of flash output.
Exp.comp.set	Sets whether to reflect exposure compensation value to flash compensation.
Red Eye Reduction	Reduces the red-eye phenomenon when using flash.
Color/WB/Img. Processing
White Balance	Corrects the tone effect of the ambient light to shoot whitish objects in a white tone. ([Auto] / [Daylight], etc.)
Priority Set in AWB	Selects which tone to prioritize when shooting under lighting conditions such as incandescent light with [White Balance] set to [Auto].
DRO/Auto HDR	Analyzes the contrast of light and shadow between the subject and the background by dividing the image into small areas, and creates an image with the optimal brightness and gradation.
Creative Style	Selects the desired image processing. You can also adjust contrast, saturation, and sharpness. ([Vivid] / [Portrait], etc.)
Picture Effect	Shoots images with a texture unique to the selected effect. ([Toy Camera] / [Rich-tone Mono.], etc.)
Picture Profile	Changes settings such as color and tone when recording images. * This function is for skilled movie creators.
Soft Skin Effect	Sets the Soft Skin Effect and the effect level.
Focus Assist
Focus Magnifier	Enlarges the image before shooting so that you can check the focus.
Focus Magnif. Time	Sets the length of time the image will be shown in an enlarged form.
AF in Focus Mag.	Sets whether or not to autofocus when an enlarged image is being displayed. While the enlarged image is being displayed, you can focus within a smaller area than the flexible spot.
MF Assist	Displays an enlarged image when focusing manually.
Peaking Level	Enhances the outline of in-focus areas with a specific color when focusing manually.
Peaking Color	Sets the color used for the peaking function.
Face Detection/Shoot Assist
Smile/Face Detect.	Selects to detect faces and adjust various settings automatically. Sets to automatically release the shutter when a smile is detected. ([Off] / [On (Regist. Faces)] / [On] / [Smile Shutter])
Face Registration	Registers or changes the person to be given priority when focusing.
Auto Obj. Framing	Analyzes the scene when capturing faces, close-ups, or subjects tracked by the Lock-on AF function, and automatically trims and saves another copy of the image with a more impressive composition.

(Camera Settings2) Purple tab

Movie
Movie/S&Q Motion	Sets the exposure mode when shooting movies or slow-motion/quick-motion movies.
File Format	Selects the movie file format. ([XAVC S 4K] / [AVCHD], etc.)
Record Setting	Selects the bit rate and frame rate for the movie size.
S&Q Settings	Changes the settings for slow-motion and quick-motion movie shooting.
Dual Video REC	Sets whether to simultaneously record an XAVC S movie and MP4 movie or an AVCHD movie and MP4 movie.
AF drive speed	Switches focusing speed when using autofocus in movie mode.
AF Track Sens	Sets the AF tracking sensitivity for the movie mode.
Auto Slow Shut.	Sets the function that automatically adjusts the shutter speed following the brightness of the environment in movie mode.
Audio Recording	Sets whether to record audio when shooting a movie.
Audio Rec Level	Adjusts the audio recording level during movie recording.
Audio Level Display	Sets whether to display the audio level.
Wind Noise Reduct.	Reduces wind noise during movie recording.
Marker Display	Sets whether to display markers on the monitor when recording movies.
Marker Settings	Sets which markers to displayed on the monitor when recording movies.
Shutter/SteadyShot
Silent Shooting	Shoots images without a shutter sound.
e-Front Curtain Shut.	Sets whether to use the electronic front curtain shutter function.
Release w/o Lens	Sets whether to release the shutter when the lens is not attached.
Release w/o Card	Sets whether to release the shutter when a memory card is not inserted.
SteadyShot	Sets whether to activate SteadyShot for shooting.
SteadyShot Settings	Sets SteadyShot settings.
Zoom
Zoom	Sets the zoom scale for zoom functions other than the optical zoom.
Zoom Setting	Sets whether to use the Clear Image Zoom and Digital Zoom when zooming.
Zoom Ring Rotate	Assigns the zoom in/out to the rotational direction of the zoom lens. This function is only available with a power zoom lens that is compatible with this function.
Display/Auto Review
DISP Button	Sets the type of information to be displayed on the monitor or in the viewfinder when the DISP button is pressed.
FINDER/MONITOR	Sets the method for switching the display between the electronic viewfinder and the monitor.
Finder Frame Rate	Sets the frame rate for the viewfinder when shooting still images.
Zebra	Displays stripes to adjust brightness.
Grid Line	Displays grid lines for adjusting the image composition.
Exposure Set. Guide	Sets the guide displayed when exposure settings are changed in the shooting screen.
Live View Display	Sets whether to reflect settings such as exposure compensation in screen display.
Auto Review	Sets auto review to display the captured image after shooting.
Custom Operation
Custom Key(Shoot.)	Assigns functions to the various keys so that you can perform operations more quickly by pressing the keys when shooting images.
Custom Key(PB)	Assigns functions to the keys so that you can perform operations more quickly by pressing the keys when playing back images.
Function Menu Set.	Customizes the functions displayed when the Fn (Function) button is pressed.
Dial/Wheel Setup	Sets the function of the control dial and the control wheel when the exposure mode is set to M. You can adjust the shutter speed or aperture with this setting.
Dial/Wheel Ev Comp	Adjusts the exposure compensation with the control dial or the control wheel.
MOVIE Button	Enables or disables for the MOVIE button.
Dial/Wheel Lock	Sets whether to disable the control dial and the control wheel temporarily by using the Fn button when shooting. You can disable/enable the control dial and the control wheel by pressing and holding down the Fn button.
Audio signals	Selects whether to sound a beep during auto focus or self-timer operations.

(Wireless) Green tab

Send to Smartphone	Transfers images to display on a smartphone.
Send to Computer	Backs up images by transferring them to a computer connected to a network.
View on TV	Allows you to view images on a networkenabled TV.
One-touch(NFC)	Assigns an application to One-touch (NFC). You can call up the application when shooting by touching an NFC-enabled smartphone to the camera.
Airplane Mode	Disables wireless communications from the device such as Wi-Fi, NFC, and Bluetooth function.
Wi-Fi Settings	Allows you to register your access point and check or change the Wi-Fi connection information.
Bluetooth Settings	Controls the settings for connecting the camera with a smartphone via a Bluetooth connection.
Loc. Info. Link Set.	Obtains location information from the paired smartphone and records it to captured images.
Edit Device Name	Changes the device name under Wi-Fi Direct, etc.
Reset Network Set.	Resets all the network settings.

(Application) Light Green tab

Application List	Displays the application list. You can select the application you want to use.
Introduction	Displays instructions on using the application.

(Playback) Blue tab

Delete		Deletes an image.
View Mode		Plays back images from a specified date or specified folder of still images and movies.
Image Index		Displays multiple images at the same time.
Display Rotation		Sets the playback orientation for images shot vertically.
Slide Show		Plays a slide show.
Rotate	Rotates the image.
Enlarge Image	Enlarges the playback images.
Protect	Protects recorded images against accidental erasure.
Specify Printing	Specifies in advance on the memory card which still images to print out later.
Photo Capture	Captures a chosen scene in a movie to save as a still image.

(Setup) Yellow tab

Monitor Brightness	Adjusts the brightness of the screen.
Viewfinder Bright.	Sets the brightness of the electronic viewfinder.
Finder Color Temp.	Sets the color temperature of the viewfinder.
Gamma Disp. Assist	Converts an S-Log image into an image with contrast equivalent to a normal gamma setting when it is displayed to assist monitoring.
Volume Settings	Sets the volume for movie playback.
Upload Settings	Sets the upload function of the camera when using a commercially available Eye-Fi card.
Tile Menu	Sets whether to display the tile menu every time you press the MENU button.
Mode Dial Guide	Turns the mode dial guide (the explanation of each shooting mode) on or off.
Delete confirm.	Sets whether [Delete] or [Cancel] is preselected in the delete confirmation screen.
Display Quality	Sets the display quality.
Pwr Save Start Time	Sets the time intervals to automatically switch to power save mode.
Auto Pwr OFF Temp.	Sets the camera temperature at which the camera turns off automatically during shooting. When shooting in hand-held mode, set to [Standard].
NTSC/PAL Selector*1	Changes the TV format of the device so that you can shoot in a different movie format.
Cleaning Mode	Starts the cleaning mode to clean the image sensor.
Touch Operation	Sets whether or not to activate the touch operation of the monitor.
Touch Pad (vertical)	Sets whether to operate the camera using the touch pad when you use the viewfinder in the vertical position.
Touch Pad Area Set.	Sets the area to be used in the touch pad operation at the time of shooting by viewfinder.
Demo Mode	Sets demonstration playback of movies to on or off.
TC/UB Settings	Sets the time code (TC) and user bit (UB). * This function is for skilled movie creators.
Remote Ctrl	Sets whether to use the infrared remote control.
HDMI Settings	Sets the HDMI settings.
4K Output Sel.	Sets how to record and output 4K movies via HDMI when the camera is connected to an external recorder/player that supports 4K.
USB Connection	Sets the USB connection method.
USB LUN Setting	Enhances compatibility by limiting the functions of USB connection. Set to [Multi] in normal conditions and to [Single] only when the connection between the camera and a computer or AV component cannot be established.
USB Power Supply	Sets whether to supply power via USB connection when the camera is connected to a computer or USB device using a micro USB cable. If you use the supplied AC Adaptor, power will be supplied regardless of whether this setting is on or off.
PC Remote Settings	Controls the PC remote shooting settings.
Language	Selects the language.
Date/Time Setup	Sets the date, time, and daylight savings.
Area Setting	Sets the location of use.
Copyright Info	Sets copyright information for still images.
Format	Formats the memory card.
File Number	Sets the method used to assign file numbers.
Set File Name	Changes the first 3 characters of the file names for still images.
Select REC Folder	Changes the folder selected for storing still images and movies (MP4).
New Folder	Creates a new folder for storing still images and movies (MP4).
Folder Name	Sets the folder format for still images.
Recover Image DB	Recovers the image database file and enables recording and playback.
Display Media Info.	Displays the remaining recording time of movies and the recordable number of still images on the memory card.
Version	Displays the camera software version.
Certification Logo*2	Displays certification information for the camera (only some of the certification logos are displayed).
Setting Reset	Restores settings to their defaults. Select [Initialize] to restore all settings to their default values.

*¹ If you change this item, you will need to format the memory card for compatibility with the PAL or NTSC system. Also, note that it may not be possible to play back movies recorded for the NTSC system on PAL system TVs.

*² Overseas models only.

Specifications

Battery life and number of recordable images

		Battery life	Number of images
Shooting (still images)	Screen mode	―	Approx. 350
	Viewfinder mode	―	Approx. 310
Actual shooting (movies)	Screen mode	Approx. 70 min.	―
	Viewfinder mode	Approx. 65 min.	―
Continuous shooting (movies)	Screen mode	Approx. 105 min.	―
	Viewfinder mode	Approx. 105 min.	―

• The above estimates for battery life and number of recordable images apply when the battery pack has been fully charged. The battery life and number of images may decrease depending on the conditions of use.
• The battery life and number of recordable images are estimates based on shooting under the following conditions:
  • Using the battery pack at an ambient temperature of 25°C (77°F).
  • Using an E PZ 16 - 50mm F3.5 - 5.6 OSS lens (sold separately)
  • Using a Sony SDXC memory card of UHS Speed Class 3 ( ) (sold separately)
  • [Viewfinder Bright.]: [Manual] [±0]
  • [Monitor Brightness]: [Manual] [±0]
  • [Display Quality]: [Standard]
• The numbers for "Shooting (still images)" are based on the CIPA standard and shooting under the following conditions:
  (CIPA: Camera & Imaging Products Association)
  • DISP: [Display All Info.]
  • [Focus Mode]: [Automatic AF]
  • One picture is taken every 30 seconds.
  • The flash strobes once for every two pictures.
  • The power is turned on and off once every ten times.
• The number of minutes for movie shooting is based on the CIPA standard and shooting under the following conditions:
  • The image quality is set to XAVC S HD 60p 50M /50p 50M.
  • Actual shooting (movies): Battery life based on repeatedly shooting, zooming, shooting stand-by, turning on/off, etc.
  • Continuous shooting (movies): Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then continued by pressing the MOVIE (Movie) button again. Other functions, such as zooming, are not operated.

Memory cards that can be used

You can use the following types of memory cards with this camera. The mark indicates that these memory cards can be used for shooting still images or movies.

When using Memory Stick Micro media or microSD memory cards with this camera, make sure to use with the appropriate adaptor.

Memory card	For still images	For movies
		MP4	AVCHD	XAVC S
Memory Stick PRO Duo		(Mark2 only)	(Mark2 only)	—
Memory Stick PRO-HG Duo				*1
Memory Stick Micro (M2)		(Mark2 only)	(Mark2 only)	—
SD memory card		*2	*2	—
SDHC memory card		*2	*2	*3
SDXC memory card		*2	*2	*3
microSD memory card		*2	*2	—
microSDHC memory card		*2	*2	*3
microSDXC memory card		*2	*2	*3

*¹ Movies cannot be recorded in 100 Mbps or more.

*² SD Speed Class 4 () or faster, or UHS Speed Class 1 () or faster

*³ SD Speed Class 10 (), or UHS Speed Class 1 () or faster

When recording in 100 Mbps or more, UHS Speed Class 3 () is required.

Note

• When an SDHC memory card is used to record an XAVC S movie over extended periods of time, the recorded movies will be divided into files 4 GB in size. The divided files can be handled as a single file by importing them to a computer using PlayMemories Home.

Number of recordable images

When you insert a memory card into the camera and set the ON/OFF (Power) switch to "ON," the number of images that can be recorded (should you continue to shoot using the current settings) is displayed on the screen.

Note

• When "0" (the number of recordable images) flashes in orange, the memory card is full. Replace the memory card with another one, or delete images from the current memory card.
• When "NO CARD" flashes in orange, it means no memory card has been inserted. Insert a memory card.

The number of images that can be recorded on a memory card
The table below shows the approximate number of images that can be recorded on a memory card formatted with this camera. The values are defined using Sony standard memory cards for testing. The values may vary depending on the shooting conditions and the type of memory card used.

[Image Size]: [L: 24M]

[Aspect Ratio]: [3:2]*

(Units: Images)

Quality	8 GB	16 GB	32 GB	64 GB
Standard	1300	2700	5400	10500
Fine	820	1650	3300	6600
Extra fine	405	810	1600	3250
RAW & JPEG	215	435	880	1750
RAW	295	600	1200	2400

* When [Aspect Ratio] is set to other than [3:2], you can record more images than the numbers shown in the table above (except when [RAW] is selected).

Note

• Even if the number of recordable images is higher than 9999 images, "9999" will appear.
• When an image shot with another product is played back on this camera, the image may not appear in its actual size.
• The numbers shown are when using a Sony memory card.

Recordable movie times

The table below shows the approximate total recording times using a memory card formatted with this camera. The values may vary depending on the shooting conditions and the type of memory card used. The recording times for when [ File Format] is set to [XAVC S 4K], [XAVC S HD], and [AVCHD] are recording times when shooting with [Dual Video REC] set to [Off].

(h (hour), m (minute))

File Format	Record Setting	8 GB	16 GB	32 GB	64 GB
XAVC S 4K	30p 100M/ 25p 100M	9 m	15 m	35 m	1 h 15 m
	30p 60M/ 25p 60M	15 m	30 m	1 h	2 h 5 m
	24p 100M */ –	9 m	15 m	35 m	1 h 15 m
	24p 60M */ –	15 m	30 m	1 h	2 h 5 m
XAVC S HD	120p 100M/100p 100M	9 m	15 m	35 m	1 h 15 m
	120p 60M/100p 60M	15 m	30 m	1 h	2 h 5 m
	60p 50M /50p 50M	15 m	35 m	1 h 15 m	2 h 35 m
	30p 50M /25p 50M	15 m	35 m	1 h 15 m	2 h 35 m
	24p 50M */ –	15 m	35 m	1 h 15 m	2 h 35 m
AVCHD	60i 24M (FX) /50i 24M (FX)	40 m	1 h 25 m	3 h	6 h
	60i 17M (FH) /50i 17M (FH)	55 m	2 h	4 h 5 m	8 h 15 m
	60p 28M (PS) /50p 28M (PS)	35 m	1 h 15 m	2 h 30 m	5 h 5 m
	24p 24M (FX) /25p 24M (FX)	40 m	1 h 25 m	3 h	6 h
	24p 17M (FH) /25p 17M (FH)	55 m	2 h	4 h 5 m	8 h 15 m
MP4	1920×1080 60p 28M /50p 28M	35 m	1 h 15 m	2 h 35 m	5 h 20 m
	1920×1080 30p 16M /25p 16M	1 h	2 h	4 h 10 m	8 h 25 m
	1280×720 30p 6M /25p 6M	2 h 35 m	5 h 20 m	10 h 55 m	22 h

* Only when [NTSC/PAL Selector] is set to NTSC

• Continuous shooting is possible for approximately 29 minutes (a product specification limit). The continuous recordable time may differ in the following situations:
  • When the file format is set to MP4 (28M): Approximately 20 minutes (limited by file size of 4 GB).
  • When shooting slow-motion/quick-motion movies: Recording will automatically stop when the recorded file reaches approximately 29 minutes (the played back movie reaches approximately 29 minutes).
    (Recording will automatically stop when the recorded file reaches approximately 15 minutes if [ Record Setting] is set to [60p/50p] and [ Frame Rate] is set to [30fps/25fps].)
• The times for slow-motion/quick-motion movies are playback times, not recording times.

Note

• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit-Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.
• The times shown are recordable times using a Sony memory card.

Notes on continuous movie recording

• It requires a lot of power to perform high quality movie recording or continuous shooting. Therefore, if you continue to shoot, the temperature inside the camera will rise, especially that of the image sensor. In such cases, the camera will turn off automatically because the surface of the camera is heated to a high temperature that can affect the quality of the images or the internal mechanism of the camera.
• The following values are the continuous times from when the camera starts recording until the camera stops recording.

Ambient temperature	Continuous recording time for movies (HD)	Continuous recording time for movies (4K)
20°C (68°F)	Approx. 29 min.	Approx. 20 min.
30°C (86°F)	Approx. 29 min.	Approx. 20 min.
40°C (104°F)	Approx. 29 min.	Approx. 20 min.

[Auto Pwr OFF Temp.]: [Standard]

HD: XAVC S HD (60p 50M/50p 50M, not connected via Wi-Fi)

4K: XAVC S 4K (24p 60M, not connected via Wi-Fi)

• The duration of time available for movie recording varies with the temperature, file format/record setting for movies, Wi-Fi network environment, or condition of the camera before you start recording. If you frequently recompose or shoot images after the power is turned on, the temperature inside the camera will rise and the recording time available will be shorter.
• When the icon appears, the temperature of the camera is too high.
• If the camera stops recording due to the temperature, leave it for some time with the power turned off. Start recording after the temperature inside the camera drops fully.
• If you observe the following points, the recording time will be longer.
  • Keep the camera out of direct sunlight.
  • Turn the camera off when it is not being used.
• When [ File Format] is set to [AVCHD], the file size of movies is limited to approx. 2 GB. If the movie file size reaches approx. 2 GB during recording, a new movie file will be created automatically.
• When [ File Format] is set to [MP4], the file size of movies is limited to approx. 4 GB. If the movie file size reaches approx. 4 GB during recording, recording will stop automatically.

Specifications

Camera
[System]
Camera type
Interchangeable Lens Digital Camera

Lens
Sony E-mount lens

[Image sensor]
Image sensor
APS-C format (23.5 mm × 15.6 mm) CMOS image sensor

Effective pixel number of camera
Approx. 24 200 000 pixels

Total pixel number of image sensor
Approx. 25 000 000 pixels

[SteadyShot]
System
In-camera sensor shift image stabilization system

[Anti-Dust]
System
Charge protection coating on optical filter and image sensor shift mechanism

[Auto focus system]
System
Phase detection system/Contrast detection system

Sensitivity range
EV–1 to EV20 (at ISO 100 equivalent, with F2.0 lens)

[Exposure control]
Metering method
1 200-segment metering by the image sensor

Metering range
EV–2 to EV20 (at ISO 100 equivalent, with F2.0 lens)

ISO sensitivity (Recommended exposure index)
Still images: AUTO, ISO 100 – ISO 25 600 (Extended ISO: Maximum ISO 51 200)
Movies: AUTO, ISO 100 – ISO 25 600 equivalent

Exposure compensation
±5.0 EV (switchable between 1/3 and 1/2 EV steps)

[Shutter]
Type
Electronically-controlled, verticaltraverse, focal-plane type

Speed range
Still images: 1/4 000 second to 30 seconds, BULB
Movies: 1/4 000 second to 1/4 second (1/3 EV step)

• 1080 60i-compatible device: up to 1/60 second in AUTO mode (up to 1/30 second in Auto slow shutter mode)
• 1080 50i-compatible device: up to 1/50 second in AUTO mode (up to 1/25 second in Auto slow shutter mode)

Flash sync speed
1/160 second

[Recording media]
Memory Stick PRO Duo media, SD card

[Monitor]
LCD monitor
Wide, 7.5 cm (3.0 type) TFT drive, touch panel

Total number of dots
921 600 dots

[Electronic viewfinder]
Type
Electronic viewfinder

Total number of dots
2 359 296 dots

Frame coverage
100%

Magnification
Approx. 1.07×
Approx. 0.70× (35 mm-format equivalent) with 50 mm lens at infinity, –1 m^–1 (diopter)

Eye point (CIPA compliant)
Approx. 23 mm from the eyepiece, approx. 21.4 mm from the eyepiece frame at –1 m^–1

Diopter Adjustment
–4.0 m^–1 to +3.0 m^–1

[Input/output terminals]
Multi/Micro USB Terminal* Hi-Speed USB (USB 2.0)

* Supports Micro USB compatible device.

HDMI
HDMI type D micro jack
(Microphone) Terminal
3.5 mm Stereo mini jack

[Power]
Battery type
Rechargeable battery pack NP-FW50

Power consumption (while shooting)
When using an
E PZ 16 – 50 mm F3.5 – 5.6 OSS lens
Approx. 2.8 W (during shooting with the viewfinder)
Approx. 2.5 W (during shooting with the monitor)

[Others]
Exif Print
Compatible

PRINT Image Matching III
Compatible

DPOF
Compatible

Dimensions (CIPA compliant) (Approx.)
120.0 mm × 66.9 mm × 53.3 mm
(4 3/4 inches × 2 3/4 inches × 2 1/8 inches) (W/H/D)

Mass (CIPA compliant) (Approx.)
453 g (1 lb) (including battery and SD card)
410 g (14.5 oz) (camera only)

Operating temperature
0°C to 40°C (32°F to 104°F)

Storage temperature
–20°C to +60°C (–4°F to +140°F)

[File format]
Still image
JPEG compliant (DCF Ver. 2.0, Exif Ver. 2.31, MPF Baseline), RAW (Sony ARW 2.3 Format)

Movies (XAVC S format)
MPEG-4 AVC/H.264 XAVC S ver.1.0 format compliant
Video: MPEG-4 AVC/H.264
Audio: LPCM 2ch (48 kHz 16 bit)

Movie (AVCHD format)
AVCHD format Ver. 2.0 compatible
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch
Dolby Digital Stereo Creator

• Manufactured under license from Dolby Laboratories.

Movie (MP4 format)
Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch

USB communication
Hi-Speed USB (USB 2.0)

[Flash]
Flash guide number
6 (in meters at ISO 100)

Recycling time
Approx. 4 seconds

Flash coverage
Covering 16 mm lens (focal length that the lens indicates)

Flash compensation
±3.0 EV (switchable between 1/3 and 1/2 EV steps)

[Wireless LAN]
Supported format
IEEE 802.11 b/g/n

Frequency band
2.4 GHz

Supported security protocols
WEP/WPA-PSK/WPA2-PSK

Configuration method
Wi-Fi Protected Setup™ (WPS)/ Manual

Access method
Infrastructure mode

[NFC]
Tag type
NFC Forum Type 3 Tag compliant

[Bluetooth communications]
Bluetooth standard Ver. 4.1

Frequency band
2.4 GHz Model No. WW213019

AC Adaptor AC-UUD12/UUE12
Power requirements
AC 100 V to 240 V, 50 Hz/60 Hz, 0.2 A

Output voltage
DC 5 V, 1.5 A

Rechargeable battery pack
NP-FW50
Nominal voltage
DC 7.2 V

Design and specifications are subject to change without notice.

On focal length
The picture angle of this camera is narrower than that of a 35 mmformat camera. You can find the approximate equivalent of the focal length of a 35 mm-format camera, and shoot with the same picture angle, by increasing the focal length of your lens by half. For example, by using a 50 mm lens, you can get the approximate equivalent of a 75 mm lens of a 35 mm-format camera.

On GNU GPL/LGPL applied software
The software that is eligible for the following GNU General Public License (hereinafter referred to as "GPL") or GNU Lesser General Public License (hereinafter referred to as "LGPL") are included in the product. This informs you that you have a right to have access to, modify, and redistribute source code for these software programs under the conditions of the supplied GPL/LGPL. Source code is provided on the web. Use the following URL to download it. http://oss.sony.net/Products/Linux/ We would prefer you do not contact us about the contents of source code.

Licenses (in English) are recorded in the internal memory of your product. Establish a Mass Storage connection between the product and a computer to read licenses in the "PMHOME" - "LICENSE" folder.
