Panasonic ES-ED90, ES-ED70, ES-ED50, ES-ED20 Manual

Parts identification

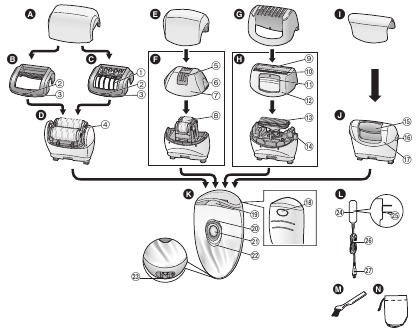

Parts identification - Part 1

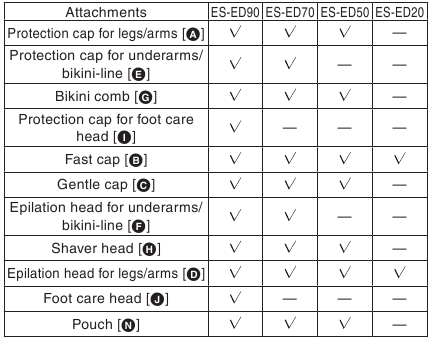

Parts identification - Part 2

  1. Protection cap for legs/arms
  2. Fast cap
  3. Gentle cap
    1. Skin protector
    2. Cap release rib
    3. Frame
  4. Epilation head for legs/arms
    1. Epilation discs
  5. Protection cap for underarms/bikini-line
  6. Epilation head for underarms/bikini-line
  1. Skin protector (metal part on the outside)
  2. Frame release rib
  3. Frame
  4. Epilation discs (inside)
  1. Bikini comb
  2. Shaver head
    1. Outer foil
    2. Trimmer
    3. Pop-up trimmer switch
    4. Frame
    5. Inner blade
    6. Frame release button
  1. Protection cap for foot care head
  2. Foot care head
    1. File
    2. Frame release button
    3. Frame
  3. Main body
    1. Head release button
    2. LED light
    3. SOFT mode light
    4. Power switch
    5. Charging light
    6. Socket
  1. AC adaptor (RE7-77)
  1. Adaptor
  2. Power plug
  3. Power cord
  4. Appliance plug

Accessories

  1. Cleaning brush
  2. Pouch

Tips for best epilation results

The hair removal is not permanent, so from the 2nd use we recommend that you epilate the underarms about once a week and the arms and legs about once every two weeks.

<For beginners/those with sensitive skin>
When epilating for the first time, or using for the sensitive skin, we recommend using the gentle cap. (ES-ED90/70/50) The gentle cap has a skin protector for gentler epilation, to remove hair by holding the skin down to reduce pain.

  • We also recommend to use the SOFT mode rotation.
  1. Remove the fast cap [].
  2. Attach the gentle cap [ (ES-ED90/70/50)].
  • Apply the epilator at a 90˚ angle to your skin. Always make sure that the appliance is in contact with your skin and press gently while moving it slowly against the hair growth.
  • Massaging with a body puff may help to prevent ingrown hairs.
  • Reddening might appear after use. A cool towel will help if you feel pain or there is a rash.
  • If your skin gets dry after epilation, we recommend applying a moisture lotion two days after epilation.
  • Make sure skin is clean before and after use.

Charging

For best performance, fully charge the appliance before use. You cannot operate the appliance while charging.

Charging time = Approx. 1 hour
The epilator can be used for approximately 30 minutes (40 minutes when using the gentle cap) after 1 hour of charging.
(This will differ depending on the temperature.)

Plug the AC adaptor into the epilator () and a household outlet ().

  • Recommended ambient temperature for charging is 15 - 35°C (59 - 95°F). The battery may not charge properly or not at all under extreme low or high temperatures.

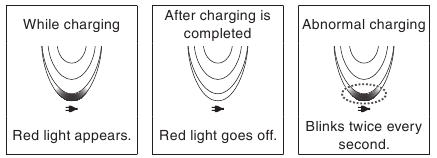

Charging

  • The charging time may decrease depending on the charging capacity.
  • After charging is completed, turning the power switch ON with the epilator plugged in will cause the charging light to light up and then turn off after 5 seconds.
    This shows that the epilator is fully charged.
  • To keep charging the battery will not affect battery performance.
  • When charging the epilator for the first time or when it has not been in use for more than 6 months, the time it takes to charge the epilator may increase, or the charging light may not glow for a few minutes. It will eventually glow if kept connected.
  • The AC adaptor is intended to be correctly oriented in a vertical or floor mount position.
  • If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration.

Before use

Changing the head

  1. Remove the head while pushing the head release button.
  2. Push the head until it clicks.

Using the bikini comb ES-ED90/70/50
Place the bikini comb onto the shaver head and slide trimmer up.

  • When the bikini comb is in place, make sure the comb is in close contact with the skin.

information Best hair length for epilation
Trim your hair before epilating for the first time or if you have not epilated for a long time. Hair removal is easier and less painful when the hair is short.

<LED light>
The LED light comes on when the power is turned on. The light will remain on while the power is ON.

<Select the mode>
Operation will change in order from "NORMAL" "SOFT" "OFF" each time the power switch is pressed.

NORMAL
In NORMAL mode, epilation is performed in a short time with fast disc rotation speed.

SOFT
SOFT mode will control the rotation speed of the discs, and minimize irritation at the time of epilation.

  • The green lamp will light up when using SOFT mode.

OFF
The power will be switched OFF.

Epilating

Areas suitable for epilation
The epilator can be used on the areas.

ES-ED90/70
The epilator can be used on the areas. Before epilating the bikiniline, be sure to put on your swim wear or panties etc. and check the areas you wish to epilate.

  • Using the epilator on areas other than those marked may cause pain or skin trouble.

Areas not suitable for epilation
The epilator should not be used on the inner side of the upper arms and areas such as elbows or knees which are prone to sagging.

Dry epilation
Before epilating, wipe off water or sweat on your skin.
Select the mode by pressing the power switch [].

Wet/foam epilation
WET epilation (epilating after wetting the skin and epilator and then applying foam) makes the skin softer so it is gentler to your skin when epilating.

  1. Wet your skin.
  2. Wet the discs and place a small quantity of liquid shower gel on the discs.
  • Always use shower gel when wet epilating.
  • Rinse any shower gel off of your hands.
  1. Select the mode by pressing the power switch [].
  • Foam is created. Foam makes the epilator slide better, so you can move it fast.
  • We recommend using the appliance in an ambient temperature range of 5 - 35°C (41 - 95°F). If used outside this range, the appliance may stop operating.

<Epilating legs or arms>
Upwards from the bottom of the leg. Inwards from the outside of the arm.

<Epilating underarms or bikini-line> ES-ED90/70
Move in several directions as underarm/bikini line hair grows in different directions. Stretch the skin with your fingers, and move slowly from inside to outside going against the flow of hair.

Shaving ES-ED90/70/50

Dry shaving
Before shaving, wipe off water or sweat on your skin.

  1. Attach the shaver head [].
    • Confirm the bikini comb [] is detached.
  2. Check that the outer foil is not deformed or damaged.
  3. Select the mode by pressing the power switch [].
  • Press gently so that the whole blade is in close contact with the skin and the surface of the blade does not move up and down.

Wet/foam shaving
Shaving with soap lather makes the skin slippery for a closer shave.

  1. Attach the shaver head [].
    • Confirm the bikini comb [] is detached.
  2. Check that the outer foil is not deformed or damaged.
  3. Wet your skin and put shower gel on your skin.
    • Do not use shaving cream, skin cream or skin lotion as it will clog the blades.
  4. Select the mode by pressing the power switch [].

Foot care ES-ED90

The basics of foot care
Do not use the product for filing anything other than calluses and hardened skin on the feet.

<Use on>
Callus

A callus is a hardened layer that forms through repeated pressure or abrasion.

  1. Hardened layer
  2. Epidermis
  3. Derma

<Avoid using on>
Blister
A blister is a fluid-filled, bean-sized bulge caused by shoes rubbing against the skin or horizontal bar exercises etc. It is caused by sudden stimulus to the skin.

  1. Fluid

Corns
A corn forms when a hardened layer thickens and extends deep into the derma. Applying pressure to a corn stimulates the nerves and can be very painful.

  1. Core

Wart
A wart is a raised area caused by a virus entering a wound and causing cells to multiply. Darkly-colored bumps may be visible and the affected area may be slightly painful.

Things to be careful of when filing

  1. Hardened layer
  2. Epidermis
  3. Derma
  4. Portion to be removed
  5. Leave some of the hardened layer.
  • Filing an area too deeply can cause it to become sore or inflamed.
  • Filing too large an area can result in even larger calluses forming. Therefore, be sure to leave some of the hardened layer.

Using the foot care head

  • The foot care head cannot be used in a bath or shower.
  • Before use, be sure to fully charge the appliance.
  • We recommend using the product within 30 minutes after bathing or showering. With the feet clean, wipe off any water on the skin. (Each use should be approximately 10 minutes (5 minutes on each foot, 10 minutes total for both feet))

  1. Attach the foot care head [].
    • Push down firmly until you hear a "click".
  2. Press the power switch [] once.
    • NORMAL mode is recommended for rotation speed.
  3. Bring the foot care head into contact with the skin, and begin filing.
  • Filing a single location for a long time can cause it to become hot with friction. To avoid this, be sure to make small changes in the filing position while filing.
  • Filing should be performed about once every two weeks.

informationTips for moving the foot care head
Soles

Heels

Sides of the foot

Toes and small areas
Use your free hand to support filing.

Cleaning

  • Always clean the frames, fast/gentle caps and discs after use to keep them in a hygienic state.
  • Switch off and unplug the appliance before cleaning.
  • Take care not to damage the skin protector, the frame, the fast cap and the gentle cap during cleaning.

Epilation head/Shaver head

  1. Lift fast/gentle caps, the frame upward while holding the cap release rib []/the frame release rib [] or remove the frame by pushing the frame release button [].
  2. Clean the gentle cap [], the epilation head [] and the shaver head [] with the cleaning brush [].

Wet cleaning []
Epilation head/Shaver head

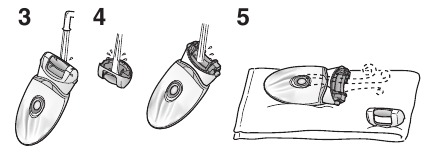

  1. Wet the discs and blades, and then apply liquid hand soap.
  2. Turn the switch on and then foam is created.
  1. Wash the head with water to wash out hair.
    • Do not use hot water.
    • If soap is not completely washed away, then a white deposit can accumulate and prevent the discs and the blades from moving smoothly.
    • Rinse the shaver head with the frame removed.
  2. Turn the switch off, wipe the appliance with a dry cloth and dry it well.

Foot care head

  1. Apply liquid hand soap to the central part of the file.
  2. Pour a small amount of water on the file and turn the switch on.
  3. Rinse any debris thoroughly with water or lukewarm water.
  4. After turning the switch off, remove the frame and rinse inside.
  5. Wipe with a dry cloth and dry in a well-ventilated location.

Replacing the outer foil
We recommend replacing the outer foil [] every year and the inner blade every two years. Remove the outer foil of the shaver head [] only when replacing it.

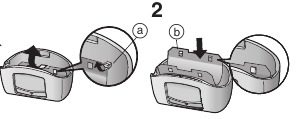

  1. While pushing the outer foil gently with the fingers, use a fingernail to release the plastic panel () on the blade from the hooks () on the inside of the frame.
  2. The new outer foil should be slightly bent and pushed in until it is hooked in the frame.

Replacing the file
The file lifetime is approximately 1 year (assuming a single use every 2 weeks with approximately 10 minutes per use). We recommend replacing the file about once a year.

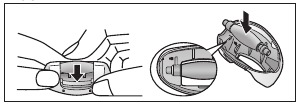

  1. Press down with your finger and release the file.
  2. Align the shaped part with the mark side and press down.

Troubleshooting

Problem Possible cause Action

The appliance does not operate

 It is not charged. Fully charge the appliance.
The switch is turned ON with the adaptor connected to the household outlet. Charging is only possible when connected to the household outlet. Disconnect from the outlet before use.
When epilating The skin protector or discs are deformed, cracked, or damaged. Request repair at an authorized service center.
When epilating or shaving Hair dust has accumulated. Clean the hair dust.
Shower gel has adhered to the discs and blade. Wash it off by soaking in warm water.
When caring for feet The frame is not securely attached. Reattach it.

The usage time is shortened

 The appliance is not used at recommended temperature. Use at the recommended use temperature of 5 - 35°C (41 - 95°F).
When epilating The appliance is pressed against skin too hard. Contact skin with gentle force.
Not fully charged. Fully charge the appliance.

Cannot remove hair

 When epilating The appliance is used on long hair. Use on hair approximately 2 to 3 mm long (approximately 1/8").

The hair becomes stubble

The way the unit is applied or moved is not correct.

The appliance stops during operation

 The appliance is pressed against skin too hard. Contact skin with gentle force.
Not fully charged. Fully charge the appliance.
The appliance is not removing the hair as well as before. Hair dust has accumulated. Clean the hair dust.
The skin protector or discs are deformed, cracked, or damaged. Request repair at an authorized service center.
The appliance is not cutting as well as before. When having Hair dust has accumulated. Clean the hair dust.
The blade is deformed. Replace the blade.
The blade is worn out. Guidelines for replacement: Outer foil: Approximately 1 year Inner blade: Approximately 2 years
Cannot file. When caring for feet The file is worn out. Replace the file. Guidelines for replacement: Approximately 1 year
The appliance is used in the SOFT mode. Try using it in NORMAL mode.
Cannot get rid of odor. It is dirty. Soak the file in water for approximately 24 hours before washing.

Battery life

The life of the battery is 3 years if charged approximately once every week. The battery in this epilator is not intended to be replaced by consumers.

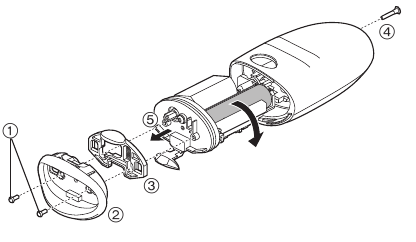

Removing the built-in rechargeable battery
warningATTENTION: A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Remove the built-in rechargeable battery before disposing of the epilator.
This figure must only be used when disposing of the epilator, and must not be used to repair it. If you dismantle the epilator yourself, it will no longer be waterproof, which may cause it to malfunction.

  • Disconnect the power cord from the epilator when removing the battery.
  • Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.

  • Perform steps to and lift the battery, and then remove it.
  • Please take care not to short-circuit the battery.

Specifications

Power supply See the name plate on the AC adaptor. (Automatic voltage conversion)
Charging time Approx. 1 hour

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols
The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

Denotes a potential hazard that will result in serious injury or death.
Denotes a potential hazard that could result in serious injury or death.
Denotes a hazard that could result in minor injury.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.
warningThis symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance.

To reduce the risk of electric shock:

  1. Do not reach for an appliance that has fallen into water. Unplug immediately.
  2. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
  3. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
  4. Unplug this appliance before cleaning.


To reduce the risk of burns, fire, electric shock, or injury to persons:

  1. Do not use this appliance with damaged epilation/shaver heads as it has the potential to result in facial injury.
  2. Not for use by or on children or invalids. Close supervision is necessary when used near children or invalids.
  3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
  4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.
  5. Keep the cord away from heated surfaces.
  6. Never drop or insert any object into any opening.
  7. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
  8. Always attach charger to appliance first, then to outlet. To disconnect, turn all controls to 'OFF' then remove plug from outlet.

SAVE THESE INSTRUCTIONS


This product has a built-in rechargeable battery. Do not throw into flame or heat. Do not charge, use, or leave in high temperatures.

  • Doing so may cause overheating, ignition, or explosion.

Do not store within the reach of children or infants. Do not let them use it.

  • Doing so may cause an accident or injury due to accidental ingestion of the inner blade, brush, etc.

Never disassemble except when disposing of the product.

  • Doing so may cause fire, electric shock, or injury.

Do not modify or repair.

  • Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change, etc.).

Do not use in a way exceeding the rating of the household outlet or the wiring.

  • Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Do not damage or modify, or forcefully bend, pull, or twist the power cord. Also, do not place anything heavy on or pinch the power cord.

  • Doing so may cause electric shock or fire due to a short circuit.


Never use the appliance if the AC adaptor is damaged or if the plug fits loosely in a household outlet.

  • Doing so may cause electric shock or fire due to a short circuit.

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

  • Doing so may cause electric shock or injury.

Do not immerse the AC adaptor in water or wash it with water.

  • Doing so may cause electric shock or fire due to a short circuit.

Never use the AC adaptor in a bathroom or a shower room.

  • Doing so may cause electric shock or fire due to a short circuit.

Do not use anything other than the supplied AC adaptor. Also, do not charge any other product with the supplied AC adaptor.

  • Doing so may cause burn or fire due to a short circuit.

warningImmediately stop using and remove the adaptor if there is an abnormality or failure. Using it in such conditions may cause fire, electric shock, or injury.
<Abnormality or failure cases>

  • The main unit, adaptor, or power cord is deformed or abnormally hot.
  • The main unit, adaptor, or power cord has burning smell.
  • There is abnormal sound during use or charging of the main unit, adaptor, or power cord.
    • Immediately request inspection or repair at an authorized service center.

warningFully insert the adaptor or appliance plug.

  • Failure to do so may cause fire, electric shock, or burn.

warningMake sure to use AC 100 - 240 V.

  • Failure to do so may cause fire, electric shock, or burn.

warningAlways unplug the adaptor from a household outlet when cleaning.

  • Failure to do so may cause electric shock or injury.

warningRegularly clean the power plug and the appliance plug to prevent dust from accumulating.

  • Failure to do so may cause fire due to insulation failure caused by humidity.
    Disconnect the adaptor and wipe with a dry cloth.

warningThis appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

  • Failure to do so may cause an accident or injury.

warningThe supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be discarded.

  • Failure to do so may cause an accident or injury.


Do not wrap the power cord tightly around the adaptor when storing.

  • Doing so may cause the wire in the power cord to break with the load, and may cause fire due to a short circuit.

Do not drop or subject to shock.

  • Doing so may cause injury.

Do not allow pins or trash to adhere to the power plug or the appliance plug.

  • Doing so may cause electric shock or fire due to a short circuit.

Do not press on the blade too strongly when using the shaver head.

  • Doing so may cause damage which results in injury to the skin.

Do not touch the blade section (metallic section) of the inner blade.

  • Doing so may cause injury to your hands.

Do not continuously aim the light directly into your eyes.

  • Doing so may cause dizziness.

Do not turn ON the switch without the head attached.

  • Doing so may cause finger injury or cause hair or clothing entanglement and damage.

Do not use with the frame removed.

  • Doing so may cause injury to the skin or cause hair or clothing entanglement and damage.

Do not apply strong pressure to the skin, move repeatedly over same area, hold in one area, or use a jabbing motion.

  • Doing so may cause injury or inflammation of the skin, or increased pain.

Do not use the epilation head for legs/arms to epilate your underarms and bikini-line.

  • Doing so may cause injury or inflammation of the skin.

Do not use in the following cases:

  • Before or during menstruation, pregnancy, or about one month after giving birth
  • On suntanned skin
  • When you are not well or if you feel any abnormalities on your skin or body
    • Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use with these conditions, or in the following area:

  • Injury, rash, moles, bruises, warts, pimples, etc.
  • Face, genitals and genital area, or thighs
  • Inner side of the upper arms and areas such as elbows or knees which are prone to sagging
    • Doing so may cause injury, inflammation of the skin, or bleeding.


The following persons should not use this appliance:

  • Persons suffering from atopic dermatitis or rashes and other skin diseases
  • Persons with allergic diathesis or persons who are easily irritated by cosmetics, clothing, metals, etc.
  • Persons who are easily suppurated
  • Persons suffering from varicose veins, diabetes, hemophilia, etc.
  • Persons who have trouble stopping bleeding
  • Persons who have suffered skin problems (suppuration, inflammation, etc.) caused by epilation (plucking, depilation, waxing, etc.)
    • Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use in the following ways:

  • Using just before swimming or sea bathing (use at least 2 days before such activities)
  • Using just before bathing
  • Sharing with your family or others
  • Engaging in extreme sports or exercise right after epilation
    • Doing so may cause infection or inflammation resulting from bacteria that enter the body from the pores.

Do not file in the following ways:

  • Filing too deeply
  • Letting the file touch soft skin
  • Filing hardened skin when you have an ailment in the area around your toenails
  • Using the foot care head in the bath
  • Sharing with your family or others
    • Doing so may cause injury to the skin, infection, inflammation, bleeding or other trouble, or worsening of such symptoms.

warningDisconnect the adaptor from the household outlet when not charging.

  • Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

warningDisconnect the adaptor or the appliance plug by holding onto them instead of the power cord.

  • Disconnecting by holding onto the power cord may cause electric shock or injury.

warningBefore using, check that the skin protector, disc, blade, and frame are free from deformities, cracks, and damage.

  • Failure to do so may cause injury to the skin.

warningThe skin protector is easily deformed, so store with the protection cap attached.

  • Failure to do so may result in deformation or damage to the skin protector, which may cause injury to skin.

warningIf skin problems continue for 2 days or longer after treatment, stop using the unit and contact a dermatologist.

  • Failure to do so may cause symptoms to worsen.


warningWhen using the appliance for filing, be careful of the direction in which the main body moves.

  • Rotation of the file may cause the main body to move in an unexpected direction and cause injury to the skin.

warning

  • People suffering from diabetes; poor circulation in the feet; or swelling, itchiness, pain, or excessive warmth in the feet should consult their doctor before using the foot care head.
  • If skin appears abnormal after filing, stop using the foot care head and consult a dermatologist.
  • File the hardened skin little by little over a few days.
  • File only calluses or hardened skin on your feet.
    • Failure to follow the above instruction may cause injury to the skin, infection, inflammation, bleeding or other trouble, or worsening of such symptoms.

warningUse only for the intended purpose.

  • Failure to do so may cause injury.

warningApply the skin protector at a 90˚ angle to your skin with gentle force.

  • Failure to do so may cause injury to the skin or cause hair or clothing entanglement and damage.

Intended use
Using the epilation head
The appliance can be used for wet or dry epilation. The following is the symbol for a wet epilator. It means that the epilation/shaver head can be used in a bath or shower.

Using the foot care head
The following is the symbol for a washable foot care head. The symbol means the main body may be cleaned under water.


Detach the main body from the AC adaptor before cleaning it in water.

Notes

  • Do not use paint thinner, benzene, alcohol, etc. to clean the appliance. Doing so may cause failure, cracking or discoloration of the main body. Wipe with a cloth soaked in soapy water and wrung tightly.
  • Keep the appliance away from sinks, bathrooms or other high-humidity areas where it could be exposed to water and moisture after use.
  • Keep the appliance away from where it will be exposed to high temperatures or direct sunlight.
  • When storing the epilator, always attach the protection cap for the epilation/foot care head and the bikini comb for the shaver head.

Quick steps for epilating

  1. Charging
  2. Selecting the head
  3. Epilating
Documents / Resources

Advertisement

Need help?

Need help?

Do you have a question about the ES-ED90 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic ES-ED90

Save Article as PDF

Table of Contents
