Dell D1918H Service Manual

Assembly SOP for D1918H

Assembly procedures
Preparation before assembly

  1. Clean the room for work
  2. Identify the area for material
  3. Prepare the implement, equipments, materials as below:
    1. Press Fixture
    2. Working table
    3. Screwdriver
    4. Knife
    5. Glove
    6. Cleaning cloth
    7. ESD protection
  1. Assembly SOP for D1918H - Step 1

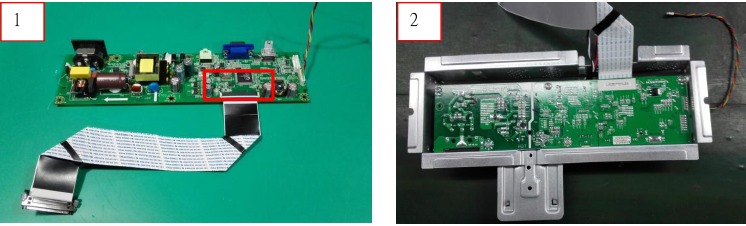

    1. Insert the LVDS cable to M/B
    2. Assemble M/B into the SHIELD PLATE
  2. Assembly SOP for D1918H - Step 2
    1. Insert wireharness from to M/B

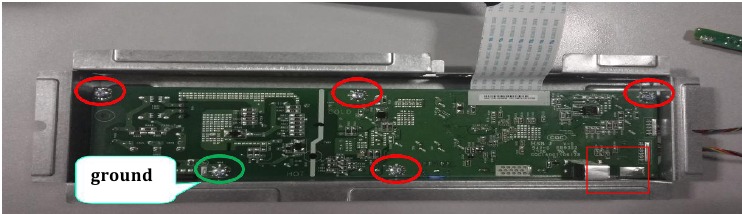

    2. Assemble M/B by locking 5 screws(M3*6)-(one ground screw)
    3. Foam on the HDMI cable(EMI Solution)

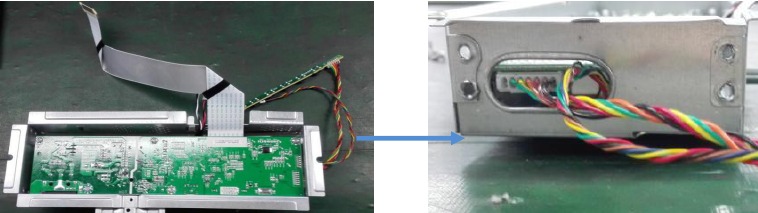

  3. Stick the K/B FFC cable on the M/B
    Assembly SOP for D1918H - Step 3

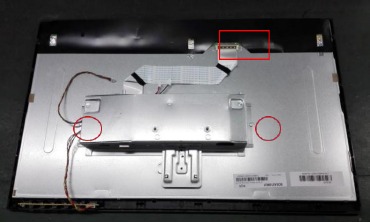

  4. Assembly SOP for D1918H - Step 4
    1. Isolation hood positioning
    2. Chapaixian LVDS

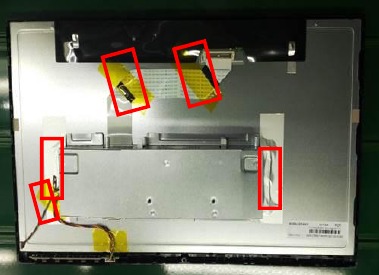

  5. Aluminum foil and anti-static adhesive tape
    Assembly SOP for D1918H - Step 5

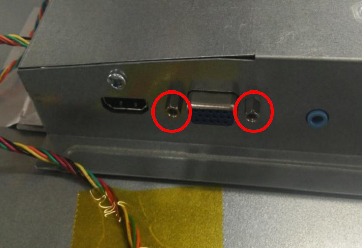

  6. Lock the hexagonal screws
    Assembly SOP for D1918H - Step 6

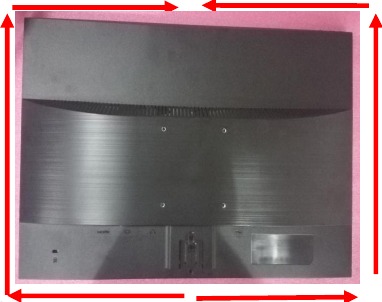

  7. Assembly the back cover into the panel
    Assembly SOP for D1918H - Step 7
  8. Assembly the back cover by locking 1 screws(M3*8)
    Assembly SOP for D1918H - Step 8

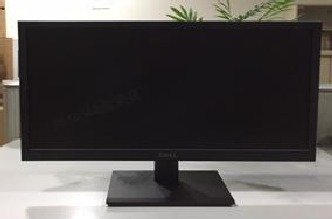

  9. Assembling stand
    Assembly SOP for D1918H - Step 9

Disassembly SOP for D1918H

Disassembly procedures
Preparation before disassembly

  1. Clean the room for work
  2. Identify the area for material
  3. Check the position that the monitors be placed and the quantify of the monitor; prepare the area for material flow, according to the actual condition plan the disassemble layout
  4. Prepare the implement, equipments, materials as below:
    1. Press Fixture
    2. Working table
    3. Screw-Driver
    4. knife
    5. glove
    6. cleaning cloth
    7. ESD protection

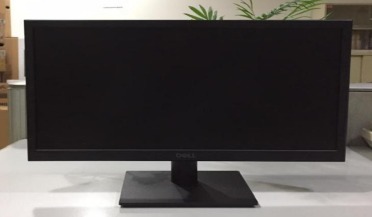

  1. Disassemble the stand
    Disassembly SOP for D1918H - Step 1

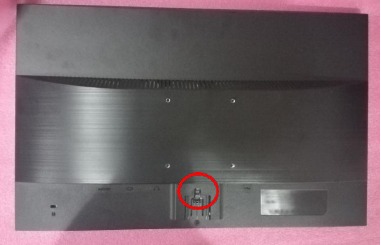

  2. Remove rear cabinet screw
    Disassembly SOP for D1918H - Step 2

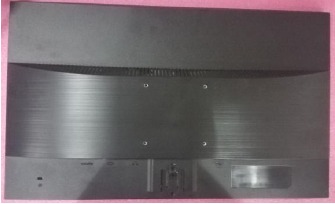

  3. Disassemble CABI Back
    Disassembly SOP for D1918H - Step 3

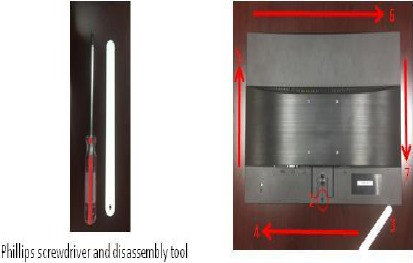

    Disassembly SOP for D1918H - Step 4
    1. Tool preparation
    2. Using Philips screwdriver to release a screw
    3. Using disassembly tool to tooling hole.

4-7.Follow the counterclockwise direction to open rear cover and font bezel cover

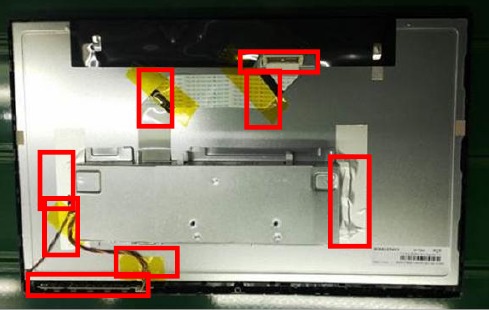

  1. Disassembly SOP for D1918H - Step 5
    1. Take off the AL SHIELDING TAPES and pull out the LVDS cable
    2. Remove the press button in the front K/B

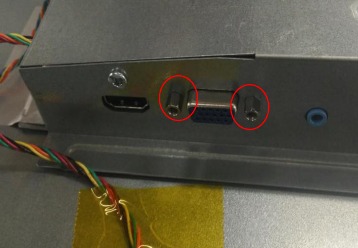

  2. Unlock the screws
    Disassembly SOP for D1918H - Step 6
  3. Disassemble the K/B and pull out the FFC cable

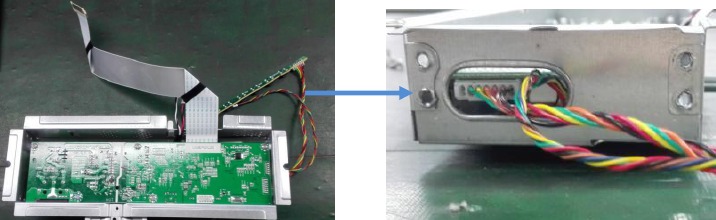

    Disassembly SOP for D1918H - Step 7

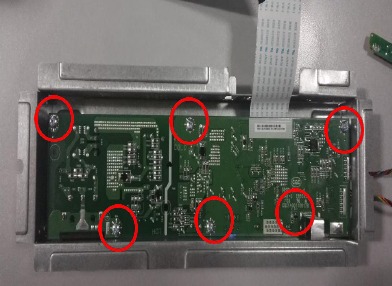

  4. Disassembly SOP for D1918H - Step 8
    1. Unlock the screws and take out the M/B
    2. Foam demolition

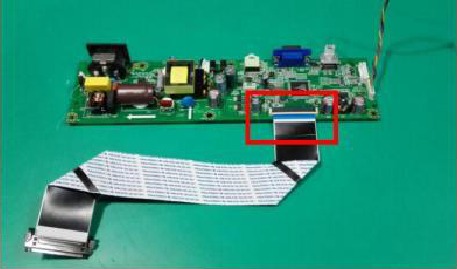

  5. Pull out the LVDS cable
    Disassembly SOP for D1918H - Step 9

Assembly SOP for BOEA185WX3 321171850551001 MNT

Assembly procedures
Preparation before assembly

  1. Clean room and working table
  2. Clean clothes
  3. Glove

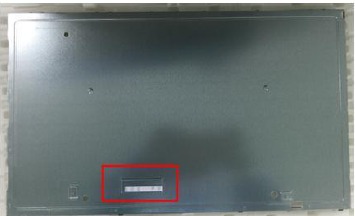

  1. Assembly SOP for BOEA185WX3 - Step 1
    1. Take the black on the assembly line
    2. Stick the glue in the red box

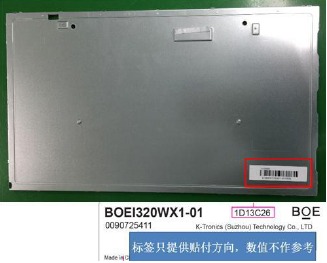

  2. Stick the label on the red box
    Assembly SOP for BOEA185WX3 - Step 2
  3. Stick the block gine on the red box

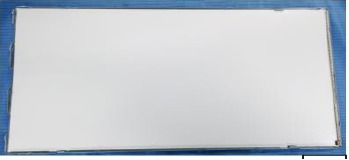

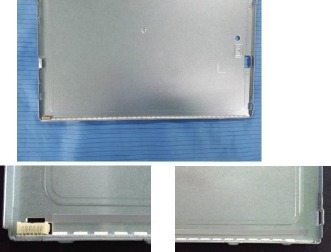

  4. Assembly SOP for BOEA185WX3 - Step 3
    1. Tear off the glue from the LED light bar
    2. Install the LED light bar
  5. Take the reflector plate into the back
    Assembly SOP for BOEA185WX3 - Step 4

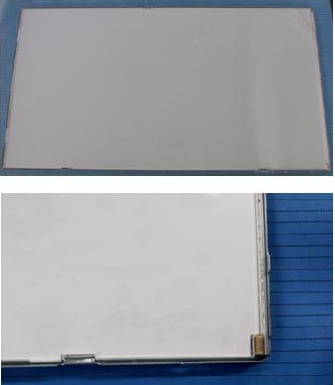

  6. Assembly SOP for BOEA185WX3 - Step 5
    1. Stick the protective film from the light guide plate
    2. Take the light guide plate into the back

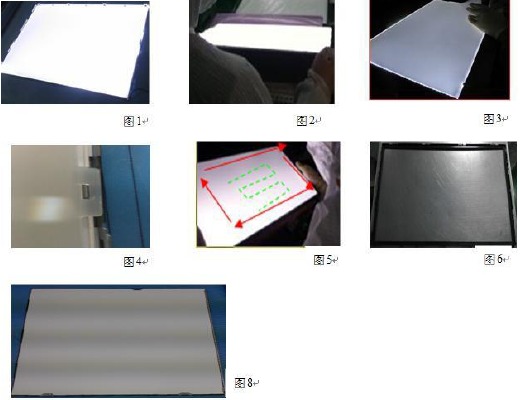

  7. Assembly SOP for BOEA185WX3 - Step 6
    1. Take the product on the workbench
    2. Tear off the protective film from the light guide plate
    3. Check for bad appearance of light guide plate
    4. Take the membrane on the light guide plate
    5. Pay to the rubber frame on the back
  8. Assembly SOP for BOEA185WX3 - Step 7

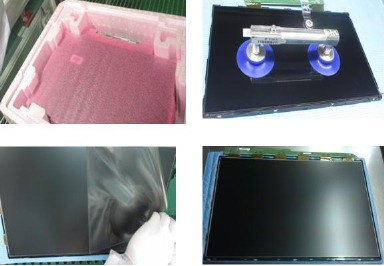

    1. From the glass on the underside to tear protective film
    2. Put the cell in the plastic box
  9. From the upper to tear protective film on the glass

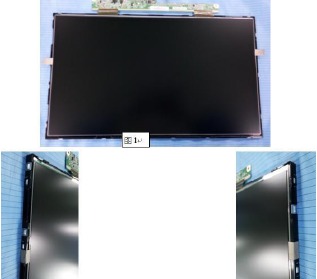

  10. Assembly SOP for BOEA185WX3 - Step 8
    1. Paste the conductive buiter on the back
    2. Paste the conductive buiter on the cell
  11. Assembly SOP for BOEA185WX3 - Step 9
    1. Check the iron box appearance
    2. Install the iron box to the product
  12. Assembly SOP for BOEA185WX3 - Step 10
    1. Tear off the release paper from the red box

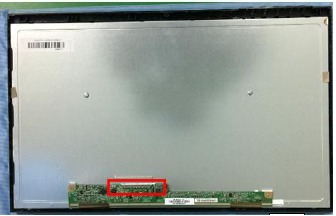

    2. Set up the PCB
  13. Stick the block gine on the red box
    Assembly SOP for BOEA185WX3 - Step 11

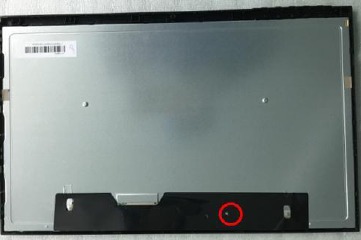

  14. Assembly SOP for BOEA185WX3 - Step 12

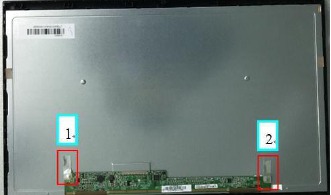

    1. Tear off the release paper
    2. Stick the black rust on the blackboard

Disassembly SOP for BOEA185WX3 321171850551001 MNT

Assembly procedures
Preparation before assembly

  1. Clean room and working table
  2. Clean clothes
  3. Glove
  1. Disassembly SOP for BOEA185WX3 - Step 1

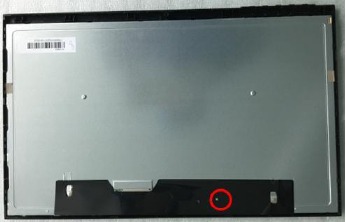

    1. Take the product on the assembly
    2. Tear off the black rust from the blackboard

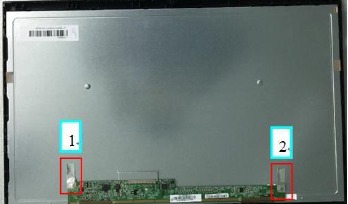

  2. Tear the block gine from the red box
    Disassembly SOP for BOEA185WX3 - Step 2
  3. Take apart the PCB

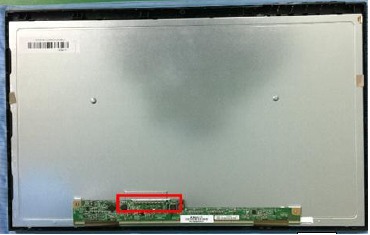

    Disassembly SOP for BOEA185WX3 - Step 3

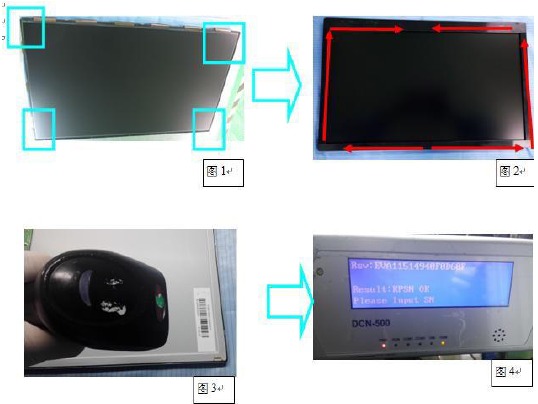

  4. Disassembly SOP for BOEA185WX3 - Step 4
    1. Turn the product
    2. Take apart the iron box
  5. Disassembly SOP for BOEA185WX3 - Step 5

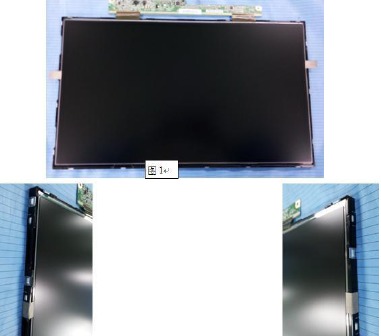

    1. Tear off the conductive buiter from the back
    2. Tear off the conductive buiter from the cell
  6. Take apart the cell out of the back
    Disassembly SOP for BOEA185WX3 - Step 6

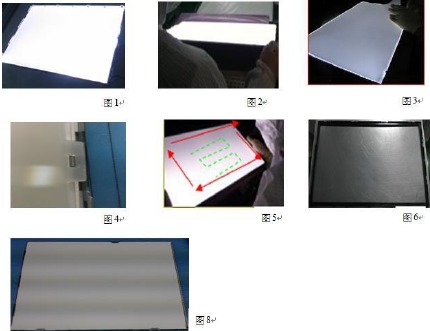

  7. Take the membrane out of the light guide plate
    Disassembly SOP for BOEA185WX3 - Step 7
  8. Take the light guide plate out of the back
  9. Take the reflector plate out of the back
    Disassembly SOP for BOEA185WX3 - Step 8

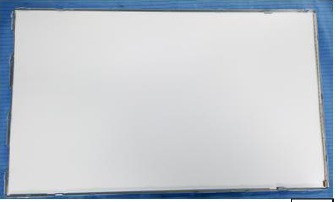

  10. Take the LED light bar out of the back

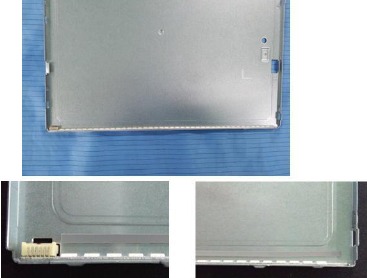

    Disassembly SOP for BOEA185WX3 - Step 9
  11. Tear off the block gine from the red box
    Disassembly SOP for BOEA185WX3 - Step 10

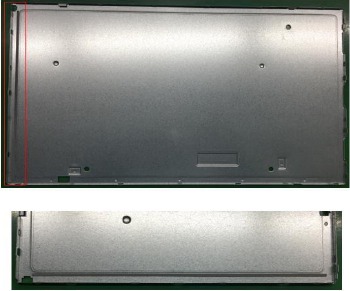

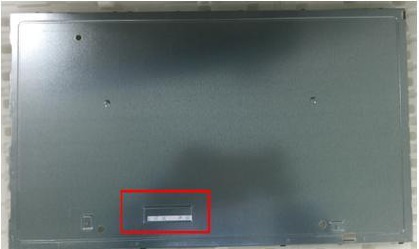

  12. Tear off the glue from the red box
    Disassembly SOP for BOEA185WX3 - Step 11
