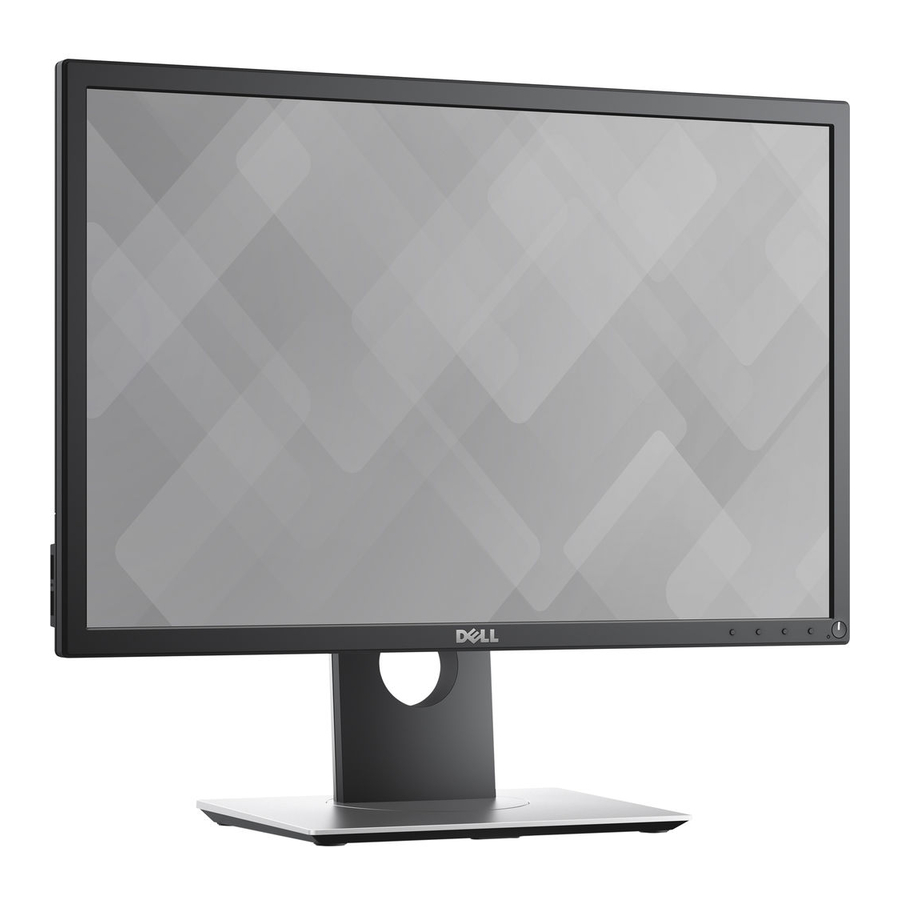

Dell P2217 Manual

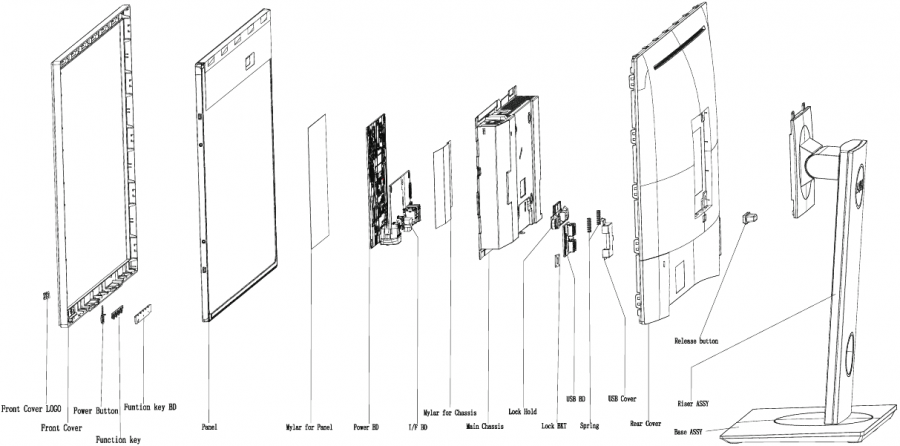

Exploded view diagram with list of items

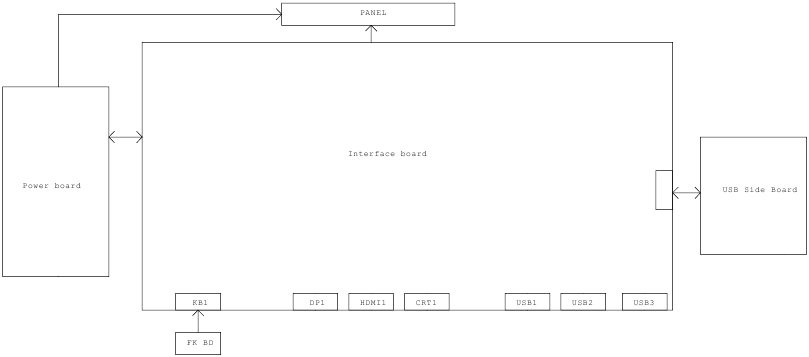

Wiring Connectivity Diagram

Disassembly and Assembly Procedures

Necessary repair and test equipment:

1. Philips-head screwdriver
2. Hex-head screwdriver

Disassembly Procedures

1. 1. Place the monitor on a soft cloth or cushion.
   2. Press and hold the stand-release button.
   3. Lift the stand up and away from the monitor.
2. Use a Philips-head screwdriver to remove 4pcs screws for unlocking mechanisms. Remove DP cap.
   (No.1~4 screw size=M4x10; Torque=12±0.5kgfxcm)

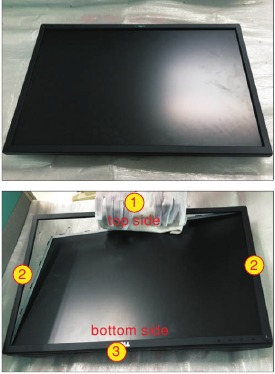

3. Turn over the LCD monitor to let the screen faced up, place a cloth on the panel where you are working on to protect the panel. Continually, then wedge your fingers between the front bezel and the panel for unlocking mechanisms.

4. Turn over the LCD monitor to let the screen faced down and then turn on the rear cover carefully. Disconnect the USB FFC cable from the connector of the interface board, and then remove the rear cover.

5. Use a Philips-head screwdriver to remove one screw for unlocking the USB board unit, then release the USB board unit and put it aside.
   (No.1 screw size=M3x6, Torque=4 ± 0.5kgfxcm)

6. Tear off two pieces of the aluminium foils and PVC tape for unfixing the bracket chassis

7. Use a proper tool to release the function key cable from the connector, then pull the function key cable high for unsticking two positions with glue and release the function key cable.

8. Unplug the panel power cable from the connector of the panel module, then release the cable from the panel by tearing off the adhesive tape.

9. Move up the bracket chassis module, tear off the adhesive tape for release the LVDS cable, then push the ear lock, and remove the LVDS cables from the connectors of LCD panel module.

10. Lift up the panel module with the bracket for removing the front bezel with function key board, and then release the function key board from the hooks of the front bezel. Put the panel with bracket chassis on a protect cushion.

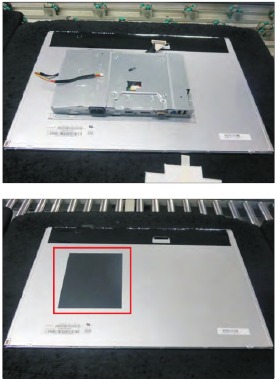

11. Take away the bracket chassis module and then put the bracket chassis module on a protective cushion.
    (Note: you must stick a piece of mylar when you change a new panel.)

12. Use a Hex-head screwdriver to remove two screws for unlocking the D-Sub connector.
    (No.1~2 screws size=M3x8, Torque=6±0.5kgfxcm)
    Use a Philips-head screwdriver to remove screws for unlocking the AC power outlet.
    (No.3~4 screw size=M3x8, Torque=6~7kgfxcm)

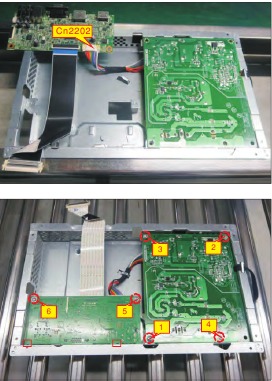

13. Turn over the bracket chassis. Use a Philips-head screwdriver to remove six screws for unlocking the circuit board, release all the cables from the hooks.
    (No.1 screw size=M4x8, Torque=6±0.5kgfxcm; No.2~6 screw size=M3x7.5, Torque=6±0.5kgfxcm)

14. Remove the interface board and power board from the bracket chassis module carefully, and disconnect all the cables.


Assembly Procedures

1. Place a bracket chassis base on a protective cushion.

2. Turn over a power board and put the power board into the bracket chassis, locate the panel power cable into the hook of the bracket chassis.

3. Take a interface board, connect a LVDS cable to the connector of the interface board, then connect the cable of the power board to CN2202 of the interface board. Turn over the interface board and locate it into the bracket. Use a Philips-head screwdriver to tighten six screws for locking the power board and interface board.
   (No.1 screw size=M4x8, Torque=6 ±0.5 kgfxcm; No.2~6 screw size=M3x7.5, Torque=6 ±0.5 kgfxcm)

4. Turn over the bracket chassis module. Use a Hexhead screwdriver to tighten two Hex Nuts for locking the D-Sub connector.
   (No.1~2 screw size=M3x8, Torque=6±0.5kgfxcm)
   Use a Philips-head screwdriver to tighten two screws for locking the AC power outlet.
   (No.3~4 screw size=M3x8, Torque=6~7kgfxcm)

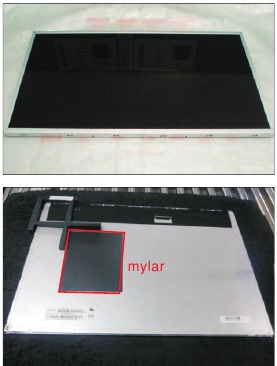

5. Panel preparation: Examine the panel surface according to inspection criteria. Turn over the panel to place the screen faced down, then Use a Jp to stick a piece of mylar on the specific position as the picture below shown.
   (Note: you must stick a piece of mylar when you change a new panel.)

6. Put the bracket chassis module on the back of LCD module.

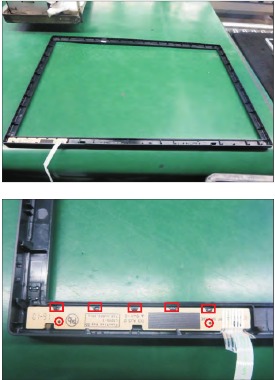

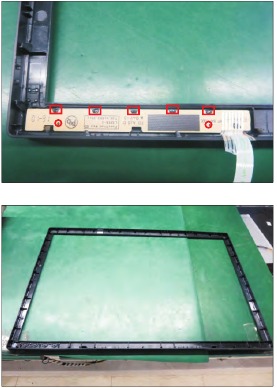

7. Take a function key board and a front bezel, then locate the function keyboard into the hooks of the front bezel for the two parts firmly attached as the picture below shown. Put the front bezel on a protect cushion for later assembling.

8. Connect the panel power cable to the connector of the panel module, then tear off the adhesive tape which sticked on the back of cable, fix the cable to the panel.

9. Put the panel module with the bracket into the front bezel carefully to avoid pressing the function key cable, then adjust position of the bracket chassis module till the both parts firmly attached.

10. Push the earing-lock, connect LVDS cable to the connector of panel module, then fix the cable with the double-faced tape which sticked on the back of the cable.

11. Use a proper tool to connect the function key cable to the connector of the board. Fix the function key cable by two adhesive tapes which taped on the back of the cable as the positions of No.1 2.

12. Use a Jip to fix the bracket chassis base module and panel module, then stick two pieces of aluminium foil to fix the bracket chassis base on the positions of the panel as the picture below shown.

13. Take a USB board, a USB hub and a connect cable. Connect the cable to the USB board, then locate the USB board into the USB hub.

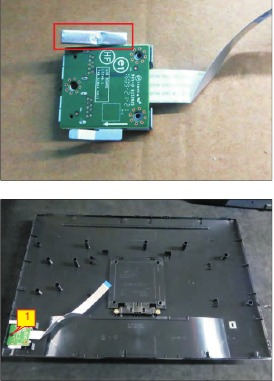

14. Put down a rear cover on a protect cushion. Stick a piece of aluminum foil on one side of the USB hub, then locate the USB unit into the hook of the rear cover, then use a Philips-head screwdriver to tighten one screw for locking the USB board with the USB hub with the middle bezel.
    (No.1 screw size=M3x6, Torque=4 ± 0.5kgfxcm)

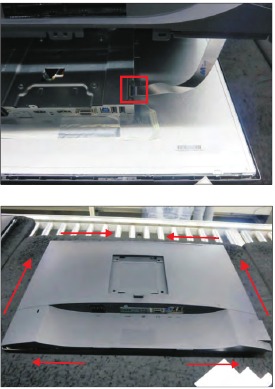

15. Move the assembled rear cover close to the panel unit, then connect the USB FFC cable to the connector of interface board. Put down the rear cover and push the rear cover on the positions marked as the picture below shown for mechanisms engagement.

16. Use a Philips-head screwdriver to tighten four screws for locking mechanisms, then stick one piece of label on the specific positions as the picture below shown.
    (No.1~4 screw size=M4x10; Torque=12 ± 0.5kgfxcm)

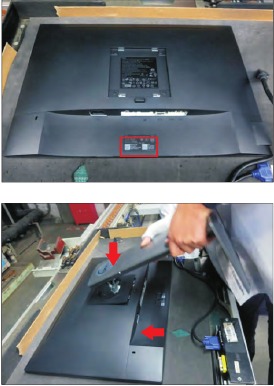

17. Stick one piece of label on the specific positions as the picture below shown. Fit the two tabs on the upper part of the stand into the grooves on the back of the monitor, and then press the stand so that the monitor mounting area snaps onto the stand.

18. Lift up the monitor, c heck the DELL logo if it is firmly attached to the front bezel. Provide power supply and a video signal to the monitor, then turn on the monitor for functionality check.


Trouble Shooting Instructions

Before you begin any of the procedures in this section, follow the Safety instructions.

Self-test

Your monitor provides a self-test feature that allows you to check if your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.
2. Disconnect all video cables from the monitor. This way, the computer doesn't have to be involved.
3. Turn on the monitor.

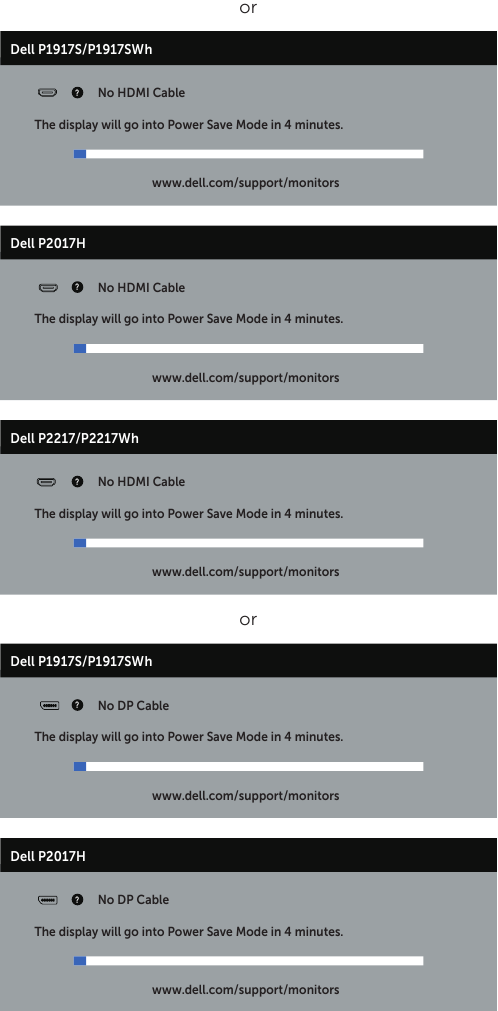

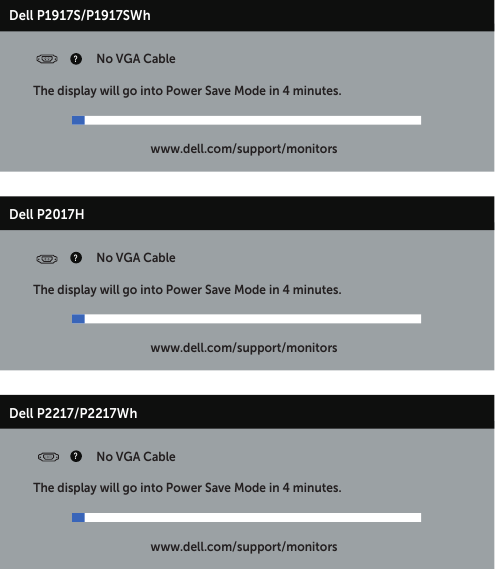

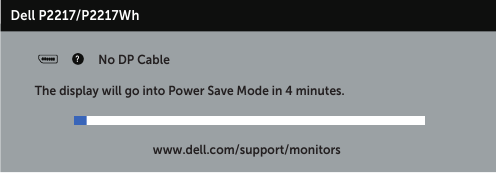

   If the monitor is working correctly, it detects that there is no signal and one of the following message appears. While in self-test mode, the power LED remains white.



   NOTE: This box also appears during normal system operation, if the video cable is disconnected or damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor remains dark after you reconnect the cables, check your video controller and computer.

Built-in diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if any screen abnormality you experience is an inherent problem with your monitor, or with your computer and video card.
NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.

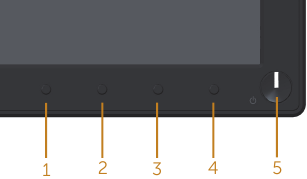

3. Press and hold button 1 for 5 seconds. A gray screen appears.
4. Carefully inspect the screen for abnormalities.
5. Press button 1 on the front panel again. The color of the screen changes to red.
6. Inspect the display for any abnormalities.
7. Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text screens.

The test is complete when the text screen appears. To exit, press button 1 again.
If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Product-specific problems

Universal serial bus (USB) specific problems

Important Safety Notice

Product Announcement:
This product is certificated to meet RoHS Directive and Lead-Free produced definition. Using approved critical components only is recommended when the situation to replace defective parts. Vender assumes no liability express or implied, arising out of any unauthorized modification of design or replacing non-RoHS parts. Service providers assume all liability.

Qualified Repairability:
Proper service and repair is important to the safe, reliable operation of all series products. The service providers recommended by vender should be aware of notices listed in this service manual in order to minimize the risk of personal injury when perform service procedures. Furthermore, the possible existed improper repairing method may damage equipment or products. It is recommended that service engineers should have repairing knowledge, experience, as well as appropriate product training per new model before performing the service procedures.

NOTICE:

• To avoid electrical shocks, the products should be connected to an authorized power cord, and turn off the master power switch each time before removing the AC power cord.
• To prevent the product away from water or expose in extremely high humility environment.
• To ensure the continued reliability of this product, use only original manufacturer's specified parts.
• To ensure following safety repairing behavior, put the replaced part on the components side of PWBA, not solder side.
• To ensure using a proper screwdriver, follow the torque and force listed in assembly and disassembly procedures to unscrew screws.
• Using Lead-Free solder to well mounted the parts.
• The fusion point of Lead-Free solder requested in the degree of 220°C
