Sony XAV-AX6000 Manual

Guide to Parts and Controls

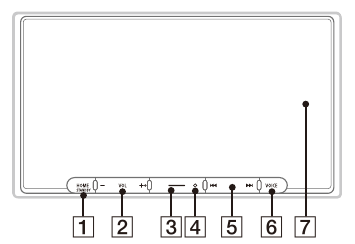

Main Unit

The VOL (volume) + button has a tactile dot.

1. HOME
   Displays the HOME screen.
   STANDBY
   Press and hold to turn off the unit.
   Press and hold for more than 10 seconds to reset the unit.
2. VOL (volume) +/–
3. Custom
   Registers functions (Mute, Disp. Off, Source Change).
   To register, select [Settings] [Customize] [Custom Button].
4. Receptor for the remote commander
5. (previous/next)
   Functions differently depending on the selected source:

• [Radio]: select a preset station.
• [SiriusXM]: select a preset channel.
• [USB]/[Bluetooth Audio]: move to the previous/next content.
• [Apple CarPlay]/[Android Auto]: move to the previous/next content.

Press and hold to:

• [Radio]: tune into a station automatically (SEEK+/SEEK–).
• [USB]/[Bluetooth Audio]: fast-reverse/fastforward.

6. VOICE
   Activates the voice command function for Apple CarPlay and Android Auto™.
7. Display/touch screen

Screen Displays

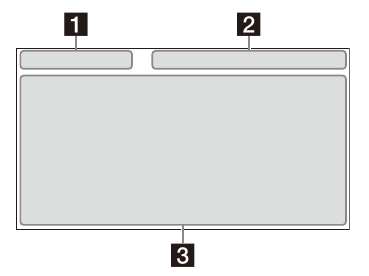

Playback screen:

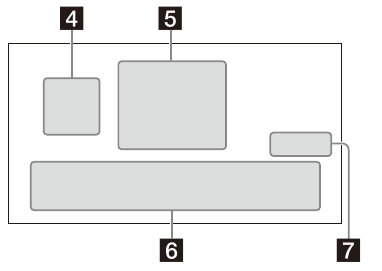

HOME1 screen:

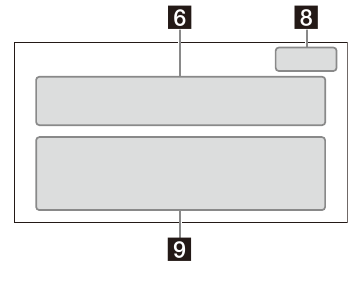

HOME2 screen:

1. Status indication (left side)

(back)	Returns to the previous display.
(list)	Opens the list. The available lists differ depending on the source.

2. Status indication (right side)

Clock	Displays the time which was set on the Date/Time setting.
(mute)	Lights up when the sound is muted.
(option)	Opens the source option menu. The available items differ depending on the source.
(device)	Displays the device's name to connect to the unit.
(antenna)	Indicates the signal strength status of the connected mobile phone.
(battery)	Indicates the remaining battery status of the connected mobile phone.

3. Application specific area
   Displays playback controls/indications or show the unit's status. Displayed items differ depending on the source.
4. (Apple CarPlay)/ (Android Auto)
   Displays when connecting Apple CarPlay/ Android Auto.
5. Clock
   Displays the date and time which were set on the Date/Time setting.
6. Apps area (Favorite)
   Up to 5 Apps can be set. Apps can be changed. You can set your Favorite Apps.
7. All Apps
   Opens the HOME2 screen.
8. Close
   Returns to the HOME1 screen.
9. Apps area
   Displays all Apps except for Favorite Apps.

Apps icon list

Android Auto	Apple CarPlay	Radio
SiriusXM	Bluetooth	RearCam
Settings	USB	HDMI
Devices	Phone	Gauges*1*2
Park Assist*1*2	Vehicle Info*1*2	Climate*1*2
Satellite Radio*1*2*3	BT Audio*1*2*3	Media Player*1*2*3

*1 When connecting the iDataLink Maestro module (not supplied), the icon is displayed.
*2 Available functions differ according to your car type.
*3 The display may be different.

Using Apple CarPlay Wirelessly
When using Apple CarPlay for the first time, device registration is required. Follow the procedure in "Pairing with a Bluetooth® Device".

Note
Make sure the GPS antenna (aerial) is connected. For details, see "Installing the GPS antenna (aerial)".

Using Android Auto
When using Android Auto wirelessly for the first time, device registration is required. Follow the procedure in "Pairing with a Bluetooth® Device".
When using Android Auto with a USB cable, connect the Android Auto compatible Android™ phone to the unit with the USB cable.

Pairing with a Bluetooth^® Device
When connecting a BLUETOOTH device for the first time, mutual registration (called "pairing") is required. Pairing enables this unit and other devices to recognize each other.

When turning on the unit, the unit sends the BLUETOOTH signal.

To pair from the settings of this unit

1. Press HOME, then touch [Settings].
   If [Settings] is not set in the Favorite area, touch [All Apps] to display the HOME2 screen, then select [Settings].
2. Touch [Device Connection].
3. Touch [+Add New Device].
4. Operate the BLUETOOTH device according to its message on the [Add New Device] screen.
   If a passkey input is required on the BLUETOOTH device, input [0000].
   The registered device name appears on the [Device Connection] screen. You can connect or disconnect the registered device on this screen.

To pair from the BLUETOOTH device
When setting the BLUETOOTH setting of the BLUETOOTH device to [ON], select "XAV-AX6000" on the setting screen of your BLUETOOTH device and then proceed to the pairing steps. Follow the instructions on the screen of the unit.

Canceling the Demonstration Mode

1. Press HOME, then touch [Settings].
   If [Settings] is not set in the Favorite area, touch [All Apps] to display the HOME2 screen, then select [Settings].
2. Touch [System], then touch [Demo Mode] to set to [Off].
3. To exit the setup menu, touch (back) twice.

Updating the Firmware
To update the firmware, visit the support site, then follow the online instructions.
URL: https://www.sony.com/am/support

To update the firmware with USB tethering mode
When using the smartphone with tethering function, you can update the firmware with USB tethering mode.
Connect your smartphone to the USB port, then follow the instructions on the screen of the unit.

Notes

• During the update with a USB connection, do notdisconnect the USB cable or USB device.
• A network connection may be required, and high packet communication fees may be incurred.

Precautions
Note on safety
Comply with your local traffic rules, laws, and regulations.

About iPhone

• Compatible iPhone models:
  iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
  Please note that the use of this accessory with an Apple product may affect wireless performance.
• Check the Apple CarPlay website for supported iOS versions. Update to the latest iOS version before use.

If you have any questions or problems concerning your unit that are not covered in this Operating Instructions, consult your nearest Sony dealer.

Specifications
FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.
POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC.

AUDIO POWER SPECIFICATIONS

CTA2006 Standard
Power Output: 20 Watts RMS × 4
Channels at 4 Ohms and ≤ 1% THD+N
Signal to Noise Ratio: 80 dBA (reference:
1 Watt into 4 Ohms)

Monitor section
Display type: Wide LCD color monitor
Dimensions: 17.6 cm/ 6.95 in System: TFT active matrix Number of pixels:
1,152,000 pixels (800 × 3 (RGB) × 480)

Radio section
FM
Tuning range: 87.5 MHz – 107.9 MHz
Usable sensitivity: 7 dBf
Signal-to-noise ratio: 70 dB (mono)
Separation at 1 kHz: 45 dB

AM
Tuning range: 530 kHz – 1,710 kHz
Sensitivity: 32 μV

USB player section
Interface: USB Type-C® (Hi-speed)
Maximum current: 3.0 A

HDMI section
* Input format: 480p, 576p, 720p
* HDMI output is not available.

BLUETOOTH section
Communication System:
BLUETOOTH Standard version 5.0
Output:
BLUETOOTH Standard Power Class 1
(Max. Conducted +7.5 dBm)
Maximum communication range*1:
Line of sight approx. 10 m (33 ft)
Frequency band:
2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Modulation method: FHSS
Compatible BLUETOOTH Profiles*2:
A2DP (Advanced Audio Distribution Profile) 1.3.1
AVRCP (Audio Video Remote Control Profile) 1.6.1
HFP (Handsfree Profile) 1.7.1
PBAP (Phone Book Access Profile) 1.2
Corresponding codec: SBC, AAC, LDAC™
*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna (aerial) performance, operating system, software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

Wi-Fi section
Compatible standards:
IEEE802.11 a/n/ac
Radio frequency:
5 GHz band (5.725 GHz - 5.850 GHz)
Output power:
Max. conducted 16 dBm
Frequency Tolerance: 20 ppm

Power amplifier section
Outputs: Speaker outputs
Speaker impedance: 4 Ω – 8 Ω
Maximum power output: 55 W × 4 (at 4 Ω)

General
Power requirements:
12 V DC car battery (negative ground (earth))
Rated current consumption: 10 A
Dimensions (maximum):
Approx. 178 mm × 100 mm × 132 mm
(7 1/8 in × 4 in × 5 1/4 in) (w/h/d)
Mounting dimensions:
Approx. 182 mm × 111 mm × 115 mm
(7 1/4 in × 4 3/8 in × 4 5/8 in) (w/h/d)
Mass: Approx. 1.0 kg (2 lb 4 oz)
Package contents:
Main unit (1)
Parts for installation and connections (1 set)
Optional accessories/equipment:
Remote commander: RM-X400
SiriusXM Connect Vehicle Tuner: SXV100, SXV200, SXV300
iDataLink Maestro RR module
iDataLink Maestro RR2 module
Ask the dealer for detailed information.
Design and specifications are subject to change without notice.

• Do not install this unit in a car that has no ACC position. The display of the unit does not turn off even after turning the ignition off, and this causes battery drain.
• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect theyellow and red power supply leads only after all other leads have been connected.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.
• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to use the supplied USB extension cables.
• To avoid injury, be careful not to drop the display during installation.
• When installing, be careful not to cut off your fingers with the metal parts of the brackets and mounting base.
• Do not pinch your fingers when attaching the display to the unit.
• When using the unit for a long period of time, there may be a possibility that the screws securing the display may come loose. Periodically tighten these screws.
• Do not make any changes or modifications to the unit other than those described in this manual.

Note on the power supply lead (yellow)
When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Note on installing in cars with a start-stop system
The unit may restart when starting the engine from startstop. In this case, turn off the start-stop system of your car.

Note on installing in cars with electric parking brake system
For cars with electric parking brakes, some related functions (such as video blocking function) may not work properly.

Mounting angle adjustment
Adjust the mounting angle to less than 30°.

Parts List for Installation

Power supply leads (1)	Connection cables (Audio/Camera) (1)
Mounting screw (5 × max. 9 mm ( 7 / 32 × max. 3 / 8 in)) (4)	Microphone (1)
Flat-mount base (1)	Double-sided tape (1)
USB Type-C extension cable (1)	Cable for steering wheel remote input (RC-SR1) (1)
GPS antenna (aerial) (1)	Metal plate (1)
Cable tie (2)

This parts list does not include all the package contents.

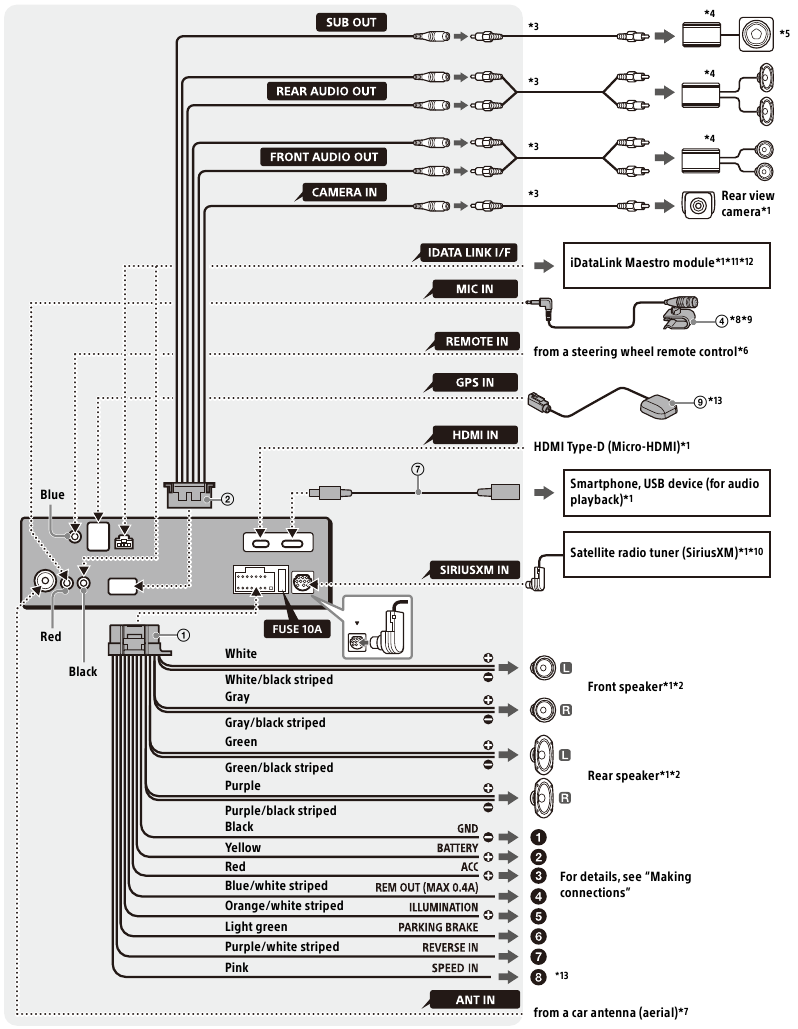

Connection

• To prevent short circuits, insulate leads with a cover or tape.
• Note that the unit may be damaged if it is connected incorrectly or by short circuits at the leads.


*1 Not supplied
*2 Speaker impedance: 4 Ω to 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Power amplifier (not supplied)
*5 Subwoofer (not supplied)

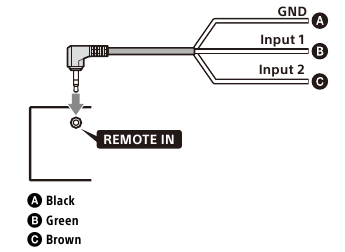

*6 Depending on the type of car, use an adaptor for a steering wheel remote control (not supplied). For details on using the steering wheel remote control, see "Using the steering wheel remote control".
*7 Depending on the type of car, use an adaptor (not supplied) if the antenna (aerial) connector does not fit.
*8 Whether in use or not, route the microphone input cord so it does not interfere with driving operations. Secure the cord with a clamp, etc., if it is installed around your feet.
*9 For details on installing the microphone, see "Installing the microphone".
*10 For more information on how to install the SiriusXM Connect Vehicle Tuner, consult the installation guide supplied with the tuner.
*11 When connecting the iDataLink Maestro module (not supplied), do not connect any device to the REMOTE IN terminal (blue). Likewise, when connecting a device to the REMOTE IN terminal (blue), do not connect the iDataLink Maestro module (not supplied) to the IDATA LINK I/F terminal (black).
*12 Use the connection cable supplied with the iDataLink Maestro module (not supplied).
*13 Connect when using Apple CarPlay with a wireless connection.

Making connections

1. To a common ground (earth) point
   First connect the black ground (earth) lead then connect the yellow and red power supply leads.
2. To the +12 V power terminal which is energized at all times
   Be sure to first connect the black ground (earth) lead to a common ground (earth) point.
3. To the +12 V power terminal which is energized when the ignition switch is set to the accessory position
   Be sure to first connect the black ground (earth) lead to a common ground (earth) point.
4. To the power antenna (aerial) control lead or the power supply lead of the antenna (aerial) booster
   It is not necessary to connect this lead if there is no power antenna (aerial) or antenna (aerial) booster, or with a manually-operated telescopic antenna (aerial).
   To AMP REMOTE IN of an optional power amplifier
   This connection is only for amplifiers and a power antenna (aerial). Connecting any other system may damage the unit.
   Note
   It will take about 10 seconds to shut down the output of REM OUT after the unit is turned off.
5. To a car's illumination signal
   Be sure to first connect the black ground (earth) lead to a common ground (earth) point.

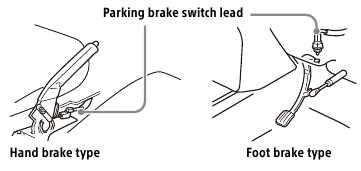

6. To the parking brake switch lead
   The mounting position of the parking brake switch lead depends on your car. Be sure to connect the parking brake lead (light green) of the power supply leads to the parking brake switch lead.

7. To the +12 V power terminal of the car's rear lamp lead (only when connecting the rear view camera)
8. To a car's speed pulse signal
   When using Apple CarPlay with a wireless connection, it is necessary to connect to keep the accurate location of your car. The mounting position of the speed pulse output lead depends on your car.

Rear View Camera Connection
Installation of a rear view camera (not supplied) is required before use.
Connect a rear view camera power cord (lead) to the accessory power terminal.

Memory hold connection
When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 Ω to 8 Ω, and with adequate power handling capacities to avoid damage.

Installing the microphone
To capture your voice during handsfree calling, you need to install the microphone .

• It is extremely dangerous if the cord becomes wound around the steering column or gearstick. Be sure to keep it and other parts from interfering with your driving operations.
• If airbags or any other shock-absorbing equipment are in your car, contact the store where you purchased this unit or the car dealer before installation.

Notes

• When mounting on the dashboard, remove the visor clip carefully from the microphone , then attach the flatmount base to the microphone .
• Before attaching the double-sided tape , clean the surface of the dashboard with a dry cloth.

Installing the GPS antenna (aerial)

• Choose a location where no obstacle blocks GPS satellite reception so as to achieve the best reception.
• Make sure the GPS antenna (aerial) does not interfere with the operation of car equipment.
• Some types of front windshields (windscreens) block GPS satellite radio waves. Make sure the signal reception is not blocked.
• When using Apple CarPlay with a wireless connection, make sure the GPS antenna (aerial) is connected.

1. Decide the installation location on the dashboard, then clean the attachment surface.
   Choose a flat surface where:
   • the GPS antenna (aerial) can be positioned horizontally.
   • operation of the passenger-side airbag is not impeded.
   • GPS satellite reception is not blocked by anything inside the car or the windshield (windscreen) wipers.
2. Remove the tape of the metal plate , then attach it on the dashboard.
3. Remove the tape of the GPS antenna (aerial) , then attach it on the metal plate .


• It is extremely dangerous if the cord becomes wound around the steering column or gearstick. Be sure to keep it and other parts from interfering with your driving operations.
• If airbags or any other shock-absorbing equipment are in your car, contact the store where you purchased this unit or the car dealer before installation.

Notes

• Be sure to use the metal plate , otherwise signal reception may be poor.
• Do not install the GPS antenna (aerial) close to other electrical equipment, otherwise signal reception may be unstable.
• If the surface of the metal plate is cold, the tape may not stick firmly. Warm up its surface with a hair dryer, etc., before applying the tape.
• If there is no flat surface on which to install the GPS antenna (aerial) , bend the metal plate to fit a curved surface before installing.

Using the steering wheel remote control
When using the steering wheel remote control
Installation of the connection cable RC-SR1 is required before use.

1. Select [Settings] [System] [Steering Wheel Settings].
2. Set the [Custom] switch to [On].
   You can make the registration to enable the steering wheel remote control. When the registration is complete, the steering wheel remote control becomes available.

Notes on installing the connection cable
RC-SR1

• Refer to the support site for details, then connect each lead properly to the appropriate leads.
  Making an improper connection may damage the unit.
  URL: https://www.sony.com/am/support
• Consulting the dealer or an experienced technician for help is recommended.
• When connecting the iDataLink Maestro module (not supplied), do not connect any device to the REMOTE IN terminal (blue). Likewise, when connecting a device to the REMOTE IN terminal (blue), do not connect the iDataLink Maestro module (not supplied) to the IDATA LINK I/F terminal (black).

When using an adaptor for the steering wheel remote control
Depending on the type of car, use an adaptor for the steering wheel remote control (not supplied).

1. Select [Settings] [System] [Steering Wheel Settings].
2. Set the [Custom] switch to [Off].
   The adaptor for the steering wheel remote control is enabled.

Using a USB device and/or an HDMI device
Installation of the USB Type-C extension cable and/or an HDMI cable (HDMI Type-D or MicroHDMI) (not supplied) is required before use.

1. Connect the USB Type-C extension cable to the USB port and/or an HDMI cable (not supplied) to the HDMI terminal at the back panel of the unit.
2. Pass the cable tie through the cable holder, then tie cable tie around the USB Type-C extension cable and/or HDMI cable (not supplied).
   The USB Type-C extension cable and HDMI cable (not supplied) are secured to the unit.

   * HDMI cable (HDMI Type-D or Micro-HDMI) (not supplied)
3. Connect the installed USB Type-C extension cable to a USB device and/or HDMI cable to an HDMI device.
4. Press HOME, then touch [USB] or [HDMI].

Installation
Mounting the unit in a Japanese car
You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer.

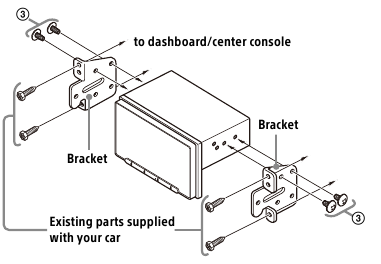

Example

When mounting this unit to the preinstalled brackets of your car, use the mounting screws  in the appropriate screw holes based on your car: T for TOYOTA and N for NISSAN.

Note
To prevent malfunction, install only with the mounting screws .

Fuse replacement
When replacing the fuse, be sure to Fuse (10 A) use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

About License

END USER LICENSE AGREEMENT

BEFORE USING THE SOFTWARE, PLEASE READ THIS
END USER LICENSE AGREEMENT ("EULA")
CAREFULLY. BY USING THE SOFTWARE YOU ARE
ACCEPTING THE TERMS OF THIS EULA. IF YOU DO NOT ACCEPT THE TERMS OF THIS EULA, YOU MAY NOT USE THE SOFTWARE.
This EULA is a legal agreement between you and Sony Electronics Inc. ("SONY"). This EULA governs your rights and obligations regarding the AV Receiver firmware of SONY and/or its third party licensors (including SONY's affiliates) and their respective affiliates (collectively, the "THIRD-PARTY SUPPLIERS"), together with any updates/upgrades provided by SONY, any printed, on-line or other electronic documentation for such software, and any data files created by operation of such software (collectively, the "SOFTWARE").
Notwithstanding the foregoing, any software in the SOFTWARE having a separate end user license agreement (including, but not limited to, GNU General Public license and Lesser/Library General Public License) shall be covered by such applicable separate end user license agreement in lieu of the terms of this EULA to the extent required by such separate end user license agreement ("EXCLUDED SOFTWARE").

SOFTWARE LICENSE
The SOFTWARE is licensed, not sold. The SOFTWARE is protected by copyright and other intellectual property laws and international treaties.

GRANT OF LICENSE
SONY grants you a limited license to use the SOFTWARE solely in connection with your compatible device ("DEVICE") and only for your individual, non-commercial use. SONY and the THIRD-PARTY SUPPLIERS expressly reserve all rights, title and interest (including, but not limited to, all intellectual property rights) in and to the SOFTWARE that this EULA does not specifically grant to you.

REQUIREMENTS AND LIMITATIONS
You may not copy, publish, adapt, redistribute, attempt to derive source code, modify, reverse engineer, decompile, or disassemble any of the SOFTWARE, whether in whole or in part, or create any derivative works from or of the SOFTWARE unless such derivative works are intentionally facilitated by the SOFTWARE. You may not modify or tamper with any digital rights management functionality of the SOFTWARE. You may not bypass, modify, defeat or circumvent any of the functions or protections of the SOFTWARE or any mechanisms operatively linked to the SOFTWARE. You may not separate any individual component of the SOFTWARE for use on more than one DEVICE unless expressly authorized to do so by SONY. You may not remove, alter, cover or deface any trademarks or notices on the SOFTWARE. You may not share, distribute, rent, lease, sublicense, assign, transfer or sell the SOFTWARE. The software, network services or other products other than SOFTWARE upon which the SOFTWARE'S performance depends might be interrupted or discontinued at the discretion of the suppliers (software suppliers, service suppliers, or SONY).
SONY and such suppliers do not warrant that the SOFTWARE, network services or other products will continue to be available, or will operate without interruption or modification.

EXCLUDED SOFTWARE AND OPEN SOURCE COMPONENTS
Notwithstanding the foregoing limited license grant, you acknowledge that the SOFTWARE may include EXCLUDED SOFTWARE. Certain EXCLUDED SOFTWARE may be covered by open source software licenses ("OPEN SOURCE COMPONENTS"), which means any software licenses approved as open source licenses by the Open Source Initiative or any substantially similar licenses, including but not limited to any license that, as a condition of distribution of the software licensed under such license, requires that the distributor make the software available in source code format. If and to the extent disclosure is required, please visit oss.sony.net/Products/Linux or other SONYdesignated web site for a list of applicable OPEN SOURCE COMPONENTS included in the SOFTWARE from time to time, and the applicable terms and conditions governing its use. Such terms and conditions may be changed by the applicable third party at any time without liability to you. To the extent required by the licenses covering EXCLUDED SOFTWARE, the terms of such licenses will apply in lieu of the terms of this EULA. To the extent the terms of the licenses applicable to EXCLUDED SOFTWARE prohibit any of the restrictions in this EULA with respect to such EXCLUDED SOFTWARE, such restrictions will not apply to such EXCLUDED SOFTWARE. To the extent the terms of the licenses applicable to OPEN SOURCE COMPONENTS require SONY to make an offer to provide source code in connection with the SOFTWARE, such offer is hereby made.

CONTENT SERVICE
PLEASE ALSO NOTE THAT THE SOFTWARE MAY BE
DESIGNED TO BE USED WITH CONTENT AVAILABLE
THROUGH ONE OR MORE CONTENT SERVICES
("CONTENT SERVICE"). USE OF THE SERVICE AND
THAT CONTENT IS SUBJECT TO THE TERMS OF
SERVICE OF THAT CONTENT SERVICE. IF YOU
DECLINE TO ACCEPT THOSE TERMS, YOUR USE OF
THE SOFTWARE WILL BE LIMITED. YOU
ACKNOWLEDGE AND AGREE THAT CERTAIN
CONTENT AND SERVICES AVAILABLE THROUGH THE
SOFTWARE MAY BE PROVIDED BY THIRD PARTIES
OVER WHICH SONY HAS NO CONTROL. USE OF THE
CONTENT SERVICE REQUIRES AN INTERNET CONNECTION. THE CONTENT SERVICE MAY BE DISCONTINUED AT ANY TIME.

INTERNET CONNECTIVITY AND THIRD PARTY SERVICES
You acknowledge and agree that access to certain SOFTWARE features may require an Internet connection for which you are solely responsible. Further, you are solely responsible for payment of any third party fees associated with your Internet connection, including but not limited to Internet service provider or airtime charges. Operation of the SOFTWARE may be limited or restricted depending on the capabilities, bandwidth or technical limitations of your Internet connection and service. The provision, quality and security of such Internet connectivity are the sole responsibility of the third party providing such service.

EXPORT AND OTHER REGULATIONS
You agree to comply with all export and re-export restrictions and regulations of the Department of Commerce and other United States agencies and authorities, and not to transfer, or authorize the transfer, of the SOFTWARE to a prohibited country or otherwise in violation of any such restrictions or regulations.

U.S. GOVERNMENT RESTRICTED RIGHTS
Use, duplication, or disclosure by the United States Government is subject to restriction as set forth in subparagraph (c) (1) and (2) of the Commercial Computer Software-Restricted Rights at 48 C.F.R. § 52.227-19, as applicable. The manufacturer solely for purposes of this section is Sony Electronics Inc., 16530 Via Esprillo, San Diego, CA 92127.

HIGH RISK ACTIVITIES
The SOFTWARE is not fault-tolerant and is not designed, manufactured or intended for use or resale as on-line control equipment in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines, or weapons systems, in which the failure of the SOFTWARE could lead to death, personal injury, or severe physical or environmental damage ("HIGH RISK ACTIVITIES"). SONY, each of the THIRD-PARTY SUPPLIERS, and each of their respective affiliates specifically disclaim any express or implied warranty, duty or condition of fitness for HIGH RISK ACTIVITIES.

LIMITATION OF LIABILITY
SONY AND EACH OF THE THIRD-PARTY SUPPLIERS
(for purposes of this Section, SONY and each of the THIRD-PARTY SUPPLIERS shall be collectively referred to as "SONY") SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY, BREACH OF CONTRACT, NEGLIGENCE,
STRICT LIABILITY OR UNDER ANY OTHER LEGAL
THEORY RELATED TO THE SOFTWARE, INCLUDING,
BUT NOT LIMITED TO, ANY DAMAGES ARISING OUT
OF LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF
DATA, LOSS OF USE OF THE SOFTWARE OR ANY
ASSOCIATED HARDWARE, DOWN TIME AND USER'S
TIME, EVEN IF ANY OF THEM HAVE BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY
CASE, EACH AND ALL OF THEIR AGGREGATE
LIABILITY UNDER ANY PROVISION OF THIS EULA
SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID FOR THE SOFTWARE. SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

ENTIRE AGREEMENT, WAIVER, SEVERABILITY
This EULA and SONY's privacy policy, each as amended and modified from time to time, together constitute the entire agreement between you and SONY with respect to the SOFTWARE. The failure of SONY to exercise or enforce any right or provision of this EULA shall not constitute a waiver of such right or provision. If any part of this EULA is held invalid, illegal, or unenforceable, that provision shall be enforced to the maximum extent permissible so as to maintain the intent of this EULA, and the other parts will remain in full force and effect. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to the SOFTWARE or this EULA. Furthermore, this EULA will not be governed or interpreted in any way by referring to any law based on the Uniform Computer Information Transactions Act (UCITA) or any other act derived from or related to UCITA.

BINDING ARBITRATION (ONLY FOR UNITED STATES RESIDENTS)
ANY "DISPUTE" THAT IS NOT RESOLVED THROUGH
THE INFORMAL NEGOTIATION PROCESS DESCRIBED ABOVE SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION. "DISPUTE" is defined as any disagreement, cause of action, claim, controversy, or proceeding between you and any Sony entity related to or arising out of the SOFTWARE or this EULA. DISPUTE is to be given the broadest possible meaning that will be enforced. If a DISPUTE arises, you agree to first give notice to SONY by contacting Sony Electronics Inc. at 16530 Via Esprillo, MZ 1105, San Diego, CA 92127, Attn: Legal Department, and engaging in good faith negotiations to attempt to resolve any DISPUTE for at least 14 days, except that you or Sony (or any of its affiliates) may skip this informal negotiation procedure for DISPUTE enforcing, protecting, or concerning the validity of intellectual property rights.

ARBITRATION INSTRUCTIONS (ONLY FOR UNITED STATES RESIDENTS)
To begin arbitration, either you or SONY must make a written demand to the other for arbitration. The arbitration will take place before a single arbitrator.
It will be administered in keeping with the Expedited Procedures of the Commercial
Arbitration Rules, and the Supplementary Proceedings for Consumer-Related disputes when applicable ("Rules") of the American Arbitration Association ("AAA") in effect when the claim is filed.
You may get a copy of AAA's Rules by contacting AAA at (800) 778-7879 or visiting www.adr.org. The filing fees to begin and carry out arbitration will be shared between you and SONY, but in no event shall your fees ever exceed the amount allowable by the special rules for Consumers Disputes provided for by AAA, at which point SONY will cover all additional administrative fees and expenses. This does not prohibit the arbitrator from giving the winning party their fees and expenses of the arbitration when appropriate pursuant to the Rules. Unless you and SONY agree differently, the arbitration will take place in the county and state where you live, and applicable federal or state law shall govern the substance of any DISPUTE. The Federal Arbitration Act, 9 U.S.C. § 1, et seq., will govern the arbitration itself and not any state law on arbitration. The arbitrator's decision will be binding and final, except for a limited right of appeal under the Federal Arbitration Act. The arbitrator may award declaratory or injunctive relief only in favor of the party seeking relief, and only to the extent necessary to provide relief warranted by that party's individual claim. Any court with jurisdiction over the parties may enforce the arbitrator's decision.

SMALL CLAIMS EXCEPTION (ONLY FOR UNITED STATES RESIDENTS)
Despite the provisions set forth above, you have the right to litigate any DISPUTE in small claims court or other similar court of limited jurisdiction, to the extent the amount at issue does not exceed $15,000, and as long as such court has proper jurisdiction and all other requirements (including amount in controversy) are satisfied.

CLASS ACTION WAIVER (ONLY FOR UNITED STATES RESIDENTS)
YOU UNDERSTAND AND ACKNOWLEDGE THAT BY AGREEING TO BINDING ARBITRATION, YOU ARE GIVING UP THE RIGHT TO LITIGATE (OR PARTICIPATE IN AS A PARTY OR CLASS MEMBER) ANY DISPUTES IN COURT BEFORE A JUDGE OR JURY. ANY DISPUTE RESOLUTION PROCEEDING WILL BE CONDUCTED ONLY ON AN INDIVIDUAL BASIS, AND BOTH PARTIES AGREE NOT TO HAVE ANY DISPUTE HEARD AS A CLASS ACTION, REPRESENTATIVE ACTION, CONSOLIDATED ACTION, OR PRIVATE ATTORNEY GENERAL ACTION, UNLESS ALL PARTIES INVOLVED IN THE DISPUTE SPECIFICALLY AGREE TO DO SO IN WRITING FOLLOWING INITIATION OF THE ARBITRATION.

OPT-OUT INSTRUCTIONS (ONLY FOR UNITED STATES RESIDENTS)
IF YOU DO NOT WISH TO BE BOUND BY THE BINDING ARBITRATION PROVISION AND/OR THE CLASS ACTION WAIVER ABOVE, THEN: (1) YOU MUST NOTIFY SONY IN WRITING WITHIN 30 DAYS OF THE DATE THAT YOU FIRST USE THE SOFTWARE OR AGREE TO THIS EULA, WHICHEVER OCCURS FIRST; (2) YOUR WRITTEN NOTIFICATION MUST BE MAILED TO SONY ELECTRONICS INC., 16530 VIA ESPRILLO, MZ 1105, SAN DIEGO CA 92127, ATTN: LEGAL DEPARTMENT; AND (3) YOUR WRITTEN NOTIFICATION MUST INCLUDE: (A) YOUR NAME; (B) YOUR ADDRESS; (C) THE DATE YOU FIRST USED THE SOFTWARE OR AGREED TO THIS EULA; AND (D) A CLEAR STATEMENT THAT YOU DO NOT WISH TO RESOLVE DISPUTES WITH ANY SONY ENTITY THROUGH ARBITRATION AND/OR TO BE BOUND BY THE CLASS ACTION WAIVER.

REJECTING CHANGES MADE TO THE DISPUTE PROCEDURES
Despite anything to the contrary in this EULA, you may reject changes made to the binding arbitration provision and class action waiver if: (1) you've already begun authorized use of the SOFTWARE at the time the change was/is made; and (2) you mail written notice to the address in the immediately preceding paragraph within 30 days after the particular change was/is made. Should such a situation arise, you will still be bound by the DISPUTE procedures you previously agreed to and existing before the change you rejected was made.

MISCELLANEOUS (ONLY FOR UNITED STATES RESIDENTS)
Any DISPUTE determined not subject to arbitration and not initiated in small claims court will be litigated by either party in a court of competent jurisdiction in either the superior court for the County of San Diego or in the United States District Court for the Southern District of California.

JURISDICTION, JURY TRIAL WAIVER (ONLY FOR CANADA RESIDENTS)
The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this EULA. Furthermore, this EULA will not be governed or interpreted in any way by referring to any law based on the Uniform Computer Information Transactions Act (UCITA) or any other act derived from or related to UCITA. This EULA, any disputes or claims arising out of or related to this EULA and your relationship with Sony under this EULA, shall be governed by and construed in accordance with the laws of the State of California, United States, without regard to its conflict of laws principles. Any and all disputes or claims arising out of or relating to this EULA or your relationship with SONY under this EULA shall be determined by arbitration in San Diego, California, before three (3) impartial arbitrators, in accordance with the laws of the State of California, United States, without regard to its conflict of laws principles. If you reside in the United States, the arbitration shall be administered by JAMS and the arbitrators shall be selected pursuant to the rules and procedures of JAMS. If you reside outside the United States, the arbitration shall be administered by ICC and the arbitrators shall be selected pursuant to the rules and procedures of ICC. The parties shall bear their own costs and expenses, including attorneys' fees, but the arbitrators may, in the award, allocate all of the administrative costs of the arbitration, including the fees of the arbitrators, against the party who did not prevail. The decision of the arbitrators shall be final and non-appealable. Judgment on any award may be entered in any court having competent jurisdiction. EXCEPT TO THE EXTENT PROHIBITED BY LAW, SONY AND YOU EXPRESSLY WAIVE TRIAL BY JURY WITH RESPECT TO ANY MATTERS OR DISPUTES ARISING UNDER OR RELATING TO THIS EULA. Any claim or cause of action arising under this EULA must be commenced within one (1) year after the claim or cause of action arises.

EQUITABLE REMEDIES
Notwithstanding anything contained in this EULA to the contrary, you acknowledge and agree that any violation of or non-compliance with this EULA by you will cause irreparable harm to SONY, for which monetary damages would be inadequate, and you consent to SONY obtaining any injunctive or equitable relief that SONY deems necessary or appropriate in such circumstances. SONY may also take any legal and technical remedies to prevent violation of and/or to enforce this EULA, including, but not limited to, immediate termination of your use of the SOFTWARE, if SONY believes in its sole discretion that you are violating or intend to violate this EULA. These remedies are in addition to any other remedies SONY may have at law, in equity or under contract.

TERMINATION
Without prejudice to any of its other rights, SONY may terminate this EULA if you fail to comply with any of its terms. In case of such termination, you must: (i) cease all use, and destroy any copies, of the SOFTWARE; (ii) comply with the requirements in the section below entitled "Your Account Responsibilities".

AMENDMENT
SONY RESERVES THE RIGHT TO AMEND ANY OF THE TERMS OF THIS EULA AT ITS SOLE DISCRETION BY POSTING NOTICE ON A SONY DESIGNATED WEB SITE, BY EMAIL NOTIFICATION TO AN EMAIL ADDRESS PROVIDED BY YOU, BY PROVIDING NOTICE AS PART OF THE PROCESS IN WHICH YOU OBTAIN UPGRADES/UPDATES OR BY ANY OTHER LEGALLY RECOGNIZABLE FORM OF NOTICE. If you do not agree to the amendment, you should promptly contact SONY for instructions. Your continued use of the SOFTWARE after the effective date of any such notice shall be deemed your agreement to be bound by such amendment.

THIRD-PARTY BENEFICIARIES
Each THIRD-PARTY SUPPLIER is an express intended third-party beneficiary of, and shall have the right to enforce, each provision of this EULA with respect to the SOFTWARE of such party.
Should you have any questions concerning this EULA, you may contact SONY by writing to SONY at: Sony Electronics Inc., 16530 Via Esprillo, San Diego, CA 92127.

Notice on license
This product contains software that Sony uses under a licensing agreement with the owner of its copyright. We are obligated to announce the contents of the agreement to customers under requirement by the owner of copyright for the software.
For details on software licenses, select [Settings] [System] [Open Source Licenses].

Notice on GNU GPL/LGPL applied software
The software included in this product contains copyrighted software that is licensed under the GPLv2 and other licenses which may require access to source code. You may find a copy of the relevant source code as required under the GPLv2 (and other licenses) at http://www.sony.net/Products/Linux/. To download, please access the URL, then select the model name "XAV-AX6000."
You may obtain the source code as required by the GPLv2 on a physical medium from us for a period of three years after our last shipment of this product by applying through the form at http://www.sony.net/Products/Linux/.
This offer is valid to anyone in receipt of this information.
Please note that Sony cannot answer or respond to any inquiries regarding the content of the source code.

FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
This device complies with part 15 of FCC Rules and Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

if your car's ignition has no ACC position
Do not install this unit in a car that has no ACC position. The display of the unit does not turn off even after turning the ignition off, and this causes battery drain.
