Dell G5 5590, P82F Manual

Introduction

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates a potential for property damage, personal injury, or death.

Set up your Dell G5 5590

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

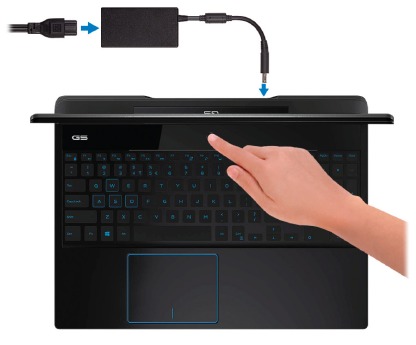

1. Connect the power adapter and press the power button.

   NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.
2. Finish operating system setup.
   For Ubuntu:
   Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see the knowledge base articles SLN151664 and SLN151748 at www.dell.com/support.
   For Windows:
   Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
   • Connect to a network for Windows updates.
     NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
   • If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
   • On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended
   Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.
	SupportAssist Pro-actively checks the health of your computer's hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
	Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support.

4. 4 Create recovery drive for Windows.
   NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.
   For more information, see Create a USB recovery drive for Windows.

Create a USB recovery drive for Windows

Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive.
NOTE: This process may take up to an hour to complete.
NOTE: The following steps may vary depending on the version of Windows installed. Refer to the Microsoft support site for latest instructions.

1. Connect the USB flash drive to your computer.
2. In Windows search, type Recovery.
3. In the search results, click Create a recovery drive.
   The User Account Control window is displayed.
4. Click Yes to continue.
   The Recovery Drive window is displayed.
5. Select Back up system files to the recovery drive and click Next.
6. Select the USB flash drive and click Next.
   A message appears, indicating that all data in the USB flash drive will be deleted.
7. Click Create.
8. Click Finish.
   For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals.

Views of Dell G5 5590

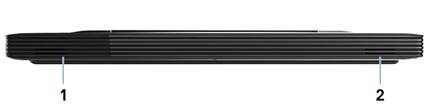

Front

1. Left speaker
   Provides audio output.
2. Right speaker
   Provides audio output.

Right

1. SD-card slot
   Reads from and writes to the SD card.
2. USB 3.1 Gen 1 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.

Left

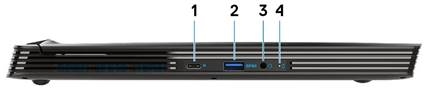

Computers shipped with NVIDIA GeForce GTX 1050 Ti

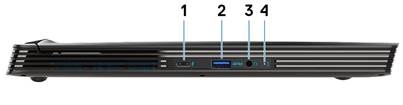

Computers shipped with NVIDIA GeForce RTX 2060 or RTX 2070

1. USB 3.1 Gen 2 Type-C port
   • DisplayPort Alt-Mode (Only on computers shipped with graphics card NVIDIA GeForce GTX 1050 Ti)
     Connect peripherals such as external storage devices and printers.
     Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off.
     NOTE: If the charge on your computer's battery is less than 10 percent, you must connect the power adapter to charge your computer, and USB devices connected to the PowerShare port.
     NOTE: If a USB device is connected to the PowerShare port before the computer is turned off or in hibernate state, you must disconnect and connect it again to enable charging.
     NOTE: Certain USB devices may not charge when the computer is turned off or in sleep state. In such cases, turn on the computer to charge the device.
   • Thunderbolt 3/DisplayPort (Only on computers shipped with graphics card NVIDIA GeForce RTX 2060 or RTX 2070)
     Supports USB 3.1 Gen 2 Type-C, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. Provides data transfer rates up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3.
     NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

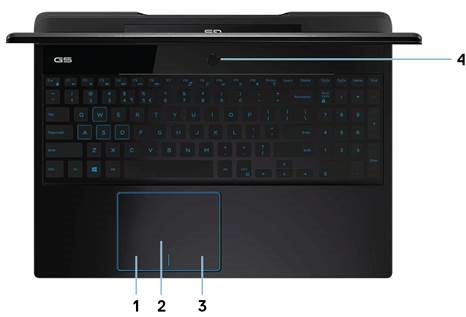

Base

1. Left-click area
   Press to left-click.
2. Touchpad
   Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.
3. Right-click area
   Press to right-click.
4. Power button with optional fingerprint reader
   Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
   When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
   If the power button has a fingerprint reader, place your finger on the power button to log in.
   NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
   NOTE: The power-status light on the power button is available only on computers without the fingerprint reader. Computers shipped with the fingerprint reader integrated on the power button will not have the power-status light on the power button.
   NOTE: To reset the battery, press and hold the power button for 25 seconds.

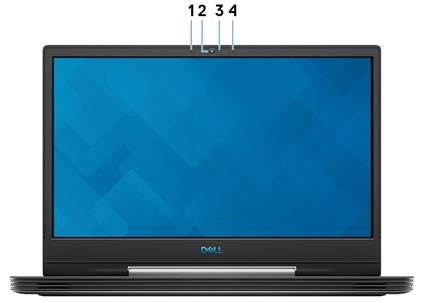

Display

1. Left microphone
   Provides digital sound input for audio recording and voice calls.
2. Camera
   Enables you to video chat, capture photos, and record videos.
3. Camera-status light
   Turns on when the camera is in use.
4. Right microphone
   Provides digital sound input for audio recording and voice calls.

Back
Computers shipped with NVIDIA GeForce GTX 1050 Ti

1. Power-adapter port
   Connect a power adapter to provide power to your computer.
2. HDMI port
   Connect to a TV or another HDMI-in enabled device. Provides video and audio output.
3. USB 3.1 Gen 1 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
4. Network port
   Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.
5. Security-cable slot (wedge-shaped)
   Connect a security cable to prevent unauthorized movement of your computer.

Computers shipped with NVIDIA GeForce RTX 2060 or RTX 2070

1. Power-adapter port
   Connect a power adapter to provide power to your computer.
2. HDMI port
   Connect to a TV or another HDMI-in enabled device. Provides video and audio output.
3. USB 3.1 Gen 1 port
   Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
4. Mini DisplayPort
   Connect to a TV or another DisplayPort-in enabled device. Provides video and audio output.
   NOTE: Only on computers shipped with graphics card NVIDIA GeForce RTX 2060 or RTX 2070.
5. Network port
   Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.
6. Security-cable slot (wedge-shaped)
   Connect a security cable to prevent unauthorized movement of your computer.

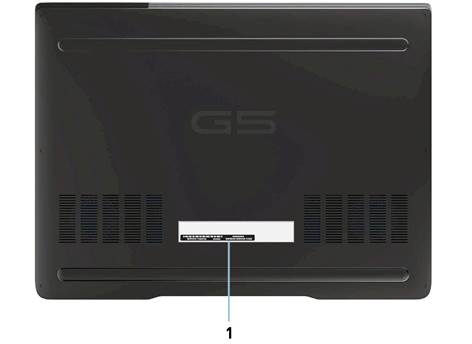

Bottom

1. Service Tag label
   The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

Specifications of Dell G5 5590

Dimensions and weight
Table 2. Dimensions and weight

Description	Values
Height:
Front	23.70 mm (0.93 in.)
Rear	21.42 mm (0.84 in.)
Width	364.30 mm (14.34 in.)
Depth	273.40 mm (10.76 in.)
Weight	2.84 kg (6.27 lb) NOTE: The weight of your computer depends on the configuration ordered and the manufacturing variability.

Processors
Table 3. Processors

Chipset
Table 4. Chipset

Operating system

• Windows 10 Home (64-bit)
• Windows 10 Professional (64-bit)
• Ubuntu
  NOTE: The Ubuntu version varies with region.

Memory
Table 5. Memory specifications

Ports and connectors
Table 6. Ports and connectors

Communications

Ethernet
Table 7. Ethernet specifications

Wireless module
Table 8. Wireless module specifications

Description		Values
Model number	Qualcomm QCA61x4A (DW1820) Intel 9560 2x2 ac (Intel 9560	2x2 ac (80 MHz)	Rivet Killer 1550 2x2 ac
Transfer rate	Up to 867 Mbps	Up to 867 Mbps	Up to 1.73 Gbps
Frequency bands supported	Dual band 2.4 GHz/5 GHz	Dual band 2.4 GHz/5 GHz	Dual band 2.4 GHz/5 GHz
Wireless standards	WiFi 802.11a/b/g WiFi 4 (WiFi 802.11n) WiFi 5 (WiFi 802.11ac)	WiFi 802.11a/b/g WiFi 4 (WiFi 802.11n) WiFi 5 (WiFi 802.11ac)	WiFi 802.11a/b/g WiFi 4 (WiFi 802.11n) WiFi 5 (WiFi 802.11ac)
Encryption	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP	64-bit/128-bit WEP AES-CCMP TKIP
Bluetooth	Bluetooth 4.2 NOTE: Bluetooth 4.2 is supported by the latest Windows 10 update.	Bluetooth 5.0 NOTE: Bluetooth 5.0 is supported by the latest Windows 10 update.	Bluetooth 5.0 NOTE: Bluetooth 5.0 is supported by the latest Windows 10 update.

Audio

Table 9. Audio specifications

Storage

Your computer supports one of the following configurations:

• One 2.5-inch hard-disk drive
• One M.2 2280 solid-state drive
• One 2.5-inch hard-disk drive and one M.2 2280 solid-state drive
• One 2.5-inch hard-disk drive and one M.2 Intel Optane memory
  NOTE: The primary drive of your computer varies with the storage configuration.

For computers:

• with an M.2 drive, the M.2 drive is the primary drive
• without an M.2 drive, the 2.5-inch hard-disk drive is the primary drive

Table 10. Storage specifications

Storage type	Interface type	Capacity
One 2.5-inch Hard-Disk Drive (HDD) NOTE: Hard-disk drive is supported only on the computers shipped with 4-cell battery configuration	SATA	500 GB (7200 RPM) 1 TB (5400 RPM) 2 TB (5400 RPM) 1 TB (5400 RPM) + 8 GB hybrid drive
One M.2 2280 solid-state drive	PCIe NVMe 3x2 Class 35 PCIe NVMe 3x4 Class 40	Up to 512 GB Up to 1 TB

Intel Optane memory

Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer.

NOTE: Intel Optane memory is supported on computers that meet the following requirements:

• 7^th Generation or higher Intel Core i3/i5/i7 processor
• Windows 10 64-bit version or higher (Anniversary Update)
• Latest version of Intel Rapid Storage Technology driver

Table 11. Intel Optane memory

Media-card reader

Table 12. Media-card reader specifications

Keyboard

Table 13. Keyboard specifications

Camera

Table 14. Camera specifications

Touchpad

Table 15. Touchpad specifications

Touchpad gestures
For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871at support.microsoft.com.

Power adapter
Table 16. Power adapter specifications

Battery
Table 17. Battery specifications

Description	Values	Values
Type	4-cell "smart" lithium-ion/polymer (60 WHr)	6-cell "smart" lithium-ion/polymer (90 WHr)
	NOTE: Hard-disk drive configuration is available only on the computers that are shipped with 4-cell battery.
Voltage	15.20 VDC	11.40 VDC
Weight (maximum)	0.25 kg (0.556 lb)	0.37 kg (0.82 lb)
Dimensions:
Height	11.60 mm (0.46 in.)	11.60 mm (0.46 in.)
Width	222.20 mm (8.75 in.)	332.65 mm (13.10 in.)
Depth	74.20 mm (2.92 in.)	74.20 mm (2.92 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
Storage	–40°C to 65°C (–40°F to 149°F)	–40°C to 65°C (–40°F to 149°F)
Operating time	Varies depending on operating conditions and can significantly reduce under certain powerintensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.
Charging time (approximate)	4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on https://www.dell.com/	4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on https://www.dell.com/
Life span (approximate)	300 discharge/charge cycles	300 discharge/charge cycles
Coin-cell battery	CR-2032	CR-2032
Operating time	Varies depending on operating conditions and can significantly reduce under certain powerintensive conditions.	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Display

Table 18. Display specifications

Fingerprint reader (optional)

Table 19. Fingerprint reader specifications

Video

Table 20. Video specifications

Table 21. Video specifications

Computer environment
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 22. Computer environment

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key.
Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.

Table 23. List of keyboard shortcuts

Function key	Re-defined key (for multi-media control)	Behavior
		Mute audio
		Decrease volume
		Increase volume
		Play previous track/chapter
		Play/Pause
		Play next track/chapter
		Switch to external display
		Search
		Toggle keyboard backlight (optional)
		Decrease brightness
		Increase brightness

The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 24. List of keyboard shortcuts

Function key	Behavior
	Turn off/on wireless
	Pause/Break
	Sleep
	Toggle scroll lock
	Toggle between power and battery-status light/hard-drive activity light
	System request
	Open application menu
	Toggle Fn-key lock
	Page up
	Page down
	Home
	End

Getting help and contacting Del

Self-help resources
You can get information and help on Dell products and services using these self-help resources:

Table 25. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on.	www.dell.com/support
Dell knowledge base articles for a variety of computer concerns.	Go to www.dell.com/support. Type the subject or keyword in the Search box. Click Search to retrieve the related articles.
Learn and know the following information about your product:	See Me and My Dell at www.dell.com/support/manuals.
Product specifications Operating system Setting up and using your product Data backup Troubleshooting and diagnostics Factory and system restore BIOS information	To locate the Me and My Dell relevant to your product, identify your product through one of the following: Select Detect Product. Locate your product through the drop-down menu under View Products. Enter the Service Tag number or Product ID in the search bar.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
