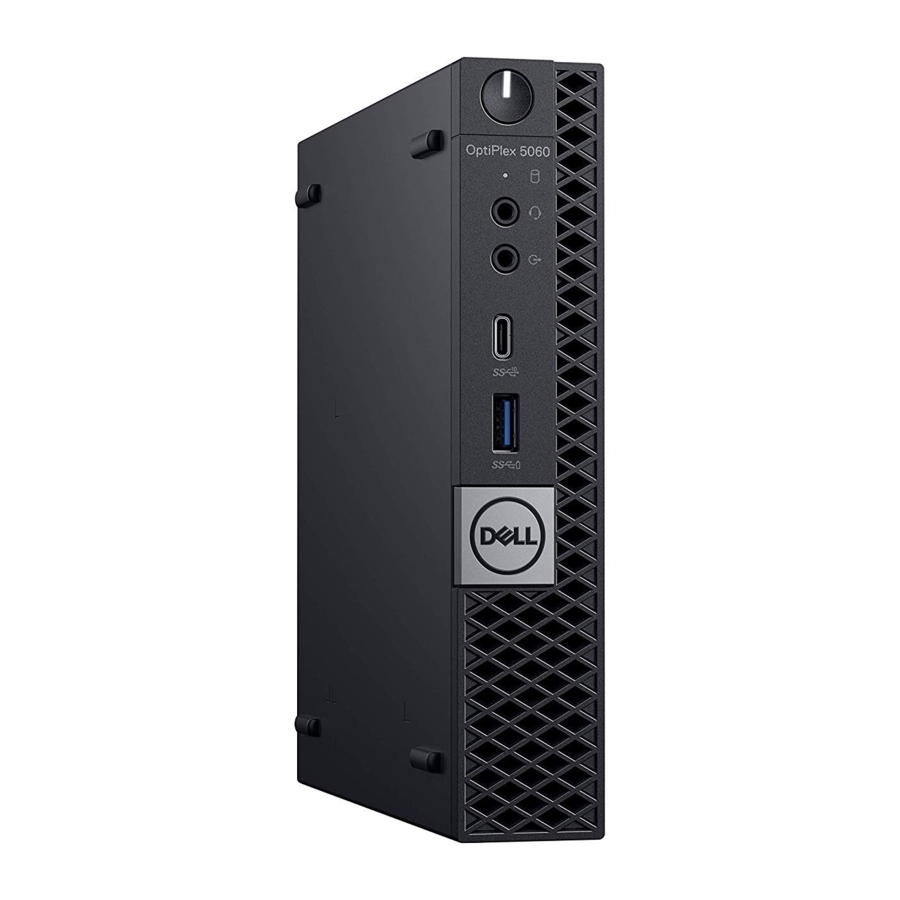

Dell OptiPlex 5060 Micro, D02T Manual
Set up your device

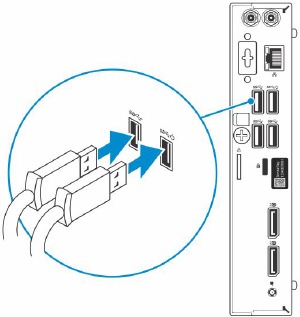

- Connect the keyboard and mouse.
![Setting up your device - Step 1]( "Dell - OptiPlex 5060 Micro - Setting up your device - Step 1")

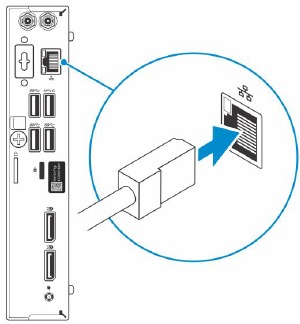

- Connect to your network using a cable, or connect to a wireless network.
![Setting up your device - Step 2]( "Dell - OptiPlex 5060 Micro - Setting up your device - Step 2")

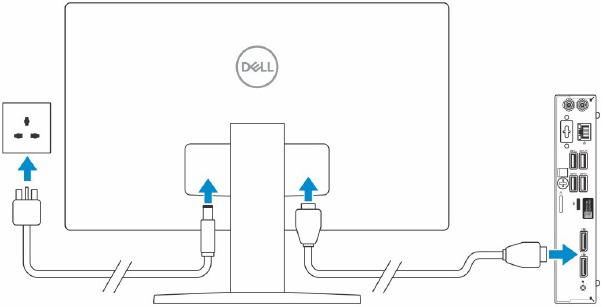

- Connect the display.
![Setting up your device - Step 3]( "Dell - OptiPlex 5060 Micro - Setting up your device - Step 3")
NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of your computer are covered. Connect the display to the discrete graphics card.

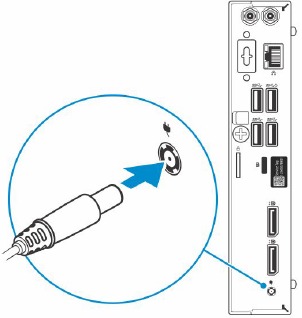

- Connect the power cable.
![Setting up your device - Step 4]( "Dell - OptiPlex 5060 Micro - Setting up your device - Step 4")

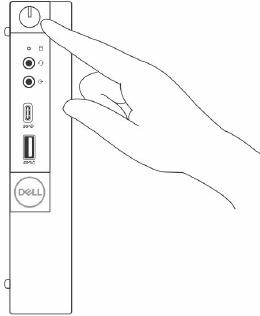

- Press the power button.
![]()
- Follow the instructions on the screen to finish Windows setup:

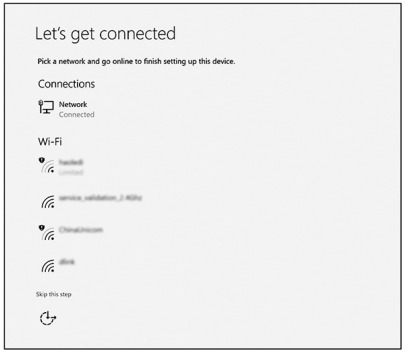

- Connect to a network.
![Setting up your device - Step 5]( "Dell - OptiPlex 5060 Micro - Setting up your device - Step 5")

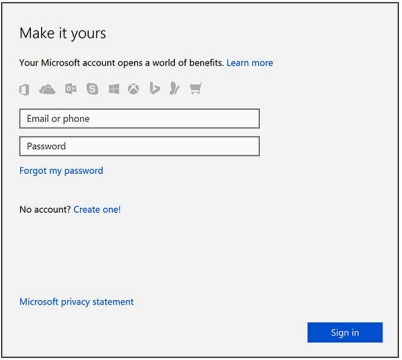

- Sign-in to your Microsoft account or create a new account.
![Setting up your device - Step 6]( "Dell - OptiPlex 5060 Micro - Setting up your device - Step 6")
- Connect to a network.
- Locate Dell apps.
| Table 1. Locate Dell apps | |
 | Register your computer |
 | Dell Help & Support |
 | SupportAssist — Check and update your computer |
Chassis

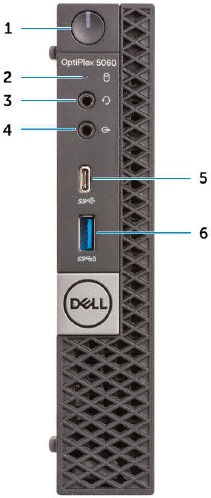

Front view
- Power button and power light
- Hard drive activity light
- Headset/Universal audio jack port
- Line-out port
- USB 3.1 Gen 2 Type-C port with PowerShare
- USB 3.1 Gen 1 port with PowerShare

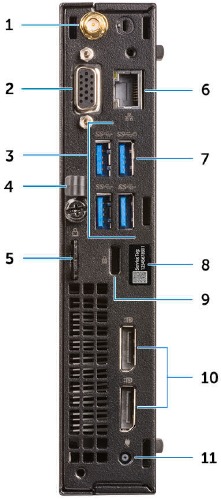

Back view
- External antenna connectors (2) (optional)
- DisplayPort/VGA/HDMI 2.0b/DP/ USB Type-C alt mode (optional)
- USB 3.1 Gen 1 ports (3)
- Cable holder
- Padlock ring
- Network port
- USB 3.1 Gen 1 port (supports Smart Power On)
- Service tag
- Kensington security cable slot
- DisplayPorts (2)
- Power connector port
System specifications
NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your computer, go to Help and Support in your Windows operating system and select the option to view information about your computer.
Processor
Global Standard Products (GSP) are a subset of Dell's relationship products that are managed for availability and synchronized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of configurations managed on a worldwide basis, thereby reducing their costs. They also enable companies to implement global IT standards by locking in specific product configurations worldwide. The following GSP processors identified below will be made available to Dell customers.
NOTE: Processor numbers are not a measure of performance. Processor availability is subject to change and may vary by region/ country.
| Table 2. Processor specifications | |
| Type | UMA Graphics |
| Intel Pentium Gold G5400T (2 Cores/4MB/4T/3.7GHz/65W); supports Windows 10/Linux | Intel UHD Graphics 610 with shared graphics memory |
| Intel Pentium Gold G5500T (2 Cores/4MB/4T/3.8GHz/65W); supports Windows 10/Linux | Intel UHD Graphics 610 with shared graphics memory |
| Intel Core i3-8100T (4 Cores/6MB/4T/3.6GHz/65W); supports Windows 10/Linux | Intel UHD Graphics 630 |
| Intel Core i3-8300T (4 Cores/8MB/4T/3.7GHz/65W); supports Windows 10/Linux | Intel UHD Graphics 630 |
| Intel Core i5-8400T (6 Cores/9MB/6T/up to 4.0GHz/65W); supports Windows 10/Linux | Intel UHD Graphics 630 |
| Intel Core i5-8500T (6 Cores/9MB/6T/up to 4.1GHz/65W); supports Windows 10/Linux | Intel UHD Graphics 630 |
| Intel Core i5-8600T (6 Cores/9MB/6T/up to 4.3GHz/65W); supports Windows 10/Linux | Intel UHD Graphics 630 |
| Intel Core i7-8700T (6 Cores/12MB/12T/up to 4.6GHz/65W); supports Windows 10/Linux | Intel UHD Graphics 630 |
Memory
| Table 3. Memory specifications | |
| Minimum memory configuration | 4 GB |
| Maximum memory configuration | 32 GB |
| Number of slots | 2 SODIMM |
| Maximum memory supported per slot | 16 GB |
| Memory options |
|
| Type | DDR4 DRAM Non-ECC memory |
| Speed |
|
Storage
| Table 4. Storage specifications | |||
| Type | Form factor | Interface | Capacity |
| One Solid-State Drive (SSD) | M.2 2280 |
|
|
| One 2.5 inch Hard-Disk Drive (HDD) |
|
| |
| One 2.5 inch Self-encrypting Opal drive Hard-Disk Drive (SED HDD) | 7200 RPM FIPS Self Encrypting Opal 2.0 Hard Disk Drive | Upto 500 GB | |
Chipset
| Table 5. Chipset specifications | |
| Type | Intel Q370 |
| Non-volatile memory on chipset | Yes |
| BIOS configuration SPI (Serial Peripheral Interface) | 256 Mbit (32 MB) located at SPI_FLASH on chipset |
| Trusted Platform Module (TPM) 2.0 Security Device (Discrete TPM Enabled) | 24 KB located at TPM 2.0 on chipset |
| Firmware-TPM (Discrete TPM disabled) | By default the Platform Trust Technology feature is visible to the OS |
| NIC EEPROM | LOM configuration contained within LOM e-fuse – no dedicated LOM EEPROM |
Storage combinations
| Table 6. Storage combinations | |
| Primary/Boot drive | Secondary drive |
| 1 x M.2 Drive | Intel Optane Memory |
| 1 x 2.5 inch HDD with M.2 Optane | 2.5 500 GB 7200 RPM HDD + Intel Optane Memory |
| 1 x 2.5 inch HDD with M.2 Optane | 2.5 1 TB 7200 RPM HDD + Intel Optane Memory |
| 1 x 2.5 inch HDD with M.2 Optane | 2.5 2 TB 5400 RPM HDD + Intel Optane Memory |
Audio
| Table 7. Audio specifications | |
| Controller | Realtek ALC3234 |
| Type | Integrated |
| Speakers | Internal speaker (mono) |
| Interface |
|
| Internal speaker amplifier | 2W (RMS) per channel |
Video
| Table 8. Video | ||||||
| Controller | Type | CPU Dependency | Graphics memory type | Capacity | External display support | Maximum resolution |
| Intel UHD Graphics 610 | UMA | Intel Pentium Gold G5400T Intel Pentium Gold G5500T | Integrated | Shared system memory | DisplayPort 1.2 HDMI 2.0 | VGA: 1920x1200@60 Hz DisplayPort: 4096x2160@60 Hz HDMI: 2560x1600; 4096x2160@60 Hz |
| Intel UHD Graphics 630 | UMA | Intel Core i3-8100T Intel Core i3-8300T Intel Core i5-8400T Intel Core i5-8500T Intel Core i7-8700T | Integrated | Shared system memory | DisplayPort 1.2 HDMI 2.0 | VGA: 1920x1200@60 Hz DisplayPort: 4096x2160@60 Hz HDMI: 2560x1600; 4096x2160@60 Hz |
Communications
| Table 9. Communications | |
| Network adapter | Intel i219-V Gigabit1 Ethernet LAN 10/100/1000 (Remote Wake Up, PXE support) |
| Wireless |
|
Ports and connectors
| Table 10. Ports and connectors | |
| USB |
|
| Security | Kensington lock slot |
| Audio |
|
| Video |
|
| Network adapter | One RJ-45 (10/100/1000) connector |
System board connectors
| Table 11. System board connectors | |
| M.2 Connectors | 1 - 2230/2280 (Support SATA & PCIe interface) |
| M.2 Connectors | 1 - 2230 (keyed to support Integrated or Discrete WiFi, Support Intel CNVi or USB2.0/PCIe) |
| Serial ATA (SATA) connector | 1 (Support Standard Rev 3.0) |
Power supply
| Table 12. Power supply | |
| Input Voltage | 90-264 VAC, 47 Hz/63 Hz |
| Input current (maximum) |
|
Physical system dimensions
| Table 13. Physical system dimensions | |
| Chassis volume (liters) | 1.16 |
| Chassis weight (pounds / kilograms) | 2.60/1.18 |
| Table 14. Chassis dimensions | |
| Height (inches / centimeters) | 7.2/18.2 |
| Width (inches / centimeters) | 1.4/3.6 |
| Depth (inches / centimeters) | 7/17.8 |
| Shipping weight (pounds / kilograms – includes packaging materials) | 5.91/2.68 |
| Table 15. Packaging parameters | |
| Height (inches / centimeters) | 5.2/13.3 |
| Width (inches / centimeters) | 9.4/23.8 |
| Depth (inches / centimeters) | 19.6/49.8 |
Security
| Table 16. Security | |
| Tower/ Small form factor/ Micro | |
| Trusted Platform Module (TPM) 2.0 | Integrated on system board |
| Firmware TPM | Optional |
| Windows Hello support | Optional via security input device |
| Cable Cover | Optional |
| Chassis Intrusion Switch | Optional /Optional /Standard |
| Dell Smartcard Keyboard | Optional |
| Chassis lock slot and loop support | Standard |
Environmental
NOTE: For more details on Dell environmental features, please go to the environmental attributes section. See your specific region for availability.
| Table 17. Environmental | |
| Energy efficient power supply | Standard |
| Customer replaceable unit | No |
| Recyclable packaging | Yes |
| MultiPack packaging | Optional, US only |
System setup
System setup enables you to manage your desktop hardware and specify BIOS level options. From the System setup, you can:
- Change the NVRAM settings after you add or remove hardware
- View the system hardware configuration
- Enable or disable integrated devices
- Set performance and power management thresholds
- Manage your computer security
BIOS overview
Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly.
NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen information for future reference.
Use the BIOS Setup program for the following purposes:
- Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive.
- Change the system configuration information.
- Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling base devices.
General options
| Table 18. General | |
| Option | Description |
| System Information | Displays the following information:
|
| Boot Sequence | Allows you to specify the order in which the computer attempts to find an operating system from the devices specified in this list. |
| Advanced Boot Options | Allows you to select the Enable Legacy Option ROMs option, when in UEFI boot mode. By default, this option is selected.
|
| UEFI Boot Path Security | This option controls whether or not the system will prompt the user to enter the Admin password when booting a UEFI boot path from the F12 Boot Menu.
|
| Date/Time | Allows you to set the date and time settings. Changes to the system date and time take effect immediately. |
System information
| Table 19. System Configuration | |
| Option | Description |
| Integrated NIC | Allows you to control the on-board LAN controller. The option 'Enable UEFI Network Stack' is not selected by default. The options are:
NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not appear. |
| SATA Operation | Allows you to configure the operating mode of the integrated hard drive controller.
|
| Drives | Allows you to enable or disable the various drives on-board:
|
| Smart Reporting | This field controls whether hard drive errors for integrated drives are reported during system startup. The Enable Smart Reporting option is disabled by default. |
| USB Configuration | Allows you to enable or disable the integrated USB controller for:
|
| Front USB Configuration | Allows you to enable or disable the front USB ports. All the ports are enabled by default. |
| Rear USB Configuration | Allows you to enable or disable the back USB ports. All the ports are enabled by default. |
| USB PowerShare | This option allows you to charge the external devices, such as mobile phones, music player. This option is disabled by default. |
| Audio | Allows you to enable or disable the integrated audio controller. The option Enable Audio is selected by default.
|
| Dust Filter Maintenance | Allows you to enable or disable BIOS messages for maintaining the optional dust filter installed in your computer. BIOS will generate a pre-boot reminder to clean or replace the dust filter based on the interval set. The option Disabled is selected by default.
|
Video screen options
| Table 20. Video | |
| Option | Description |
| Primary Display | Allows you to select the primary display when multiple controllers are available in the system.
NOTE: If you do not select Auto, the on-board graphics device will be present and enabled. |
Security
| Table 21. Security | |
| Option | Description |
| Admin Password | Allows you to set, change, and delete the admin password. |
| System Password | Allows you to set, change, and delete the system password. |
| Internal HDD-0 Password | Allows you to set, change, and delete the computer's internal HDD. |
| Strong Password | This option lets you enable or disable strong passwords for the system. |
| Password Configuration | Allows you to control the minimum and maximum number of characters allowed for a administrative password and the system password. The range of characters is between 4 and 32. |
| Password Bypass | This option lets you bypass the System (Boot) Password and the internal HDD password prompts during a system restart.
NOTE: The system will always prompt for the system and internal HDD passwords when powered on from the off state (a cold boot). Also, the system will always prompt for passwords on any module bay HDDs that may be present. |
| Password Change | This option lets you determine whether changes to the System and Hard Disk passwords are permitted when an administrator password is set. Allow Non-Admin Password Changes - This option is enabled by default. |
| UEFI Capsule Firmware Updates | This option controls whether this system allows BIOS updates via UEFI capsule update packages. This option is selected by default. Disabling this option will block BIOS updates from services such as Microsoft Windows Update and Linux Vendor Firmware Service (LVFS) |
| TPM 2.0 Security | Allows you to control whether the Trusted Platform Module (TPM) is visible to the operating system.
|
| Computrace | This field lets you Activate or Disable the BIOS module interface of the optional Computrace Service from Absolute Software. Enables or disables the optional Computrace service designed for asset management.
|
| Chassis Intrusion | This field controls the chassis intrusion feature. Choose any one of the option:
|
| Admin Setup Lockout | Allows you to prevent users from entering Setup when Admin password is set. This option is not set by default. |
| Master Password Lockout | Allows you to disable master password support Hard Disk passwords need to be cleared before the settings can be changed. This option is not set by default. |
| SMM Security Mitigation | Allows you to enable or disable additional UEFI SMM Security Mitigation protections. This option is not set by default. |
Secure boot options
| Table 22. Secure Boot | |
| Option | Description |
| Secure Boot Enable | Allows you to enable or disable Secure Boot feature
|
| Secure Boot Mode | Allows you to modify the behavior of Secure Boot to allow evaluation or enforcement of UEFI driver signatures.
|
| Expert key Management | Allows you to manipulate the security key databases only if the system is in Custom Mode. The Enable Custom Mode option is disabled by default. The options are:
NOTE: If you disable the Custom Mode, all the changes made will be erased and the keys will restore to default settings. |
Intel Software Guard Extensions options
| Table 23. Intel Software Guard Extensions | |
| Option | Description |
| Intel SGX Enable | This field specifies you to provide a secured environment for running code/storing sensitive information in the context of the main OS. Click one of the following options:
|
| Enclave Memory Size | This option sets SGX Enclave Reserve Memory Size Click one of the following options:
|
Performance
| Table 24. Performance | |
| Option | Description |
| Multi Core Support | This field specifies whether the process has one or all cores enabled. The performance of some applications improves with the additional cores.
|
| Intel SpeedStep | Allows you to enable or disable the Intel SpeedStep mode of processor.
|
| C-States Control | Allows you to enable or disable the additional processor sleep states.
|
| Intel TurboBoost | Allows you to enable or disable the Intel TurboBoost mode of the processor.
|
| Hyper-Thread Control | Allows you to enable or disable the HyperThreading in the processor.
|
Power management
| Table 25. Power Management | |
| Option | Description |
| AC Recovery | Determines how the system responds when AC power is re-applied after a power loss. You can set the AC Recovery to:
|
| Enable Intel Speed Shift Technology | Allows you to enable or disable Intel Speed Shift Technology support. The option Enable Intel Speed Shift Technology is set by default. |
| Auto On Time | Sets time to automatically turn on the computer. Time is kept in standard 12-hour format (hour: minutes: seconds). Change the startup time by typing the values in the time and AM/PM fields.
|
| Deep Sleep Control | Allows you to define the controls when Deep Sleep is enabled.
|
| USB Wake Support | Allows you to enable the USB devices to wake the computer from standby mode. The option "Enable USB Wake Support" is selected by default |
| Wake on LAN/WWAN | This option allows the computer to power up from the off state when triggered by a special LAN signal. This feature only works when the computer is connected to AC power supply.
|
| Block Sleep | Allows you to block entering to sleep (S3 state) in OS environment. This option is disabled by default. |
Post behavior
| Table 26. POST Behavior | |
| Option | Description |
| Numlock LED | Allows you to enable or disable the Numlock feature when your computer starts. This option is enabled by default. |
| Keyboard Errors | Allows you to enable or disable the keyboard error reporting when the computer starts. The option Enable Keyboard Error Detection is enabled by default. |
| Fast Boot | This option can speed up the boot process by bypassing some compatibility steps:
|
| Extend BIOS POST Time | This option creates an additional pre-boot delay.
|
| Full Screen Logo | This option will display full screen logo if your image match screen resolution. The option Enable Full Screen Logo is not set by default. |
| Warnings and Errors | This option causes the boot process to only pause when warning or errors are detected. Choose any one of the option:
|
Manageability
| Table 27. Manageability | |
| Option | Description |
| USB provision | This option is not selected by default. |
| MEBx Hotkey | This option is selected by default. |
Virtualization support
| Table 28. Virtualization Support | |
| Option | Description |
| Virtualization | This option specifies whether a Virtual Machine Monitor (VMM) can utilize the additional hardware capabilities provided by the Intel Virtualization technology.
|
| VT for Direct I/O | Enables or disables the Virtual Machine Monitor (VMM) from utilizing the additional hardware capabilities provided by the Intel Virtualization technology for direct I/O.
|
| Trusted Execution | This option specifies whether a Measured Virtual Machine Monitor (MVMM) can utilize the additional hardware capabilities provided by Intel Trusted Execution Technology.
|
Wireless options
| Table 29. Wireless | |
| Option | Description |
| Wireless Device Enable | Allows you to enable or disable the internal wireless devices. The options are:
|
Maintenance
| Table 30. Maintenance | |
| Option | Description |
| Service Tag | Displays the service tag of your computer. |
| Asset Tag | Allows you to create a system asset tag if an asset tag is not already set. This option is not set by default. |
| SERR Messages | Controls the SERR message mechanism. This option is set by default. Some graphics cards require that the SERR message mechanism be disabled. |
| BIOS Downgrade | Allows you to flash previous revisions of the system firmware.
|
| Data Wipe | Allows you to securely erase data from all internal storage devices.
|
| Bios Recovery | BIOS Recovery from Hard Drive—This option is set by default. Allows you to recover the corrupted BIOS from a recovery file on the HDD or an external USB key. BIOS Auto-Recovery— Allows you to recover the BIOS automatically. NOTE: BIOS Recovery from Hard Drive field should be enabled.Always Perform Integrity Check—Performs integrity check on every boot. |
| First Power On Date | Allows you the set Ownership date. The option Set Ownership Date is not set by default. |
System logs
| Table 31. System Logs | |
| Option | Description |
| BIOS events | Allows you to view and clear the System Setup (BIOS) POST events. |
| Thermal Events | Allows you to view and clear the System Setup (Thermal) events. |
| Power Events | Allows you to view and clear the System Setup (Power) events. |
Advanced configuration
| Table 33. Advanced configuration | |
| Option | Description |
| ASPM | Allows you to set the ASPM level.
|
Software
This chapter details the supported operating systems along with instructions on how to install the drivers.
Supported operating systems
| Table 34. Supported operating systems | |
| Supported operating systems | Description |
| Windows operating system |
|
| Other |
|
Downloading drivers
- Turn on the desktop.
- Go to Dell.com/support.
- Click Product Support, enter the Service Tag of your desktop, and then click Submit.
![information]()
NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your desktop model. - Click Drivers and Downloads.
- Select the operating system installed on your desktop.
- Scroll down the page and select the driver to install.
- Click Download File to download the driver for your desktop.
- After the download is complete, navigate to the folder where you saved the driver file.
- Double-click the driver file icon and follow the instructions on the screen.

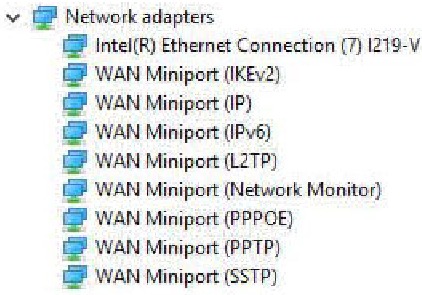

Network adapter drivers
Verify if the Network adapter drivers are already installed in the system.

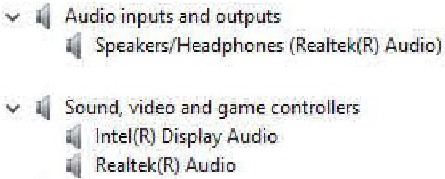

Audio drivers
Verify if the audio drivers are already installed in the computer.
Display adapter
Verify if the display adapter drivers are already installed in the system.
Security drivers
Verify if the security drivers are already installed in the system.
Storage controller
Verify if the storage control drivers are already installed in the system.

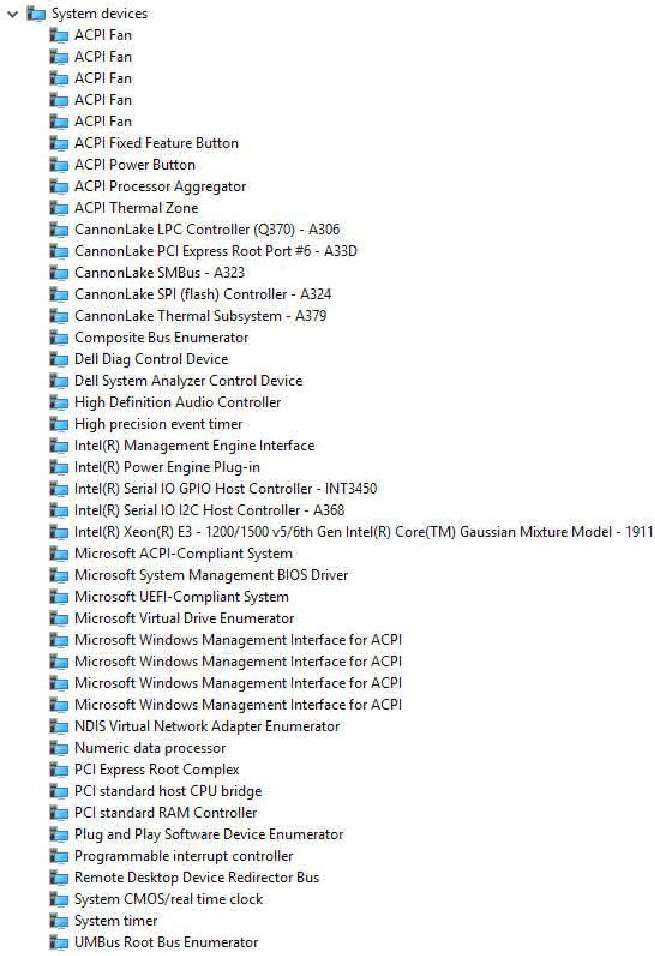

System device drivers
Verify if the system device drivers are already installed in the system.

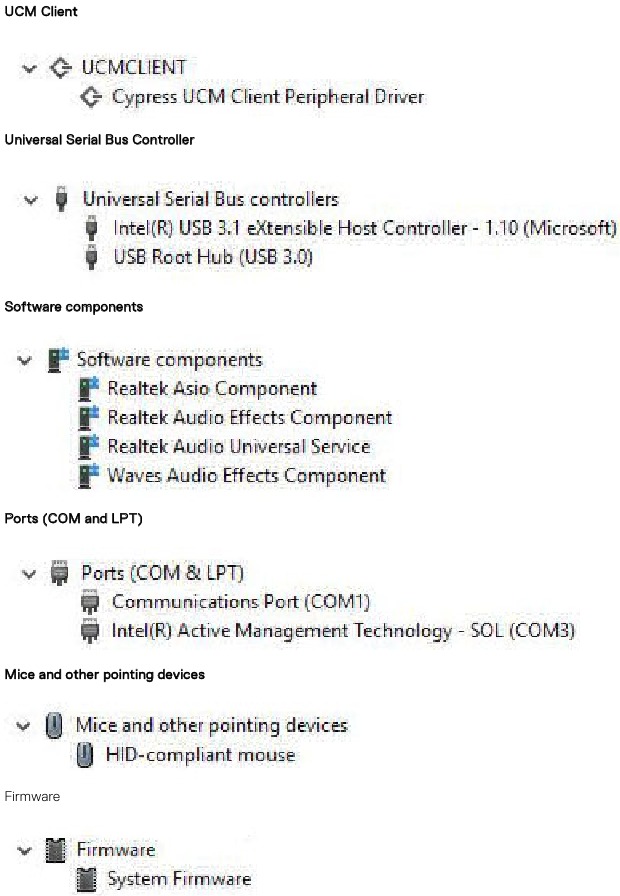

Other device drivers
Verify if the following drivers are already installed in the system.
Notes/cautions and warnings
NOTE:
A NOTE indicates important information that helps you make better use of your product.
A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
A WARNING indicates a potential for property damage, personal injury, or death.
Getting help
Contacting Dell
NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:
- Go to Dell.com/support.
- Select your support category.
- Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.
- Select the appropriate service or support link based on your need.
Advertisement
Need help?
Do you have a question about the OptiPlex 5060 Micro and is the answer not in the manual?
Questions and answers
