What's in the box

• Driver software/operating instructions CD-ROM
• USB cable
• Power cord
• Read Before Use (Important)/Quick Start Guide (this document)

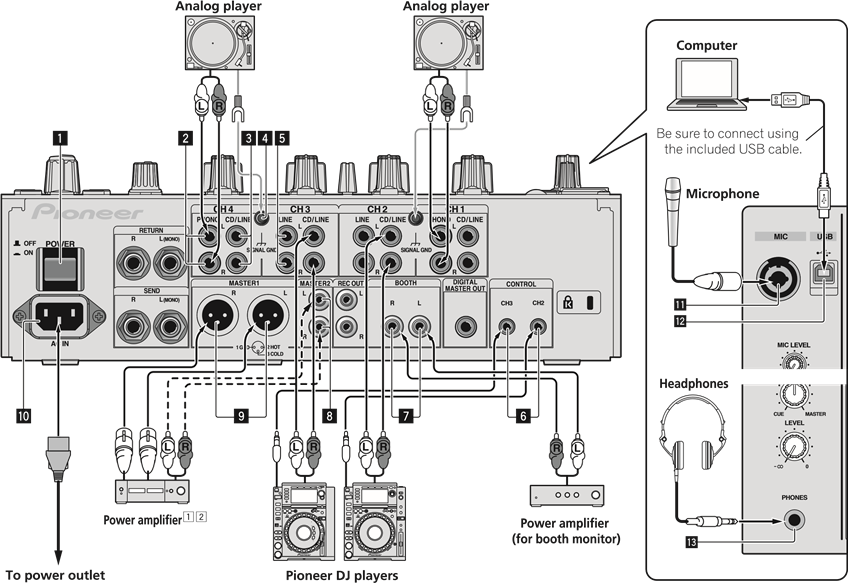

Connections

Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.

Refer to the operating instructions for the component to be connected.

Connect the power cord after all the connections between devices have been completed. Be sure to use the included power cord.

• To use the fader start function, connect a control cable.

1. Be sure to use the [MASTER1] terminals only for a balanced output. Connection with an unbalanced input (such as RCA) using an XLR to RCA converter cable (or converter adapter), etc., may lower the sound quality and/or result in noise. For connection with an unbalanced input (such as RCA), use the [MASTER2] terminals.
2. Be careful not to accidentally insert the power cord of another unit to [MASTER1] terminal.

2. PHONO terminals
   Connect to a phono level (MM cartridge) output device. Do not input line level signals.
   To connect a device to the [PHONO] terminals, remove the shortcircuit pin plug inserted in the terminals.
   Insert this short-circuit pin plug into the [PHONO] terminals when nothing is connected to them to cut external noise.
3. CD/LINE terminals
   Connect to a DJ player or a line level output component.
4. SIGNAL GND terminal
   Connects an analog player's ground wire here. This helps reduce noise when the analog player is connected.
5. LINE terminals
   Connect to a cassette deck or a line level output component.
6. CONTROL terminal
   This is a Ø 3.5 mm mini phone jack type DJ player control terminal. If you connect a Pioneer DJ player using a control cable (supplied with a DJ player), you can start playback of control other operations of the DJ player with the fader of this unit.
7. BOOTH terminals
   These are output terminals for a booth monitor.
8. MASTER2 terminals
   Connect to a power amplifier, etc.
9. MASTER1 terminals
   Connect to a power amplifier, etc.
   Be sure to use these as balanced outputs. Be careful not to accidentally insert the power cord of another unit.
10. AC IN
    Connects to a power outlet using the included power cord. Wait until all connections between the equipment are completed before connecting the power cord.
    Be sure to use the included power cord.
11. MIC terminal
    Connects a microphone here.
12. USB terminal
    Connect the computer.
13. PHONES terminal
    Connect headphones here.

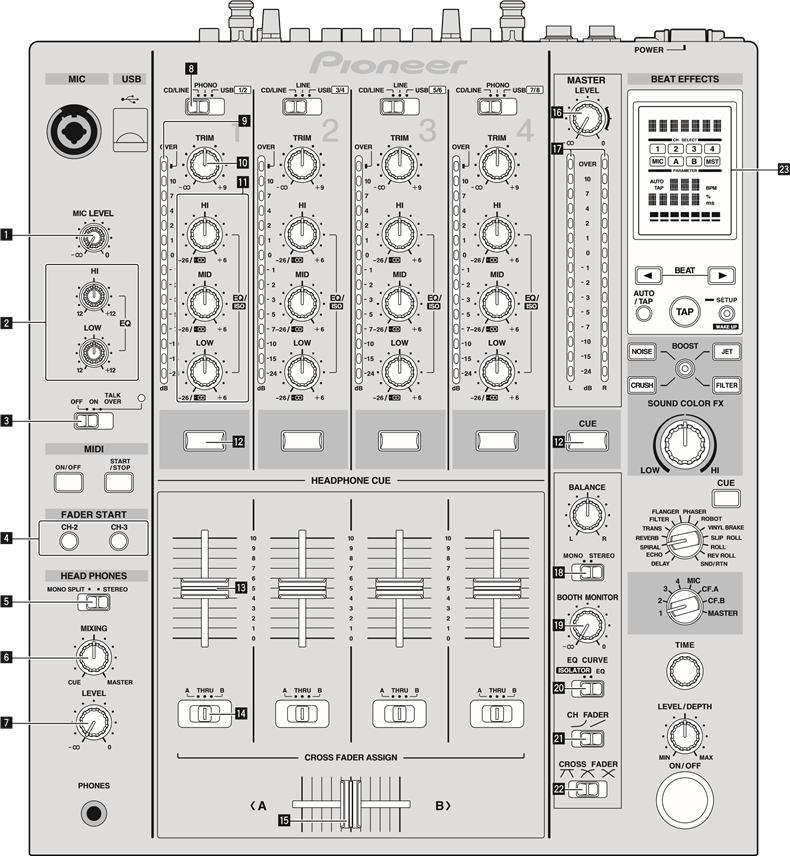

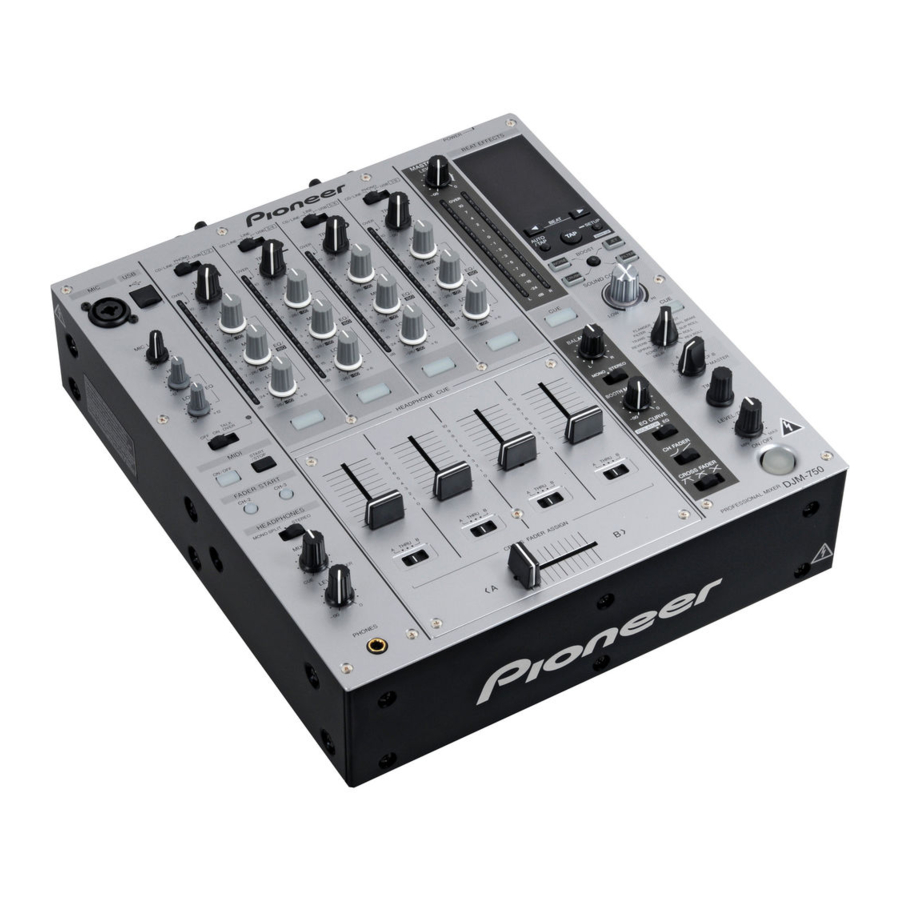

Operation

1. MIC LEVEL control
   Adjusts the sound level output from the [MIC] channel.
2. EQ (HI, LOW) controls
   Adjusts the sound quality of the [MIC] channel.
3. OFF, ON, TALK OVER selector switch
   Turns the microphone on/off.
4. FADER START (CH-2, CH-3) buttons
   These turn the fader start function on/off.
5. MONO SPLIT, STEREO selector switch
   Switches how the monitor sound output from the headphones is distributed.
6. MIXING control
7. This adjusts the monitor volume balance of the sound of channels for which the [CUE] button is pressed and the sound of the [MASTER] channel. LEVEL control
   Adjusts the sound level output from the headphones.
8. Input selector switches
   Selects the input source of each channel from the components connected to this unit.
9. Channel Level Indicator
   Displays the sound level of the respective channels before passing through the channel faders.
10. TRIM control
    Adjusts the level of audio signals input in each channel.
11. EQ/ISO (HI, MID, LOW) controls
    These adjust the sound quality of the respective channels.
12. CUE button
    Presses the [CUE] button(s) for the channel(s) you want to monitor.
13. Channel Fader
    Adjusts the level of audio signals output in each channel.
14. CROSS FADER ASSIGN (A, THRU, B) selector switch
    Sets the output destination of each channel to [A] or [B].
15. Crossfader
    Outputs audio signals assigned by the crossfader assign switch corresponding to the curve characteristics selected by [CROSS FADER] (Crossfader Curve Selector Switch).
16. MASTER LEVEL control
    Adjusts the audio level output from the [MASTER1] and [MASTER2] terminals.
17. Master Level Indicator
    Displays the audio level output from the [MASTER1] and [MASTER2] terminals.
18. MONO, STEREO selector switch
    Switches the sound output from the [MASTER1] terminals, etc., between monaural and stereo.
19. BOOTH MONITOR control
    Adjusts the level of audio signals output from the [BOOTH] terminal.
20. EQ CURVE (ISOLATOR, EQ) selector switch
    Switches the function of the [EQ/ISO (HI, MID, LOW)] controls.
21. CH FADER () selector switch
    Switches the channel fader's curve characteristics.
22. CROSS FADER () selector switch
    This switches the crossfader curve characteristics.
23. Main unit display

Basic Operation

Outputting sound

1. Press [POWER] button.
   Turn on the power of this unit.
2. Switch the input selector switches.
   Selects the input sources for the different channels from among the devices connected to this unit.

• [PHONO]: Selects the analog player connected to the [PHONO] terminals.
• [CD/LINE], [LINE]: Selects the DJ player or cassette deck connected to the [CD/LINE] or [LINE] terminals.
• [USB */*]: Selects the sound of the computer connected to the [USB] port.

3. Turn the [TRIM] control.
   Adjusts the level of audio signals input in each channel. The corresponding channel level indicator lights when audio signals are being properly input to that channel.
4. Move the channel fader away from you.
   Adjusts the level of audio signals output in each channel.
5. Switch the [CROSS FADER ASSIGN (A, THRU, B)] selector switch.
   Switches the output destination of each channel.

• [A]: Assigns to [A] (left) of the crossfader.
• [B]: Assigns to [B] (right) of the crossfader.
• [THRU]: Selects this when you do not want to use the crossfader.
  (The signals do not pass through the crossfader.)

6. Set the crossfader.
   This operation is not necessary when the [CROSS FADER ASSIGN (A, THRU, B)] selector switch is set to [THRU].
7. Turn the [MASTER LEVEL] control.
   Audio signals are output from the [MASTER1] and [MASTER2] terminals.
   The master level indicator lights.

Adjusting the sound quality

Turn the [EQ/ISO (HI, MID, LOW)] controls for the respective channels.

The adjustable ranges for the respective controls are as shown below.

• HI: –26 dB to +6 dB (13 kHz)
• MID: –26 dB to +6 dB (1 kHz)
• LOW: –26 dB to +6 dB (70 Hz)

Switching the function of the [EQ/ISO (HI, MID, LOW)] controls
Switch the [EQ CURVE (ISOLATOR, EQ)] selector switch.

• [ISOLATOR]: Functions as an isolator.
• [EQ]: The equalizer function is set.

Monitoring sound with headphones

1. Connect headphones to the [PHONES] terminal.
2. Press the [CUE] button(s) for the channel(s) you want to monitor.
3. Switch the [MONO SPLIT, STEREO] selector switch.

• [MONO SPLIT]: The sound of the channels for which the [CUE] button is pressed is output from the headphones output's left channel, the [MASTER] channel sound is output from the right channel.
• [STEREO]: The sound of the channels for which the [CUE] button is pressed is output from the headphones in stereo.

4. Turn the [MIXING] control.
   This adjusts the monitor volume balance of the sound of channels for which the [CUE] button is pressed and the sound of the [MASTER] channel.
5. Turn the [LEVEL] control for [HEADPHONES].
   The sound of the channels for which the [CUE] button is pressed is output from the headphones.

• When the [CUE] button is pressed again, monitoring is canceled.

Switching the fader curve

Select the channel fader curve characteristics

Switch the [CH FADER ()] selector switch.

• []: The curve rises suddenly at the back side.
• []: The curve rises gradually (the sound gradually increases as the channel fader is moved away from the front side).

Select the crossfader curve characteristics
Switch the [CROSS FADER ()] selector switch.

• []: Makes a sharply increasing curve (if the crossfader is moved away from the [A] side, audio signals are immediately output from the [B] side).
• []: Makes a curve shaped between the two curves above and below.
• []: Makes a gradually increasing curve (if the crossfader is moved away from the [A] side, the sound on the [B] side gradually increases, while the sound on the [A] gradually decreases).

Starting playback on a DJ player using the fader (fader start)

If you connect a Pioneer DJ player using a control cable (supplied with a DJ player), you can start playback of control other operations of the DJ player with the fader of this unit.

Connect this unit and Pioneer DJ player beforehand. For instructions on connections, see Connections.

Start playback using the channel fader

1. Set the [CROSS FADER ASSIGN (A, THRU, B)] selector switch to [THRU].
2. Press one of the [FADER START (CH-2, CH-3)] buttons. Select the channel to be started with the fader start function.
3. Set the channel fader to the nearest position towards you.
4. Set the cue on the DJ player. The DJ player pauses playback at the cue point.
5. Move the channel fader away from you. Playback starts on the DJ player.

• If you set the channel fader back to the original position, the player instantaneously returns to the cue point already set and pauses playback (back cue).

Start playback using the crossfader

1. Set the [CROSS FADER ASSIGN (A, THRU, B)] selector switch to [A] or [B].
2. Press one of the [FADER START (CH-2, CH-3)] buttons. Select the channel to be started with the fader start function.
3. Set the crossfader. Set to the edge opposite the side on which the channel you want to use with the fader start function is set.
4. Set the cue on the DJ player. The DJ player pauses playback at the cue point.
5. Set the crossfader.
   Playback starts on the DJ player.

• If you set the crossfader back to the original position, the player instantaneously returns to the cue point already set and pauses playback (back cue).

Using a microphone

1. Connect the microphone to the [MIC] jack.
2. Set the [OFF, ON, TALK OVER] selector switch to [ON] or [TALK OVER].

• [ON]: The indicator lights.
• [TALK OVER]: The indicator flashes.

3. Turn the [MIC LEVEL] control.
   Adjust the level of the sound output from the [MIC] channel.

• Pay attention that rotating to the extreme right position outputs a very loud sound.

4. Input audio signals to the microphone.

Adjusting the sound quality
Turn the [MIC] channels' [EQ (HI, LOW)] controls.
The adjustable ranges for the respective controls are as shown below.

• HI: –12 dB to +12 dB (10 kHz)
• LOW: –12 dB to +12 dB (100 Hz)

Switching between monaural and stereo audio

This switches the sound output from the [MASTER1], [MASTER2], [BOOTH], [REC OUT], [PHONES], [DIGITAL MASTER OUT] and [USB] terminals between monaural and stereo.

• To adjust the sound output from the [USB] terminals, select [REC OUT] at [Mixer Audio Output] in the setting utility.

Switch the [MONO, STEREO] selector switch.

• [MONO]: Outputs monaural audio.
• [STEREO]: Outputs stereo audio.

Adjusting the L/R balance of audio
The left/right balance of the sound output from the [MASTER1], [MASTER2], [BOOTH], [REC OUT], [PHONES], [DIGITAL MASTER OUT] and [USB] terminals can be adjusted.

• To adjust the sound output from the [USB] terminals, select [REC OUT] at [Mixer Audio Output] in the setting utility.

1. Set the [MONO, STEREO] selector switch to [STEREO].
2. Turn the [BALANCE] control.

The sound's left/right balance changes according to the direction in which the [BALANCE] control is turned and its position.

• Rotating to the rightmost position outputs only the right sound of stereo audio. Rotating to the leftmost position outputs only the left sound of stereo audio.

Audio is output from the [BOOTH] terminal

Turn the [BOOTH MONITOR] control.
Adjusts the level of audio signals output from the [BOOTH] terminal.

Specifications

General
Power requirements AC 120 V, 60 Hz
Power consumption 30 W
Power consumption (standby) 0.45 W
Main unit weight 7.6 kg (17 lb)
Max. dimensions
320 mm (W) × 108 mm (H) × 376 mm (D)
(12.6 in. (W) × 4.3 in. (H) × 14.8 in. (D))
Tolerable operating temperature 5°C to +35°C (+41°F to +95°F)
Tolerable operating humidity 5% to 85% (no condensation)

Audio Section
Sampling rate 96 kHz
MASTER D/A converter 24 bits
Other A/D and D/A converters 24 bits
Frequency characteristic
CD/LINE 20 Hz to 20 kHz
S/N ratio (rated output, A-WEIGHTED)
PHONO 92 dB
CD/LINE 106 dB
MIC 84 dB
Total harmonic distortion (20 kHzBW)
CD/LINE — MASTER10.004 %
Standard input level / Input impedance
PHONO 52 dBu/47 kW
CD/LINE
12 dBu/47 kW
MIC 52 dBu/8.5 kW
RETURN 12 dBu/49 kW
Standard output level / Load impedance / Output impedance
MASTER1 +6 dBu/10 kW/360 W or lower
MASTER2 +2 dBu/10 kW/390 W or lower
REC OUT 8 dBu/10 kW/22 W or lower
BOOTH +2 dBu/10 kW/390 W or lower
SEND -12 dBu/10 kW/390 W or lower
PHONES +8.5 dBu/32 W/10 W or lower
Rated output level / Load impedance
MASTER1 24 dBu/10 kW
MASTER2 20 dBu/10 kW
Crosstalk
LINE 82 dB
Channel equalizer characteristic
HI –26 dB to +6 dB (13 kHz)
MID –26 dB to +6 dB (1 kHz)
LOW –26 dB to +6 dB (70 Hz)
Microphone equalizer characteristic
HI –12 dB to +12 dB (10 kHz)
LOW –12 dB to +12 dB (100 Hz)

Input / Output terminals
PHONO input terminal
RCA pin jack 2 sets
CD/LINE input terminal
RCA pin jacks 4 sets
LINE input terminal
RCA pin jack 2 sets
MIC input terminal
XLR connector/phone jack (Ø 6.3 mm) 1 set
RETURN Input terminals
Phone jack (Ø 6.3 mm) 1 set
MASTER output terminal
XLR connector 1 set
RCA pin jacks 1 set
BOOTH output terminal
RCA pin jacks 1 set
REC OUT output terminal
RCA pin jacks 1 set
SEND output terminal
Phone jack (Ø 6.3 mm) 1 set
DIGITAL MASTER OUT coaxial output terminal
RCA pin jacks 1 set
PHONES output terminal
Stereo phone jack (Ø 6.3 mm) 1 set
USB terminal
B type 1 set
CONTROL terminal
Mini phone jack (Ø 3.5 mm) 2 sets

• The specifications and design of this product are subject to change without notice.
• Be sure to use the [MASTER1] terminals only for a balanced output. Connection with an unbalanced input (such as RCA) using an XLR to RCA converter cable (or converter adapter), etc., may lower the sound quality and/or result in noise.

For connection with an unbalanced input (such as RCA), use the [MASTER2] terminals.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

Operating Environment
Operating environment temperature and humidity: +5°C to +35°C (+41°F to +95°F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

VENTILATION CAUTION
When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 5 cm at rear, and 3 cm at each side).

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed

The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a safe level – a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing "comfort level" adapts to higher volumes of sound, so what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

ESTABLISH A SAFE LEVEL:

• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

• Do not turn up the volume so high that you can't hear what's around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm.

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

PIONEER CORPORATION
1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1720, Long Beach, California 90801-1720, U.S.A. TEL: (800) 421-1404
