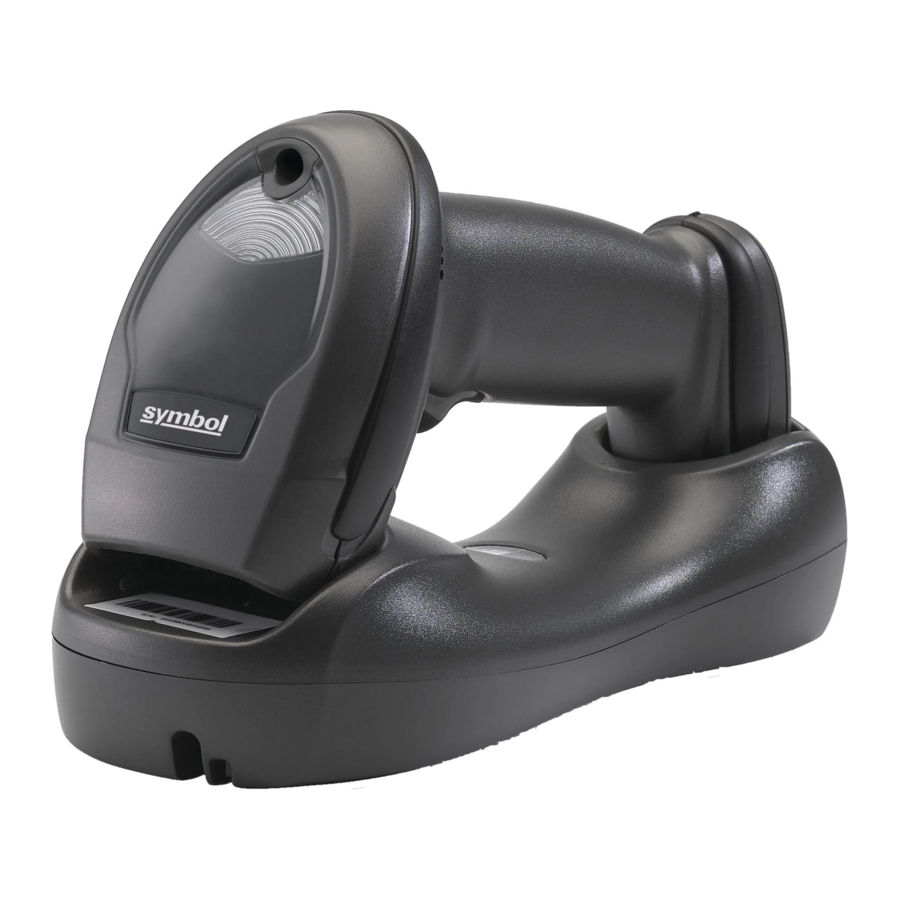

Motorola LI4278 Manual

PAIRING THE UNIT TO iOS TABLET

FOLLOW THESE 10 EASY STEPS:

1. Set LI4278 Factory Defaults

2. The following barcodes must be scanned before attempting to pair the scanner to the Apple device.
   Note: This feature is only available with LI4278 firmware PAABIS00-002-R00 or higher.

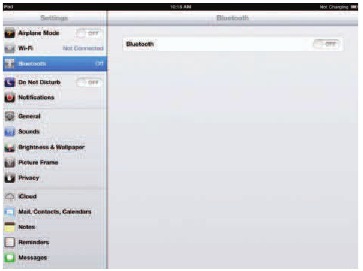

3. Select Settings from the iPad Desktop:

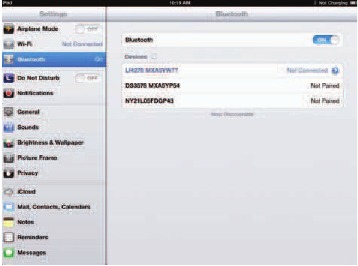

4. Turn Bluetooth On:

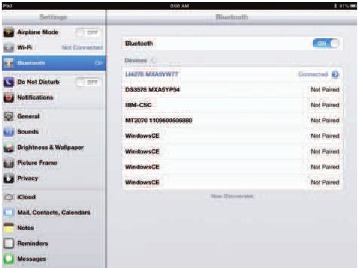

5. Choose LI4278 from available Bluetooth devices. The serial number of the device assists in identifying the correct device:

6. Tap the LI4278 to select it. The iPad automatically connects to the linear imager. The scanner emits a short low beep followed by a short high beep indicating the successful connection.

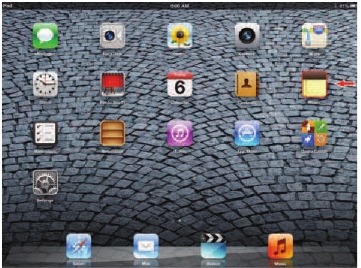

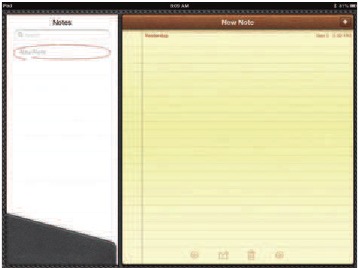

7. The device is now connected to the iPad as a keyboard device. Test it in an application that accepts keyboard input, such as Notes.

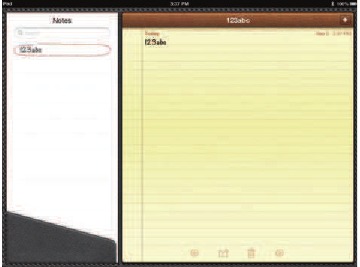

8. Tap the white + in the upper right to start a new Note.

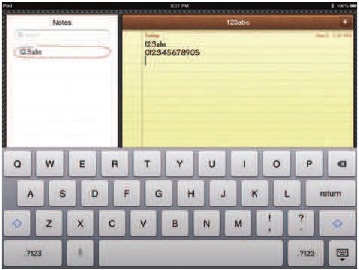

9. Scan a barcode. It is displayed in the Note:

10. A quick double-pull of the scanner trigger will open or close the virtual keyboard.


Auto-reconnect Immediately

1. Scan Option

2. Scan <Data><Suffix>

3. Scan Enter
