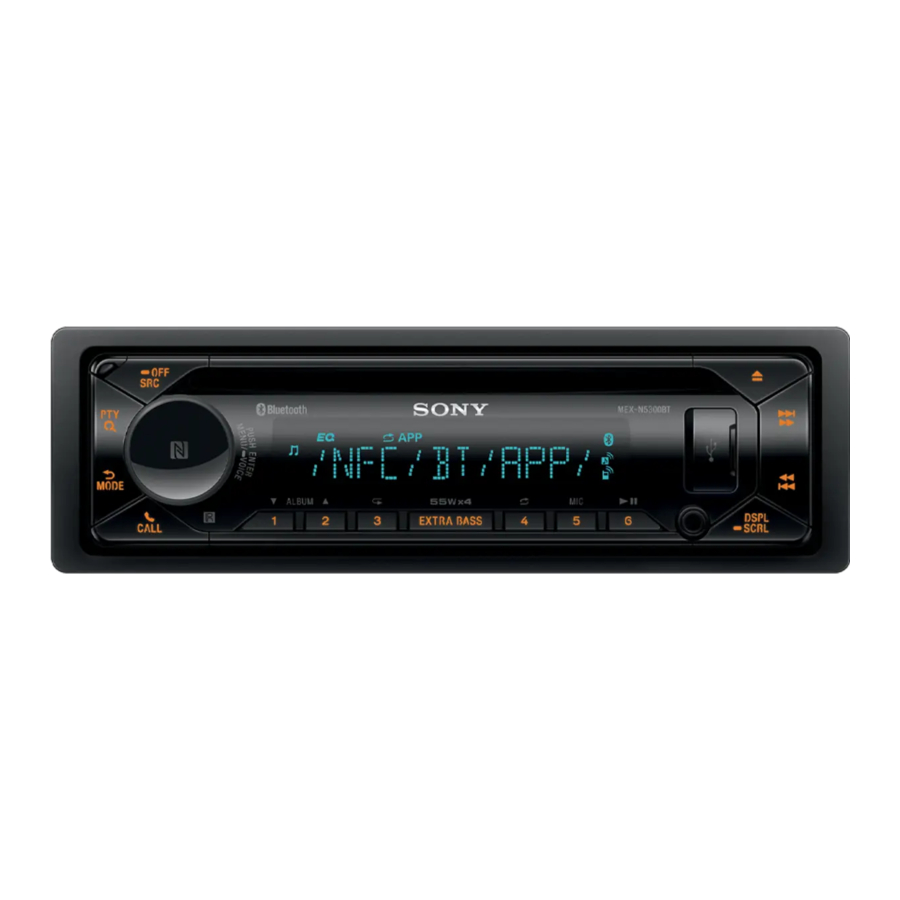

Sony MEX-N5300BT, MEX-N4300BT Manual

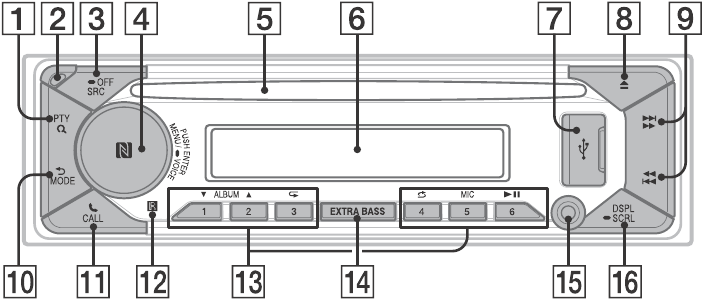

Guide to Parts and Controls

1. PTY (program type)
   Select PTY in RDS.
   (browse) (see "Searching and Playing Tracks")
   Enter the browse mode during playback.
   (Not available when a USB device in Android mode or iPod is connected.)
2. Front panel release button
3. SRC (source)
   Turn on the power.
   Change the source.
   OFF
   Press and hold for 1 second to turn the source off and display the clock. Press and hold for more than 2 seconds to turn off the power and the display.
4. Control dial
   Rotate to adjust the volume.
   PUSH ENTER
   Enter the selected item. Press SRC, rotate then press to change the source (timeout in 2 seconds).
   MENU
   Open the setup menu.
   VOICE
   Press and hold for more than 2 seconds to activate voice dial, voice recognition (Android smartphone only), or the Siri function (iPhone only).
   N-Mark (MEX-N5300BT only)
   Touch the control dial with Android smartphone to make BLUETOOTH connection.
5. Disc slot
6. Display window
7. USB port
8. (disc eject)
9. (SEEK –/+)
   Tune in radio stations automatically.
   Press and hold to tune manually.
   (prev/next)
   (fast-reverse/fast-forward)
10. (back)
    Return to the previous display.
    MODE
11. CALL
    Enter the call menu. Receive/end a call. Press and hold for more than 2 seconds to switch the BLUETOOTH signal.
12. Receptor for the remote commander
13. Number buttons (1 to 6)
    Receive stored radio stations. Press and hold to store stations.

ALBUM
Skip an album for audio device. Press and hold to skip albums continuously. (Not available when a USB device in
Android mode or iPod is connected.)

(repeat)
(Not available when a USB device in Android mode is connected.)

(shuffle)
(Not available when a USB device in Android mode is connected.)

MIC
(play/pause)

14. EXTRA BASS
    Reinforces bass sound in synchronization with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF].
15. AUX input jack
16. DSPL (display)
    Press to change display items.
    SCRL (scroll)
    Press and hold to scroll a display item.

Getting Started

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1. Press and hold OFF until the unit turns off, press the front panel release button , then pull the panel towards you to remove.


Caution alarm
If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

Serial numbers (MEX-N5300BT only)
Make sure the serial numbers on the bottom of the unit and the back of the front panel are matched correctly. Otherwise you cannot make BLUETOOTH pairing, connection and disconnection by NFC.

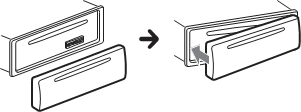

Attaching the front panel

Resetting the Unit

Before operating the unit for the first time, after replacing the car battery, or changing the connections, you must reset the unit.

1. Press DSPL and CALL for more than 2 seconds.

Note
Resetting the unit will erase the clock setting and some stored contents.

Setting the area/region
After resetting the unit, the area/region setting display appears.

1. Press ENTER while [SET AREA] is displayed.
   The area/region currently set appears.
2. Rotate the control dial to select [EUROPE] or [RUSSIA], then press it.
3. Rotate the control dial to select [YES] or [NO], then press it.
   If the setting area/region is changed, the unit is reset, then the clock is displayed.

This setting can be configured in the general setup menu (see "General Setup").

Setting the Clock

1. Press MENU, rotate the control dial to select [GENERAL], then press it.
2. Rotate the control dial to select [SET CLOCK], then press it.
3. Rotate the control dial to select [MANUAL], then press it.
   The hour indication flashes.
4. Rotate the control dial to set the hour and minute.
   To move the digital indication, press (SEEK –/+).
5. After setting the minute, press MENU.
   The setup is complete and the clock starts.

To display the clock
Press DSPL.

To set the clock automatically
Select [AUTO <RDS>] in step 3.

Checking the Battery Voltage

You can check the current battery voltage. (Not available while the source is off and the clock is displayed.)

1. Press DSPL repeatedly until the battery voltage display appears.

Preparing a BLUETOOTH Device

You can enjoy music, or perform handsfree calling depending on the BLUETOOTH compatible device such as a smartphone, cellular phone and audio device (hereafter "BLUETOOTH device" if not otherwise specified). For details on connecting, refer to the operating instructions supplied with the device.
Before connecting the device, turn down the volume of this unit; otherwise, loud sound may result.

Connecting with a Smartphone using One-touch NFC connection

(MEX-N5300BT only)
By touching the control dial on the unit with an NFC* compatible smartphone, the unit is paired and connected with the smartphone automatically.
* NFC (Near Field Communication) is a technology enabling short-range wireless communication between various devices, such as mobile phones and IC tags. Thanks to the NFC function, data communication can be achieved easily just by touching the relevant symbol or designated location on NFC compatible devices.

For a smartphone with Android OS 4.0 or lower installed, downloading the app "NFC Easy Connect" available on Google Play is required. The app may not be downloadable in some countries/regions.

1. Activate the NFC function on the smartphone.
   For details, refer to the operating instructions supplied with the smartphone.
2. Touch the N-Mark part of the unit with the N-Mark part of the smartphone.


Make sure that lights up on the display of the unit.

To disconnect using NFC
Touch the N-Mark part of the unit with the N-Mark part of the smartphone again.

Notes

• When making the connection, handle the smartphone carefully to prevent scratches.
• One-touch connection is not possible when the unit is already connected to two NFC compatible devices. In this case, disconnect either device, and make connection with the smartphone again.

Pairing and connecting with a BLUETOOTH device

When connecting a BLUETOOTH device for the first time, mutual registration (called "pairing") is required. Pairing enables this unit and other devices to recognize each other. This unit can connect two BLUETOOTH devices (two cellular phones, or a cellular phone and an audio device).

1. Place the BLUETOOTH device within 1 m (3 ft) of this unit.
2. Press MENU, rotate the control dial to select [BLUETOOTH], then press it.
3. Rotate the control dial to select [SET PAIRING], then press it.
4. Rotate the control dial to select [SET DEVICE 1]* or [SET DEVICE 2]*, then press it.
   flashes while the unit is in pairing standby mode.
   * [SET DEVICE 1] or [SET DEVICE 2] will be changed to the paired device name after pairing is complete.
5. Perform pairing on the BLUETOOTH device so it detects this unit.
6. Select [MEX-xxxxx] (your model name) shown in the display of the BLUETOOTH device.
   If your model name does not appear, repeat from step 2.

7. If passkey* input is required on the BLUETOOTH device, input [0000].
   * Passkey may be called "Passcode," "PIN code," "PIN number" or "Password," etc., depending on the device.
   When pairing is made, stays lit.

8. Select this unit on the BLUETOOTH device to establish the BLUETOOTH connection.
   or lights up when the connection is made.

Note
While connecting to a BLUETOOTH device, this unit cannot be detected from another device. To enable detection, enter the pairing mode and search for this unit from another device.

To start playback
For details, see "Playing a BLUETOOTH Device".

To disconnect the paired device
Perform steps 2 to 4 to disconnect after this unit and the BLUETOOTH device are paired.

Connecting with a paired BLUETOOTH device

To use a paired device, connection with this unit is required. Some paired devices will connect automatically.

1. Press MENU, rotate the control dial to select [BLUETOOTH], then press it.
2. Rotate the control dial to select [SET BT SIGNL], then press it.
   Make sure that lights up.
3. Activate the BLUETOOTH function on the BLUETOOTH device.
4. Operate the BLUETOOTH device to connect to this unit.
   or lights up.

Icons in the display:

	Lights up when handsfree calling is available by enabling the HFP (Handsfree Profile).
	Lights up when the audio device is playable by enabling the A2DP (Advanced Audio Distribution Profile).

To connect the last-connected device from this unit
Activate the BLUETOOTH function on the BLUETOOTH device.
To connect with the audio device, press SRC to select [BT AUDIO] and press (play/ pause).
To connect with the cellular phone, press CALL.

Note
While streaming BLUETOOTH audio, you cannot connect from this unit to the cellular phone.
Connect from the cellular phone to this unit instead.

Tip
With BLUETOOTH signal on: when the ignition is turned to on, this unit reconnects automatically to the last-connected cellular phone.

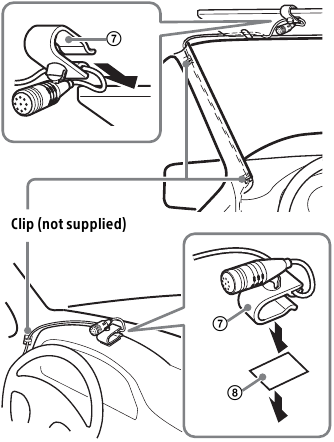

To install the microphone
For details, see "Installing the microphone".

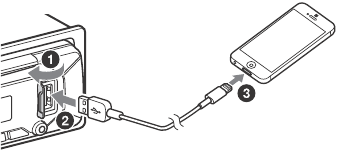

Connecting with an iPhone/iPod with BLUETOOTH Auto Pairing

When an iPhone/iPod with iOS5 or later installed is connected to the USB port, the unit is paired and connected with the iPhone/iPod automatically.
To enable BLUETOOTH Auto Pairing, make sure [SET AUTOPAIR] in [BLUETOOTH] is set to [ON] (See "Settings").

1. Activate the BLUETOOTH function on the iPhone/iPod.
2. Connect an iPhone/iPod to the USB port.
   Make sure that lights up on the display of the unit.


Notes

• BLUETOOTH Auto Pairing is not possible if the unit is already connected to two BLUETOOTH devices. In this case, disconnect either device, then connect the iPhone/iPod again.
• If BLUETOOTH Auto Pairing is not established, see "Preparing a BLUETOOTH Device".

Connecting a USB Device

1. Turn down the volume on the unit.
2. Connect the USB device to the unit.
   To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied).


Connecting Other Portable Audio Device

1. Turn off the portable audio device.
2. Turn down the volume on the unit.
3. Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.
   * Be sure to use a straight type plug.

4. Press SRC to select [AUX].

To match the volume level of the connected device to other sources
Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit. Press MENU, then select [SOUND] → [SET AUX VOL] (See "Settings").

Listening to the Radio

Listening to the Radio

To listen to the radio, press SRC to select [TUNER].

Storing automatically

1. Press MODE to change the band (FM1, FM2, FM3 or MW/LW).
2. Press MENU, rotate the control dial to select [GENERAL], then press it.
3. Rotate the control dial to select [SET BTM], then press it.
   The unit stores stations in order of frequency on the number buttons.

Tuning

1. Press MODE to change the band (FM1, FM2, FM3 or MW/LW).
2. Perform tuning.
   To tune manually
   Press and hold (SEEK –/+) to locate the approximate frequency, then press (SEEK –/+) repeatedly to fine adjust to the desired frequency.
   To tune automatically
   Press (SEEK –/+).
   Scanning stops when the unit receives a station.

Storing manually

1. While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears.

Receiving the stored stations

1. Select the band, then press a number button (1 to 6).

Using Radio Data System

Setting alternative frequencies and traffic announcement

AF continuously retunes the station to the strongest signal in a network, and TA provides current traffic information or traffic programs (TP) if received.

1. Press MENU, rotate the control dial to select [GENERAL], then press it.
2. Rotate the control dial to select [SET AF/TA], then press it.
3. Rotate the control dial to select [SET AF-ON], [SET TA-ON], [SET AF/TA-ON] or [SET AF/TA-OFF], then press it.

To store RDS stations with the AF and TA setting
You can preset RDS stations along with an AF/TA setting. Set AF/TA, then store the station with BTM or manually. If you preset manually, you can also preset non-RDS stations.

To receive emergency announcements
With AF or TA on, emergency announcements will automatically interrupt the currently selected source.

To adjust the volume level during a traffic announcement
Level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

To stay with one regional program (REGIONAL)
When the AF and REGIONAL functions are on, you will not be switched to another regional station with a stronger frequency. If you leave this regional program's reception area, set [SET REGIONAL] in [GENERAL] to [SET REG-OFF] during FM reception (see "General Setup").
This function does not work in the UK and some other areas.

Local Link function (UK only)
This function enables you to select other local stations in the area, even if they are not stored on your number buttons. During FM reception, press a number button (1 to 6) on which a local station is stored. Within 5 seconds, press again a number button of the local station. Repeat this procedure until the local station is received.

Selecting program types

1. Press PTY during FM reception.
2. Rotate the control dial until the desired program type appears, then press it.
   The unit starts to search for a station broadcasting the selected program type.

Type of programs
NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (Easy Listening), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Playback

Playing a Disc

1. Insert the disc (label side up).
   Playback starts automatically.


Playing a USB Device

In these Operating Instructions, "iPod" is used as a general reference for the iPod functions on an iPod and iPhone, unless otherwise specified by the text or illustrations.

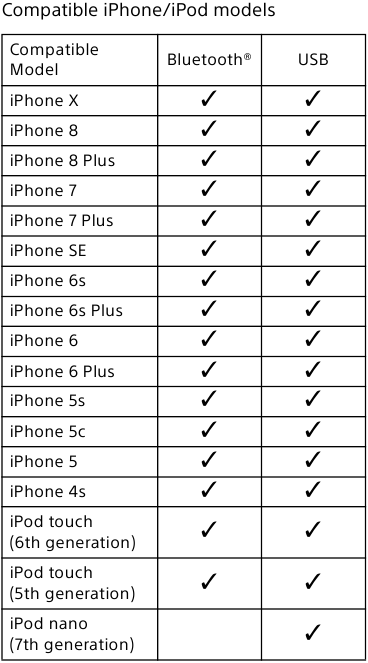

For details on the compatibility of your iPod, see "About iPod" or visit the support site on the back cover.
AOA (Android Open Accessory) 2.0, MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices* compliant with the USB standard can be used. Depending on the USB device, the Android mode or MSC/MTP mode can be selected on the unit. Some digital media players or Android smartphones may require setting to MTP mode.
* e.g., a USB flash drive, digital media player, Android smartphone

Notes

• For details on the compatibility of your USB device, visit the support site on the back cover.
• Smartphones with Android OS 4.1 or higher installed support Android Open Accessory 2.0 (AOA 2.0). However, some smartphones may not fully support AOA 2.0 even if Android OS 4.1 or higher is installed.
  For details on the compatibility of your Android smartphone, visit the support site on the back cover.
• Playback of the following files is not supported.
  MP3/WMA/AAC/FLAC:
  • copyright-protected files
  • DRM (Digital Rights Management) files
  • Multi-channel audio files

MP3/WMA/AAC:

• lossless compression files

Before making a connection, select the USB mode (Android mode or MSC/MTP mode) depending on the USB device (see "General Setup").

1. Connect a USB device to the USB port (see "Connecting a USB Device").
   Playback starts.
   If a device is already connected, to start playback, press SRC to select [USB] ([IPD] appears in the display when the iPod is recognized).
2. Adjust the volume on this unit.

To stop playback
Press and hold OFF for 1 second.

To remove the device
Stop playback, then remove the device.

Caution for iPhone
When you connect an iPhone via USB, phone call volume is controlled by the iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as a sudden loud sound may result when the call ends.

Playing a BLUETOOTH Device

You can play contents on a connected device that supports BLUETOOTH A2DP (Advanced Audio Distribution Profile).

1. Make BLUETOOTH connection with the audio device (See "Pairing and connecting with a Bluetooth device").
   To select the audio device, press MENU, then select [BLUETOOTH] → [SET AUDIODEV] (See "Settings").
2. Press SRC to select [BT AUDIO].
3. Operate the audio device to start playback.
4. Adjust the volume on this unit.

Notes

• Depending on the audio device, information such as title, track number/time and playback status may not be displayed on this unit.
• Even if the source is changed on this unit, playback of the audio device does not stop.
• [BT AUDIO] does not appear in the display while running the "Sony | Music Center" application via the BLUETOOTH function.

To match the volume level of the BLUETOOTH device to other sources
Start playback of the BLUETOOTH audio device at a moderate volume, and set your usual listening volume on the unit. Press MENU, then select [SOUND] → [SET BTA VOL] (See "Settings").

Searching and Playing Tracks

Repeat play and shuffle play

Not available when a USB device in Android mode is connected.

1. During playback, press (repeat) or (shuffle) repeatedly to select the desired play mode.
   Playback in the selected play mode may take time to start.

Available play modes differ depending on the selected sound source.

Searching a track by name

"Quick-BrowZer"
Not available when a USB device in Android mode or iPod is connected.

1. During CD or USB playback, press (browse)* to display the list of search categories.
   When the track list appears, press (back) repeatedly to display the desired search category.
   * During USB playback, press (browse) for more than 2 seconds to directly return to the beginning of the category list.
2. Rotate the control dial to select the desired search category, then press it to confirm.
3. Repeat step 2 to search the desired track. Playback starts.

To exit the "Quick-BrowZer" mode
Press (browse).

Searching by skipping items

Jump mode
Not available when a USB device in Android mode or iPod is connected.

1. During CD or USB playback, press (browse).
2. Press (SEEK +).
3. Rotate the control dial to select the item.
   The list is jumped in steps of 10% of the total number of items.
4. Press ENTER to return to the "QuickBrowZer" mode.
   The selected item appears.
5. Rotate the control dial to select the desired item, then press it.
   Playback starts.

Handsfree Calling

(via BLUETOOTH only)
To use a cellular phone, connect it with this unit. You can connect two cellular phones to the unit. For details, see "Preparing a BLUETOOTH Device".

Receiving a Call

1. Press CALL when a call is received with a ringtone.
   The phone call starts.

Note
The ringtone and talker's voice are output from the front speakers. To select the speakers for handsfree calling, press MENU, then select [BLUETOOTH] → [SET VOICE-OUT] (See "Settings").

To reject the call
Press and hold OFF for 1 second.

To end the call
Press CALL again.

Making a Call

You can make a call from the phonebook or call history when a cellular phone supporting PBAP (Phone Book Access Profile) is connected.
When two cellular phones are connected to the unit, select either phone.

From the phonebook

1. Press CALL.
   When two cellular phones are connected to the unit, rotate the control dial to select either phone, then press it.
2. Rotate the control dial to select [PHONE BOOK], then press it.
3. Rotate the control dial to select an initial from the initial list, then press it.
4. Rotate the control dial to select a name from the name list, then press it.
5. Rotate the control dial to select a number from the number list, then press it.
   The phone call starts.

From the call history

1. Press CALL.
   When two cellular phones are connected to the unit, rotate the control dial to select either phone, then press it.
2. Rotate the control dial to select [RECENT CALL], then press it.
   A list of the call history appears.
3. Rotate the control dial to select a name or phone number from the call history, then press it.
   The phone call starts.

By phone number input

1. Press CALL.
   When two cellular phones are connected to the unit, rotate the control dial to select either phone, then press it.
2. Rotate the control dial to select [DIAL NUMBER], then press it.
3. Rotate the control dial to enter the phone number, and lastly select [ ] (space), then press ENTER*.
   The phone call starts.
   * To move the digital indication, press (SEEK –/+).

Note
[_] appears instead of [#] on the display.

By redial

1. Press CALL.
   When two cellular phones are connected to the unit, rotate the control dial to select either phone, then press it.
2. Rotate the control dial to select [REDIAL], then press it.
   The phone call starts.

By voice tags

You can make a call by saying the voice tag stored in a connected cellular phone that has a voice dialing function.

1. Press CALL.
   When two cellular phones are connected to the unit, rotate the control dial to select either phone, then press it.
2. Rotate the control dial to select [VOICE DIAL], then press it.
   Alternatively, press and hold VOICE for more than 2 seconds.
3. Say the voice tag stored on the cellular phone.
   Your voice is recognized, and the call is made.

To cancel voice dialing
Press VOICE.

Available Operations During Call

To adjust the ringtone volume
Rotate the control dial while receiving a call.

To adjust the talker's voice volume
Rotate the control dial during a call.

To adjust the volume for the other party (Mic gain adjustment)
Press MIC.
Adjustable volume levels: [MIC-LOW], [MICMID], [MIC-HI].

To reduce echo and noise (Echo Canceler/Noise Canceler Mode)
Press and hold MIC.
Settable mode: [EC/NC-1], [EC/NC-2].

To switch between handsfree mode and handheld mode
During a call, press MODE to switch the phone call audio between the unit and cellular phone.

Note
Depending on the cellular phone, this operation may not be available.

Useful Functions

Sony Music Center with iPhone/Android Smartphone

Downloading the latest version of "Sony | Music Center" application is required from the App Store for iPhone or from available on Google Play for Android smartphone.

Notes

• For your safety, follow your local traffic laws and regulations, and do not operate the application while driving.
• "Sony | Music Center" is an app for controlling Sony audio devices which are compatible with "Sony | Music Center", by your iPhone/Android smartphone.
• What you can control with "Sony | Music Center" varies depending on the connected device.
• To make use of "Sony | Music Center" features, see the details on your iPhone/Android smartphone.
• For further details on "Sony | Music Center," visit the following URL: http://www.sony.net/smcqa/
• Visit the website below and check the compatible iPhone/Android smartphone models.
  For iPhone: visit the App Store
  For Android smartphone: visit Google Play

Establishing the Sony Music Center connection

1. Make the BLUETOOTH connection with iPhone/Android smartphone (See "Pairing and connecting with a Bluetooth device").
   To select the audio device, press MENU, then select [BLUETOOTH] → [SET AUDIODEV] (See "Settings").
2. Launch the "Sony | Music Center" application.
3. Press MENU, rotate the control dial to select [SONY APP], then press it.
   Connection to iPhone/Android smartphone starts.
   For details on the operations on iPhone/ Android smartphone, see the help of the application.

If the device number appears
Make sure that the number is displayed (e.g., 123456), then select [Yes] on the iPhone/Android smartphone.

To terminate connection
Press MENU, rotate the control dial to select [SONY APP], then press it.

Selecting the source or application
You can operate to select the desired source or application on iPhone/Android smartphone.

To select the source
Press SRC repeatedly. Alternatively, press SRC, rotate the control dial to select the desired source, then press ENTER.

To display the source list
Press SRC.

Announcement of SMS by voice guide (Android smartphone only)
Messages of SMS are automatically read out through the car speakers when they are received.
For details on settings, refer to the help of the application.

Replying a message of SMS (Android smartphone only)
You can reply a message by touching the reply icon.

1. Activate the "Sony | Music Center" application, then touch the [Reply] (reply) icon.
   The message input display appears on the "Sony | Music Center" application.
2. Input a reply message by voice recognition.
   The list of message candidates appears on the "Sony | Music Center" application.
3. Rotate the control dial to select the desired message, then press it.
   The message is sent out.

Making sound and display settings
You can adjust the settings relating to sound and display via iPhone/Android smartphone.
For details on settings, refer to the help of the application.

Using Voice Recognition

(Android Smartphone only)

1. Press and hold VOICE to activate voice recognition.
2. Say the desired voice command into the microphone.

To deactivate voice recognition
Press VOICE.

Notes

• Voice recognition may not be available in some cases.
• Voice recognition may not work properly depending on the performance of the connected Android smartphone.
• Operate under conditions where noise such as engine sound is minimized during voice recognition.

Using Siri Eyes Free

"Siri Eyes Free" allows you to use an iPhone handsfree by simply speaking into the microphone. This function requires you to connect an iPhone to the unit via BLUETOOTH. Availability is limited to iPhone 4s or later. Make sure that your iPhone is running the latest iOS version.
You must complete BLUETOOTH registration and connection configurations for the iPhone with the unit in advance. For details, see "Preparing a BLUETOOTH Device". To select the iPhone, press MENU, then select [BLUETOOTH] → [SET AUDIODEV] (See "Settings").

1. Activate the Siri function on the iPhone.
   For details, refer to the operating instructions supplied with the iPhone.
2. Press and hold VOICE for more than 2 seconds.
   The voice command display appears.
3. After the iPhone beeps, speak into the microphone.
   The iPhone beeps again, then Siri starts responding.

To deactivate "Siri Eyes Free"
Press VOICE.

Notes

• The iPhone may not recognize your voice depending on usage conditions. (For example, if you are in a moving car.)
• "Siri Eyes Free" may not function properly, or the response time may lag in locations where iPhone signals are difficult to receive.
• Depending on the iPhone's operating condition, "Siri Eyes Free" may not function properly, or may quit.
• If you play a track with an iPhone using the BLUETOOTH audio connection, when the track starts playback via BLUETOOTH, "Siri Eyes Free" automatically quits and the unit switches to the BLUETOOTH audio source.
• When "Siri Eyes Free" is activated during audio playback, the unit may switch to the BLUETOOTH audio source even if you do not specify a track to play.
• When connecting the iPhone to the USB port, "Siri Eyes Free" may not function properly, or may quit.
• When connecting the iPhone to the unit via USB, do not activate Siri with the iPhone. "Siri Eyes Free" may not function properly, or may quit.
• There is no audio sound while "Siri Eyes Free" is activated.

Settings

Canceling the DEMO Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1. Press MENU, rotate the control dial to select [GENERAL], then press it.
2. Rotate the control dial to select [SET DEMO], then press it.
3. Rotate the control dial to select [SET DEMO-OFF], then press it.
   The setting is complete.
4. Press (back) twice.
   The display returns to normal reception/ play mode.

Basic Setting Operation

You can set items in the following setup categories:
General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY), BLUETOOTH setup (BLUETOOTH), "Sony | Music Center" setup (SONY APP)

1. Press MENU.
2. Rotate the control dial to select the setup category, then press it.
   The items that can be set differ depending on the source and settings.
3. Rotate the control dial to select the options, then press it.

To return to the previous display
Press (back).

General Setup

AREA (area)
Specifies the area/region to use this unit:
[EUROPE], [RUSSIA].
If the area/region currently set is changed, this unit is reset, then the clock is displayed.
(Available only while the source is off and the clock is displayed.)

DEMO (demonstration)
Activates the demonstration: [ON], [OFF].

CLOCK (clock) (See "Setting the Clock")
Sets the clock: [AUTO <RDS>], [MANUAL].

CAUT ALM (caution alarm)
Activates the caution alarm: [ON], [OFF] (See "Detaching the Front Panel").
(Available only while the source is off and the clock is displayed.)

BEEP (beep)
Activates the beep sound: [ON], [OFF].

AUTO OFF (auto off)
Shuts off automatically after a certain time when the unit is turned off and the clock is displayed (i.e. press and hold OFF for 1 second): [ON] (30 minutes), [OFF].

STEERING (steering)
Registers/resets the setting of the steering wheel remote control.
(Available only while the source is off and the clock is displayed.)

STR CONTROL (steering control) Selects the input mode of the connected remote control. To prevent a malfunction, be sure to match the input mode with the connected remote control before use.
CUSTOM (custom)
Input mode for the steering wheel remote control
PRESET (preset) Input mode for the wired remote control excluding the steering wheel remote control
(Automatically selected when [RESET CUSTOM] is performed.)
EDIT CUSTOM (edit custom)
Registers the functions (SOURCE, ATT, VOL +/–, SEEK +/–, VOICE, ON HOOK, OFF HOOK) to the steering wheel remote control:

1. Rotate the control dial to select the function you want to assign to the steering wheel remote control, then press it.
2. While [REGISTER] is blinking, press and hold the button on the steering wheel remote control you want to assign the function to. When registration is complete, [REGISTERED] is displayed.
3. To register other functions, repeat steps and .

(Available only when [STR CONTROL] is set to [CUSTOM].)
RESET CUSTOM (reset custom)
Resets the registered functions of the steering wheel remote control: [YES], [NO].
(Available only when [STR CONTROL] is set to [CUSTOM].)

Notes

• While making settings, only button operation on the unit is available. For safety, park your car before making this setting.
• If an error occurs while registering, all the previously-registered information remains. Restart registration from the function where the error occurred.
• This function may not be available on some vehicles. For details on the compatibility of your vehicle, visit the support site on the back cover.

USB MODE (USB mode)
Changes the USB mode: [ANDROID], [MSC/MTP].
(Available only when the USB source is selected.)

AF/TA (alternative frequencies/traffic announcement)
Selects the alternative frequencies (AF) and traffic announcement (TA) setting: [AF-ON], [TA-ON], [AF/TA-ON], [AF/TAOFF].
(Available when any source is selected.)

REGIONAL (regional)
Restricts reception to a specific region: [ON], [OFF].
(Available only when FM is received.)

BTM (best tuning memory)
(Available only when the tuner is selected.)

FIRMWARE (firmware)
(Available only while the source is off and the clock is displayed.)
Checks/updates the firmware version. For details, visit the support site on the back cover.
FW VERSION (firmware version)
Displays current firmware version.
FW UPDATE (firmware update)
Enters firmware update process: [YES], [NO].
Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Sound Setup

This setup menu is not available when the source is off and the clock is displayed.

EQ10 PRESET (EQ10 preset)
Selects an equalizer curve from 10 equalizer curves or off:
[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [EDM], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].
The equalizer curve setting can be memorized for each source.
* [KARAOKE] reduces the vocal sound but cannot fully remove it during playback. Also, using a microphone is not supported.

EQ10 CUSTOM (EQ10 custom)
Sets [CUSTOM] of EQ10.
Setting the equalizer curve: [BAND1] – [BAND10] (32 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz).
The volume level is adjustable in 1 dB steps, from -6 dB to +6 dB.

BALANCE (balance)
Adjusts the sound balance: [RIGHT-15] – [CENTER] – [LEFT-15].

FADER (fader)
Adjusts the relative level: [FRONT-15] – [CENTER] – [REAR-15].

S.WOOFER (subwoofer)
SW LEVEL (subwoofer level)
Adjusts the subwoofer volume level:
[+6 dB] – [0 dB] – [-6 dB].
([ATT] is displayed at the lowest setting.)
SW PHASE (subwoofer phase)
Selects the subwoofer phase: [SUB NORM], [SUB REV].
LPF FREQ (low pass filter frequency)
Selects the subwoofer cut-off frequency: [80Hz], [100Hz], [120Hz].

HPF FREQ (high pass filter frequency)
Selects the front/rear speaker cut-off frequency: [OFF], [80Hz], [100Hz], [120Hz].

AUX VOL (AUX volume)
Adjusts the volume level for each connected auxiliary device:
[+18 dB] – [0 dB] – [-8 dB].
This setting negates the need to adjust the volume level between sources.
(Available only when the AUX is selected.)

BTA VOL (BLUETOOTH audio volume)
Adjusts the volume level for each connected BLUETOOTH device: [+6 dB] – [0 dB] – [-6 dB].
This setting negates the need to adjust the volume level between sources.
(Available only when the BT audio or application is selected.)

Display Setup

DIMMER (dimmer)
Change the display brightness:
For MEX-N5300BT:
[OFF], [ON], [AT] (auto), [CLK] (clock). ([AT] is available only when the illumination control lead is connected, and the head light is turned on.)
For MEX-N4300BT:
[OFF], [ON], [CLK] (clock).
To set this function to be active only during a fixed period, select [CLK], then set the start and end times.

• To set the brightness when the dimmer function is activated:
  Set [DIMMER] to [ON], then adjust [BRIGHTNESS].
• To set the brightness when the dimmer function is deactivated:
  Set [DIMMER] to [OFF], then adjust [BRIGHTNESS].

The brightness setting is stored and applied when the dimmer function is activated or deactivated.

BRIGHTNESS (brightness)
Adjusts the display brightness. The brightness level is adjustable: [1] – [10].

BUTTON-C (button color) (MEX-N5300BT only)
Sets a preset color or customized color for the buttons.
COLOR (color)
Selects from 15 presets colors, 1 customized color.
CUSTOM-C (custom color)
Registers a customized color for the buttons.

RGB RED, RGB GRN, RGB BLUE
Adjustable color range: [0] – [32] ([0] cannot be set for all color ranges).

DSPL-C (display color) (MEX-N5300BT only)
Sets a preset color or customized color for the display.
COLOR (color)
Selects from 15 presets colors, 1 customized color.
CUSTOM-C (custom color)
Registers a customized color for the display.

RGB RED, RGB GRN, RGB BLUE
Adjustable color range: [0] – [32] ([0] cannot be set for all color ranges).

SND SYNC (sound synchronization)
Activates the synchronization of the illumination with the sound: [ON], [OFF]. (Not available when no source is selected and the clock is displayed.)

AUTO SCR (auto scroll)
Scrolls long items automatically: [ON], [OFF].
(Not available when the AUX or tuner is selected.)

BLUETOOTH Setup

PAIRING (pairing) (See "Pairing and connecting with a Bluetooth device")
Connects up to two BLUETOOTH devices:
[DEVICE 1], [DEVICE 2].
[DEVICE 1] or [DEVICE 2] will be changed to the paired device name after pairing is complete.

AUDIODEV (audio device) Selects the audio device.
[*] appears on the device paired with [DEVICE 1] or the current A2DP compatible audio device.

RINGTONE (ringtone)
Selects whether this unit or the connected cellular phone outputs the ringtone: [1] (this unit), [2] (cellular phone).

AUTO ANS (auto answer)
Sets this unit to answer an incoming call automatically: [OFF], [1] (about 3 seconds), [2] (about 10 seconds).

AUTOPAIR (auto pairing)
Starts BLUETOOTH pairing automatically when iOS device version 5.0 or later is connected via USB: [ON], [OFF].

BT SIGNL (BLUETOOTH signal)
Activates/deactivates the BLUETOOTH function.

BT INIT (BLUETOOTH initialize)
Initializes all the BLUETOOTH related settings (pairing information, device information, etc.): [YES], [NO].
When disposing the unit, initialize all the settings.
(Available only while the source is off and the clock is displayed.)

VOICE-OUT (voice output)
Selects the speakers for handsfree calling:
[VOICE FRONT] (front speakers), [VOICE REAR] (rear speakers), [VOICE ALL] (all speakers).
(Available only while the source is off and the clock is displayed.)

Sony Music Center Setup

(SONY APP)
Establish and terminate "Sony | Music Center" function (connection).

Additional Information

Updating the Firmware

To update the firmware, visit the support site on the back cover, then follow the online instructions.

Note
During the update, do not remove the USB device.

Precautions

• Do not leave the front panel or audio devices on the dashboard.
• When the unit is turned on, the power antenna (aerial) extends automatically.
• Do not splash liquid onto the unit.

Moisture condensation
Do not splash liquid onto the discs. When moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.

• This unit is designed to play discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.
• Discs that this unit CANNOT play
  • Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.
  • Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.
  • cm (3 1/4 in) discs.

Notes on CD-R/CD-RW discs

• If the multi-session disc begins with a CDDA session, it is recognized as a CD-DA disc, and other sessions are not played.
• Discs that this unit CANNOT play
  • CD-R/CD-RW of poor recording quality.
  • CD-R/CD-RW recorded with an incompatible recording device.
  • CD-R/CD-RW which is finalized incorrectly.
  • CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

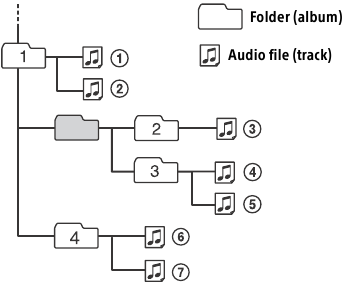

Playback order of audio files

About iPod

• You can connect to the following iPod models. Update your iPod devices to the latest software before use.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
  Please note that the use of this accessory with an Apple product may affect wireless performance.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

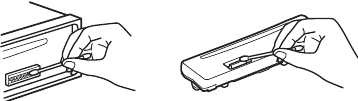

Cleaning the connectors
Avoid touching the connectors directly. The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (See "Detaching the Front Panel") and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Note
For safety, do not remove the front panel while driving.

Specifications

Tuner section

FM
Tuning range:
When [AREA] is set to [EUROPE]: 87.5 MHz – 108.0 MHz
When [AREA] is set to [RUSSIA]:
FM1/FM2: 87.5 MHz – 108.0 MHz (at 50 kHz step)
FM3: 65 MHz – 74 MHz (at 30 kHz step)
Usable sensitivity: 7 dBf
Signal-to-noise ratio: 73 dB
Separation: 50 dB at 1 kHz

MW/LW
Tuning range:
531 kHz – 1,602 kHz (MW),
153 kHz – 279 kHz (LW)
Sensitivity: MW: 26 μV, LW: 50 μV

CD Player section
Signal-to-noise ratio: 95 dB
Frequency response: 20 Hz – 20,000 Hz
Maximum number*1 of:
Folders (albums)*2: 150
Files (tracks) and folders*3: 300
Displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo)
Corresponding codec: MP3 (.mp3), WMA (.wma), AAC (.m4a)

*1 CD-R/CD-RW only
*2 including the root folder
*3 may be less than the measured value if folder/ file names contain many characters

USB Player section
Interface: USB (Full speed)
Maximum current: 1 A
Maximum number of recognizable folders and files:
Folders (albums): 256
Files (tracks) per folder: 256
Compatible Android Open Accessory protocol (AOA): 2.0
Corresponding codec:
MP3 (.mp3)
Bit rate: 8 kbps – 320 kbps (Supports VBR (Variable Bit Rate))
Sampling rate: 16 kHz – 48 kHz
WMA (.wma)
Bit rate: 32 kbps – 192 kbps (Supports VBR (Variable Bit Rate))
Sampling rate: 32 kHz, 44.1 kHz, 48 kHz
AAC (.m4a, .mp4)
Bit rate: 16 kbps – 320 kbps (stereo)
Sampling rate: 8 kHz – 48 kHz
FLAC (.flac)
Bit depth: 16 bit, 24 bit
Sampling rate: 44.1 kHz, 48 kHz
Supported file system: FAT16, FAT32

Wireless Communication
Communication System: BLUETOOTH Standard version 3.0
Output: BLUETOOTH Standard Power Class 2 (Max. Conducted +1 dBm)
Maximum communication range*1: Line of sight approx. 10 m (33 ft)
Frequency band: 2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Modulation method: FHSS
Compatible BLUETOOTH Profiles*2:
A2DP (Advanced Audio Distribution Profile) 1.3
AVRCP (Audio Video Remote Control Profile) 1.3
HFP (Handsfree Profile) 1.6
PBAP (Phone Book Access Profile)
SPP (Serial Port Profile)
Corresponding codec: SBC (.sbc), AAC (.m4a)

*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna (aerial)'s performance, operating system, software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

NFC Communication
Frequency band: 13.56 MHz

Power amplifier section
Output: Speaker outputs
Speaker impedance: 4 Ω – 8 Ω
Maximum power output: 55 W × 4 (at 4 Ω)

General
Power requirements: 12 V DC car battery (negative ground (earth))
Rated current consumption: 10 A
Dimensions:
Approx. 178 mm × 50 mm × 176 mm (7 1/8 in × 2 in × 7 in) (w/h/d)

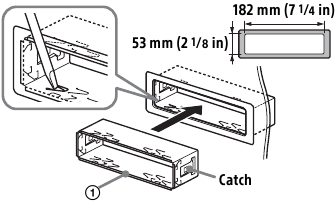

Mounting dimensions: Approx. 182 mm × 53 mm × 159 mm (7 1/4 in × 2 1/8 in × 6 3/8 in) (w/h/d)
Mass: Approx. 1.2 kg (2 lb 11 oz)

Package contents:
Main unit (1)
Microphone (1) (MEX-N5300BT only)
Parts for installation and connections (1 set)
Optional accessories/equipment:
Microphone: XA-MC10 (MEX-N4300BT only)

Ask the dealer for detailed information.
Design and specifications are subject to change without notice.

Messages

The following messages may appear or flash during operation.

INVALID: The selected operation could be invalid.

READ

• Wait until reading is complete and playback starts automatically. This may take some time depending on the file organization.

(underscore): The character cannot be displayed.

For CD playback:
CD ERROR

• Clean or insert the disc correctly, or make sure the disc is not blank or defective.

CD NO DISC

• Insert a disc containing playable files (See "Specifications").

CD NO MUSIC

• Insert a disc containing playable files (See "Specifications").

CD PUSH EJT: The disc could not be ejected properly.

• Press (eject).

or : The beginning or the end of the disc has been reached.

For USB device playback:
HUB NO SUPRT: USB hubs are not supported.
IPD STOP: iPod playback has finished.

• Operate your iPod/iPhone to start playback.

NOT SUPPORT - ANDROID MODE

• A USB device not supporting AOA (Android Open Accessory) 2.0 is connected to the unit while [USB MODE] is set to [ANDROID].
  • Set [USB MODE] to [MSC/MTP] (see "General Setup").

USB ERROR

• Connect the USB device again.

USB NO DEV

• Make sure the USB device or USB cable is securely connected.

USB NO MUSIC

• Connect a USB device containing playable files (See "Specifications").

USB NO SUPRT

• For details on the compatibility of your USB device, visit the support site on the back cover.

USB OVERLOAD: The USB device is overloaded.

• Disconnect the USB device, then press SRC to select another source.
• The USB device has a fault, or an unsupported device is connected.

For RDS operation:
NO AF: No alternative frequencies.

• Press (SEEK –/+) while the program service name is flashing. The unit starts searching for another frequency with the same PI (program identification) data ([PI SEEK] appears).

NO PI: No program identification. The selected station has no PI (program identification) data.

• Select another station.

NO TP: No traffic programs.

• The unit will continue searching for available TP stations.

For BLUETOOTH function:
BTA NO DEV: The BLUETOOTH device is not connected or recognized.

• Make sure the BLUETOOTH device is securely connected, or the BLUETOOTH connection is established with the BLUETOOTH device.

ERROR: The selected operation could not be performed.

• Wait for a while, then try again.

UNKNOWN: A name or phone number cannot be displayed.

WITHHELD: The phone number is hidden by the caller.

For "Sony | Music Center" operation:
APP : A connection with the application is not established.

• Make the "Sony | Music Center" connection again (See "Sony Music Center with iPhone/Android Smartphone").

APP DISCNCT: The application is disconnected.

• Make the "Sony | Music Center" connection (See "Sony Music Center with iPhone/Android Smartphone").

APP DISPLAY: A screen setting display of the application is open.

• Exit the screen setting display of the application to enable button operation.

APP LIST: The contents list of the USB is open.

• Exit the list of the application to enable button operation.

APP MENU: A setting display of the application is open.

• Exit the setting display of the application to enable button operation.

APP NO DEV: The device with the application installed is not connected or recognized.

• Make the BLUETOOTH connection and establish the "Sony | Music Center" connection again (See "Sony Music Center with iPhone/Android Smartphone").

APP SOUND: A sound setting display of the application is open.

• Exit the sound setting display of the application to enable button operation.

OPEN APP: The "Sony | Music Center" application is not running.

• Launch the application.

For steering wheel remote control operation:
ERROR

• Register again from the function where the error occurred (see "General Setup").

TIMEOUT

• Try completing the registration while [REGISTER] is blinking (about 6 seconds) (see "General Setup").

For firmware update operation:
FILE ERROR: The updater is not stored in the USB device.

• Store the updater in the USB device, then try again (See "Updating the Firmware").

UPDATE ERROR - PRESS ENTER: Firmware update is not completed properly.

• Press ENTER to clear the message, then try again.
  During the update, do not turn the ignition to the OFF position, nor remove the USB device (See "Updating the Firmware").

If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of device playback trouble, bring the device that was used at the time the problem began.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.
For details on using the fuse and removing the unit from the dashboard, see "Connection/Installation".
If the problem is not solved, visit the support site on the back cover.

General

No sound or the sound is very low.

• The position of the fader control [FADER] is not set for a 2-speaker system.
• The volume of the unit and/or connected device is very low.
  • Increase the volume of the unit and connected device.

No beep sound.

• An optional power amplifier is connected and you are not using the built-in amplifier.

Stored stations and correct time are erased.
The fuse has blown.
Makes a noise when the position of the ignition is switched.

• The leads are not matched correctly with the car's accessory power connector.

During playback or reception, the demonstration mode starts.

• If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts.
  • Set [DEMO-OFF] (see "General Setup").

The display disappears from/does not appear in the display window.

• The connectors are dirty (See "Maintenance").

The display/illumination flashes.

• The power supply is not sufficient.
  • Check that the car battery supplies enough power to the unit. (The power requirement is 12 V DC.)

The operation buttons do not function.
The disc will not eject.

• The connection is not correct.
  • Press DSPL and CALL for more than 2 seconds to reset the unit. The contents stored in memory are erased.

The clock set automatically is not accurate.

• The clock data on radio waves is not accurate. Set the clock manually (See "Setting the Clock").

Radio reception

The radio reception is poor.
Static noise occurs.

• Connect the antenna (aerial) firmly.

65 MHz to 74 MHz in FM3 cannot be tuned in.

• [AREA] is set to [EUROPE].
  • Set [AREA] to [RUSSIA] (see "General Setup").

RDS

RDS services cannot be received (when [AREA] is set to [RUSSIA]).

• FM3 is selected.
  • Select FM1 or FM2.
• RDS services are unavailable in the current region.

The SEEK starts after a few seconds of listening.

• The station is non-TP or has weak signal.
  • Deactivate TA.

No traffic announcements.

• Activate TA.
• The station does not broadcast any traffic announcements despite being TP.
  • Tune in another station.

PTY displays [ ].

• The current station is not an RDS station, or the radio reception is poor.

Program service name flashes.

• There is no alternative frequency for the current station.
  • Press (SEEK –/+) while the program service name is flashing. [PI SEEK] appears and the unit starts searching for another frequency with the same PI (program identification) data.

CD playback

The disc does not play.

• Defective or dirty disc.
• The CD-R/CD-RW is not for audio use (See "Notesa on discs").

MP3/WMA/AAC files cannot be played.

• The disc is incompatible with the MP3/ WMA/AAC format and version. For details on playable discs and formats, visit the support site on the back cover.

MP3/WMA/AAC files take longer to play than others.

• The following discs take a longer time to start playback.
  • disc recorded with a complicated tree structure.
  • disc recorded in Multi Session.
  • A disc to which data can be added.

USB device playback

A USB device takes longer to play.

• The USB device contains files with a complicated tree structure.

The audio file cannot be played.

• For details on supported formats, see "Specifications". If the audio file still cannot be played, refer to the operating instructions supplied with the USB device, or contact the manufacturer of the USB device.

Operations for skipping an album, skipping items (Jump mode), and searching a track by name ("QuickBrowZer") cannot be performed.

• Set [USB MODE] to [MSC/MTP] (see "General Setup").

The sound cannot be output during playback in Android mode.

• Check the status of the audio playback application on the Android smartphone.

NFC function (MEX-N5300BT only)

One-touch connection (NFC) is not possible.

• If the smartphone does not respond to the touching.
  • Check that the NFC function of the smartphone is turned on.
  • Move the N-Mark part of the smartphone closer to the N-Mark part on this unit.
  • If the smartphone is in a case, remove it.
• NFC receiving sensitivity depends on the device.
  If One-touch connection with the smartphone fails several times, make BLUETOOTH connection manually.

BLUETOOTH function

The connecting device cannot detect this unit.

• Before the pairing is made, set this unit to pairing standby mode.
• While connected to two BLUETOOTH devices, this unit cannot be detected from another device.
  • Disconnect either connection and search for this unit from another device.
• When the device pairing is made, set the BLUETOOTH signal output to on.

Connection is not possible.

• The connection is controlled from one side (this unit or BLUETOOTH device), but not both.
  • Connect to this unit from a BLUETOOTH device or vice versa.

The name of the detected device does not appear.

• Depending on the status of the other device, it may not be possible to obtain the name.

No ringtone.

• Adjust the volume by rotating the control dial while receiving a call.
• Depending on the connecting device, the ringtone may not be sent properly.
  • Set [RINGTONE] to [1] (See "Settings").
• The speakers are not connected to the unit.
  • Connect the speakers to the unit. To select the speakers for ringtone, press MENU, then select [BLUETOOTH] → [SET VOICE-OUT] (See "Settings").

The talker's voice cannot be heard.

• The speakers are not connected to the unit.
  • Connect the speakers to the unit. To select the speakers for talker's voice, press MENU, then select [BLUETOOTH] → [SET VOICE-OUT] (See "Settings").

A call partner says that the volume is too low or high.

• Adjust the volume accordingly using Mic gain adjustment.

Echo or noise occurs in phone call conversations.

• Lower the volume.
• Set EC/NC Mode to [EC/NC-1] or [EC/NC-2] (see "Available Operations During Call").
• If the ambient noise other than the phone call sound is loud, try reducing this noise. E.g.: If a window is open and road noise, etc., is loud, shut the window. If an air conditioner is loud, lower the air conditioner.

The phone is not connected.

• When BLUETOOTH audio is played, the phone is not connected even if you press CALL.
  • Connect from the phone.

The phone sound quality is poor.

• Phone sound quality depends on reception conditions of cellular phone.
  • Move your car to a place where you can enhance the cellular phone's signal if the reception is poor.

The volume of the connected audio device is low (high).

• Volume level will differ depending on the audio device.
  • Adjust the volume of the connected audio device or this unit (See "Settings").

The sound skips during playback of a BLUETOOTH audio device.

• Reduce the distance between the unit and the BLUETOOTH audio device.
• If the BLUETOOTH audio device is stored in a case which interrupts the signal, remove the audio device from the case during use.
• Several BLUETOOTH devices or other devices which emit radio waves are in use nearby.
  • Turn off the other devices.
  • Increase the distance from the other devices.
• The playback sound stops momentarily when the connection between this unit and the cellular phone is being made. This is not a malfunction.

The connected BLUETOOTH audio device cannot be controlled.

• Check that the connected BLUETOOTH audio device supports AVRCP.

Some functions do not work.

• Check if the connecting device supports the functions in question.

A call is answered unintentionally.

• The connecting phone is set to answer a call automatically.

Pairing failed due to a timeout.

• Depending on the connecting device, the time limit for pairing may be short.
  • Try completing the pairing within the time.

Cannot pair.

• The unit may not be able to pair with a previously paired BLUETOOTH device after initializing the unit if the pairing information of the unit is on the BLUETOOTH device. In this case, delete the pairing information of the unit from the BLUETOOTH device, and then pair them again.

BLUETOOTH function cannot operate.

• Turn off the unit by pressing OFF for more than 2 seconds, then turn the unit on again.

No sound is output from the car speakers during handsfree call.

• If the sound is output from the cellular phone, set the cellular phone to output the sound from the car speakers.

"Siri Eyes Free" is not activated.

• Perform the handsfree registration for an iPhone that supports "Siri Eyes Free".
• Set the Siri function on the iPhone to on.
• Cancel the BLUETOOTH connection with the iPhone and the unit, and reconnect.

"Sony | Music Center" operation

Application name is mismatched with the actual application in "Sony | Music Center".

• Launch the application again from the "Sony | Music Center" application.

While running the "Sony | Music Center" application via BLUETOOTH, the display automatically switches to [BT AUDIO].

• The "Sony | Music Center" application or BLUETOOTH function has failed.
• Run the application again.

The "Sony | Music Center" application is automatically disconnected when the display switches to [IPD].

• The "Sony | Music Center" application on iPhone/iPod does not support iPod playback.
  • Change the source of the unit to other than [IPD], then establish the "Sony | Music Center" connection (See "Sony Music Center with iPhone/Android Smartphone").

The "Sony | Music Center" connection is automatically disconnected when the USB mode of the unit is changed to [ANDROID].

• The Android smartphone is not supporting playback in Android mode.
  • Set the USB mode of the unit to [MSC/ MTP], then establish the "Sony | Music Center" connection (See "Sony Music Center with iPhone/Android Smartphone").

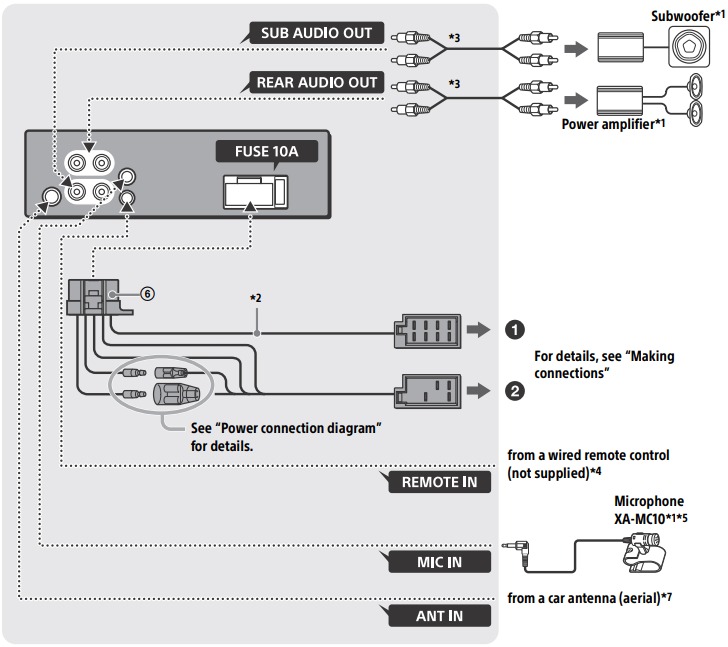

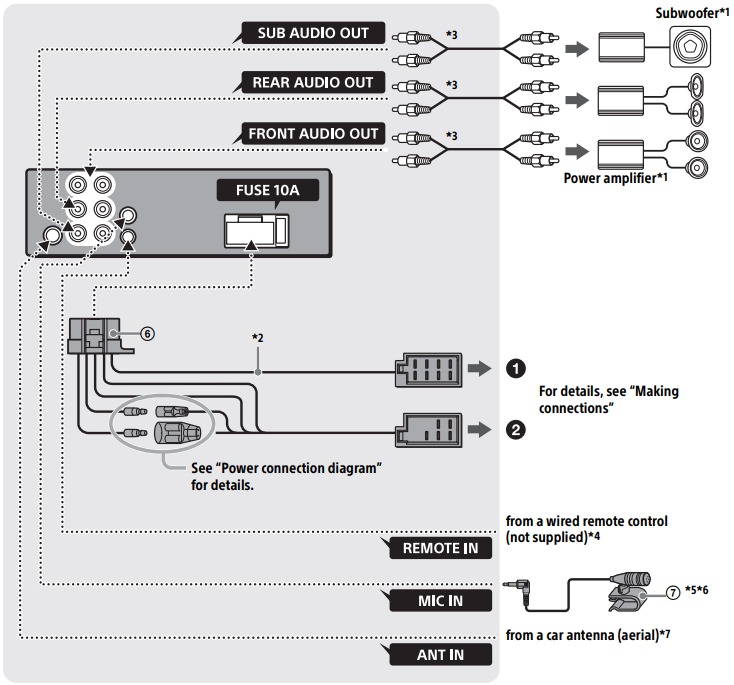

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the power supply lead to the unit and speakers before connecting it to the auxiliary power connector.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.

Precautions

• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)
When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Mounting angle adjustment
Adjust the mounting angle to less than 30°.

Parts List for Installation

• This parts list does not include all the package contents.
• The bracket and the protection collar are attached to the unit before shipping. Before mounting the unit, use the release keys to remove the bracket from the unit. For details, see "Removing the protection collar and the bracket".
• Keep the release keys for future use as they are also necessary if you remove the unit from your car.

Connections

Connection For MEX-N5300BT

Connection For MEX-N4300BT

*1 Not supplied
*2 Speaker impedance: 4 Ω – 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see "Using the wired remote control".
*5 Whether in use or not, route the microphone input cord such that it does not interfere with driving operations. Secure the cord with a clamp, etc., if it is installed around your feet.
*6 For details on installing the microphone, see "Installing the microphone".
*7 Depending on the type of car, use an adaptor (not supplied) if the antenna connector does not fit.

Making connections

If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply lead may damage the antenna (aerial).

1. To the car's speaker connector


1	Rear speaker (right)		Purple
2			Purple/black striped
3	Front speaker (right)		Gray
4			Gray/black striped
5	Front speaker (left)		White
6			White/black striped
7	Rear speaker (left)		Green
8			Green/black striped

2. To the car's power connector


12	continuous power supply	Yellow
13	power antenna (aerial) /power amplifier control (REM OUT)	Blue/white striped
14*	switched illumination power supply	Orange/ white striped
15	switched power supply	Red
16	ground (earth)	Black

* MEX-N5300BT only

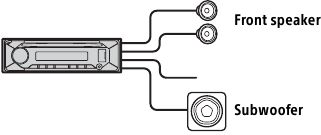

Subwoofer Easy Connection
You can use a subwoofer without a power amplifier when it is connected to a rear speaker lead.

Notes

• Preparation of the rear speaker leads is required.
• Use a subwoofer with an impedance of 4 Ω to 8 Ω, and with adequate power handling capacities to avoid damage.

Memory hold connection
When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 Ω to 8 Ω, and with adequate power handling capacities to avoid damage.

Power connection diagram

Check your car's auxiliary power connector, and match the connections of leads correctly depending on the car.

Common connection

12	continuous power supply	Yellow
15	switched power supply	Red

When the positions of the red and yellow leads are inverted

12	switched power supply	Yellow
15	continuous power supply	Red

When the car without ACC position

After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.

Installing the microphone

(MEX-N5300BT only)
To capture your voice during handsfree calling, you need to install the microphone

• It is extremely dangerous if the cord becomes wound around the steering column or gearstick. Be sure to keep it and other parts from interfering with your driving operations.
• If airbags or any other shock-absorbing equipment is in your car, contact the store where you purchased this unit, or the car dealer, before installation.

Note
Before attaching the double-sided tape , clean the surface of the dashboard with a dry cloth.

Using the wired remote control

1. To enable the wired remote control, set [STR CONTROL] in [SET STEERING] to [PRESET] (see "General Setup").

Installation

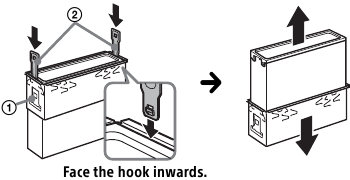

Removing the protection collar and the bracket

Before installing the unit, remove the protection collar and the bracket from the unit.

1. Pinch both edges of the protection collar , then pull it out.

2. Insert both release keys until they click, and pull down the bracket , then pull up the unit to separate.


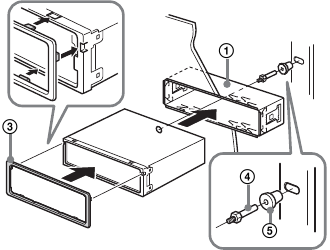

Mounting the unit in the dashboard

Before installing, make sure the catches on both sides of the bracket are bent inwards 2 mm (3/32 in).

1. Position the bracket inside the dashboard, then bend the claws outward for a tight fit.

2. Mount the unit onto the bracket , then attach the protection collar .


Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out.
• Make sure the 4 catches on the protection collar are properly engaged in the slots of the unit.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel".

Resetting the unit

For details, see "Resetting the Unit".

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Important notice

Warning if your car's ignition has no ACC position
Be sure to set the AUTO OFF function (see "General Setup"). The unit will shut off completely and automatically in the set time after the unit is turned off and the clock is displayed (i.e. press and hold OFF for 1 second), which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

About the NFC function
The model supporting the NFC function described in this manual is as follows:

• MEX-N5300BT

IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT ORCONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER'S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.

Dear customer, this product includes a radio transmitter.
According to UNECE Regulation no. 10, a vehicle manufacturers may impose specific conditions for installation of radio transmitters into vehicles. Please check your vehicle operation manual or contact the manufacturer of your vehicle or your vehicle dealer, before you install this product into your vehicle.

Emergency calls
This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).

On BLUETOOTH communication

• Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident.
  • where inflammable gas is present, in a hospital, train, airplane, or petrol station
  • near automatic doors or a fire alarm
• This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology.
• We do not take any responsibility for the leakage of information during BLUETOOTH communication.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Documents / Resources

References

• http://www.sony.net/smcqa/
• Google Play
• App Store - Apple

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Sony MEX-N5300BT, MEX-N4300BT Manual
