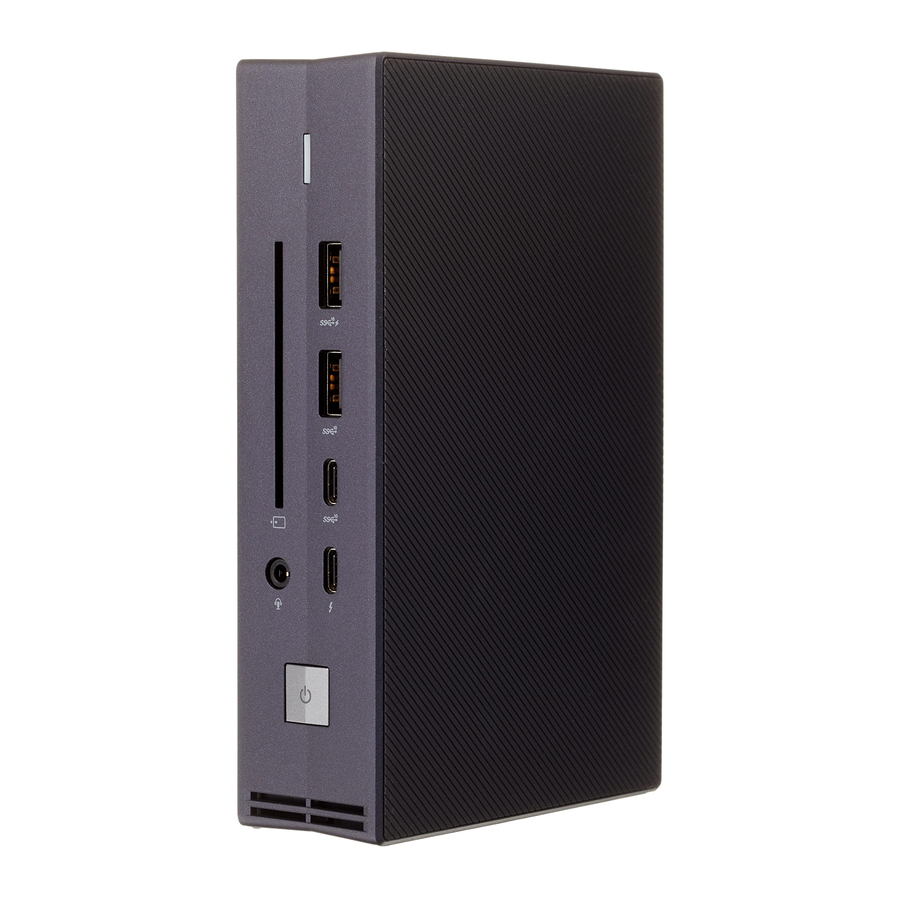

Asus SimPro Dock 2 Manual

Power adapter information

• Input voltage: 100-240Vac
• Input frequency: 50-60Hz
• Rating output current: 9A max. (180W)
• Rating output voltage: 20V

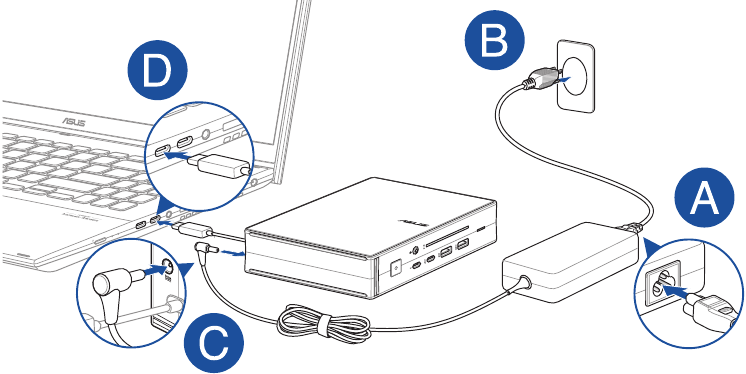

Follow the steps to use your product

1. Connect the AC power cord to the AC/DC adapter.
2. Plug the AC power adapter into a 100V~240V power source.
3. Connect the DC power connector into the power (DC) input port of your SimPro Dock 2.
4. Connect the USB Type-C/Thunderbolt 3 cable to your Notebook PC. (Supported output: 5V/3A, 9V/3A, 15V/3A, 20V/4.8A)
5. Go to https://www.asus.com/Laptops/Accessories/All-series/ASUSSimPro-Dock-2/HelpDesk_BIOS/ to download and install the latest SimPro Dock 2 Tool and firmware on your Notebook PC before using your SimPro Dock 2 for the first time.

Package contents

• SimPro Dock 2 x 1
• 180W Adapter x 1
• User manual x 1
• Warranty card x 1

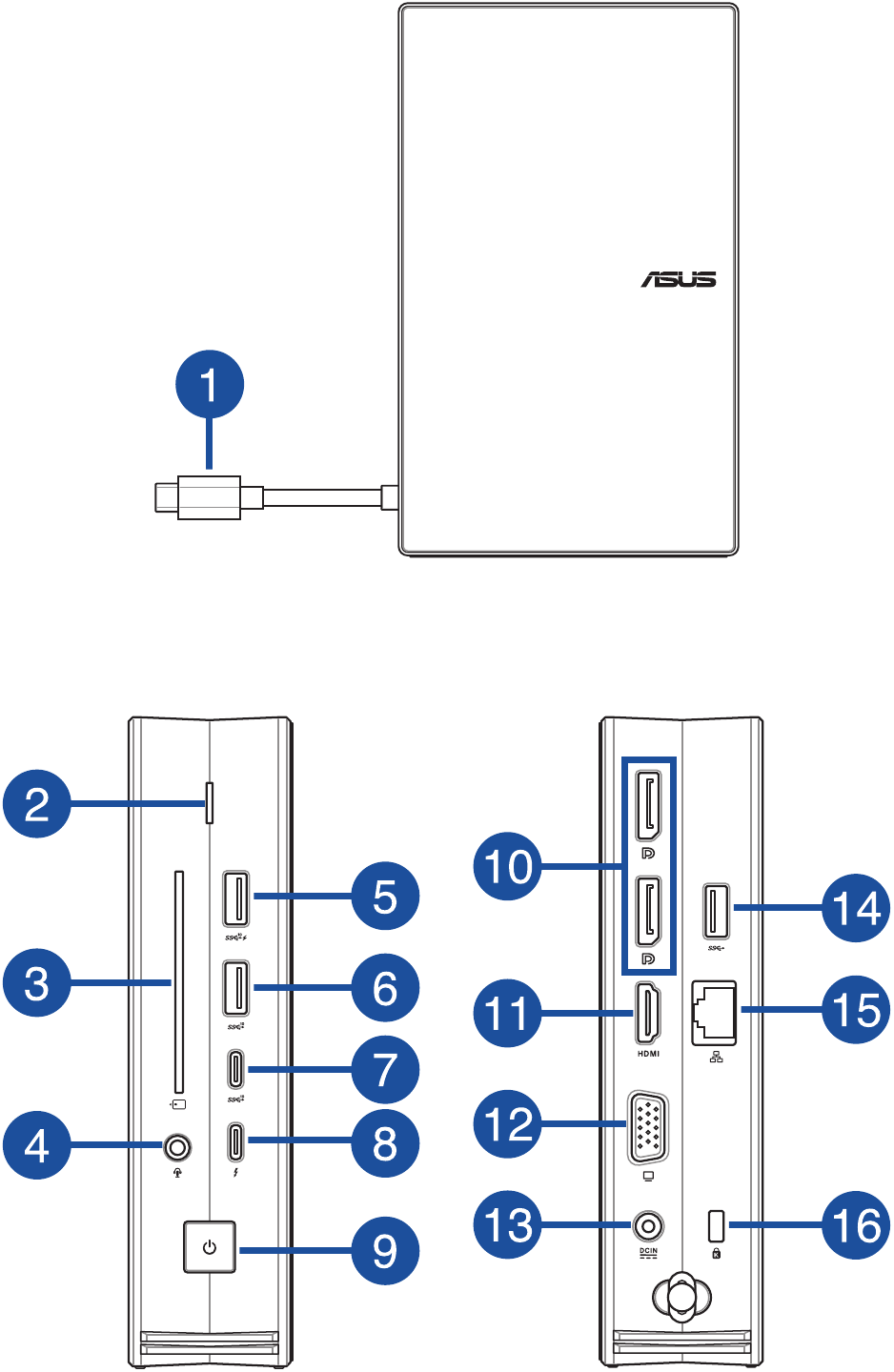

Hardware Interface

1. USB Type-C/Thunderbolt 3 cable
2. Docking power indicator
3. Smart card reader
4. Headphone/Headset jack
5. USB 3.2 Gen 2 port with USB Charger+
6. USB 3.2 Gen 2 port
7. USB 3.2 Gen 2 Type-C port
8. Thunderbolt 3 port
9. Power button/Notebook PC status indicator
10. DisplayPort
11. HDMI 2.0 port
12. VGA port
13. Power (DC) input port
14. USB 3.2 Gen 1 port
15. LAN port
16. Kensington security slot

NOTE:

• Power supply support and external display support vary per Notebook PC model. Visit the ASUS website for the compatibility list.
• Connect SimPro Dock 2 to your Notebook PC for simultaneous status LED indication, power on/off via the power button, and power delivery (max. 120W). Supported functions vary per Notebook PC model. Visit the ASUS website for the compatibility list.
• Use only the bundled power adapter to charge the battery pack and supply power to your Notebook PC.
• To use all the functions of SimPro Dock 2, ensure your Notebook PC supports Intel Thunderbolt technology.
