Installation

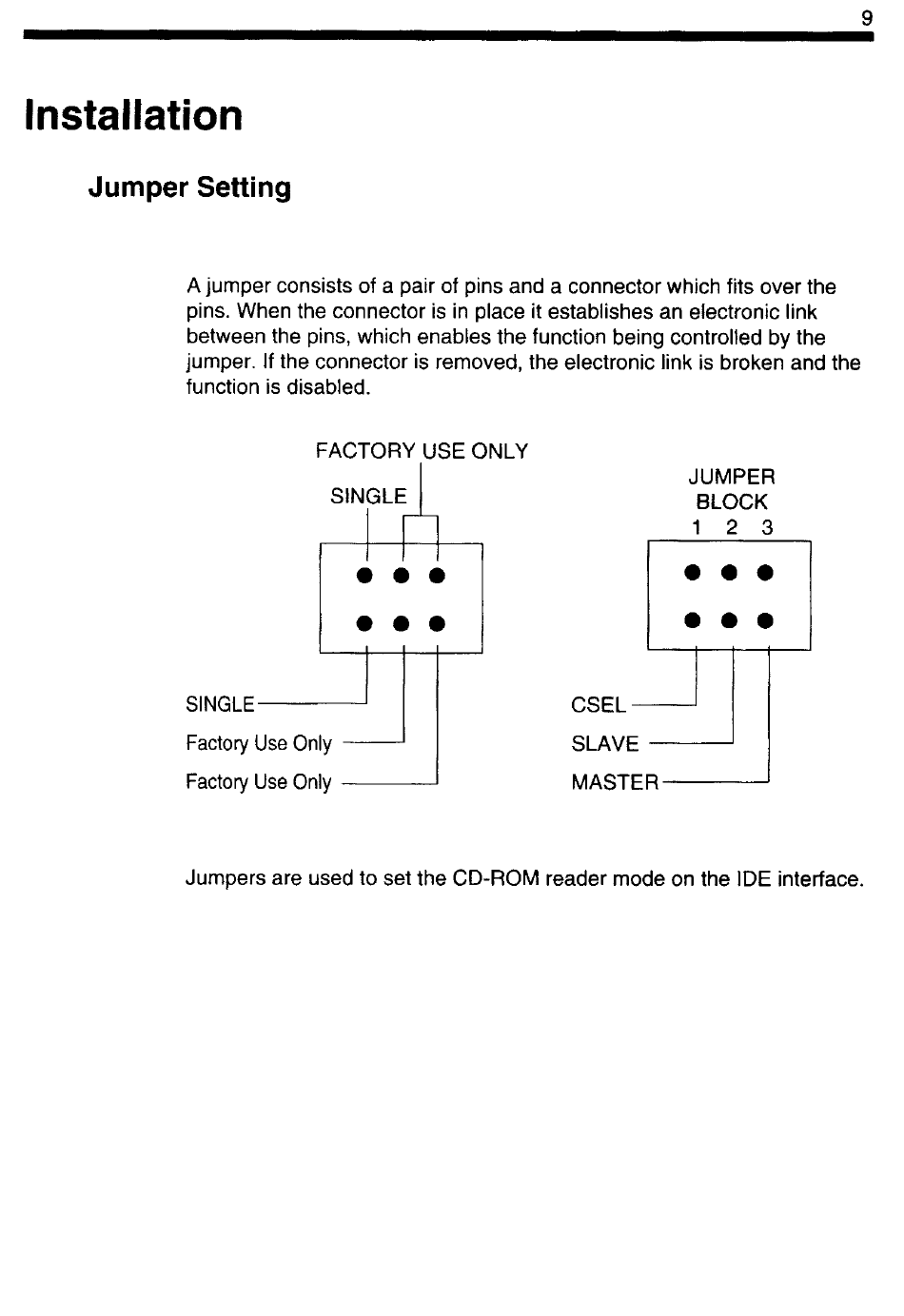

Jumper Setting
A jumper consists of a pair of pins and a connector which fits over the
pins. When the connector is in place it establishes an electronic link
between the pins, which enables the function being controlled by the
jumper. If the connector is removed, the electronic link is broken and the
function is disabled.
SINGLE
Factory Use Only
Factory Use Only
Jumpers are used to set the CD-ROM reader mode on the IDE interface.
FACTORY USE ONLY
SINGLE
JUMPER
BLOCK
1
2
CSEL
SLAVE
MASTER
9
3
