Swisher PowerBlade PBB-7540 Assembly Instructions

ATV MOUNT KIT PBB-7540
Un-package and familiarize yourself with the contents.
1. Remove the outer bolts from the front and rear footrest support brackets.

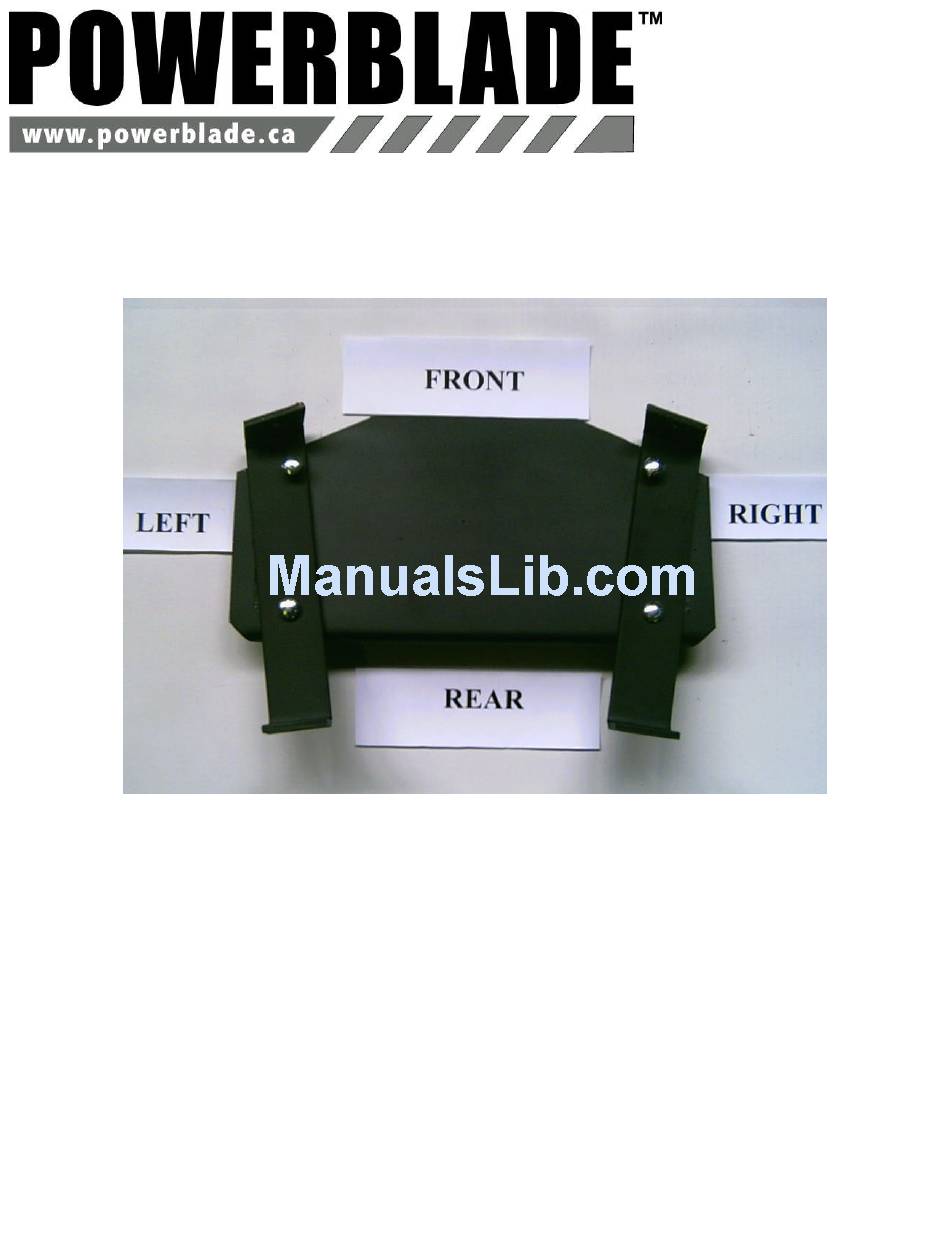

2. Loosely assemble the mounting kit with the left and right mount angle brackets
attached as shown above. Place the front of the angle brackets behind the
aluminum front footrest support brackets and place the rear angle brackets behind
the aluminum rear footrest support brackets and loosely attach the mount assembly
in this location with the bolts previously removed in step 1.
3. Center and square the mount plate and tighten all hardware securely.
12462
1-877-627-5860
Rev.
