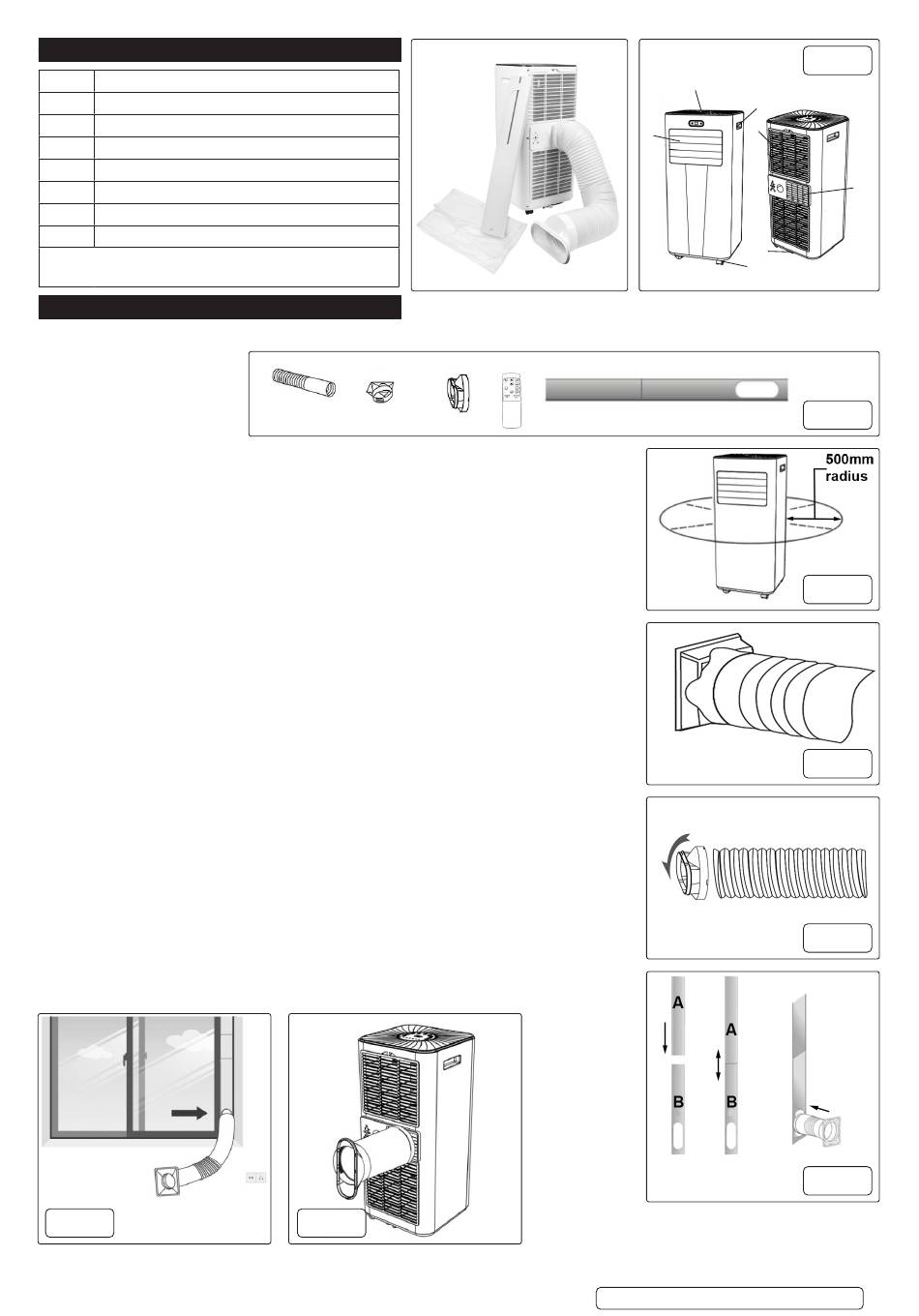

4.
CONTENTS
ITEM
DESCRIPTION
1
Air outlet with adjustable louvre
2
Control Panel
3
Handle
4
Upper Filter Frame
5
Drainage Hole
6
Wheel, swivel Caster
7
Air Exhaust
NOTE: The illustration is only for reference. Please see the
real product for detailed information.
5.
INSTALLATION
5.1.
Unpack the product and check contents. Should there be any damaged or missing parts contact your supplier immediately.
1. Exhaust hose.
2. Hose connector.
3. Window kit adapter.
4. Remote control.
5. Window kit.
5.2.
LOCATION
WARNING! If tipped more than 45°, allow the unit to set upright for at least 24 hours before
start up.
5.2.1. Place the appliance on a firm, level surface.
5.2.2. Ensure that there is a clear area of at least 500mm around the appliance (fig.3) to allow for
adequate air circulation.
DO NOT operate the appliance in close proximity to walls, curtains or other objects that
8
may block the air inlet or outlet. Keep the air inlet and outlet free of obstacles.
WARNING! DO NOT locate the appliance where it is subject to:
•
Heat sources such as radiators, ovens or similar.
•
Direct sunlight.
•
Mechanical vibration or shock.
•
Excessive dust.
•
Lack of ventilation i.e., inside a cabinet or bookcase.
•
Uneven surfaces.
WARNING! Install the unit in room which exceed 7m² floor area.
DO NOT install the unit in a place where inflammable gas may leak.
8
5.3.
ASSEMBLE THE EXHAUST HOSE
WARNING! The air conditioning unit must be vented to outside. This ensures that any heat
and moisture is removed from the designated room space.
DO NOT replace or extend exhaust hose which will result in decreased efficiency, even
8
worse shut down the unit due to low back pressure.
5.3.1. Screw fit the hose connector to one end of the exhaust hose (fig.4).
5.3.2. Screw fit the window kit adapter to the other end of the exhaust hose (fig.5).
5.3.3. Extend the adjustable window kit the length of your window. Connect the exhaust hose to
the window kit (fig.6).
5.3.4. Close your window to secure the kit in place. NOTE: The window needs to hold the windows
kit firmly in place, secure the window kit with duct tape if required. It is recommended that
the gap between the adapter and the sides of the window should be sealed off for maximum
efficiency (fig.7).
5.3.5. Attach the hose connector to the exhaust air outlet of unit. (fig.8).
5.3.6. Adjusting the length of the flexible exhaust hose, and avoid bends in the hose. Then place
AC near an electrical outlet (fig.7).
5.3.7. Adjust the louvre at the air outlet, and then switch on the unit (fig.9).
