36 EL3060 CONTINUOUS GAS ANALYZERS | OI/EL3060-EN REV. B
... 6 Electrical connections
... Terminal assignment
Ethernet interface
The Ethernet 10/100BASE-T interface of the gas analyzer is
intended for
• communication with the ECT Configuration software for
device configuration and software update,
• data transfer using Modbus TCP/IP protocol as well as
• QAL3 data transfer if the QAL3 monitoring option is
integrated in the gas analyzer,
Note
The Ethernet protocol is an unsecured protocol (in the sense of
IT or cyber security), as such the intended application should be
assessed before implementation to make sure that this protocol
is suited.
EL3060-Uras26 Analyzer unit
Terminals
Data transfer:
Terminals 21 to 29:
Assignment:
Power supply:
Terminals 34 (GND) and 68
Power supply
Terminals: L, N, PE
Design of the electrical connections
Terminal blocks with screw connection
Conductor cross-section:
• Single-core: 0.5 to 4 mm
• Stranded: 1.5 to 4 mm
• Fine wire: 0.5 to 2.5 mm
Wire assignment
Wires 1 to 9
(printed on the wires)
Terminal 21 – Wire 1 to Terminal 29 –
Wire 9
(+24V, wire with red marking),
separate PE connection
2
2
2
(only with wire end sleeve)

Cable glands

Assignment of the cable glands
The shielded connection cables for Modbus®, PROFIBUS®, and
Ethernet as well as for data transmission and the power supply
of the EL3060-Uras26 analyzer unit must be connected through
EMC cable glands with terminal insert for the braided shield
(M16×1.5 EMC and M20×1.5 EMC) into the terminal box.
1 M20×1.5
2 M20×1.5 EMC

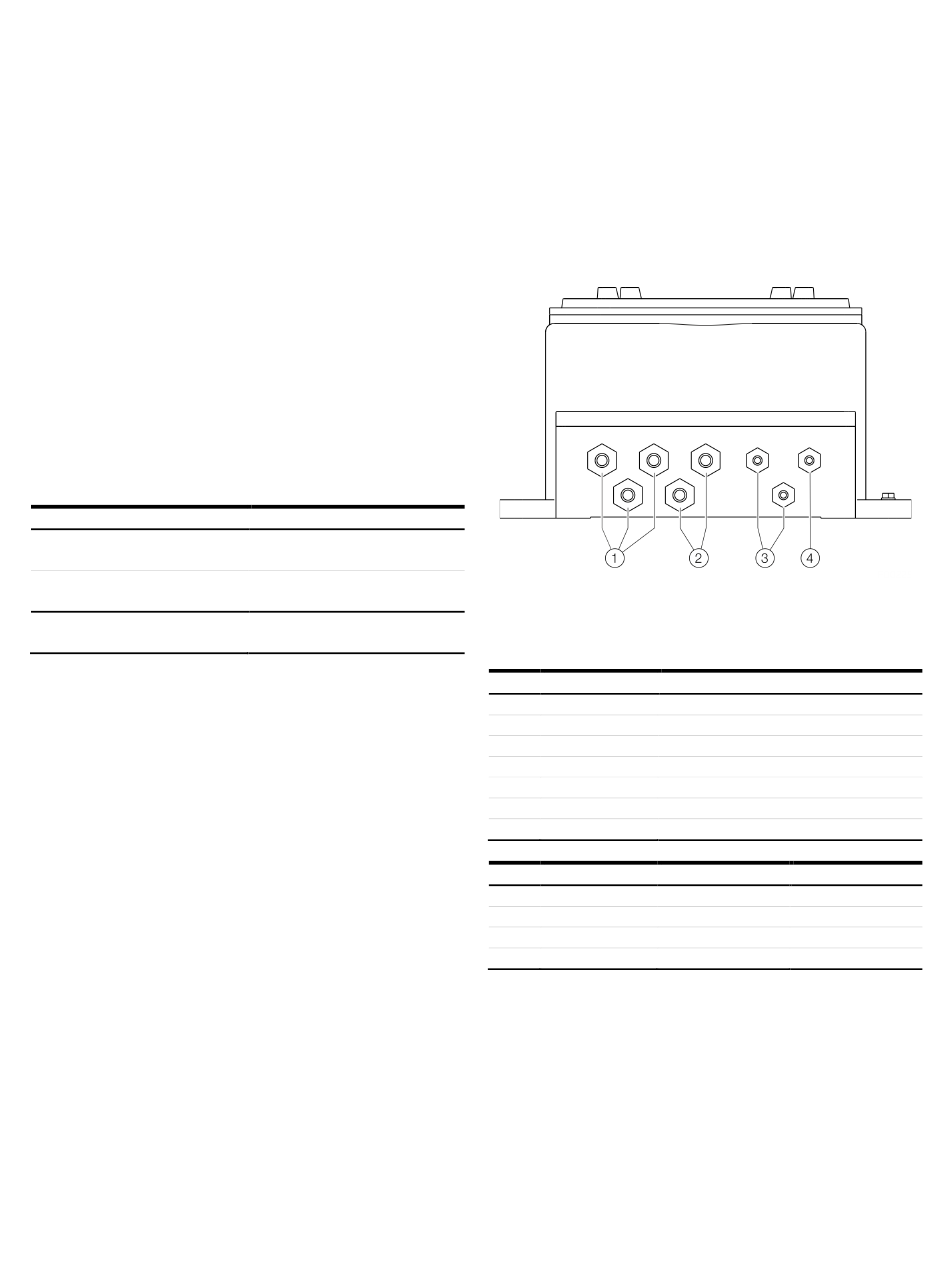

Figure 9: Assignment of cable glands EL3060-CU control unit
Pos. Cable gland Connecting cables
1
M20×1.5 Digital inputs/outputs
1
M20×1.5 Analog outputs
2
M20×1.5 EMC EL3060-Uras26 data transmission
2
M20×1.5 EMC EL3060-Uras26 power supply
3
M16×1.5 EMC Modbus, Profibus
3
M16×1.5 EMC Ethernet
4
M16×1.5 Power supply
Pos. Cable gland Clamping range
1
M20×1.5 6 to 12 mm
2
M20×1.5 EMC 7 to 12 mm
3
M16×1.5 EMC 3 to 7 mm
4
M16×1.5 4 to 8 mm
3 M16×1.5 EMV
4 M16×1.5
Tightening torque
8 Nm
10 Nm
5 Nm
6 Nm
