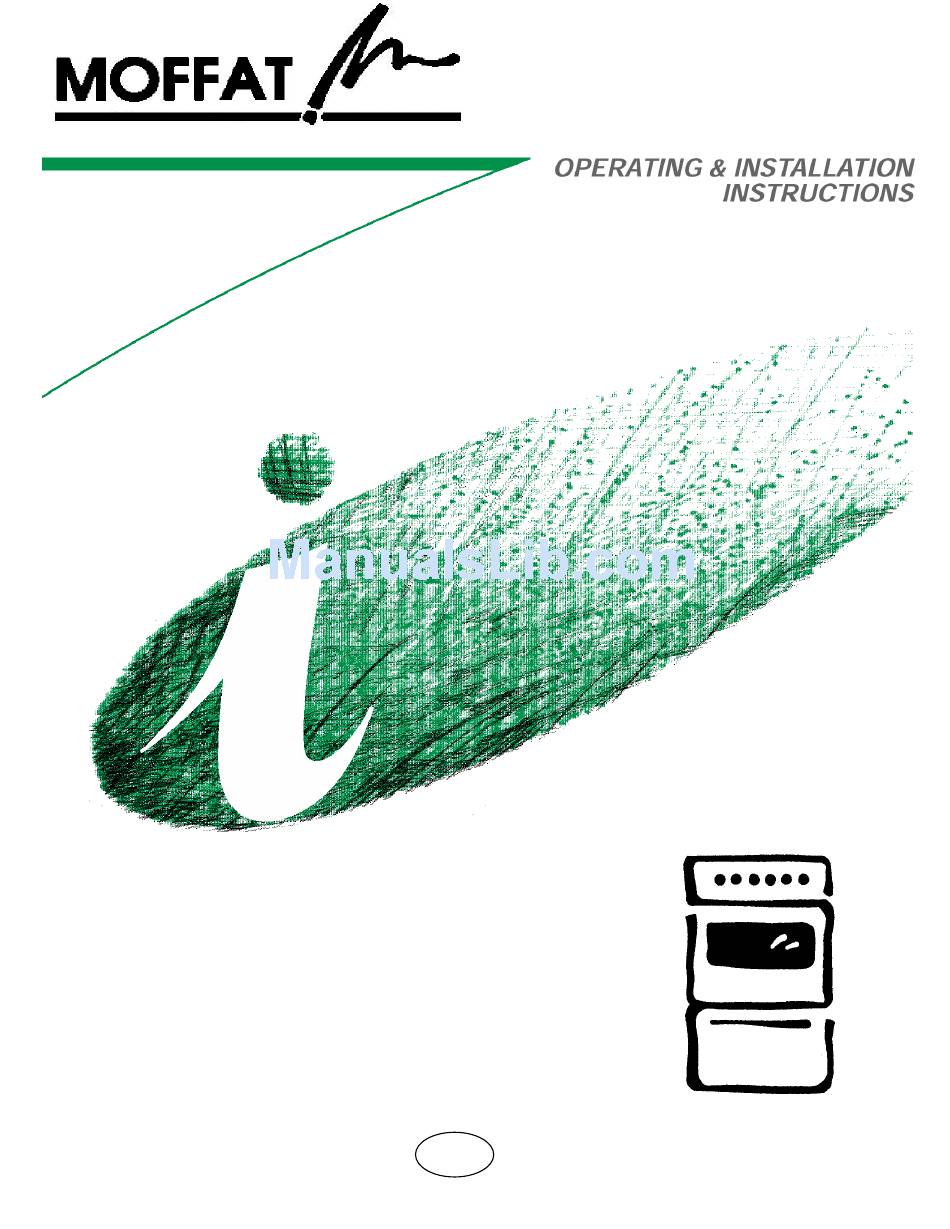

- Page 1 MIXED FUEL COOKER MSC 5061 W...
-
Page 3: Table Of Contents
CONTENTS Instructions for the user Instructions for the installer Important Safety Information Safety Advice Description of the appliance Electrical connection Technical Features Technical Data Using the appliance Installation Using the electric oven Positioning Using the electric grill Ventilation Hints & Tips Location Using the Hob Gas connections... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. • Installation Ensure the control knobs are in the ‘OFF’ position when not in use. •... -
Page 5: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 2,0kW 1,0kW semi-rapid auxiliary Control panel Handle door Oven door with glass semi-rapid rapid 2,0kW 2,6kW Adjustable small feet 1. Front left burner (semi-rapid) 2. Back left burner (semi-rapid) 3. Back right burner (auxiliary) Front right burner (rapid) Control panel Model : MSC 5061 W normal... -
Page 6: Technical Features
TECHNICAL FEATURES Free standing Class 1 Pan support Enamelled Front right Rapid 2,60 kW Back right Auxiliary 1,00 kW Front left Semi-rapid 2,00 kW Back left Semi-rapid 2,00 kW Total power 7,60 kW Oven Electric Oven Oven power 1,70 kW Grill Electric Grill power... -
Page 7: Using The Appliance
USING THE APPLIANCE Using the electric oven Before the first use ensure that the room well ventilated: V.M.C. (Mechanic ventilation) opened window. Before the First Use of the Cooker Remove all packaging both inside and outside of the cooker, before using it. Before first use, the oven should be heated without food. -
Page 8: Using The Electric Grill
Electric grill When grilling, the accessible parts of the appliance are hot. Take care that children do not play near it. While the grill is in operation leave the oven door half open and pull the protective screen “A” into place. During use the appliance becomes hot. -
Page 9: Hints And Tips
Grilling • Prepare the meat to be grilled, lightly brush it with oil on both sides. • Place it on the grill. • Fix the protective screen. • Turn the oven knob to the grill position • Slide the dripping pan in the guide 1. •... -
Page 10: Using The Hob
Cookware The effects of dishes on cooking results Use any ovenproof cookware, which will Dishes and tins vary in their thickness, ° withstand temperatures of 250 conductivity, colour, etc. which affects the way they transmit heat to the food inside them. Oven dishes, etc. -
Page 11: Accessories Delivered With The Appliance
liable to melt. Selecting the Correct burner Good use Above every knob there is a symbol for the corresponding burner. For good cooking results, always choose pans, which correctly fit to the diameter of the burner used (see figs). Choose thick, flat bottom pots. We recommend the flame is lowered as soon as Bad use the liquid starts boiling. -
Page 12: Maintenance And Cleaning
MAINTENANCE AND CLEANING The oven should be kept clean at all times. A build-up of fats or other foodstuffs could result fire, especially in the grill pan. Before cleaning, ensure all control knobs are in the OFF position, and the appliance has cooled completely. - Page 13 Oven Cavity The enamelled oven cavity is best cleaned whilst the oven is still warm. Wipe the oven over with a soft cloth soaked in warm soapy water after each use. From time to time it will be necessary to do a more thorough cleaning, using a proprietary oven cleaner.
-
Page 14: Something Not Working
SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Service Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 15: Service And Spare Parts
Please note that it will be necessary to provide proof of purchase for any in- guarantee service calls. Moffat has an agreement with Electrolux who will undertake all servicing requirements for your appliance. CUSTOMER CARE For general enquiries concerning your Moffat appliance and or for further information on our products,... -
Page 16: Guarantee Conditions
Standard Guarantee Conditions We Moffat undertake that if, within 12 months of the date of the purchase, this Moffat appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at... -
Page 17: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER SAFETY ADVICE • Before installation ensure that the local distribution conditions (gas type and pressure) and the pre-setting of the appliance are consistent. • This appliance must be installed only in a room with good ventilation. •... -
Page 18: Electrical Connection
ELECTRICAL CONNECTIONS Any electrical work required to install A cut off plug inserted into a 13 amp this cooker should be carried out by a socket is a serious safety (shock) hazard. qualified electrician or competent person, in Ensure that the cut off plug is disposed of accordance with the current regulations. -
Page 19: Technical Data
TECHNICAL DATA Table no.1 (Cat : II 2H3+ Normal Economic Nozzle Cons Pressure Burner Gas Type power power pass diameter (mbar) (kW) (kW) (mm) (mm) Natural Gas 1.12 0.248 20 mbar RAPID 2.60 0.72 0.42 Butane 0,86 188,8 28-30mbar Propane 37mbar 0,86 Natural Gas... -
Page 20: Ventilation
Ventilation The room containing the cooker should have an air supply in accordance with B.S. 5440: Part 2: Current Editions. The following requirements for ventilation must be met. The cooker should not be installed in a bed sitting room with a volume of less than 20m , if it is installed in a room of volume less 5m an air... -
Page 21: Gas Connections
GAS CONNECTIONS Your cooker is delivered adjusted for the kind of gas stated on the rating plate BACK OF THE COOKER If the appliance is supplied with natural gas and the pressure for natural gas is 20mbar. The following methods of connection to the gas supply must be used: Right Hand Connection (from front) power cord... - Page 22 The appliance flexible connector should not be The appliance flexible connector should be subjected to undue forces either in normal use positioned such that it will not suffer or whilst connected or disconnected; mechanical damage, e.g. abrasion from the The socket which the plug of the appliance surrounding kitchen furniture, which may be flexible connector fits should be permanently moved in use such as a drawer or door, or...
-
Page 23: Electrical Connection
Electrical connection Warning Important It is forbidden to route the supply cord In any connection way the appliance across the back of the oven. has to be grounded, in accordance with the national rules in force. We decline any responsibility in case of accidents due to no grounding or wrong grounding. -
Page 24: Conversion Of Gas
CONVERSION OF GAS Your cooker is designed to work with natural gas, Stick the label supplied with the propane or butane. It is not designed for butane appliance (in the nozzles bag) corresponding or propane air. to the gas type utilised. The LPG conversion kit is available from your Service Force Centre and must be fitted by a Corgi Registered engineer.
