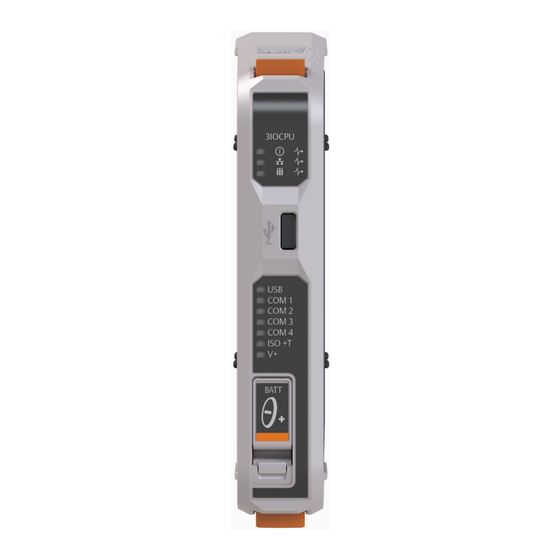

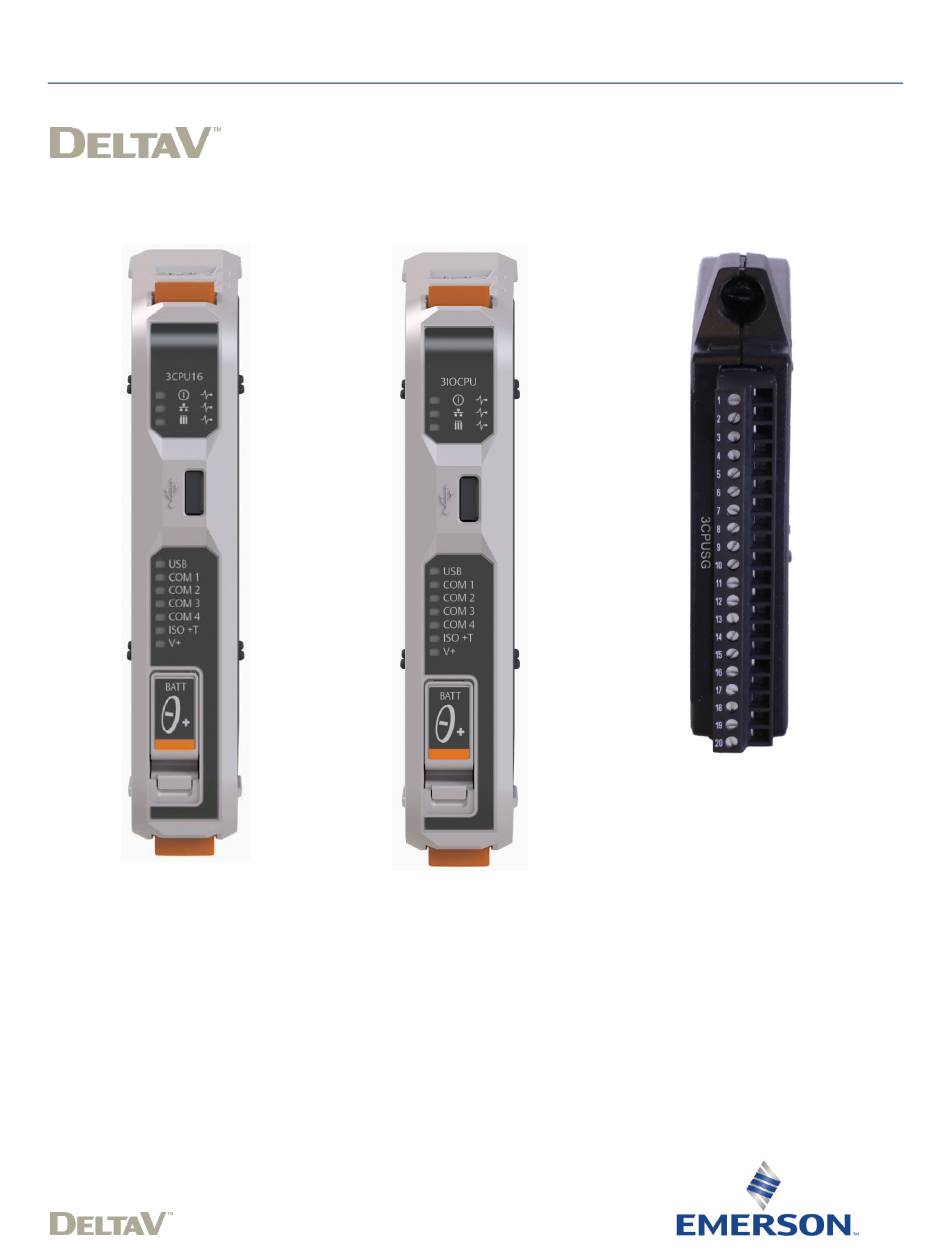

- Page 1 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 FB3000 RTU CPU Module (3CPU16, 3IOCPU, 3CPUSG) Field Installation Guide 3CPU16 Logic Module 3IOCPU Logic Module 3CPUSG Personality Module...
- Page 2 Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs.
- Page 3 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Considerations When Removing / Replacing the CPU (3CPU16, 3IOCPU, 3CPUSG) You may only install the CPU in Slot 1of the chassis. If you have an extended chassis, you may only install the CPU in Slot 1 of the base (first) chassis. Because control is lost when you remove the CPU, you cannot “hot swap”...
- Page 4 Note: For security reasons, user accounts (usernames/passwords) for users of the DeltaV FB3000 are not saved in the solution file. You will need to re-create these after you install the new CPU module.
- Page 5 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Removing/Replacing the CPU Logic Module (3CPU16/3IOCPU) DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION: Ne jamais ouvrir le boîtier dans une zone dangereuse.
- Page 6 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Depress the orange tabs at the top and bottom of the CPU logic module to release the module and slide it straight out of the slot. Removing the CPU Module Press the new replacement module into slot 1 until it snaps into place.
- Page 7 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Removing/Replacing the Personality Module (3CPUSG) DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION: Ne jamais ouvrir le boîtier dans une zone dangereuse. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
- Page 8 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Leave wiring connected to the terminal block and disconnect the terminal block from the personality module by gently rocking the terminal block from side to side until it pops out.
- Page 9 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Replacing a Personality Module...
- Page 10 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Wiring the Personality Module (3CPUSG) DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION: Ne jamais ouvrir le boîtier dans une zone dangereuse. DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
-
Page 11: Serial Ports
DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Follow the wiring instructions below. If you need more detail than is presented here, refer to the DeltaV FB3000 RTU Instruction Manual (D301851X012). Serial Ports COM1 Configured as RS-232... - Page 12 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 COM1 Configured as RS-485 (4-wire) RS-485 (4-wire) port on device Cable shield connection to chassis ground (use either pin 19 or 20) COM1 Configured as RS-485 (2-wire) RS-485 (2-wire) port on device...
- Page 13 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 COM2 Configured as RS-232 RS-485 port on device Cable shield connection to chassis ground (use either pin 19 or 20) COM2 Configured as RS-485 (4-wire) RS-485 (4-wire) port on device...
- Page 14 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 COM2 Configured as RS-485 (2-wire) RS-485 (2-wire) port on device Cable shield connection to chassis ground (use either pin 19 or 20) COM3 Configured as RS-485 (2-wire) Enable AC termination using switch...
- Page 15 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 COM4 Configured as RS-485 (2-wire) Enable AC termination using switch RS-485 bus, twisted pair required Cable shield connection to chassis ground (use either pin 19 or 20)
- Page 16 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024 Ethernet and Micro USB Ports Location of Ethernet and USB Ports Ethernet Port 1 Ethernet Port 2 Micro A-B USB Port...
- Page 17 DeltaV FB3000 RTU CPU Module Field Installation Guide D301871X012 April 2024...
- Page 18 Emerson logo are trademarks and service marks of Emerson Electric Co. The Singapore 128461 DeltaV logo is a mark of one of the Emerson family of companies. All other marks T +65 6777 8211| F +65 6777 0947 are the property of their respective owners.
