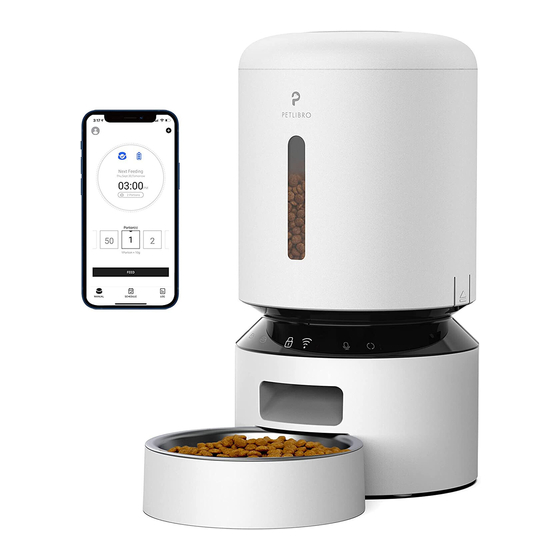

Petlibro PLAF103 User Manual

Granary automatic pet feeder-wifi control 5l
Hide thumbs Also See for PLAF103:
Table of Contents

Advertisement

Quick Links

Download this manual
PET
LIBRO
Model:
PLAF103
USER
MANUAL
Granary Automatic
Pet Feeder-WiFi
Control
5L
Read this manual before using the product, and keep it for future reference.
This product is intended for household use only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLAF103 and is the answer not in the manual?

Questions and answers

Related Manuals for Petlibro PLAF103

Summary of Contents for Petlibro PLAF103

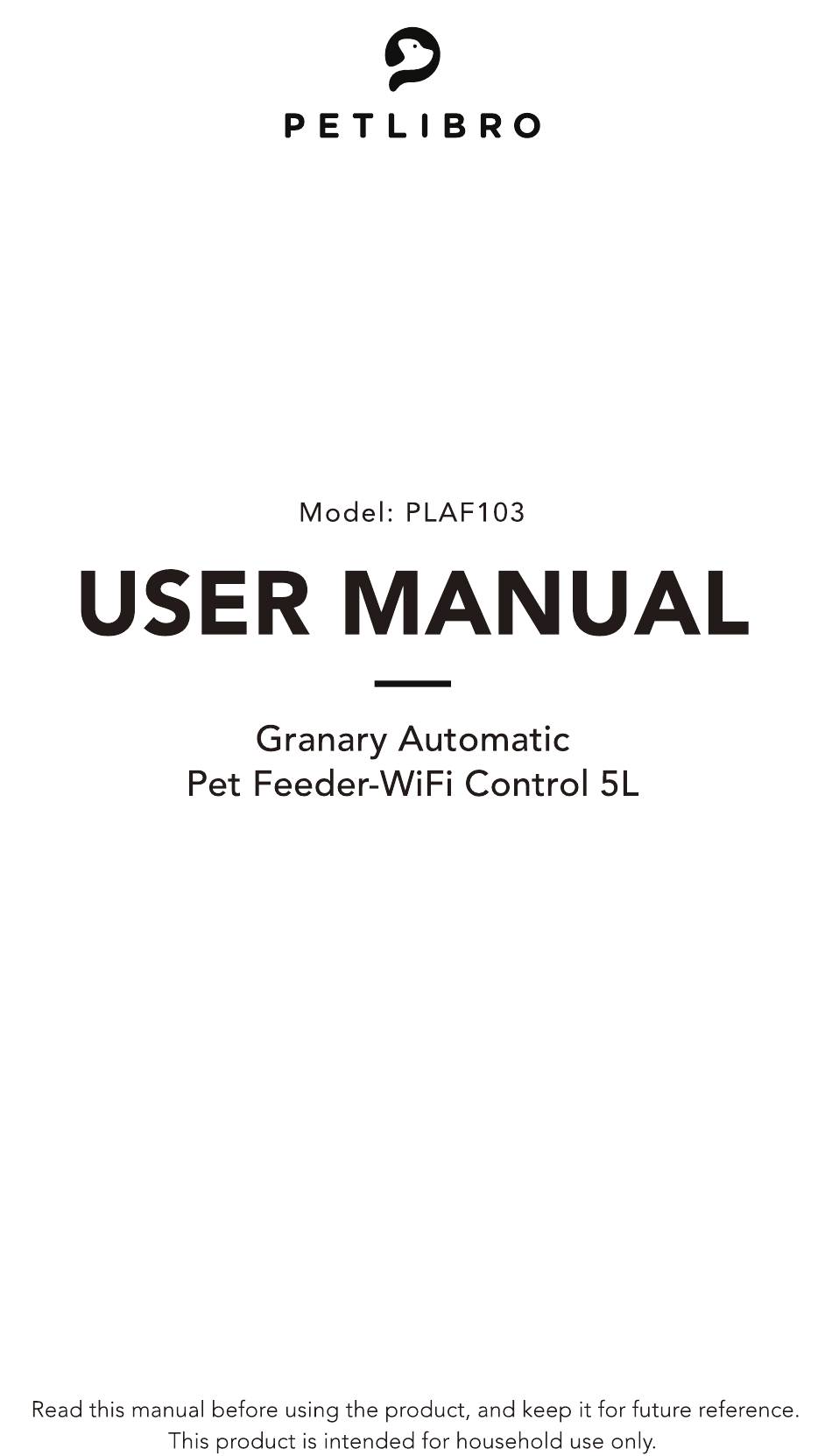

  • Page 1 LIBRO Model: PLAF103 USER MANUAL Granary Automatic Pet Feeder-WiFi Control Read this manual before using the product, and keep it for future reference. This product is intended for household use only.

  • Page 2: Table Of Contents

    CONTENTS SAFETY GUIDELINES WARRANTY N THE PRODUCT OVERVIEW BUTTONS INDICATORS OVERVIEW SET UP THE FEEDER CONTROLLING VIA APP CLEAN CARE TROUBLESHOOTING SPECIFICATIONS...

  • Page 3: Safety Guidelines

    SAFETY GUIDELINES ! WARNING • Dispose of al packaging materia s properly. Some items may be packed in plastic bags; these bags could cause suffocation; keep away from chi dren and pets. • Do NOT allow smal chi dren to play with, in or around feeder.
  • Page 4 • If the plug of this device gets wet, turn off electricity to that wal outlet. Do not attempt to unplug. • Examine the feeder after instal ation. Do not plug •n •f there is water on the power cord or plug. •...
  • Page 5 Changes or modifications to this unit not express y approved by the party responsible for compliance could void the user' s authority to operate the equipment. NOTE: Th •sequipment has been tested and found to comply with the imits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 6: Warranty

    • I-year warranty • Lifetime support For guidance on product use and warranty extension, please contact our brand after-sales staff via email: support@petlibro.com f any questions re ated to orders, p ease contact the sel er through the shopping platform.

  • Page 7: N The Box

    IN THE Automatic Pet Feeder Food Bowl with Holder Power Adapter User Guide Desiccant Bag...

  • Page 8: Product Overview

    PRODUCT OVERVIEW 1. Lid 2. Seal Strip 3. Food Tank 4. Transparent Window 5. Tank Base 6. Anti-Clog Detector •2 7. Control Pane 8. Display Panel 9. Food Outlet 11. Stainless Steel Bow 12. Bowl Holder...
  • Page 9 13. Desiccant Battery Compartment 14. power Jack 17. Compartment Lid 15. Power Adapter Speaker...

  • Page 10: Buttons And Indicators Overview

    BUTTONS INDICATORS OVERVIEW Buttons Overview Unlock Button Manual Feeding Button n the unlocked state, TO unlock the contro panel, press and hold the press once to dispense 1 button for 5 seconds, the portion of food. device emits a Di, DiDi sound.
  • Page 11 Indicators Overview Food Level Indicator Light up red if the food level is ow. Off if the tank has enough food. Lock Indicator On if the control panel is ocked. Off if the control panel is unlocked. Note: The control buttons will be locked automatically after 30 seconds Of standby.

  • Page 12: Set Up The Feeder

    SET UP THE FEEDER Assembly and Prepare for Setting 1-Take out the food bowl inside the food tank. Twist the lid anticlockwise to remove the lid. Pul the notches on both sides outward a little and then up to remove the food tank.
  • Page 13 2. Place the desiccant bag into the inner box under the lid. Notes: • It is recommended to change the desiccant bag every 15 days to prevent mold growth. • Remove the desiccant bag before cleaning the lid. 3. Instal the food tank.
  • Page 14 4. Add dry pet food to the food tank. Notes: • To prevent uneven food dispensing, please add enough pet food to the visible level. • Recommended kibble size: 2-15mm/O.07-O.6 inch in diameter. • Do not use canned, wet, or moist food. 15mm Minimum Grain...
  • Page 15 6. Instal the Food Attach the bowl to the designated notches underneath the feeder base. Note: Before moving the feeder, press the bowl down to remove it from the feeder base. If there is grain in the food bowl, handle it gently to avoid spilling. Hold the base instead of any other parts when lifting the feeder.
  • Page 16 7. Connect Power ) Plug the 5V power adapter into a power socket and the USB cable into the USBport on the back of the feeder. 2) The LED disp ay will light up automatical y to indicate the feeder is on.

  • Page 17: Controlling Via App

    10.0 or later; smartphone on Android 5.0 or ater Install the APP & Log in 1. Scanthe QR code on the right or search "PETLIBRO LITE" in App Store or Google Play> to download the App. 2. Sign up and og into your account.
  • Page 18 2) Choose PLAF103 WiFi Feeder. 3) Follow the instructions on the screen, and confirm WiFi indicator on the feeder is flashing. (Note: If the WiFi indicator on the feeder is not flashing, hold the Un Ock Button for 5s to unlock, the Ock indicator goes out.
  • Page 19 4)Add the device PLAF103by entering WiFi accountand password. 5 ) Feeder connected, start to set the feeding time and portions, record meal call, and set the times the meal ca play...
  • Page 20 B. Add Feeder in AP Mode 1)Turn off the Bluetooth on your phone 2) Open the App, tap "Add Device ' or " +1' in the upper right corner, choose PLAF103WiFi Feeder, tap the icon at...
  • Page 21 4) Enter your WiFi account and password, and go to the WiFi connection interface on your phone, find the device "SL-PETLIBRO-xxxx' and tap to connect. 5) Back to the App and wait for connecting. 6) Feeder connected, start to set the meal time and portion size, record meal cal , and set the times the meal cal play.
  • Page 22 Meal Plan On Schedule page, tap the Add icon, choose feeding time, feeding days, and feeding portions.
  • Page 23 View the Logs On Log page, you can view the feeding records and abnormal notifications.
  • Page 24 Record a Meal Call & Set Playback Times con in the upper right corner Recording, then tap the Add icon, fol ow the instructions on the screen to record a meal cal , set the times the meal cal play. Note: The device can only keep the latest recording.

  • Page 25: Clean And Care

    Reset the Feeder on App icon in the top right corner Factory Reset, the feeder emits beeps: Di, DiDi, the WiFi indicator keeps flashing, it indicates the device is ready for re-connection. Share Device Tap @ icon in the top right corner —9 Share Device —9 Add Sharing.
  • Page 26 Clean the tank lid, food tank, tank base Before removing the food tank, be sure the food tank is empty •n case of food spilling al over. 1. Disconnect power before cleaning.
  • Page 27 2. Twist anticlockwise to remove the lid and take out the desiccant bag from the inner box under the I'd. 3. Pul the notches on both sides outward a little and then up to remove the food tank.
  • Page 28 4. Twist anticlockwise to remove the tank base. 5. Thorough y rinse and air dry the lid, tank and tank base .
  • Page 29 6. Refit them to the machine. Turn the tank base clockwise until it snaps into place 7. Then install the tank and lid.
  • Page 30 Clean Food Bowl 1. Press down the food bowl with ho derto remove them. 2.inseand air dry them thorough ybefore r efitting them e machine.

  • Page 31: Troubleshooting

    TROUBLESHOOTING The answers to these questions should he p you solve most problems you may have with the pet feeder. f they do not, please contact our Customer Care Center via support@petlibro.com Problem Solution Can't connect l) Keep the feeder and your phone close...

  • Page 32: Specifications

    SPECIFICATIONS Model PLAF103 Capacity 5 liters DC 5V power adapter; 3 x alkaline D Power batteries (not included) ACIOO-240V, 50 / 60Hz Input, DC 5V...
  • Page 33 PETLIBRO Granary Automatic Pet Feeder-WiFi Control Model: PLAF103 OLibro Corp. A1 Rights Reserved. Manufacturer: Shenzhen Libro Technology co., Ltd. Address: 12/F, Tower B, GALAXY WORLD, Yabao Road, Longgang District, Shenzhen, China Made in China PLAF103 V2.o ICES-3 2A3DE-PLAF103 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions;...
