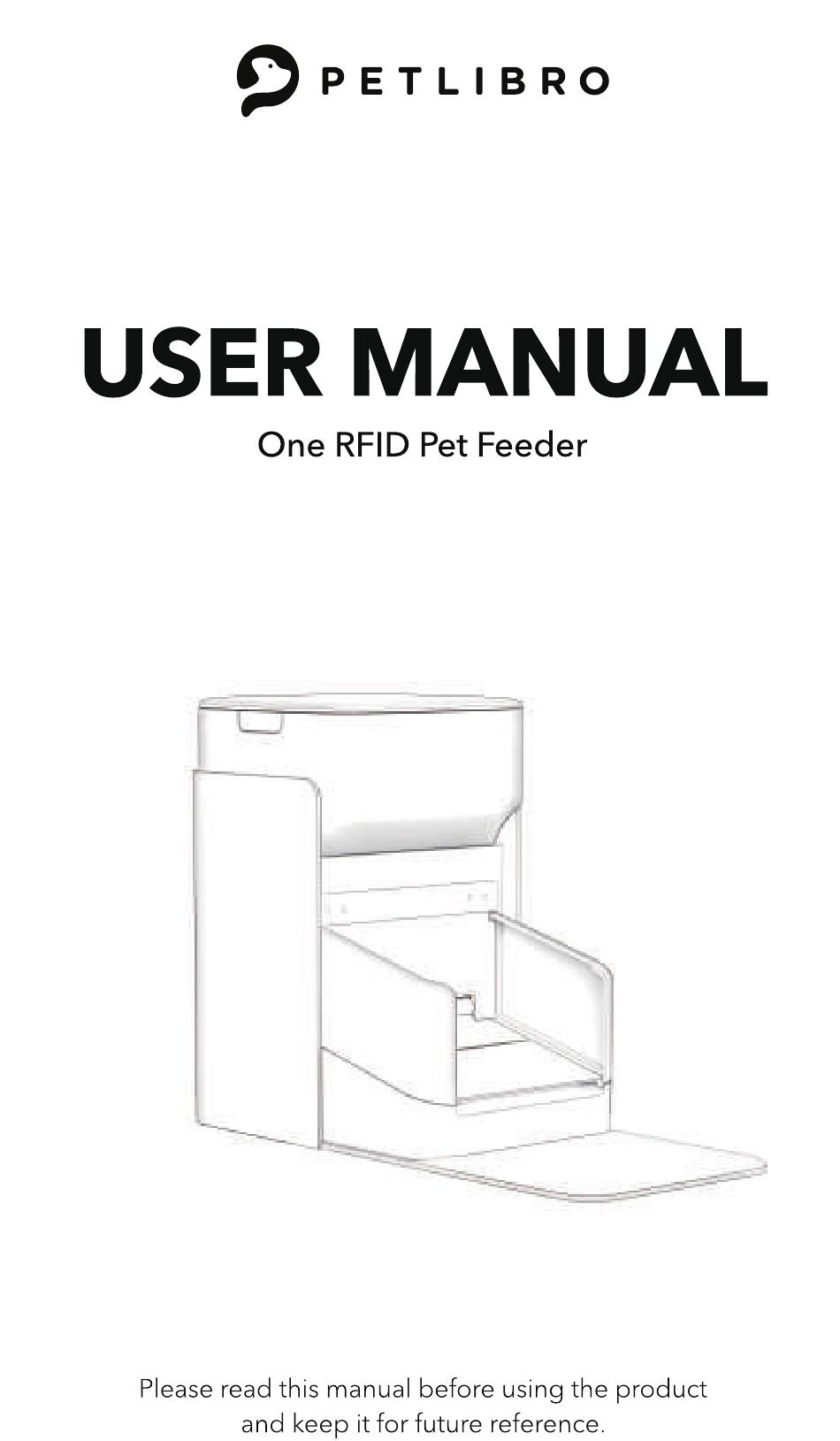

- Page 1 LIBRO USER MANUAL RFID Pet Feeder Pleasereadthis manual before using the product and keep it for future reference.
-
Page 2: Table Of Contents
Contents / English In The Box Product Overview Getting Started App Control Pair The Collar Tag Care And Maintenance Specifications Safety nstructions Warranty Notice... -
Page 3: In The Box
In the Stainless Steel Food with HO der Automatic Pet Feeder Food Bowl Shield Food Bowl Lid RFID Reader... - Page 4 Desiccant Bag Power Adapter Quick Start Guide User Manual Ring...
-
Page 5: Product Overview
Product Overview . Food Tank Lid 2. Desiccant Bag Holder 3. Food Tank nfrared Sensor (Detects pet) 5. Control Pane nfrared Sensor (Detects food levels) 7. LED Display 8. Feeder Base 9. Food Bowl Lid Pivot Lock 10. Food Outlet 11. - Page 6 18. Battery Compartment 19. Battery Compartment Cover 20. Speaker 21 . Power Port 22. Food Tank Lock...
- Page 7 Lid Release n the unlocked state, press once to dispense one portion Feed Press and hold for five seconds unlock the buttons, and the feeder w' emit a reminder sound.
- Page 8 Indicators Overview LED Display LED Display Device Status Welcome screen Locked state Unlocked state Waiting for Wi-Fi connection Successful Wi-Fi connection Resetting OTA updating...
- Page 9 LED Display Device Status Dispensing food Customized emoji pack Wi-Fi connection abnorma /offline Abnormal food id c osing Abnormal foos bow id opening Low battery Indicator Status Indicator Status Device Status The food outlet is blocked OUTLET BLOCKED The food level in the tank is FOOD insufficient...
-
Page 10: Getting Started
Getting Started Installation Scan the QR code below to watch the video for product instal ation, or fol ow the instructions in the manual to insta the feeder. I. Install the food bowl l) Press the locks on both sides Of the food tank lid, remove the lid, and take out the accessories from the food tank. - Page 11 3) After successful y installing the food bowl lid, move the food bowl lid pivot lock to the eftto ensure that it's in the ocked state. Notes: If the food bowl lid is unlocked, the product will not work properly. 2.
- Page 12 2) Place the stain ess steel food bowl and bowl tray in the designated groove of the reader. 3) Open the battery compartment at the bottom of the feeder. Install three alkaline D batteries (not included) case Of a power outage. Bottom view Notes:...
- Page 13 • TOavoid battery leakage, remove the batteries if the device won't be in use for a period of time. • When powered in battery mode, only the RFID recogni- tion function, Wi-Fi function, and feeding function are enabled; all other functions are disabled.
- Page 14 Note: When installing the body on the RFID reader, if you hear a 'click' sound, it indicates that the body is properly installed. 3. Install the food bowl shields nsert both shie ds into the body. 4. Install the food tank Pressthe food tank lock to lock it in place.
- Page 15 5. Add dry pet food to the food tank Notes: • To prevent uneven food dispensing, please add enough pet food to prevent low surplus food alarm triggered. • Recommended kibble size: 2-15mm (0.07-0.6in) diameter. • Do not use canned, wet, or moist food. 1 5 mm 6.
- Page 16 Notes: • It is recommended to change the desiccant bag every 15 days to prevent mold growth. • Remove the desiccant bag before cleaning the lid. Press the locks on both sides Of the food tank lid to install the lid in place. 7.
-
Page 17: App Control
1. Download and install the PETLIBRO app. Google Play App Store Note: There are two similar apps available on your phone's app store: PETLIBROand PETLIBRO LITE. Please make sure you download the PETLIBRO instead of LITE. 2. FOIow the instructions to configure the network. Deva... -
Page 18: Pair The Collar Tag
Pair The Collar Tag Note: There are two methods to pair the collar tag: sensor-based pairing and QR code-based pairing. If one method fails, you can switch to the other. 1. After successfully adding the device, tap the "ADD COLLAR"... -
Page 19: Care And Maintenance
3. After a successful addition, tap "CONFIRM" to pair the collar tag. COLLAR 4. Follow the app instructions to add relevant pet information. Care Maintenance Note: Scan the QR code above to watch the video for product installation and cleaning. -
Page 20: Specifications
• Power Off the device before cleaning. • Do not clean the feeder in a dishwasher. Only the stainless steel bowl is dishwasher safe. • Use a soft damp cloth to clean the feeder base. Do not wash any part with electronic components. •... -
Page 21: Warranty
Warranty • 12-month warranty • For guidance on product use, please contact our customer service team via email: support@petlibro.com Notice statement This device complies with Part 15 of the FCC Rules. Opera tion is subject to the fol owing two conditions:... - Page 22 Off and on, the user is encouraged to try to correct the interference by one or more of the follow measures: • Reorient or re ocate the receiving antenna.
- Page 23 RFID Pet Feeder @LibroCorp. A1 Rights Reserved. Model: PLAF301 Manufacturer: ShenzhenLibro Technology co., Ltd. Address: 12/F, Tower B, GALAXY WORLD, Yabao Road, Longgang District, Shenzhen,China Made in China PLAF301 _VI .O R 219-239385 FCC ID:2A3DE-PLAF301 IC:28987-PLAF301 ThisdevicecompliesWithPart15 Ofthe FCCRules. O peration is subjectto the...
