Removing Drawers - Haier Hf-220Waa Instructions For Use Manual

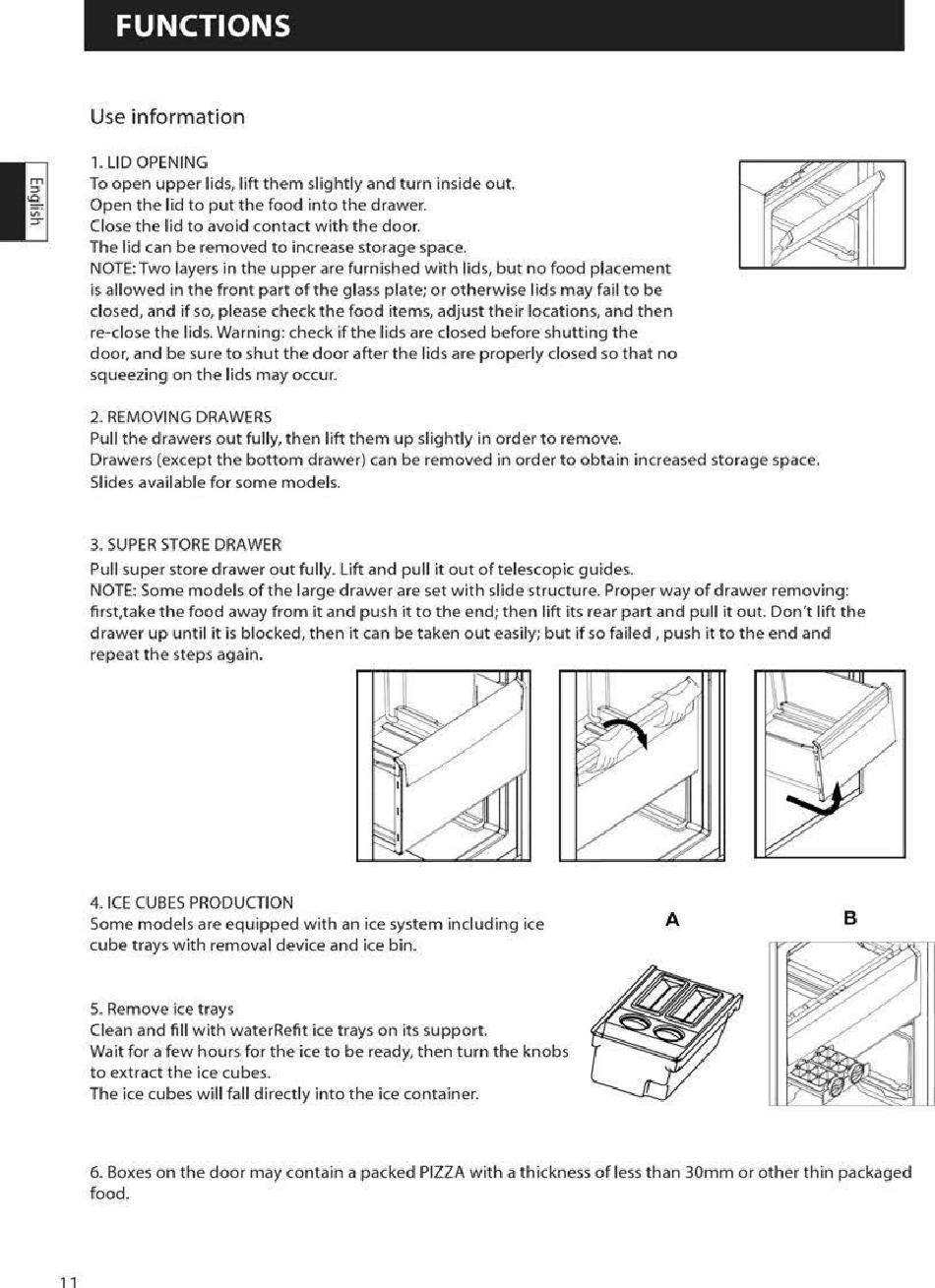

FUNCTIONS
Use information
1. LID OPENING
To open upper lids, lift them slightly and turn inside out.
Open the lid to put the food into the drawer.
Close the lid to avoid contact
The lid can be removed to increase storage space;
NOTE:Two layers in the upper are furnished with lids, but no food placement
is allowed in the front part of the glass plate; or otherwise lids may fail to be
closed, and ifso, please check the food items, adjust their locations, and then
re-close the lids. Warning: check if the lids are closed before shutting the
door, and be sure to shut the door after the lids are properly closed so that no
squeezing on the lids may occur
2. REMOVING DRAWERS
Pull the drawers out fully, then lift them up slightly in order to remove,
Drawers (except the bottom drawer) can be removed in order to obtain increased storage space,
Slides available for some
3. SUPER STORE DRAWER
Pull super store drawer out fully. Lift and pull it out of telescopic guides.
NOTE:Some models ofthe large drawer are set with slide structure, Proper way of drawer removing:
first.take the food away from it and push it to the end; then lift its rear part and pull it out. Don't lift the
drawer up until it is blocked, then it can be taken out easily; but if so failed push it to the end and
repeat the steps again.
4. ICE CUBES PRODUCTION
Some models are equipped
cube trays with removal
5. Remove ice trays
Clean and fill with waterRefit
Wait for a few hours for the ice to be ready, then turn the knobs
to extract the ice cubes.
The ice cubes will fall directly into the ice container.
6. Boxes on the door may contain a packed PIZZA with a thickness of less than 30mm or other thin packaged
food.
with the door.
models,
with an ice system including ice
device and ice bin.
ice trays on its support.
