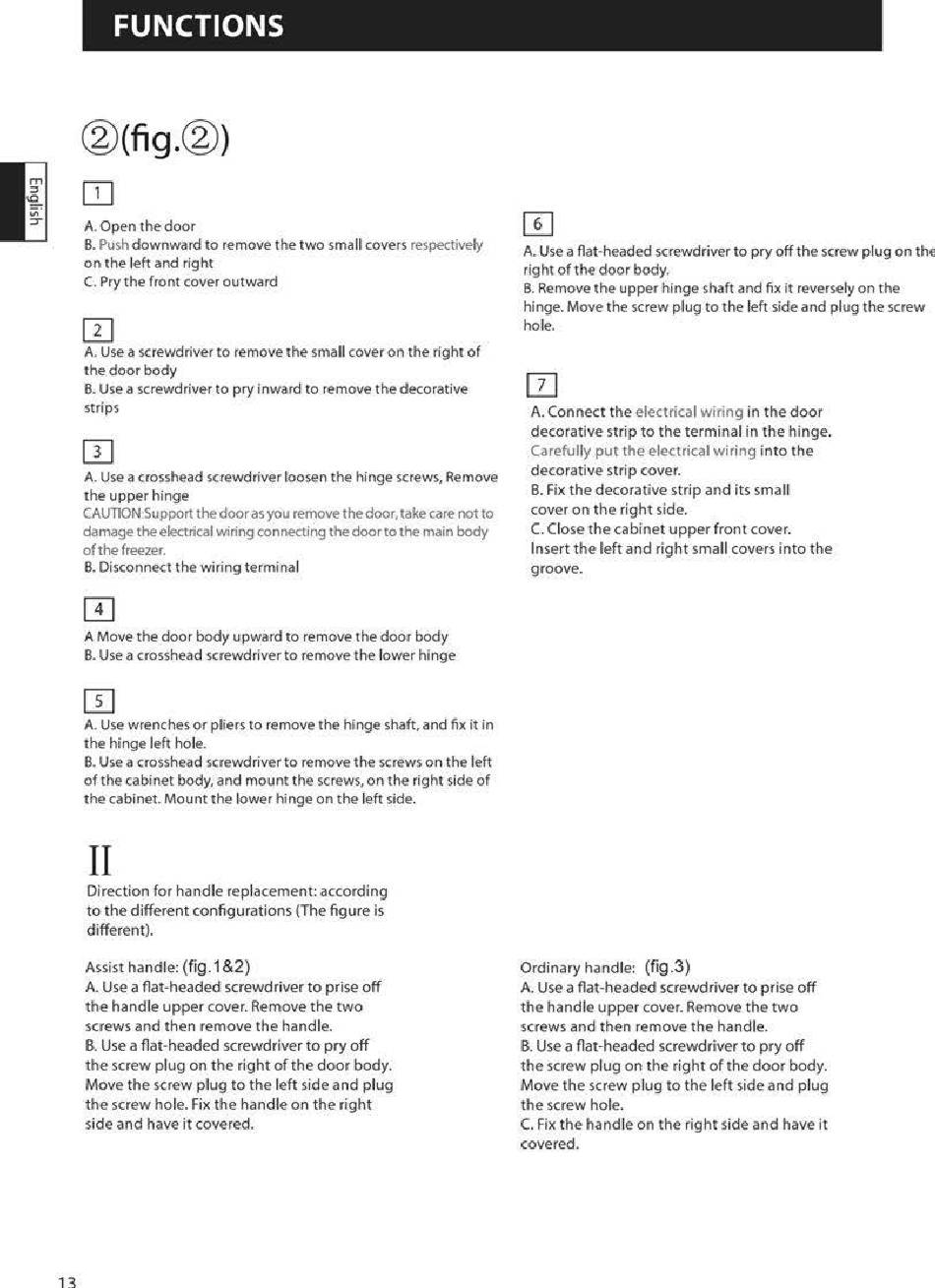

FUNCTIONS
@(fig.@)
A. Open the door
B. Pushdownward to remove the two small covers respectiVety
on the left and right
C. Pry the front cover outward
A. Use a screwdriver to remove the small cover on the right of
the door body
B. use a screwdriver to pry inward to remove the decorative
strips
A. Use a crosshead screwdriver loosen the hinge screws, Remove
the upper hinge
CAUTION Support the door asyou removethe door, take care not to
damage the electricalwiring connecting the door to the main body
of the freezer.
B, Disconnect the wiring terminal
A Move the door body upward to remove the door body
B. use a crosshead screwdriver to remove the lower hinge
A. Use wrenches pliers to remove the hinge shaft, and fix it in
the hinge left hole.
B. use a crosshead screwdriver
of the cabinet body, and mount the screws, on the right side of
the cabinet, Mount the lower hinge on the left side,
11
Direction for handle replacement: according
to the different configurations (The figure is
different).
Assist handle: (fig. 1&2)
A. Use a flat-headed screwdriver to prise off
the handle upper cover. Remove the two
screws and then remove the
B. Use a flat-headed screwdriver to pry off
the screw plug on the right of the door body.
Move the screw plug to the left side and plug
the screw hole. Fixthe handle on the right
side and have it covered.
to remove the screws on the left
handle.
A. Useafiat-headed screwdriveTtopry off the screwplug on the
right of the door body,
B. Remove the upper hinge shaft and fix it reversely on the
hinge. Move the screw plug to the left side and plug the screw
hole.
A. Connect the electrical wiring in the door
decorative strip to the terminal in the hinge.
Carefully put the electrical wiring into the
decorative strip cover.
B. Fix the decorative strip and its small
cover on the right side.
C. Close the cabinet upper front cover,
Insertthe left and right small coversinto the
groove.
Ordinary handle; (fig.3)
A. Use a flat-headed screwdriver to prise off
the handle upper cover-Remove the two
screws and then remove the handle.
B, Usea flat-headed screwdriver to pry off
the screw plug on the right of the door body.
Move the screwplug to the left sideand plug
the screw hole.
CLFix the handle on the right side and have it
covered.
