FIREPLACE TRIM INSTALLATION
1. Adjust trim width and height to fit the fireplace opening.

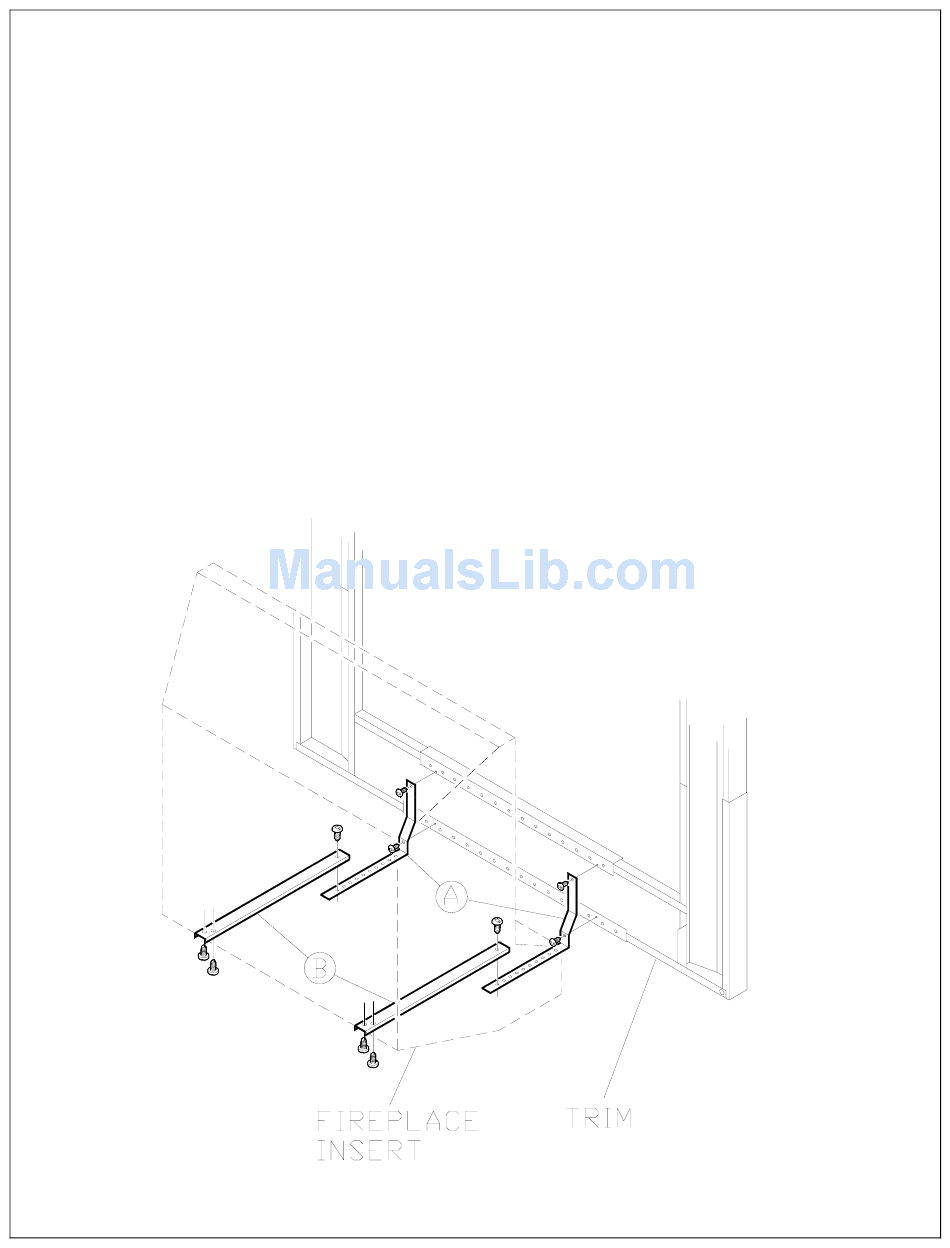

2. Install the two L-shaped brackets (A) onto the back of the trim
with the screws provided.
3. Install the two brackets (B) onto the bottom of the fireplace
insert with the crews provided.
4. Slide the trim into the brackets that are mounted on the bottom
of the fireplace insert.
5. Adjust the trim to the desired depth and secure with the two
screws provided.
6. Slide the trim and fireplace insert assembly into the fireplace
opening so the trim fits flush to the fireplace opening.
NOTE:
TRIM SHOWN FROM BACK
