Instruction
Manual
hÄ*: A1
Version:
A1

Advertisement

loading
Need help?

Need help?

Do you have a question about the A1 and is the answer not in the manual?

Questions and answers

Related Manuals for Sony A1

Summary of Contents for Sony A1

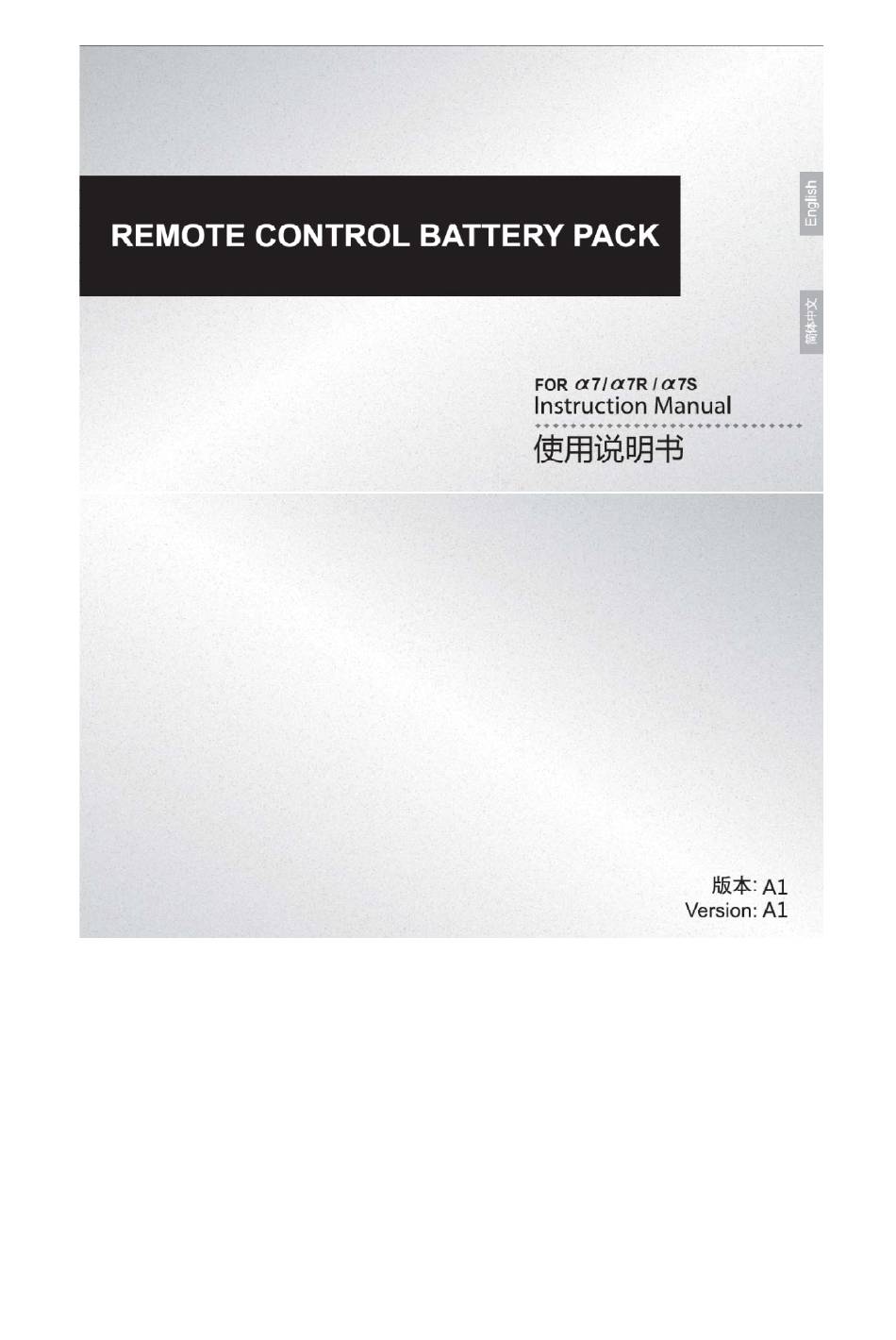

  • Page 1 REMOTE CONTROL BATTERY PACK 0(71a7R 1 a7s Instruction Manual hÄ*: A1 Version:...
  • Page 2 1. Warning In order to reduce the risk of causing fire hazard or electrical shock, please don't make this product exposed to rain and moisture. When dealing with the lithium battery, use the adhesive tape to seal the contact points to avoid short circuit, and adhere to the local regulations about the battery disposal Keep the batteries or parts away from children in case they swallow them.
  • Page 3 2. Notice The environment where has intense shaking, strong electromagnetic interference, intense radiation and much dust. The designed working temperature for this product is -200C/70C. As the abrupt temperature rising will cause air condensed, so this product shall be sealed in a plastic bag after staying in the cold environment for a long time. Try best to empty the air in the bag and then bring it to the indoor.
  • Page 4 4. Nomenclature 1. Function switch 2. AF(auto focus)/MF(manual focus)/AEL(AE lock) buttons 3. Camera battery compartment cover slot 4. Attach/ detach knob 5. Battery compartment switch —5— 4. Nomenclature 6. Cl (custom 1) button 7. Shutter button 8. Front pulling wheel 9.
  • Page 5 4. Nomenclature 16. Signal indicating light 17. Shutter release button 18. LCD screen 19. Start/stop key 20. Light key/lock key 21.2 IUP arrow key 22. Down arrow key 23. Left arrow key 24. Right arrow key 25. Set key 26. Shutter release terminal ( 2.5 stereo) 5.
  • Page 6 5. Assembly Instructions 2. The Assembly and Disassembly of Battery This product only applies to NP-FW50 battery (one or two). Before using it, be sure to use the designated battery charger to charge the battery. Make the POWER button at the location "OFF".
  • Page 7 5. Assembly Instructions • Place the battery well, and then align with the battery compartment entrance and push it in, then clockwise rotate the battery compartment switch 90 degrees first and then anticlockwise rotate it 90 degrees to take out the battery, as shown in Figure a7. —11—...
  • Page 8 6. Basic Functions Vertical-Shooting Function When using grip to vertically shoot photos, make the function switch at location "ON". The function switch is used to switch on/off grip. No matter where the function switch is, the operation button of the camera is always in working state.
  • Page 9 6. Basic Functions Function of Remote Controller • Clock function: After inserting two batteries, set default time mode; the time is adopted 24-hour format, as shown in Figure a10. • Time display mode: Lightly press SET key, the bit time will blink, at this time, press the right/left arrow key, then it blinks in sequence.
  • Page 10 6. Basic Functions The Shutter Remote Controlling Function (as Shown in Figure a12) • Within 10 seconds after the battery is inserted into grip, press the shutter release button on the remote controller to realize channel docking. —17— 6. Basic Functions •...
  • Page 11 6. Basic Functions • When "N" is blinking, the shooting number of "N" can be set between 1-998; if the number is not limited, the shooting number of "N" can be set as ; when it is set as "999", it displays "—" at this time, as shown in Figure a15. •...
  • Page 12 6. Basic Functions • Separately choose "LONG", "INTVL" and "N" by pressing right/left arrow key in sequence, and then they correspondingly blink. Pressing right/left arrow key can choose hour, minute and second in sequence. Separately adjust the parameters exposure time, interval time and shooting numbers by pressing up/down arrow key. The settings will be done by lightly pressing SET key.

  • Page 13: Specification

    7. Specification Parameter working voltage 7.2V-8.4V less than working current Grip Parameters working temperature -200 — 700 applicable battery NP-FW50 grip 1 Pcs Packing remote controller 1 Pcs List 1 Pcs instruction manual warranty card 1 Pcs working voltage Parameters less than 50mA working current...
