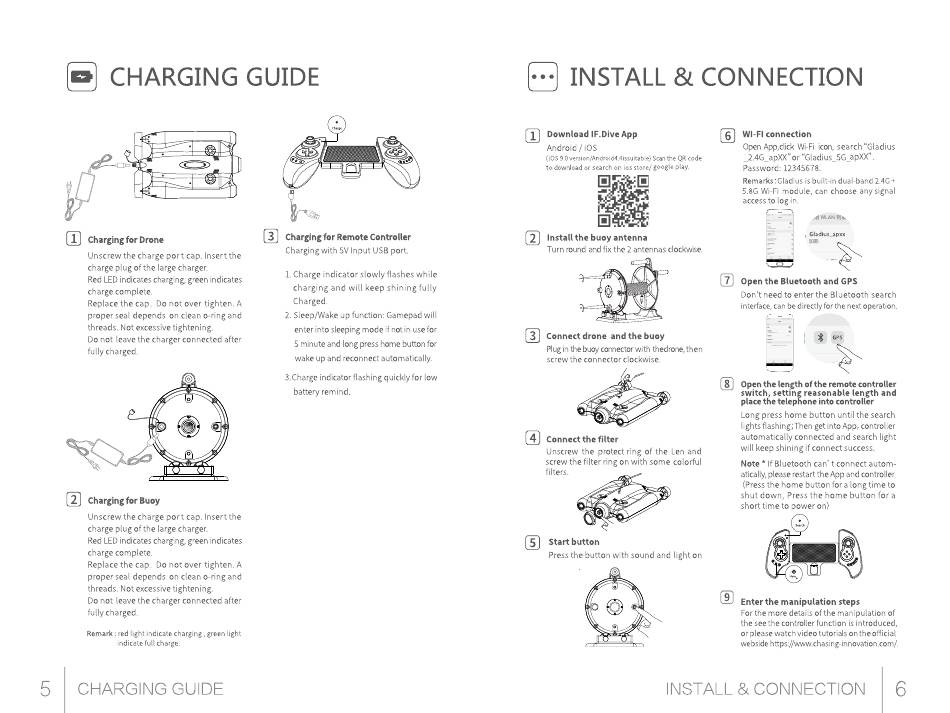

CHARGING
Charging for Drone
Unscrew the charge port cap. Insert the
chargeplug of the large charger.
RedLEDindicates charging, green indicates
charge complete.
Replacethe cap. Do not over tighten. A
proper seal depends on clean O-ring and
threads. Not excessive tightening.
Do not leavethe chargerconnectedafter
fully charged.
o
Charging for Buoy
Unscrewthe charge port cap. Insert the
charge plug of the large charger.
RedLEDindicates charging, green indicates
charge complete.
Replace the cap. Do not over tighten. A
proper seal depends on clean O-ring and
threads. Not excessive tightening.
Do not leave the charger connected after
fully charged.
Remark : red light indicate charging , green light
indicate full charge.
5
CHARGING GUIDE
GUIDE
Charging for Remote Controller
Charging with 5V Input USB port.
1.Charge indicator slowly flasheswhile
charging and will keep shining fully
Cha rged.
2. Sleep/Wake up function: Gamepad will
enter into sleepingmode if notin usefor
5 minuteandlong presshomebuttonfor
wake up and reconnect automatically.
3.Charge indicator flashing quickly for low
battery remind.
INSTALL & CONNECTION
Download IF.Dive App
Android / iOS
(iOS9.0 version/Android4.4issuitable)SGnthe QRcode
to download or searchon ios store/googleplay.
Install the buoy antenna
Turn round and fix the 2 antennas clockwise.
Connect drone and the buoy
Plugin the buoyconnectorwith thedrone,then
screw the connector clockwise.
Connect the filter
Unscrew the protect ring of the Len and
screw the filter ring on with some colorful
filters.
Start button
Press the button with sound and light on
INSTALL
WI-FI connection
Open App,click Wi Fi icon, search "Gladius
2.4G apXX"or"Gladius5G_apXX"
Password: 12345678.
Remarks: Gladius is built-in dual-band 2.4G+
5.8G Wi-Fi module, can choose any signal
accessto log in.
Æ WLAN
Gladius_apxx
Open the Bluetooth and GPS
Don't need to enter the Bluetooth search
interface,can be directlyfor the nextoperation.
Open the length of the remote controller
switch, settin reasonable length and
place the telepkone into controller
Long press home button until the search
lights flashing; Then get into App, controller
automatically connected and search light
will keep shining if connect success.
Note * If Bluetooth can' t connect autom
atically, pleaserestart the App and controller
(Pressthe home button for a long time to
shut down, Press the home button for a
short time to power on)
Enter the manipulation steps
For the more details of the manipulation of
the see the controller function is introduced,
or pleasewatch video tutorials on the official
webside https://www.chasing-innovation.com/.
6
