Chasing GLADIUS Pro Quick Start Manual page 3

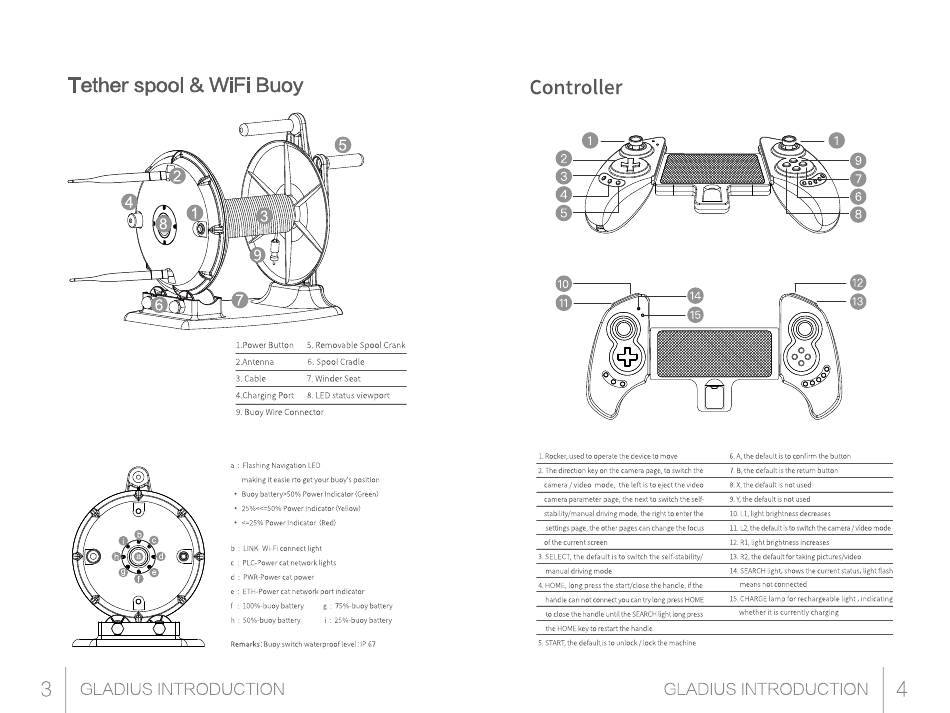

Tether spool & WiFi Buoy
O
0 000
3
GLADIUS INTRODUCTION
5. Removable Spool Crank
I.Power Button
2.Antenna 6. Spool Cradle
3. Cable 7. Winder Seat
4.Charging Port
8. LEDstatus viewport
9. Buoy Wire Connector
a : Flashing Navigation LED
making it easie rto get your buoy's position
• Buoy Power Indicator (Green)
• Power Indicator (Yellow)
• Power Indicator (Red)
b : LINK-Wi-Ficonnect light
c PLC-Powercat network lights
d : PWR-Powercat power
e : ETH-Powercat network port indicator
• 100% buoy battery g : 75% buoy battery
h : 50% buoy battery i 25% buoy battery
Remarks: Buoy switch waterproof level :IP 67
Controller
O
0
O
10
14
15
l. Rocker,usedto operatethe deviceto move
2. The direction key on the camera page,to switch the
camera /video mode, the left is to eject the video
camera parameter page,the nextto switch the self-
stability/manual driving mode, the right to enter the
settings page,the other pagescan changethe focus
of the current screen
3. SELECT, t he default is to switch the self-stability/
manual driving mode
4. HOME,long pressthe start/close the handle, if the
handle can not connectyoucantry long pressHOME
to closethe handle until the SEARCH light longpress
the HOMEkeyto restartthe handle
5. START, t he default is to unlock / lock the machine
GLADIUS
O
12
13
O
6. A, the default is to confirm the button
7. B, the default is the return button
8. X,the default is not used
9. Y,the default is not used
10.L1, light brightnessdecreases
11. L2,the default is to switch the camera / video mode
12.RI, light brightnessincreases
13.R2, t he default for taking pictures/video
14.SEARCH light, shows the current status,light flash
means not connected
15.CHARGE lamp for rechargeablelight , indicating
whether it is currently charging
4
INTRODUCTION
