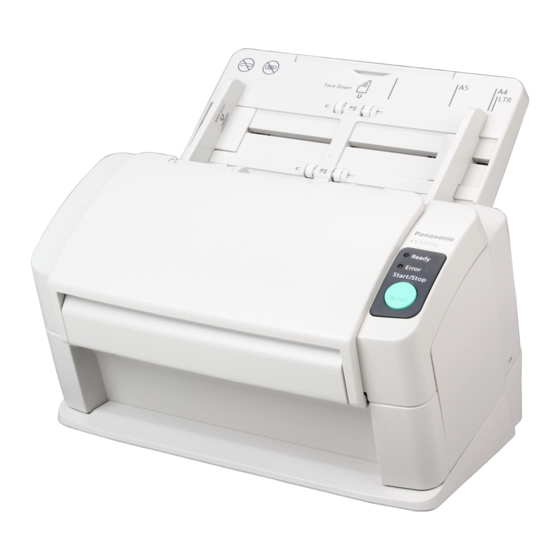

Panasonic KV-S1025C Cleaning Instructions

Hide thumbs Also See for KV-S1025C:

Download this manual

PanasonicKV-S1025C Scanner Cleaning Instructions

ACAUTION

Cleaning

the rollers

Follow the steps below to clean the rollers.

Turn the power off.

• Push the power switch.

• Unplug the AC adaptor from the scanner.

Press the door open button, and open

the ADF

door.

Open the paper feed roller cover

(Green) in the direction of the arrow

shown

in the illustration.

The scanning glass section may be very hot.

When the glasses are hot, work after waiting to get cold without touching

around the glasses.

Door open button

Cleaning

the Unit

ADF

door

Need help?

Do you have a question about the KV-S1025C and is the answer not in the manual?

Page 1 PanasonicKV-S1025C Scanner Cleaning Instructions Cleaning the Unit The scanning glass section may be very hot. ACAUTION When the glasses are hot, work after waiting to get cold without touching around the glasses. Cleaning the rollers Follow the steps below to clean the rollers. Turn the power off.
Page 2 Cleaning the Unit Use the Roller Cleaning Paper (KV- SS03) to remove the dirt from the surface of the paper feed roller. • When wiping off the dirt on the roller surface, hold the roller to prevent it from rotating, and wipe the roller from one end to the other (in the direction of the arrow) all the way around it, as shown in the illustration.
Page 3 Cleaning the Unit Use the Roller Cleaning Paper to clean the surface of the conveyor rollers and exit rollers. Exit rollers • Wipe the conveyor rollers and the exit rollers from one end to the other (in the direction of the arrow) all the way around them, as shown in the illustration.
Page 4 Cleaning the Unit ACAUTION The scanning glass section may be very hot. When the glasses are hot, work after waiting to get cold without touching around the glasses. Cleaning the scanning glass section and reference area Turn the power off. •...
