Haier ACD12KE-E Service Manual
Table of Contents
Related Manuals for Haier ACD12KE-E
Summary of Contents for Haier ACD12KE-E

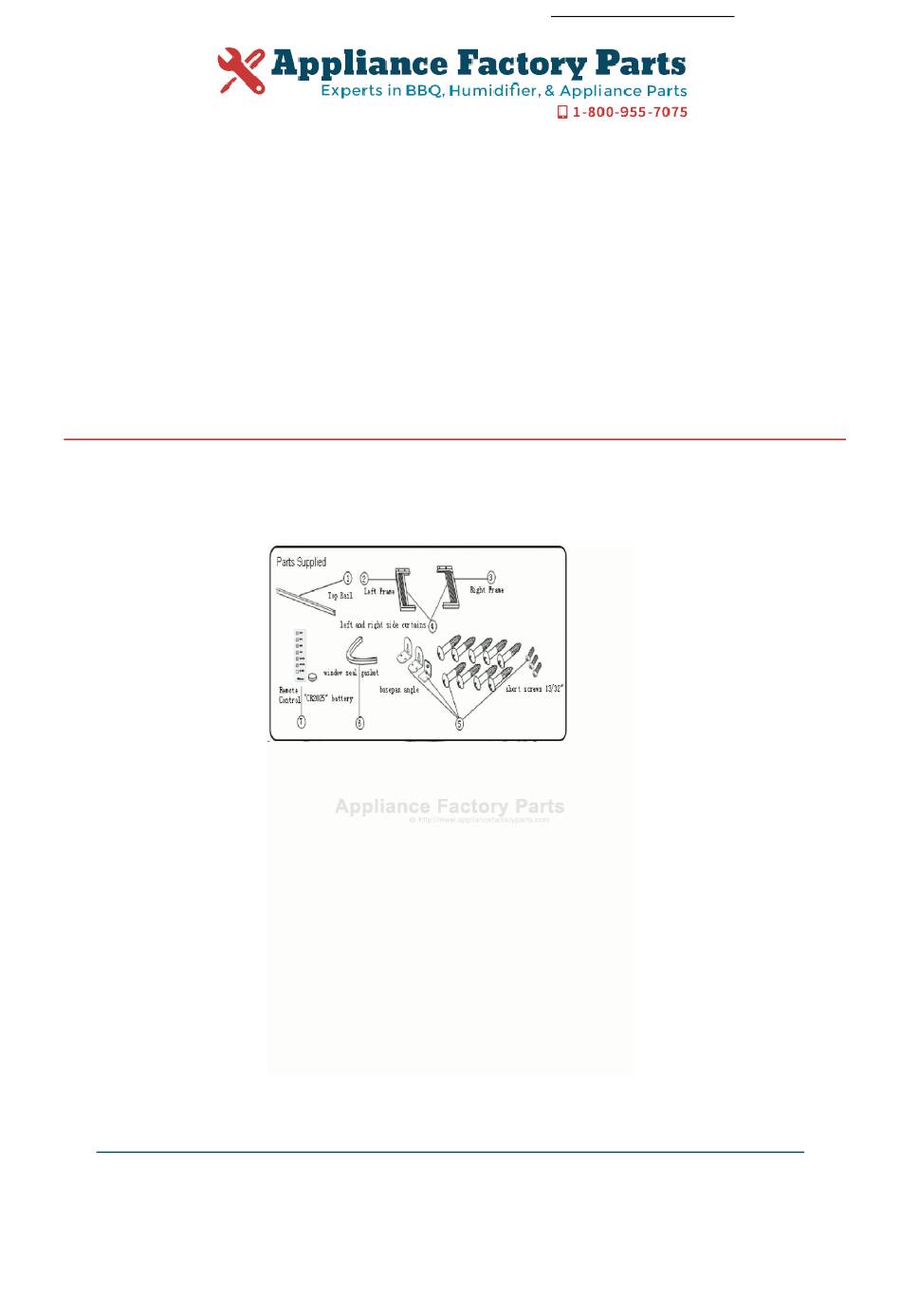

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Haier ACD12KE-E Owner's Manual Shop genuine replacement parts for Haier ACD12KE-E Find Your Haier Air Conditioner Parts - Select From 735 Models -------- Manual continues below part list --------...
- Page 2 Available Replacement Parts for Haier ACD12KE-E AC-5211-15 Partition - Bottom AC-5211-16 Partition - Middle AC-1400-154 Capacitor - Fan Moto AC-5620-080 Remote WJ43X22906 WINDOW SEAL GASKET WJ65X23780 FRAME - ACCORDIAN(R) WJ85X23968 USE NLA ITEM FILTER...
- Page 3 SERVICE MANUAL Model No. ACD12KE Feature ON/OFF MODE Top Discharge Airflow Pattern SPEED TIMER Modern Family-look Design TEMP/TIME TEMP/TIME UV LIGHT 3 Cool Settings, 3 Fan Settings Easy-to-ins tall Mounting Kit Easy-Access Washable Filter Digital Time & Temperature Display 24 Hour on/off Timer WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public.
-
Page 4: Table Of Contents
Table of Contents ACD12KE Table of Contents 1. Product Code Illumination and Series introduction........2. Specifications....................3. Safety and Precaution..................4 4. Warning and Cautions..................5 5. Installation and Accessory Parts..............6 6. Parts and Functions..................14 7. Abnormity Diagnose..................18 8. -
Page 5: Product Code Illumination And Series Introduction
Table of Contents ACD12KE 1. Product Code Illumination and Series Introduction 1). Model identification: A C D Air condition Cooling only Chassis Cooling capacity (BTU/h) with the first two numbers based on one thousand unit Design code Abbreviation of Energy Star Examples: ACD12KE It represents energy star window air conditioner. -
Page 6: Specifications
Specification ACD12KE 2. Specification Item Unit ACD12KE Cooling capacity BTU/h 12000 Heating capacity BTU/h Power supply Ph,V, Hz 1, 115, 60 Power input 1110 Cooling Running current BTU/(h.w) 10.8 Power input Heating Running current BTU/(h.w) ndoor side dB(A) Sound Level Outdoor side dB(A) Height... -
Page 7: Safety And Precaution
Safety and Precaution ACD12KE 3. Safety and Precaution WARNING: Following these basic precautions will reduce the risk of fire ,electrical shock ,injury or death when using your air conditioner . 1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply . 2) Proper grounding must be ensured to reduce the risk of shock and fire . -
Page 8: Warning And Cautions
Warning and Cautions ACD12KE 4.Warning and Cautions WARNINGS: Following the safety messages is very important. These messages can save you from being injured or killed. Warning symbols alert you to be careful and means Danger . Always follow instructions to be safe and reduce chances of injury or death . -
Page 9: Installation And Accessory Parts
ACD12KE Installation and Accessory Parts 5. Installation and Accessory Parts IMPORTANT: Observe all governing codes and ordinances. Check the location where the air conditioner will be installed. Make sure you have everything necessary for correct installation. The location should provide: ■... -
Page 10: Window Installation
ACD12KE Installation and Accessory Parts Window Installation Window opening measurements: ■ 24 ½”minimum to 38” (62.2 cm to 96.5 cm) maximum opening width. ■ 14 9⁄16” (37 cm) minimum opening height. A. 24 ” (62.2 cm) minimum ” B. 14 (37 cm) minimum MODEL ACD12KE... - Page 11 ACD12KE Installation and Accessory Parts Install Side Curtains NOTE: Attach curtains to the air conditioner before placing the air conditioner in window. 1. Place the tabbed side of the side curtain in the track on the right-hand side of the air conditioner cabinet. A.
-
Page 12: Prepare Window For Installation
Installation and Accessory Parts ACD12KE 4. Slide the side curtain frame as close to the air conditioner as necessary to lock the side curtain to the frame. Repeat above steps for the left-hand side curtain and frame. Prepare Window for Installation Measure the width of the window opening. - Page 13 Installation and Accessory Parts ACD12KE A. Side curtain against window channel B. Window sash behind top channel C. Bottom channel in behind windowsill 2. Loosen the screw on the right-hand side of the air conditioner cabinet near the bottom. Slide the side bracket over the screw. 4.
- Page 14 Installation and Accessory Parts ACD12KE 7. Repeat for side bracket installation on the left-hand side of the air conditioner. Attach Side Curtains to Window 1. Pull the left-hand curtain out until it fits into the window channel. 2. Use a ¹⁄8” drill bit to drill a starter hole through the top hole in the side curtain and into the window sash. 3.
-
Page 15: Complete Installation
Installation and Accessory Parts ACD12KE Top View Bottom View Complete Installation 1. Insert the foam seal behind the top of the lower window sash and against the glass of the upper window. A. Top of lower window sash B. Foam seal 2. - Page 16 Installation and Accessory Parts ACD12KE Parts Check that all parts are included in parts package. ON/OFF MODE SPEED TIMER TEMP/TIME TEMP/TIME UV LIGHT A. Top channel ” screws (9) B. Foam seal G. Side curtains (2) C. Side brackets (2) H.
-
Page 17: Parts And Functions
Parts and Functions ACD12KE 6.Parts and Functions Mode Press MODE until you see the indicator light glow for the desired setting. 2. Choose Fan, Cool, Energy Saver or Dehum. ■ Fan—Only the fan runs. Press SPEED to select High, Med or Low fan speed. The display shows the current room temperature. - Page 18 ACD12KE Parts and Functions ■ Press the TEMP/TIME down arrow button to lower the temperature. Each time you press or hold the TEMP/TIME down arrow button, the temperature will go down 1ºF until it reaches 61°F (16°C). NOTE: After 5 seconds, the display will show the current room temperature. Timer Delay To set the Timer for a 1-hour to 24-hour delay until the air conditioner turns off (the air conditioner must be On): 1.
- Page 19 Parts and Functions ACD12KE Timer On : 1. Display on the air conditioner control panel will show remaining time. 2. While the display is showing the remaining time, press the TEMP/TIME up or down arrow button to increase or decrease the time. Using the Remote Control NOTE: Remote control may differ in appearance.
- Page 20 ACD12KE Parts and Functions Timer To set the Timer for a 1-hour to 24-hour delay before the air conditioner is turned off (the air conditioner must be On): 1. Press TIMER. Timer off indicator light on the air conditioner control panel will flash. TIMER 2.
-
Page 21: Abnormity Diagnose
Abnormity Diagnose ACD12KE 7. Abnormity Diagnose 1. Sensor Diagnose: 2 seconds after the sensors open circuit or short circuit, the unit will turn off automatically and the LED will show E0 until the sensors resume. Firstly check whether Terminal CN2 on Pull out the terminals on the indoor the indoor mainboard contact well or mainboard and reinsert them. - Page 22 Abnormity Diagnose ACD12KE 2. Keystroke circuit error diagnose: When power on for the first time, the PCB will check the keystroke circuit, is the sampling value is defferent with the theory value, the LED will show E1, which means failed keystroke circuit. The keyboard is locked and so invalid, but the remote control is working normally.
-
Page 23: System Flow Chart
System Flow Chart ACD12KE 8. System Flow Chart Domestic Air Conditioner... -
Page 24: Circuit Diagram
Circuit Diagram ACD12KE 9. Circuit Diagram Domestic Air Conditioner... - Page 25 Circuit Diagram ACD12KE Domestic Air Conditioner...
-
Page 26: Wiring Diagram
Wiring Diagram ACD12KE 10. Wiring Diagram Domestic Air Conditioner...
