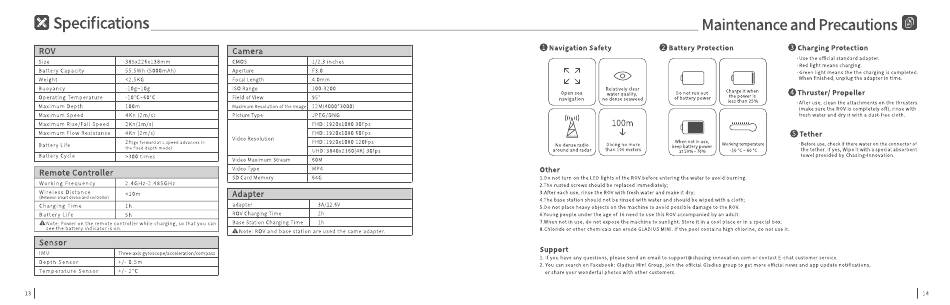

Chasing GLADIUS mini User Manual page 8

Specifications
ROV
Size 385x226x138mm
Battery Capacity 55.5Wh (5000mAh)
Weight
<2.5KG
Buoyancy -10g-10g
Operating Temperature
Maximum Depth
100m
Maximum Speed 4Kn (2m/s)
Maximum Rise/ Fall Speed 2Kn(1m/s)
Maximum Flow Resistance 4Kn (2m/s)
2h(go forward at L speed advancesin
Battery Life
the fixed depth mode)
Battery Cycle
>300 times
Remote Controller
Workin Frequency
2.4GHz-2.485GHz
Wireless Distance
< 10m
(Between smart device and controller)
Charging Time
Battery Life
A Note: Power on the remote controller while charging, so that you can
see the batter indicator is on.
Sensor
Three-axisgyroscope/acceleration/compass
Depth Sensor +/ _ 0.5m
Temperature Sensor
13
Camera
CMOS 1/2.3 inches
Aperture F3.0
Focal Length
4.0mm
SO Range
100-3200
Field of View
950
Maximum Resolution of the
mage
Picture Type JPEG/DNG
• 1920x1080 30Fps
1920x1080 60Fps
Video Resolution
FHD. • 1920x1080 120Fps
UHD. •3840x2160(4K) 30fps
Video Maximum Stream 60M
Video Type
SDCard Memory 646
Ada ter
adapter 3A/12.6V
ROV Char in ime
Base Station Charging Time lh
A Note: ROVand base station are used the same adapter.
Maintenance and Precautions O
O NavigationSafety
Battery Protection
O
Relatively clear
Open sea Do not run out
water quality,
of battery power
navigation
no dense seaweed
100m
When not in use,
No dense radio Diving no more
keep battery power
around and radar than 100 meters
at -
Other
I.DO not turn on the LED lights of the ROVbefore entering the water to avoid burning.
2.The rusted screws should be replaced immediately;
3.After each use, rinse the ROVwith fresh water and make it dry;
4.The base station should not be rinsed with water and should be wiped with a cloth;
5.Do not place heavy objects on the machine to avoid possible damage to the ROV.
6.Young people under the age of 16 need to use this ROVaccompanied by an adult.
7.When not in use, do not expose the machine to sunlight. Store it in a cool place or in a special box.
8.Chloride or other chemicals can erode GLADIUS MINI. If the pool contains high chlorine, do not use it.
Support
1. If you have any questions, please send an email to support@chasing-innovation.com
2. You can search on Facebook: Gladius Mini Group, join the official Gladius group to get more official news and app update notifications,
or share your wonderful photos with other customers.
Charging Protection
• Use the official standard adapter.
• Red light means charging.
•Green light means the the charging is completed.
When finished, unplug the adapter in time.
O Thruster/ Propeller
Charge it when
the power is
less than 25%
•After use, clean the attachments on the thrusters
(make sure the ROVis completely Off), rinse with
fresh water and dry it with a dust-free cloth.
O Tether
Working temperature •Before use, check if there water on the connector Of
the tether. If yes, Wipe it with a special absorbent
-10 60 ec
towel provided by Chasing-Innovation.
or contact E-chat customer service.
14
