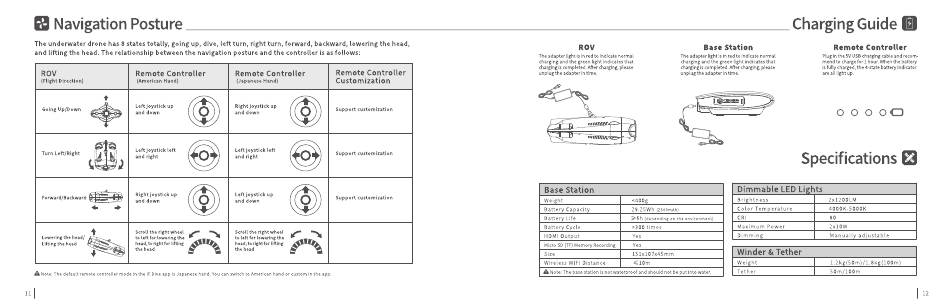

e Navigation Posture
The underwater drone has 8 states totally, going up, dive, left turn, right turn, forward, backward, lowering the head,
and lifting the head. The relationship between the navigation posture and the controller is as follows:
ROV Remote Controller
(Flight Direction) (American Hand)
Left joystick up
O
Going Up/Down
and down
Left joystick left
O
Turn Left/Right
and right
Right joystick up
O
Forward/Backward
and down
Scroll the right wheel
Lowering the head/
to left for lowering the
Lifting the head head, to right for lifting
the head
Note: The default remote controller mode in the IF.Dive app is Japanese hand. You can switch to American hand or custom in the app.
11
Remote Controller
Remote Controller
Customization
(Japanese Hand)
Right joystick up
O
Support customization
and down
Left joystick left
o
Support customization
and right
Left joystick up
O
Support customization
and down
Scroll the right wheel
to left for lowering the
head, to right for lifting
the head
Base
ROV
The adapter light is in red to indicate normal The adapter light is in red to indicate normal
charging and the green light indicates that charging and the green light indicates that
charging iscompleted. After charging,please charging is completed. After charging,please
unplug the adapter in time. unplug the adapter in time.
Base Station
Wei ht
<400
Battery Capacity 29.25Wh
Battery Life > 6h (depending on the environment)
Battery Cycle
>300 times
HDMI Output Yes
Micro SD(TF) Memory Recording Yes
Size 151x107x45mm
Wireless WIFI Distance < 10m
A Note:Thebasestationis notwaterproofandshouldnot be put into water.

Charging Guide

Station Remote Controller
Plug in the 5V USBcharging cableand recom
mend to charge for 1hour. When the battery
is fully charged,the 4-state battery indicator
are all light up.
O O

Specifications

Dimmable LED Lights
Bri htness 2x1200LM
Color Temperature 4000K-5000K
80
Maximum Power 2x10W
Manually adjustable
Dimming
Winder & Tether
Weight
Tether 50m/100m
12
