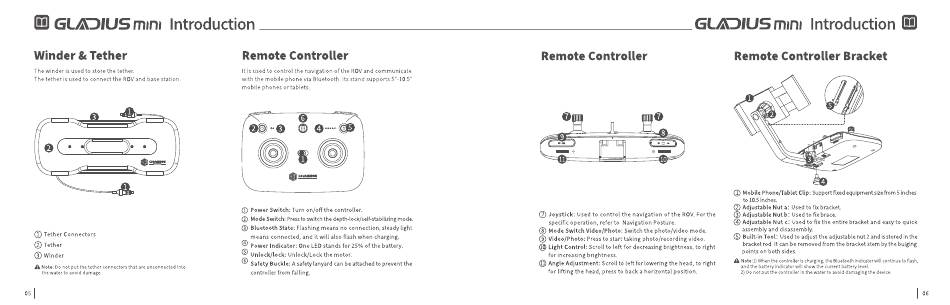

Chasing GLADIUS mini User Manual page 4

@ GLADIUS milli Introduction
Winder & Tether
The winder is used to store the tether.
The tether is used to connect the ROV and base station.
0
O TetherConnectors
@Tether
Winder
Note: Do not put the tether connectors that are unconnected into
the water to avoid damage.
05
Remote Controller
It is used to control the navigation of the ROVand communicate
with the mobile phone via Bluetooth. Its stand supports 5"-10.5"
mobile phones or tablets.
00 0
O Power Switch: Turn on/off the controller.
@ ModeSwitch: Press t o switchthe depth-lock/self-stabilizing mode.
O Bluetooth State: Flashing means no connection, steadylight
means connected, and it will also flash when charging.
Power Indicator: One LED stands for 25% of the battery.
Unlock/lock: Unlock/Lock the motor.
Safety Buckle: A safety lanyard can be attached to prevent the
controller from falling.
GLADIUS
Remote Controller
O O
O Joystick: Usedto control the navigation of the ROV. F orthe
specific operation, refer to Navigation Posture.
Mode Switch Video/photo: Switch the photo/video mode.
Video/Photo: Press to start taking photo/recording video.
@ Light Control: Scrollto left for decreasing brightness,to right
for increasing brightness.
Angle Adjustment: Scroll to left for lowering the head, to right
for lifting the head, press to back a horizontal position.
mnl Introduction @
Remote Controller Bracket
o
O MobilePhone/TabIet Clip:Support f ixedequipment size from5inches
to 10.5 inches.
@ AdjustableNut a: Used to fix bracket.
Adjustable Nut b: Used to fix brace.
@ AdjustableNut c: Usedto fix the entirebracketandeasyto quick
assembly and disassembly.
Built-in Tool: Used to adjust the adjustable nut2 and isstored in the
bracket rod. It can be removed from the bracket stem by the bulging
points on both sides.
Note:l) When the controller ischarging, the Bluetooth indicator will continue to flash,
and the battery indicator will show the current battery level.
2) Do not put the controller in the water to avoid damaging the device.
06
