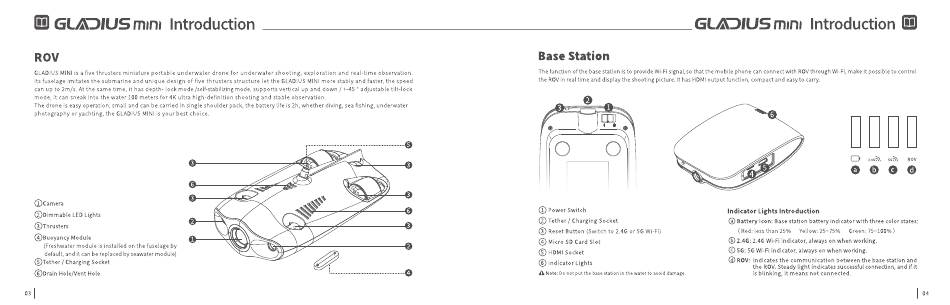

@ GLADIUS milli Introduction
ROV
GLADIUSMINI is a five thrusters miniature portable underwater drone for underwater shooting, exploration and real-time observation.
ts fuselage imitates the submarine and unique design of five thrusters
can up to 2m/s. At the same time, it has depth lock mode /self-stabilizing mode, supports vertical up and down / +-45 0 adjustable tilt-lock
mode, it can sneak into the water 100 meters for 4K ultra high-definition shooting and stable observation.
The drone is easy operation, small and can be carried in single shoulder pack, the battery life is 2h, whether diving, sea fishing, underwater
photography or yachting, the GLADIUS MINI is your best choice.
Camera
ODimmable LED Lights
OThrusters
@BuoyancyModule
(Freshwater module is installed on the fuselage by
default, and it can be replaced by seawater module)
OTether / Charging S ocket
•rain Hole/Vent Hole
03
structure let the GLADIUS MINI more stably and faster, the speed
o
GLADIUS
Base Station
The function of the base station is to provide Wi-Fi signal,so that the mobile phone can connect with ROVthrough Wi-Fi, make it possible to control
the ROV in real time and display the shooting picture. It has HDMIoutput function, compact and easyto carry.
Power Switch
@Tether/Charging Socket
O Reset B utton(Switch to 2.4Gor 5GWi-Fi)
@ MicroSDCardSlot
O HDMI S ocket
(D IndicatorLights
A Note:Donot put the basestationin thewater to avoiddamage.
munj Introduction @
2.4Gö,
O O
Indicator Lights Introduction
@ Battery Icon: Basestation batteryindicator with three color states:
( Red: less than 25% Yellow: 2+750/0 Green: 75100%)
2.4G: 2.4G Wi-Fi indicator, always on when working.
@5G: 5GWi-Fiindicator,alwaysonwhen working.
ROV: Indicates the communication between the base station and
the ROV.Steady light indicates successfulconnection, and if it
is blinking, it means not connected.
ROV
04
