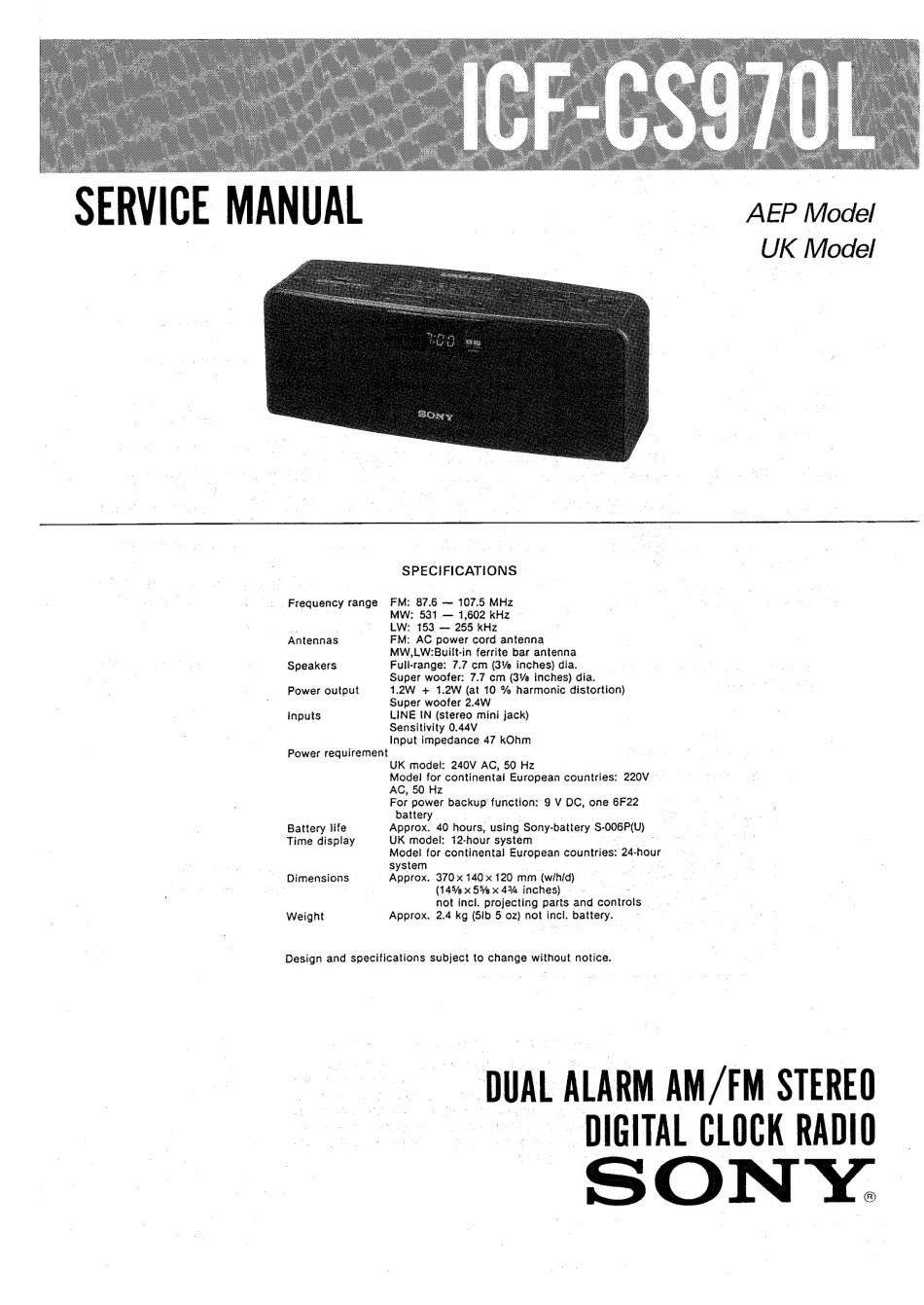

Sony ICF-CS970L Service Manual

AEP Model
UK Model
SPECIFICATIONS
Frequency range FM: 87.6 — 107. 5S MHz
MW: 531 — 1,602 kHz
LW: 153 — 255 kHz
Antennas FM: AC power cord antenna
MW,LW:Built-in ferrite bar antenna
Speakers Fuli-range: 7.7 cm (3% inches) dia.
Super woofer: 7.7 cm (3¥e inches) dia.
Power output 1.2W + 1.2W (at 10 % harmonic distortion)
Super woofer 2.4W
inputs LINE IN (stereo mini jack)
Sensitivity 0.44V
input impedance 47 kOhm
Power requirement
UK model: 240V AC, 50 Hz
Model for continental European countries: 220V —
AC, 50 Hz
For power backup function: 9 V DC, one 6F22
battery
Battery life Approx. 40 hours, using Sony- battery Ss 006P(U)
Time display UK model: 12- hour system
Model for continental European countries: 24- hour
system
Dimensions © Approx. 370 x 140 x 120 mm (wihid)
j . (145% x 55% x 4% inches) |
not inci. projecting parts and eaiitcols
Weight Approx. 2.4 kg (5lb 5 0z) not incl. battery.
Design and specifications subject to change without notice.
- DUAL ALARM AM/FM STEREO
"DIGITAL CLOCK RADIO
