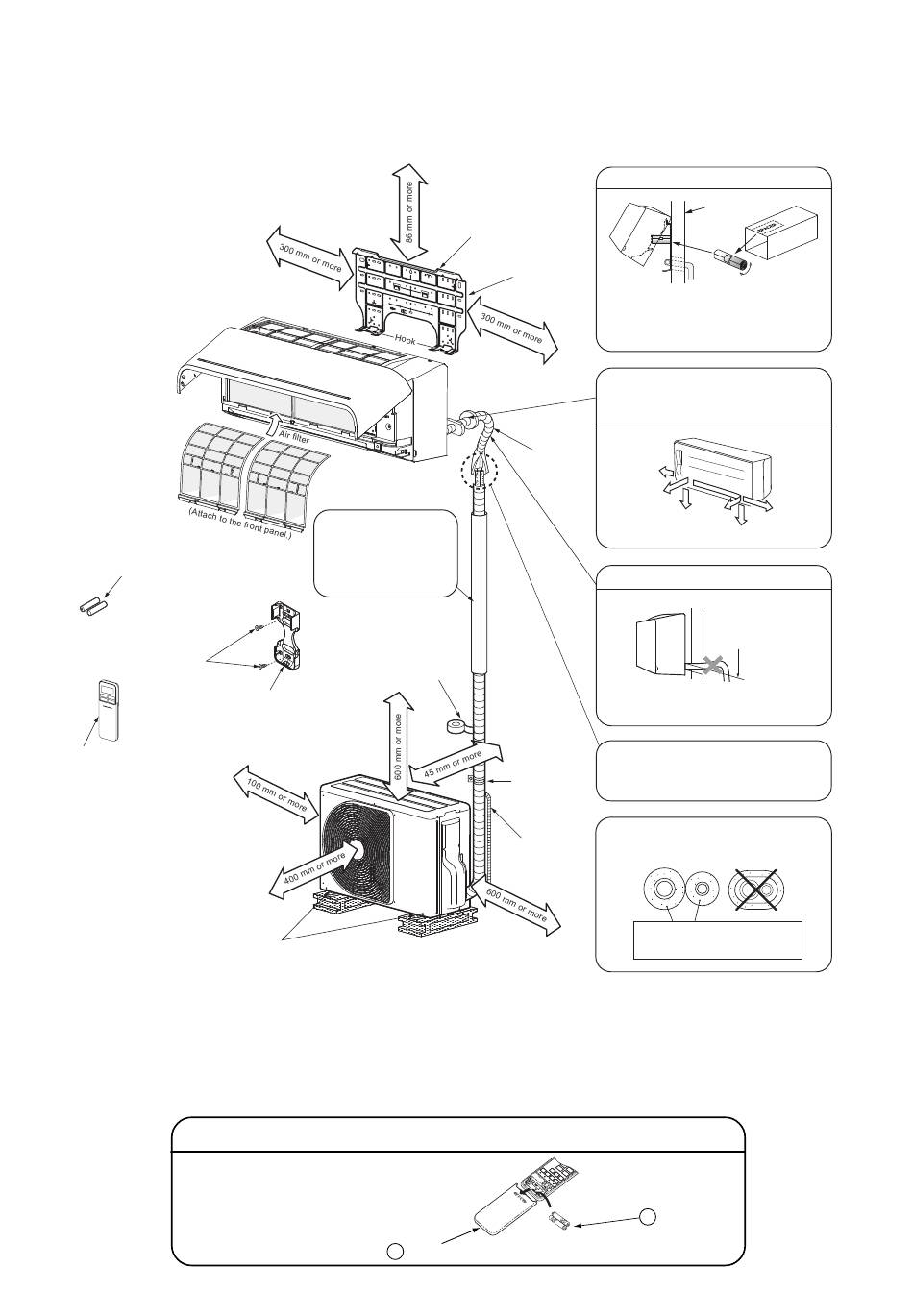

10-1. Installation Diagram of Indoor and Outdoor Units

Batteries
3
6
Flat head
wood screw
2
Wireless remote
control
Where there is a danger of the unit falling,
use foot bolts or wire.
• Loading Batteries
1. Remove the battery cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (−) positions.

10. INSTALLATION PROCEDURE

Refrigerant piping
must be protected from
physical damage.
Install a plastic cover or
equivalent.
Vinyl tape
Apply after carrying
out a drainage test.
4
Remote control
holder
Before installing the wireless remote controller
2 Wireless remote controller
For the rear left, bottom left and left piping
Hook
1 Installation
plate
Cut out a piece of SPACER from indoor
unit packaging box, roll it and insert
between the indoor unit and wall to tilt
the indoor unit for better operation.
The auxiliary piping can be connected to
the left, rear left, rear right, right, bottom
right or bottom left.
Shield pipe
Do not allow the drain hose to get slack.
Make sure to run the drain hose sloped
downward.
The flare connection should be installed
outdoors.
Saddle
Insulate the refrigerant pipes separately
Extension drain hose
with insulation, not together.
(Not available,
provided by installer)
- 51 -
Wall
Right
Rear
right
Left
Rear
Bottom
left
right
Bottom left
Cut the piping
hole sloped
slightly.
6 mm thick heat resisting
polyethylene foam
3 Batteries
