14. MANUAL DEFORST OPERATION
To defrosting the heat exchanger of the outdoor unit during Heating operation.
Press and hold
[ ] as picture 1 for 2 sec.

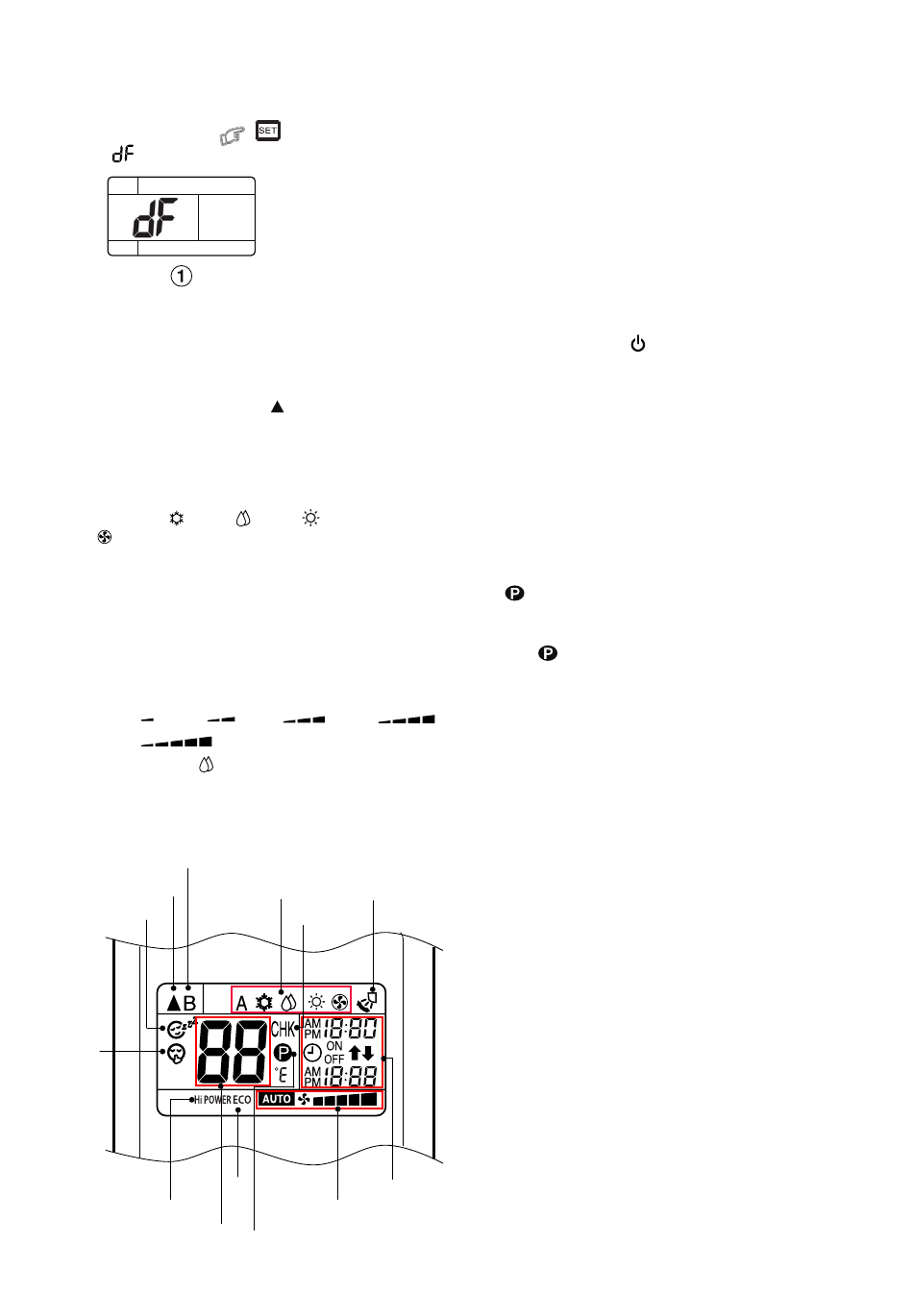

9-4-3. Name and Functions of Indications on Remote Controller

All indications, except for the clock time indicator, are displayed by pressing the
1.
Transmission mark
This transmission mark
remote controller transmits signals to the
indoor unit.
2.
Mode indicator
Indicates the current operation mode.
(A : Auto, : Cool,
: Fan only)
3.
Temperature indicator
Indicates the temperature setting.
(17°C to 30°C)
4.
FAN speed indicator
Indicates the selected fan speed.
AUTO or five fan speed levels
(LOW , LOW +
) can be shown.
HIGH
) fan speed is AUTO only.
In Dry mode (
9
1
10
11
6
3 7
: for 5 sec. then remote control display will show
indicates when the
: Dry, : Heat
, MED , MED
+
12
2
13
8
5
4
5.
TIMER and clock time indicator
The time setting for timer operation or the clock
time is indicated.
The current time is always indicated except
during TIMER operation.
6.
Hi-POWER indicator
Indicates when the Hi-POWER operation starts.
Press the Hi-POWER button to start and press it
again to stop the operation.
7
.
(PRESET) indicator
Flashes for 3 seconds when the PRESET button
is pressed during operation.
The mark is shown when holding down the
button for more than 3 seconds while the mark is
blinks.
Press another button to turn off the mark.
8.
ECO indicator
Indicates when the ECO is in activated.
Press the ECO button to start and press it again
to stop operation.
9.
A, B change indicator remote controller
When the remote controller switching function is set,
"B" appears in the remote controller display.
(When the remote controller setting is "A", there is
no indication at this position.)
10.
Comfort sleep
Indicates when comfort sleep is activated.
Press comfort sleep button to selectter.
11.
Quiet
Indicates when quiet is activated.
Press quiet button to start and press it again to stop
operation.
12.
Swing
Indicates when louver is swing.
Press swing button to start the swing operation and
press it again to stop the swing operation.
13.
Service Mode indicator
Shows during enter service Mode.
