Toshiba RAS-B13B2KVG-E1 Service Manual page 109

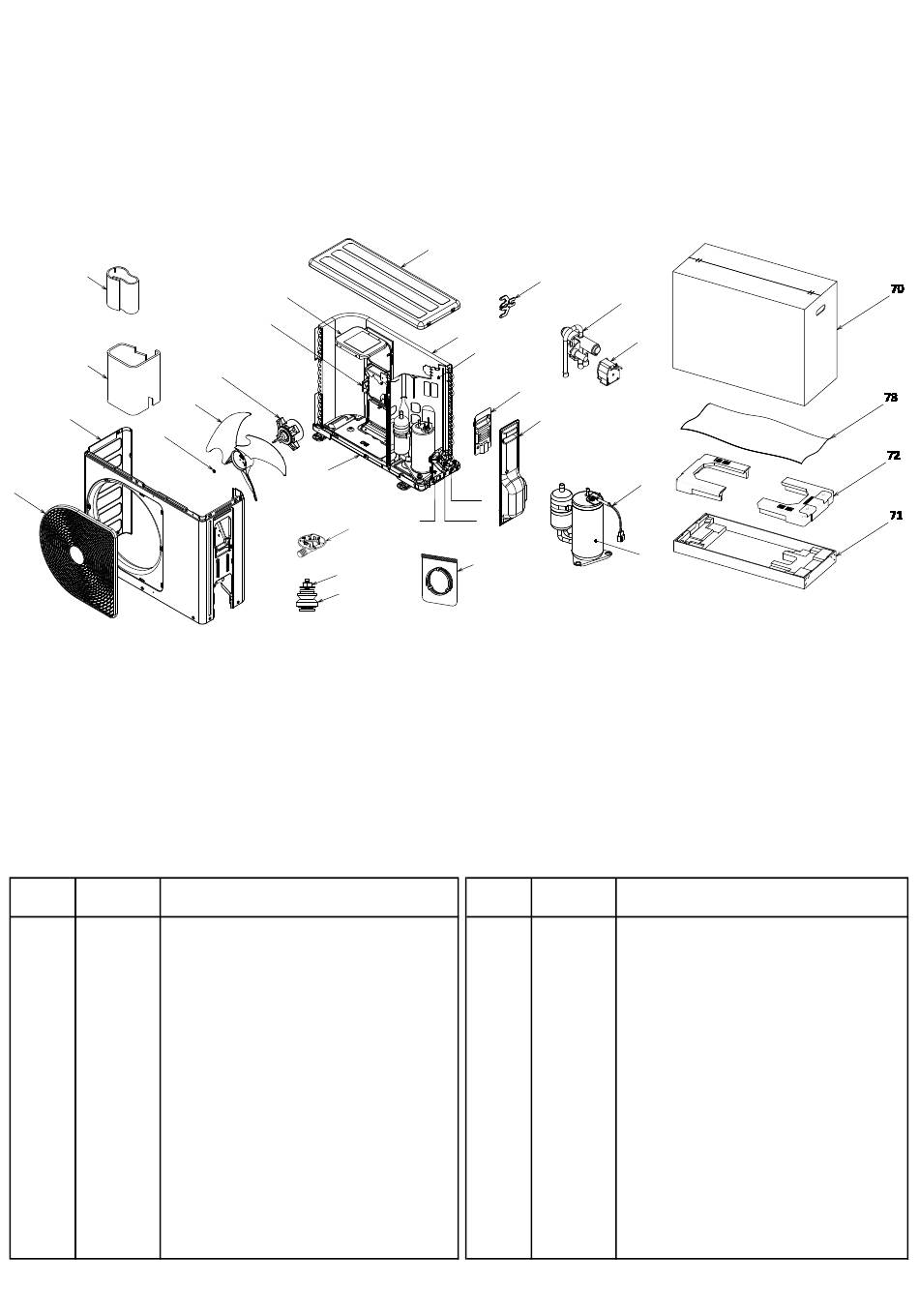

13-3. Outdoor Unit
80
82
5
62
20
Location Part
No. No.
1 43T42388 BASE PLATE ASSEMBLY
4 43T00734 UPPER CABINET ASSEMBLY
5 43T00683 FRONT CABINET ASSEMBLY
6 43T00448 FIXING PLATE VALVE
7 43T39334 MOTOR BASE CONNECTION PLATE
8 43T04325 PARTITION ASSEMBLY
9 43T62378 TERMINAL COVER ASSEMBLY
10 43T39325 MOTOR BASE
20 43T19363 FAN GUARD
21 43T20324 PROPELLER FAN
23 43T79325 DRAIN NIPPLE
24 43T19337 PACKED VALVE COVER
25 43T63376 HOLDER, SENSOR
30 43T43654 CONDENSER ASSEMBLY
35 43T41604 COMPRESSOR
36 43T47403 BONNET, 6.35 DIA
37 43T47404 BONNET, 9.52 DIA
7
10
52
21
1
23
60
61
Description
4
25
30
8
9
24
37,41
6 36,40
48
Location Part
No. No.
40 43T46540
41 43T46541
44 43T46367
45 43T63327
48 43T47007
52 43T21547
59 43T60498
60 43T97001
61 43T49327
62 43T47001
70 43T91310
71 43T91434
72 43T91302
73 43T91301
80 43T04458
82 43T04507
- 109 -
44
45
59
35
Description
VALVE; PACKED 6.35 DIA
VALVE; PACKED 9.52 DIA
4 WAY VALVE
COIL-4WAY
CAPILLARY TUBE; 1.2 DIA
MOTOR FAN
LEAD ASSY, COMPRESSOR
NUT
RUBBER CUSHION
NUT FLANGE
CARTON BOX
FIBERBOARD UNDER ASSEMBLY
CUSHION-PKG-UPR
PE SHEET
SOUND INSULATION INSIDE
SOUND INSULATION OUTSIDE
